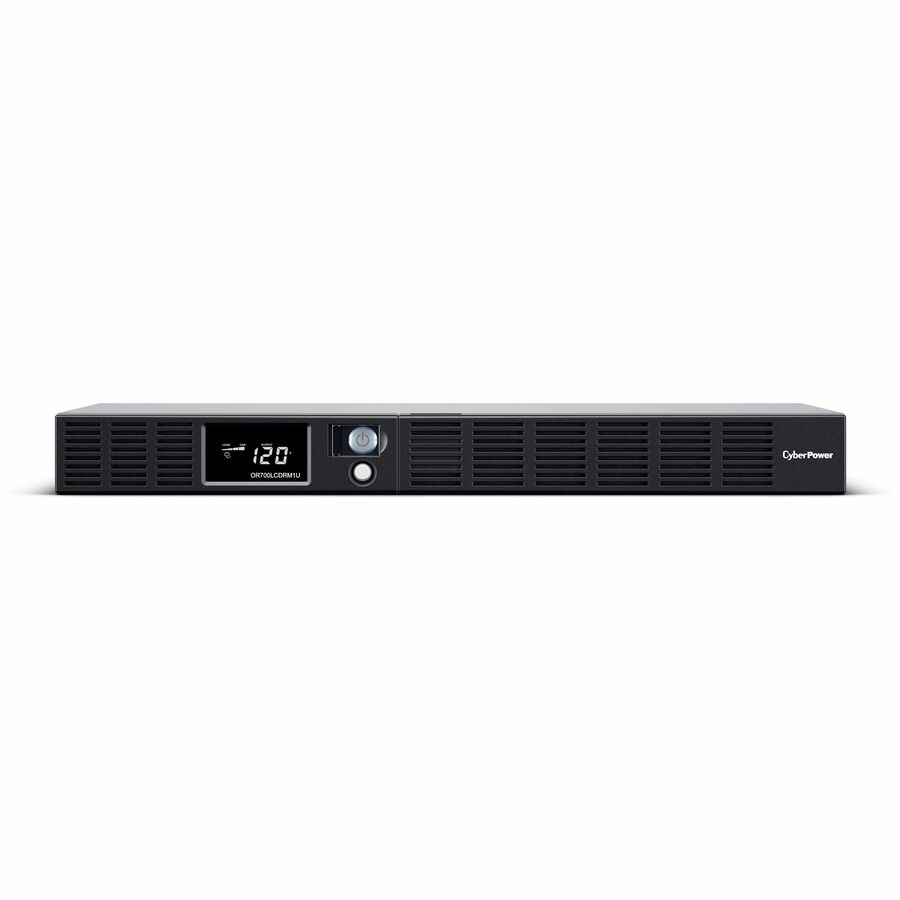

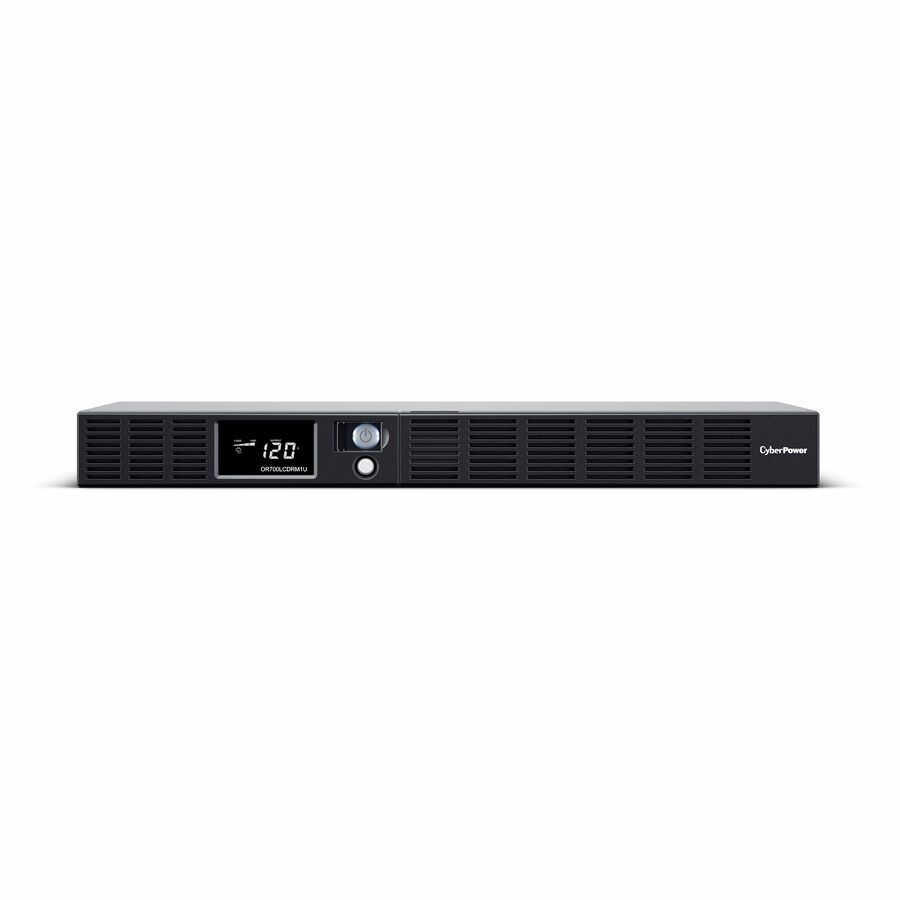

CyberPower OR700LCDRM1U Smart App LCD UPS Systems
CyberPower Systems

CyberPower OR700LCDRM1U Smart App LCD UPS Systems

700VA/400W, 120 VAC, NEMA 5-15P, 1U, Rackmount, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty

SKU
OR700LCDRM1U
Category
Industrial UPS

MSRP$359.95

$319.73

Save 11%

In stock: 37

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
OR700LCDRM1U
Category
Industrial UPS

Overview

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR700LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR700LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR700LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

More from the Manufacturer

Highlights

  • Capacity: 700 VA / 400 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 10%
  • Plug type & cord: NEMA 5-15P, 10 ft. cord

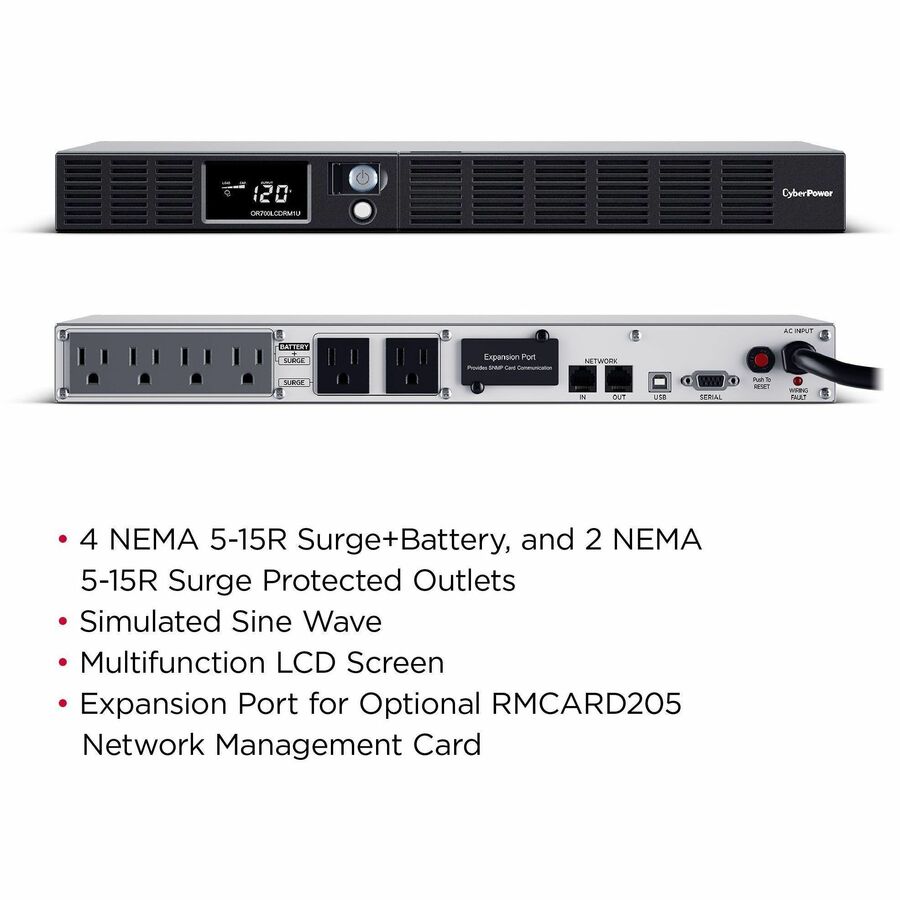

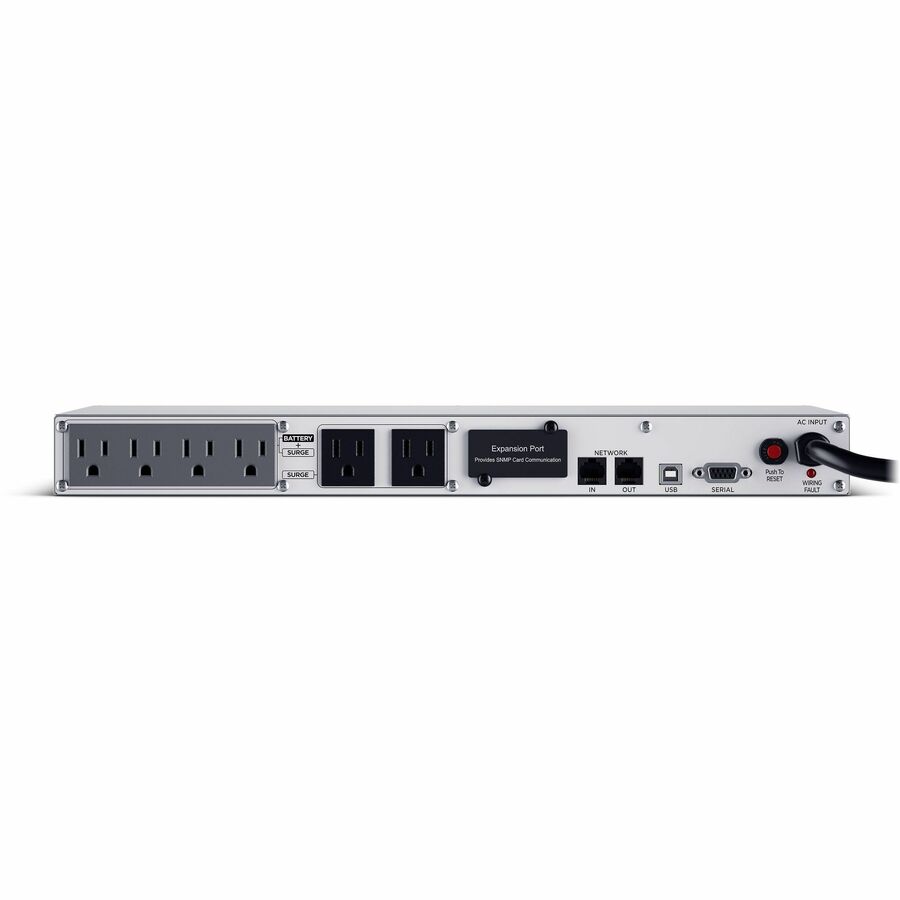

  • Outlet types: 6 × NEMA 5-15R
  • Communication: USB, Serial, SNMP
  • Management software: PowerPanel® Business

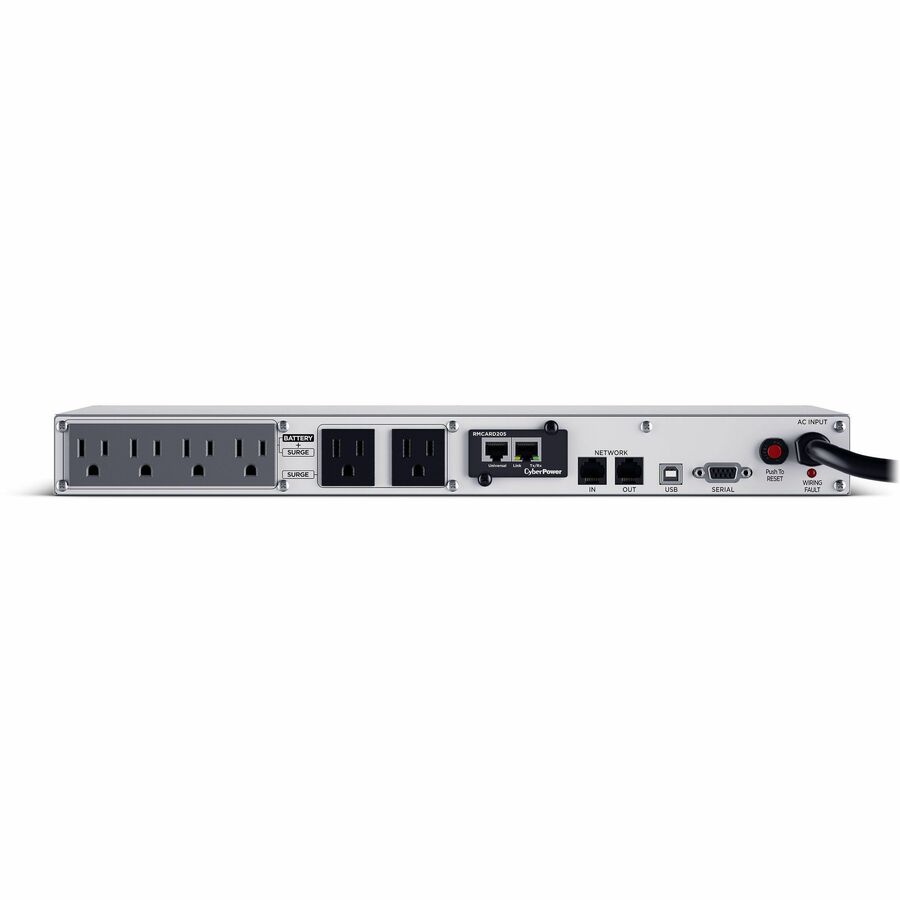

  • Remote management: Yes, with optional RMCARD205
  • ENERGY STAR® certified: Yes
  • Warranty: 3 year

Specifications

Additional Warranty InformationCyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.
Application/UsageServer, Workstation, Network Device, Telecommunication
Battery ChemistryLead Acid
Package Contents
  • Smart App Intelligent LCD OR700LCDRM1U 700VA UPS
  • Rack Ears (2)
  • User Manual
  • Power Management Software
  • Warranty Card
  • Serial Cable
  • Phone Cable
  • USB Cable
Software IncludedPowerPanel® Business
Product TypeLine-interactive UPS
Input Voltage120 V AC
Manufacturer Part NumberOR700LCDRM1U
Limited Warranty3 Year
Output Voltage120 V AC
Weight (Approximate)18.50 lb
Dataline ProtectionRJ-45
Form FactorRack-mountable
Status IndicatorsOn Unit: Power On Wiring Fault LCD Panel: Input Voltage Output Voltage Battery Capacity Load Level Runtime On Battery Overload Silent Mode
ManufacturerCyberPower Systems, Inc
Product ModelOR700LCDRM1U
Product NameOR700LCDRM1U Smart App LCD UPS Systems
Overload ProtectionYes
Surge Energy Rating1150 J
Waveform TypeSimulated Sine Wave
Product SeriesSmart App LCD UPS
Rack Height1U
Brand NameCyberPower
Plug/Connector TypeNEMA 5-15P
Input Voltage Range90 V AC - 140 V AC
AlarmBattery Mode
Country of OriginChina

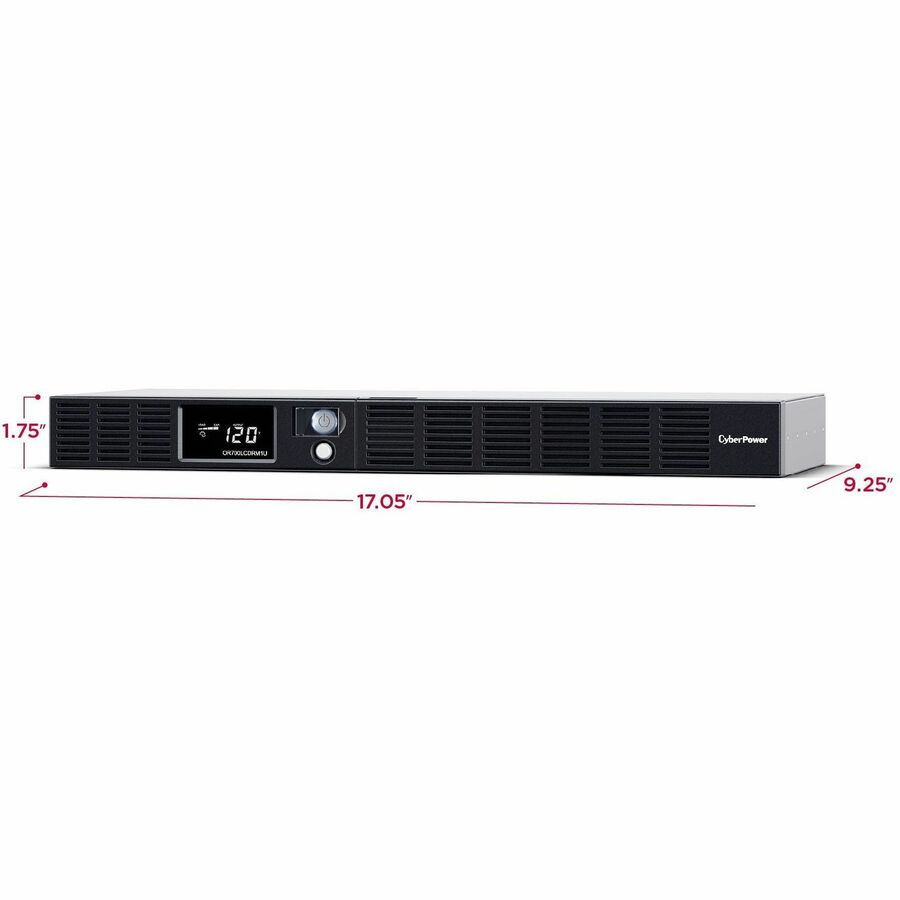

Height1.8"
Width17.1"
Depth9.3"
Input Frequency63 Hz
Battery Size6V
Receptacle TypeNEMA 5-15R
Environmentally FriendlyYes
Battery Capacity8000 mAh
Maximum Operating Temperature104°F (40°C)
Serial PortYes
Number of Batteries2
Backup/Run Time (Half Load)11 Minute
Backup/Run Time (Full Load)3 Minute
Battery CharacteristicsMaintenance-free
Load Capacity (VA)700 VA
EMI/RFI Noise FilterYes
Replaceable BatteryYes
Energy StarYes
AVRYes
Energy SavingGreenPower UPS? Bypass Technology
USB (HID Compliant) PortYes
Maximum Operating Elevation10000 ft
Maximum Storage Elevation50000 ft
Number of Battery & Surge Outlets4
Storage Relative Humidity0% - 95%
Number of Surge-only Outlets2
Transfer Time8 ms
Typical Battery Recharge Time8 Hour
Product ColorBlack
Receptacle Detail6 x NEMA 5-15R
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
