CyberPower OR1500LCDRM1U Smart App LCD UPS Systems
CyberPower Systems

CyberPower OR1500LCDRM1U Smart App LCD UPS Systems

1500VA/900W, 120 VAC, NEMA 5-15P, 1U, Rackmount, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty

SKU
OR1500LCDRM1U
Category
Industrial UPS

MSRP$699.95

$596.05

Save 15%

In stock: 28

Get a quote

Genuine CyberPower Systems through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
OR1500LCDRM1U
Category
Industrial UPS

Overview

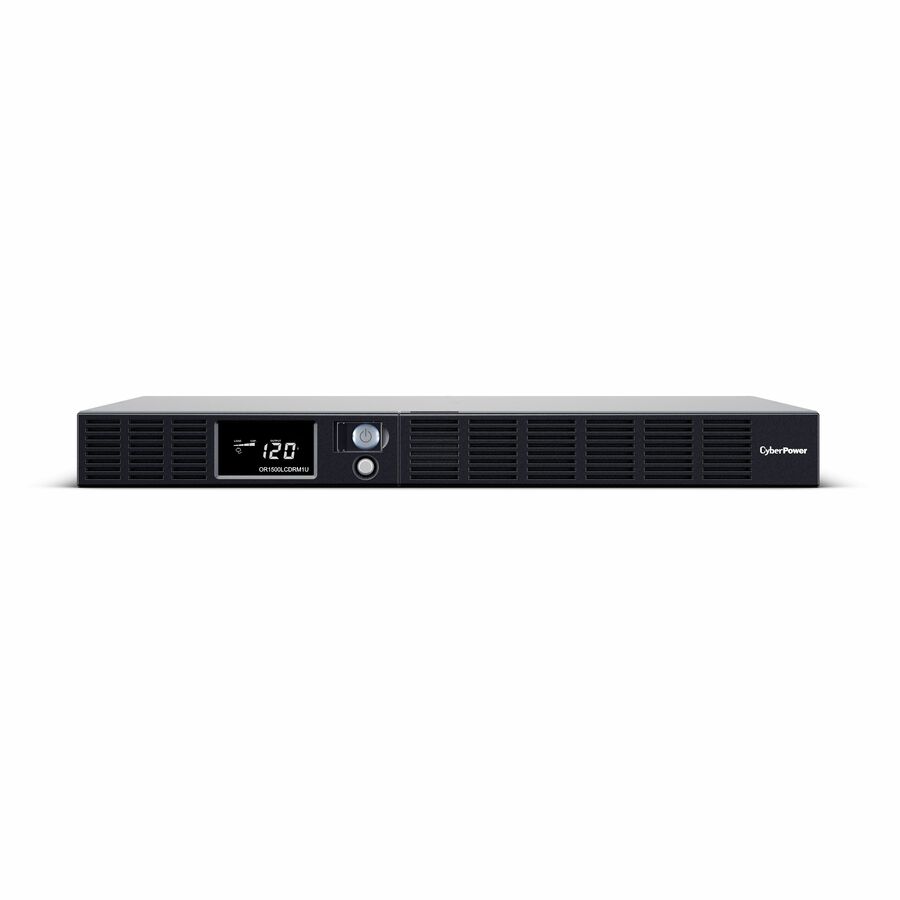

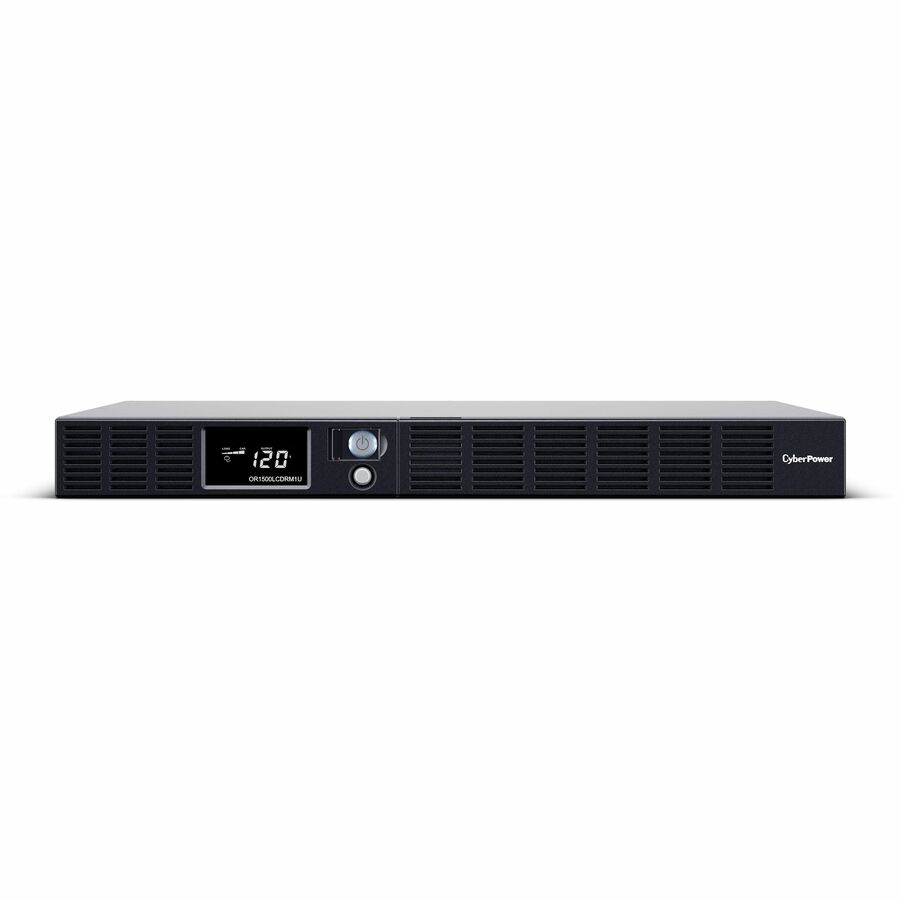

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1500LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1500LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1500LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

More from the Manufacturer

Highlights

  • Capacity: 1500 VA / 900 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Plug type & cord: NEMA 5-15P, 10 ft. cord

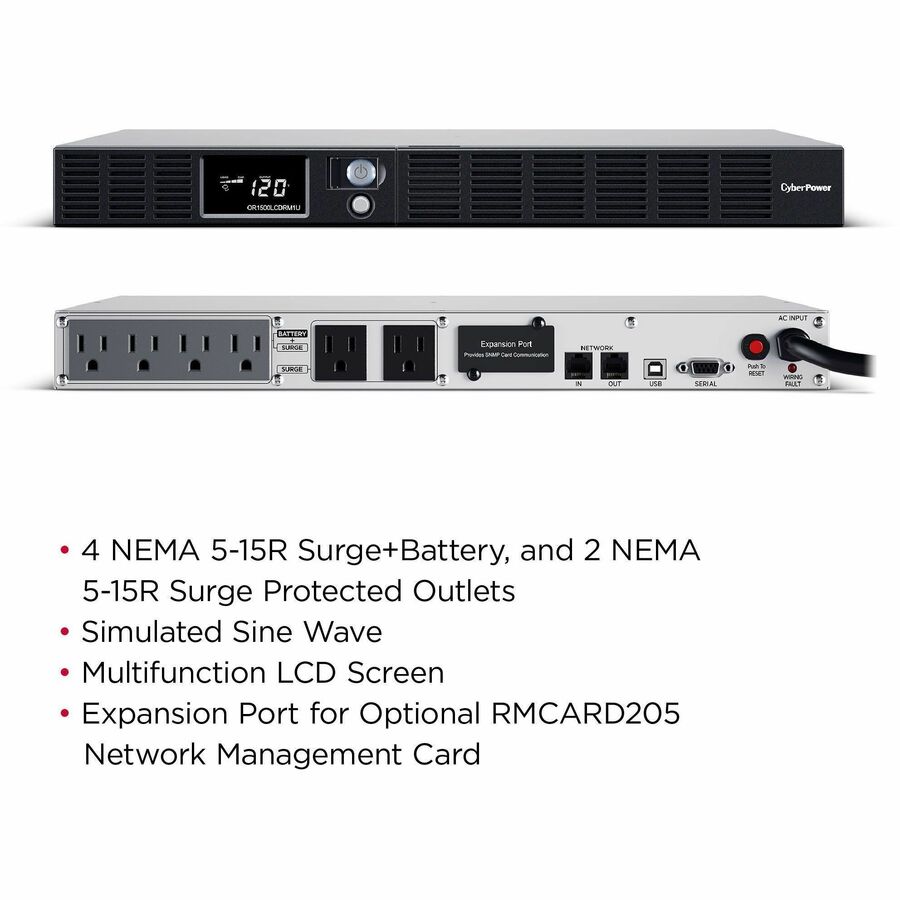

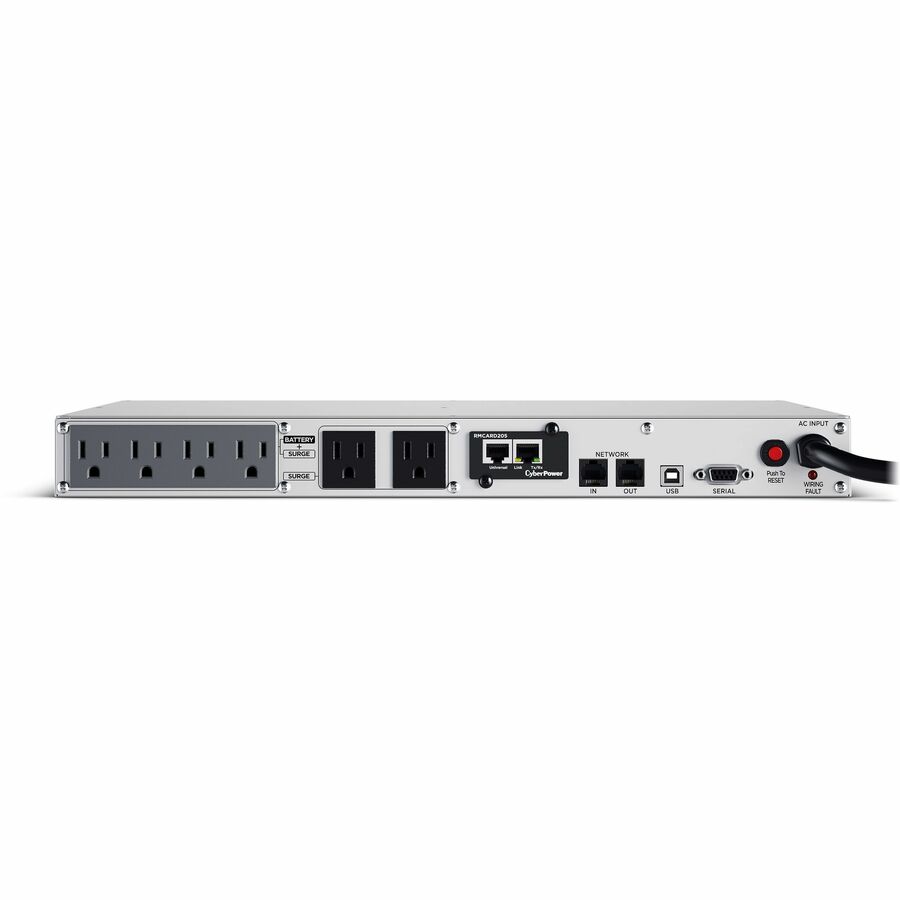

  • Outlet types: 6 × NEMA 5-15R
  • Communication: USB, Relay, SNMP
  • Management software: PowerPanel® Business
  • Remote management: Yes, with optional RMCARD205
  • Warranty: 3 year

Specifications

Battery ChemistryLead Acid
Software IncludedPowerPanel® Business
Product TypeLine-interactive UPS
Input Voltage120 V AC
Manufacturer Part NumberOR1500LCDRM1U
Limited Warranty3 Year
Output Voltage120 V AC
Weight (Approximate)33 lb
Dataline ProtectionRJ-45, RJ-11
Form FactorRack-mountable
Status Indicators
  • Power On
  • Multifunction LCD
ManufacturerCyberPower Systems, Inc
Product ModelOR1500LCDRM1U
Product NameOR1500LCDRM1U Smart App LCD UPS Systems
Network ManagementSNMP Manageable
Overload ProtectionYes
Surge Energy Rating1150 J
Waveform TypeSimulated Sine Wave
Product SeriesSmart App LCD UPS
Rack Height1U
Brand NameCyberPower
Plug/Connector TypeNEMA 5-15P
Input Voltage Range90 V AC - 140 V AC
Output Frequency60 Hz
AlarmBattery Mode

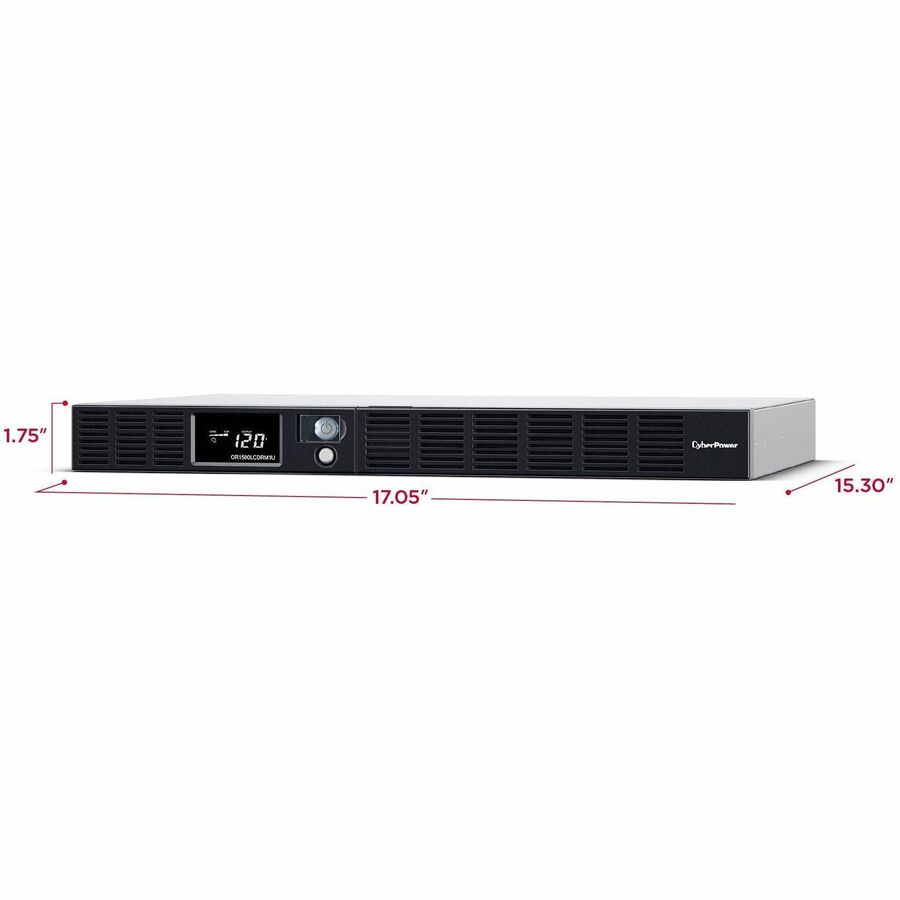

Height1.8"
Width17.1"
Input Frequency63 Hz
Battery Size6V
Receptacle TypeNEMA 5-15R
Environmentally FriendlyYes
Battery Capacity9000 mAh
USBYes
Maximum Operating Temperature104°F (40°C)
Serial PortYes
Number of Batteries4

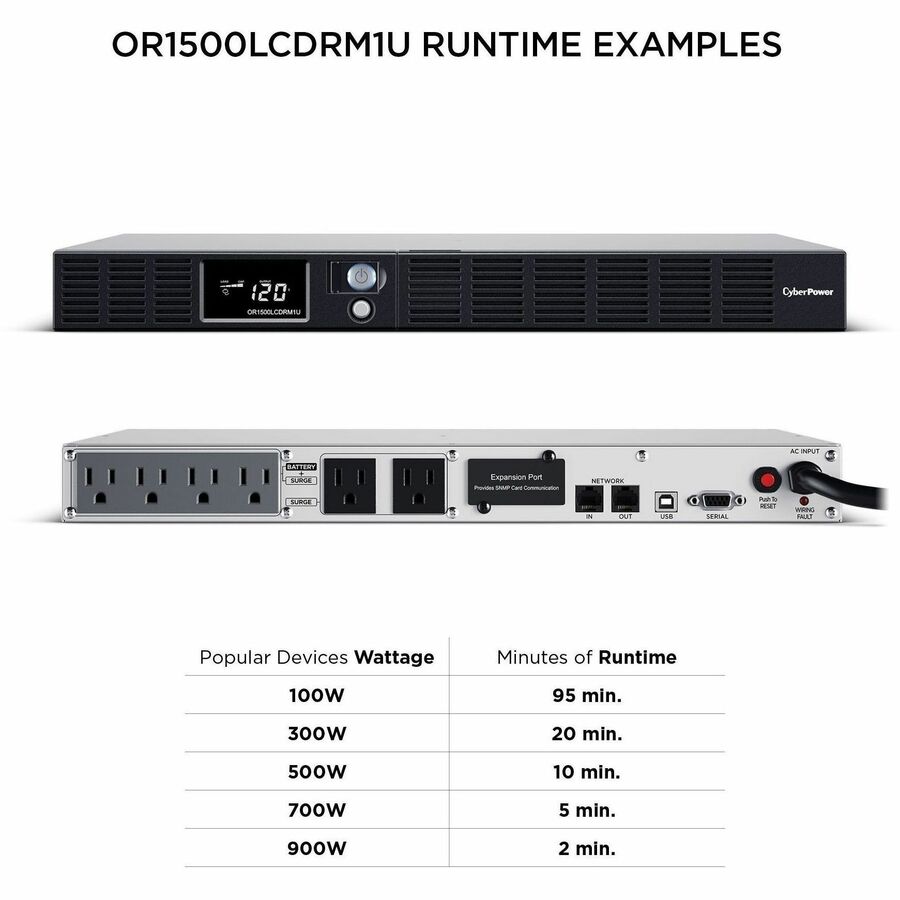

Backup/Run Time (Half Load)11 Minute
Backup/Run Time (Full Load)2 Minute
Load Capacity (VA)1500 VA
EMI/RFI Noise FilterYes
Replaceable BatteryYes
Energy StarYes
AVRYes
DC System Voltage6 V DC
Energy SavingGreenPower UPS? Bypass Design
USB (HID Compliant) PortYes
Maximum Operating Elevation10000 ft
Maximum Storage Elevation50000 ft
Number of Battery & Surge Outlets4
Number of Surge-only Outlets2
Transfer Time8 ms
Typical Battery Recharge Time8 Hour
Receptacle Detail6 x NEMA 5-15R
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
