Double Conversion | 11U | Built-in RDU120 Card | Color / Graphic LCD HMI | 3-Year Warranty
MSRP$25,649.00
$16,620.55
Save 35%In stock: 74
Genuine Vertiv through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

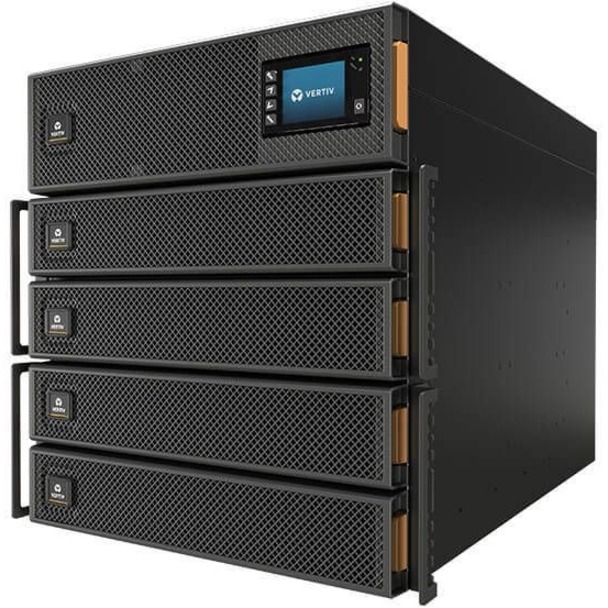

The Vertiv Liebert GXT5 uninterruptible power supply (UPS) protects critical equipment against outages and every type of power disturbance. This 15kVA online double conversion UPS offers continuous power conditioning in centralized and edge locations. With power factor (1.0), it allows more connected loads saving space and costs. This tower/rack mount UPS has a built-in Vertiv RDU120 communications card with the free Vertiv Power Insight software for remote monitoring to help you make more informed decisions and faster event resolution. This 208V in/ 208 and 120V out single phase UPS has scalable runtime options with External Battery Cabinet (EBC) Autodetection to give extra runtime during an outage to support critical equipment. This battery backup is ENERGY STAR 2.0 certified and comes with a color/graphic LCD HMI display. It offers battery heath status and has optional Power Output Distribution (POD) selections with NEMA or IEC outlet receptacles.
More from the Manufacturer
Flexible, Online Double Conversion
The VertivTM Liebert® GXT5 UPS is an online double conversion UPS solution which offers premium power outage protection and continuous power conditioning in a compact and flexible deployment system. This single-phase UPS operates with high power efficiency is intended for both centralized and edge applications. It provides battery health status and replacement date prediction for intelligent battery health management. Available from 500VA to 20kVA, the GXT5 includes a rack mounting hardware kit and base for tower installation in open environments. Scalable runtime options with matching external battery cabinets and hot-swappable internal batteries offer additional flexibility when extended uninterrupted power is required. The 15kVA-20kVA UPS models include pre-installed Vertiv RDU120 card, a network management card with security and remote management capabilities that makes systems easy to deploy and simple to manage. With optional Vertiv LIFE Services, data center managers can reduce the risk of unexpected downtime through remote diagnostic and preventive monitoring. The Vertiv Liebert 15-20kVA GXT5 UPS includes:
Three-year comprehensive factory warranty for UPS and battery.

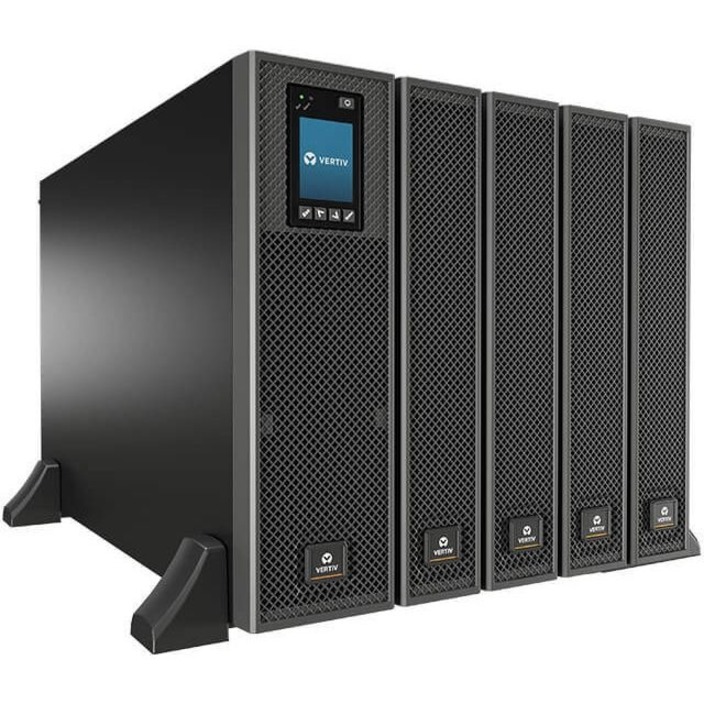

Rack/tower convertible systems that are easy to install, configure and operate.
High Output Power Factor of 1.0 (unity) ensures the maximum usable power to support the connection of more loads and IT equipment.
EPA Energy Star® 2.0 certified with high normal operating efficiency and ultimate efficiency with Vertiv’s active eco-mode.
User-friendly interface includes color graphic LCD with gravity sensing feature.
Optional power output distribution (POD) modules available with either NEMA or IEC receptacles.
COMPLETE POWER PROTECTION
The Vertiv Liebert GXT5 UPS provides online double conversion technology to protect critical equipment against outages. It offers continuous power conditioning to eliminate disturbances such as blackouts, brownouts, saps, surges or noise interference. During an outage, this UPS seamlessly transfers to battery with no interruption in power to supported equipment. Programmable sockets help extend runtime for the most critical loads and smart disconnection of the less critical equipment. Scalable runtime options with matching auto-detection external battery cabinets provide additional flexibility when extended uninterrupted power is required. The auto-detection feature of the external battery cabinet ensures the proper set-up and configuration of the system runtime allowing users to plan critical systems support accurately.
REMOTE MANAGEMENT CAPABILITIES
Every 15-20kVA Vertiv Liebert GXT5 UPS includes factory pre-installed Vertiv RDU120 card to provide remote and web UI-based monitoring. With the use of free Vertiv Power Insight software management, data center managers can consolidate their view of UPS systems providing simple notification of status and events in a single pane of glass view of the backup systems. The network card enables remote management that can maximize uptime, minimize onsite support and keep data secure. It allows remote infrastructure visibility and provide actionable information for continuous availability. Compatible with environmental sensors, it can also monitor heat, humidity and other factors in remote locations.
BENEFIT FROM LEADING UPS TECHNOLOGY
The Vertiv Liebert GXT5 UPS is easy to deploy with convertible rack/tower design that offers installation flexibility, and its gravity-sensing, color LCD provides a user-friendly interface for local configuration and management. Setup and configuration is also made easy with auto-detection of external battery cabinets for additional runtime solutions. High efficiency operation of this Energy Star 2.0 certified UPS means you get protection while being energy conscious.
FULL-SERVICE SUPPORT
Vertiv offers convenient and cost-effective service solutions for stress-free UPS installation and maintenance. From the standard three-year comprehensive factory warranty for UPS and battery with next-day advanced exchange, to Vertiv LIFE Services that includes remote diagnostic and preventive monitoring from Vertiv experts, Vertiv stands behind every Liebert GXT5 UPS.
SERVER AND ROUTER PROTECTION

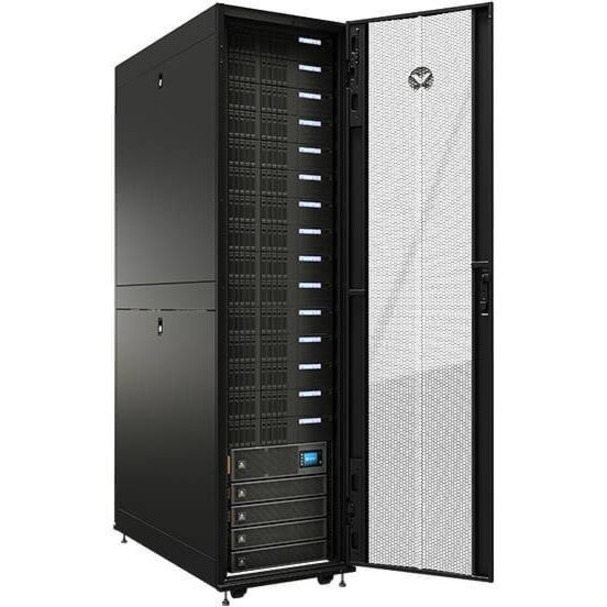

The Vertiv Liebert GXT5 UPS is ideal for protecting servers and routers in rack or tower configurations in small offices, network closets and remote locations. A rack mounting hardware kit is included with each unit, as well as a base for tower installation in open environments. With up to 20kVA / 20kW power capacity, the GXT5 can even support Room and Row-based applications.
BRANCH OFFICE/DISTRIBUTED IT
With true online protection, remote management capabilities and full-service support, the Vertiv Liebert GXT5 UPS provides reliable protection for the unique requirements of retail stores, school districts, government offices, bank branches and other distributed IT applications. Where IT downtime can disrupt business and on-site personnel are unprepared to deal with service issues, the Vertiv Liebert GXT5 UPS delivers reliable and worry-free power protection. With real-time environmental monitoring and alarm notifications, critical issues can be resolved quickly or even prevented.
LIFE CRITICAL
When human health and safety is on the line, the demand for speed and reliability of critical IT infrastructure becomes even greater. Healthcare facilities need to ensure that the power systems that support healthcare IT systems are robust enough for 24/7 availability. The government and utility sectors require real-time data to make informed decisions during crisis. The Vertiv Liebert GXT5 UPS provides the highest level of utility power conditioning and protection for critical IT systems.
EDGE OF NETWORK
A smarter, simpler, more self-sufficient edge of the network is converging with broader industry and consumer trends, including the Internet of Things (IoT) and the rollout of 5G networks, to drive powerful, low-latency computing closer to the end-user. The Vertiv Liebert GXT5 UPS provides the reliability and manageability critical edge applications require.
GXT5-15KMVRT11UXLN
Ratings (VA/W): 15kVA/15kW

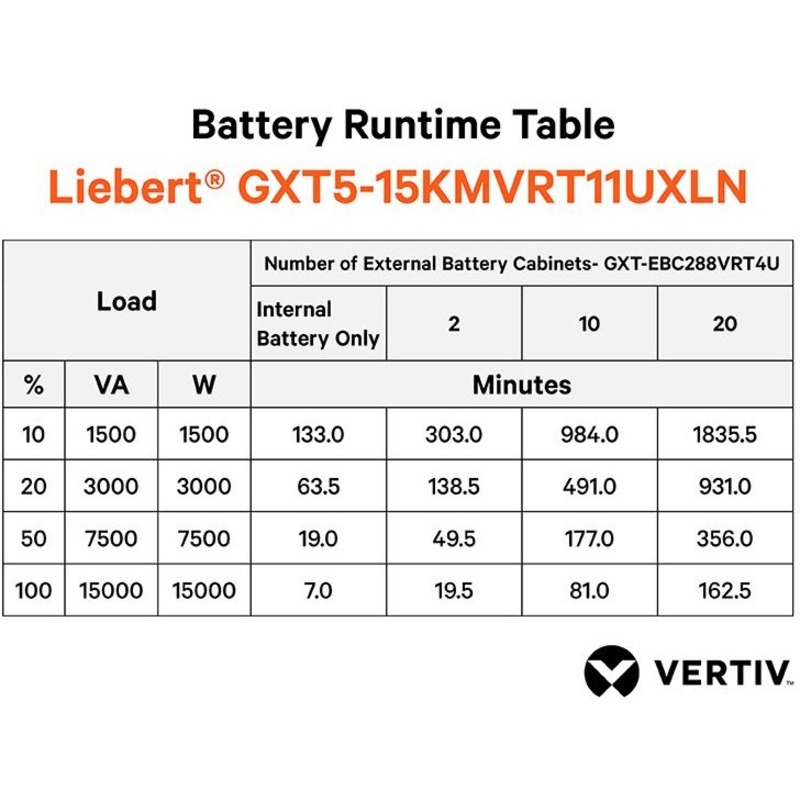

Full-Load Runtime (min): 7.0
Half-Load Runtime (min): 19.0
W-D-H in(mm): 16.9 x 26.7 x 18.9 (430 x 680 x 482)
Weight, pounds (kg): 396.6 (179.9)
GXT5-20KMVRT11UXLN
Ratings (VA/W): 20kVA/20kW
Full-Load Runtime (min): 4.5
Half-Load Runtime (min): 13.0
W-D-H in(mm): 16.9 x 26.7 x 18.9 (430 x 680 x 482)
Weight, pounds (kg): 396.6 (179.9)
Limited Warranty: 3 Year
Digital Continuity Solutions Vertiv brings together hardware, software, analytics, and ongoing services to ensure a customer’s digital infrastructure and vital applications run continuously, perform optimally, and scale with business needs Vertiv is a U.S. based, publicly-traded (NYSE: VRT), global manufacturer of power, thermal and IT infrastructure products and services. By bringing together hardware, software and on-going services, Vertiv offers solutions that ensure uninterrupted, reliable, safe operations of vital data applications that run continuously and perform-optimally. Vertiv possesses a rare combination of expertise and solutions that ensures connectivity and availability across any and all network facilities, anywhere in the world. Our portfolio includes the most respected brands in the industry including Avocent (networking and remote management), Geist (rack PDUs, monitors, sensors), and Liebert (UPS, power and thermal). Visit Vertiv.com for more information. Our Brands Avocent The power of being there When you need to take control of multiple IT devices across a room or across geographies, you can rely on market-leading Avocent or Cybex keyboard, video, and mouse (KVM) switches and serial consoles to provide easy, single-point access to valuable system data. Since 1981 Avocent has been developing and manufacturing industry-leading KVM switches and serial consoles to deliver easy, single-point access to valuable system data in order to control and simplify management of multiple IT devices. Vertiv’s Avocent solutions have helped over 200,000 customers worldwide by providing faster provisioning, simplified management, reduced mean time to repair, enhanced security, and lower operating costs. Geist Reliable power management Ensuring data center availability and business continuity requires that the last link in the power chain, the rack power distribution unit (rPDU), operates as intended to support dynamic operations in the areas of power, cooling, monitoring, and overall data center infrastructure management (DCIM). Geist designs and manufactures industry-leading technology and software to power, cool, monitor and manage critical data center infrastructure. On-site engineering, reliability, conformance and compliance allow us to design, manufacture, and ship PDUs so they arrive when you need them. Customers have peace of mind knowing Geist’s dedicated compliance and reliability engineering team ensure conformance to global standards for reliability, safety, and accuracy. Liebert Protecting the power and environment of your mission critical electronic systems Your data center and edge computing sites are the core of your business. Intelligent, efficient power and thermal infrastructure are critical to ensuring continuous access to vital applications and data. Liebert power and thermal management systems are designed to protect your IT environment and adapt to your changing needs. Liebert provides global power and thermal management solutions with a portfolio of most efficient and reliable power and cooling technologies in the market. Liebert offers a complete line of energy-efficient and reliable technologies including UPS, racks, rack enclosures, rack cooling, and PDUs. These award-winning technologies offer unmatched efficiency and reliability for mission-critical applications, as well as controls to optimize uptime. Architects of Continuity As Architects of Continuity, Vertiv solutions help customers build future-ready digital infrastructures that deliver continuity across large infrastructure (AC power, DC power, energy storage, industrial solutions, thermal) and IT and edge infrastructure (edge systems, IT systems, rack, rack PDU, rack thermal, rack UPS) applications. Customers can choose to work with a trusted Vertiv advisor or order products online via their preferred IT distributors, resellers and marketplaces. To learn more, visit Vertiv.com today!
| Application/Usage | Mission Critical Equipment, Room |
|---|---|
| Package Contents |
|
| Product Type | Double Conversion Online UPS |
| Input Voltage | 120 V AC, 230 V AC |
| Manufacturer Part Number | GXT5-15KMVRT11UXLN |
| Packaged Quantity | 1 Pack |
| Limited Warranty | 3 Year |
| Output Voltage | 120 V AC, 208 V AC |
| Weight (Approximate) | 396.60 lb |
| Form Factor | Rack/Tower |
| Status Indicators | Alarm / Fault Indication |
| Manufacturer | Vertiv |
| Product Name | GXT5 15kVA Rack/Tower UPS |
| Waveform Type | Pure Sine Wave |
| Product Series | GXT |
| Rack Height | 11U |
| Brand Name | Vertiv Liebert |
| Plug/Connector Type | Hardwired |
| Country of Origin | China |
| Height | 19" |
| Width | 16.9" |
| Depth | 26.7" |
| Phase | Single Phase |
| Receptacle Type | Hardwired |
| Environmentally Friendly | Yes |
| Product Condition | New |
| Network (RJ-45) | Yes |
| Serial Port | Yes |
| Backup/Run Time (Half Load) | 9 Minute |
| Backup/Run Time (Full Load) | 3 Minute |
| Battery Characteristics | Valve Regulated Lead Acid (VRLA) |
| Load Capacity (VA) | 15 kVA |
| TAA Compliant | No |
| Energy Star | Yes |
| EPO Port | Yes |
| USB (HID Compliant) Port | Yes |
| Transfer Time | 0 ns |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH), Restriction of Hazardous Substances (RoHS) |
