Genuine Club 3D through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
CSV-1583
Category
Docking Stations
Overview

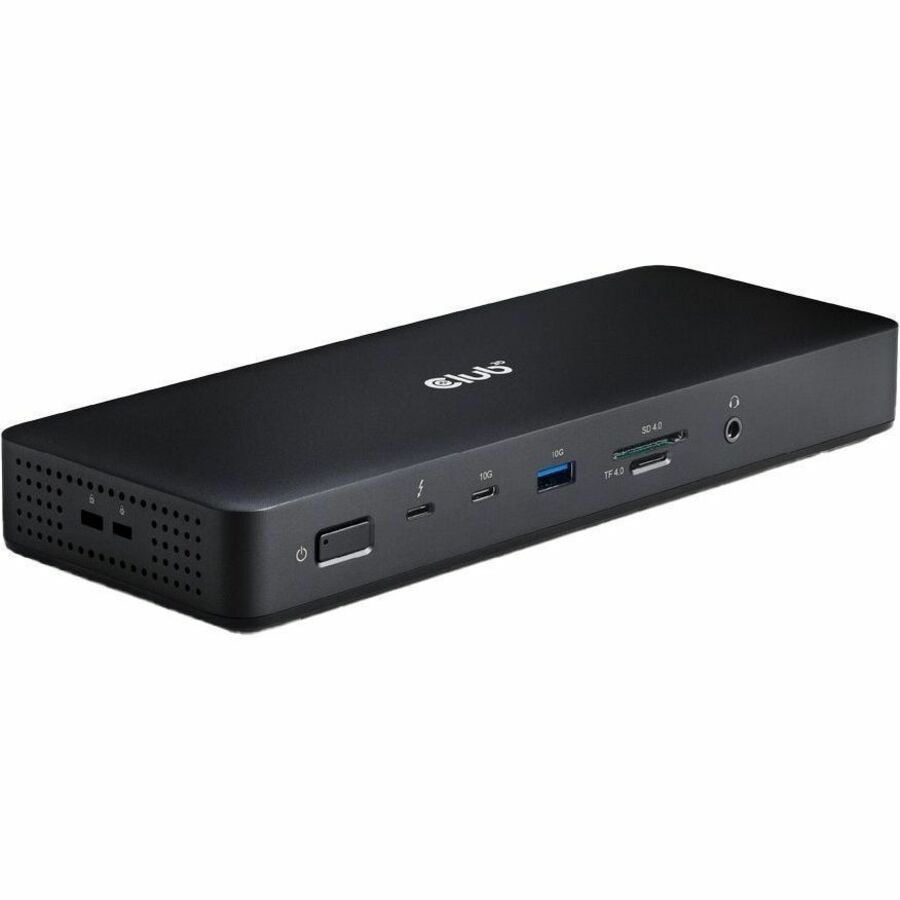

The Club 3D CSV- 1583 is a Thunderbolt 4 Certified 16-in-1 Quadra Displays Docking Station with DisplayLink® which provides the most advanced, efficient, and versatile I/O solution available with up to 40Gb/s for data and video. Among all 7 video ports, allow to output max 3 videos when connected to M1, M2 and M3; 4 videos when connected to M1 Pro/Max, M2 Pro/Max, M3 Pro/Max and other Mac series NoteBooks and Windows NoteBooks. RJ45 supports max 2.5G bandwidth. USB ports support max 10G data transmission. Besides, it supports smart power function which enables to distribute power according to the power consumption of the connected device, making full use of external power supply. It is designed for TBT4?/USB4? based PCs and compatible with /DP-Alt-mode PCs.
Warranty
Limited Warranty: 24 Month

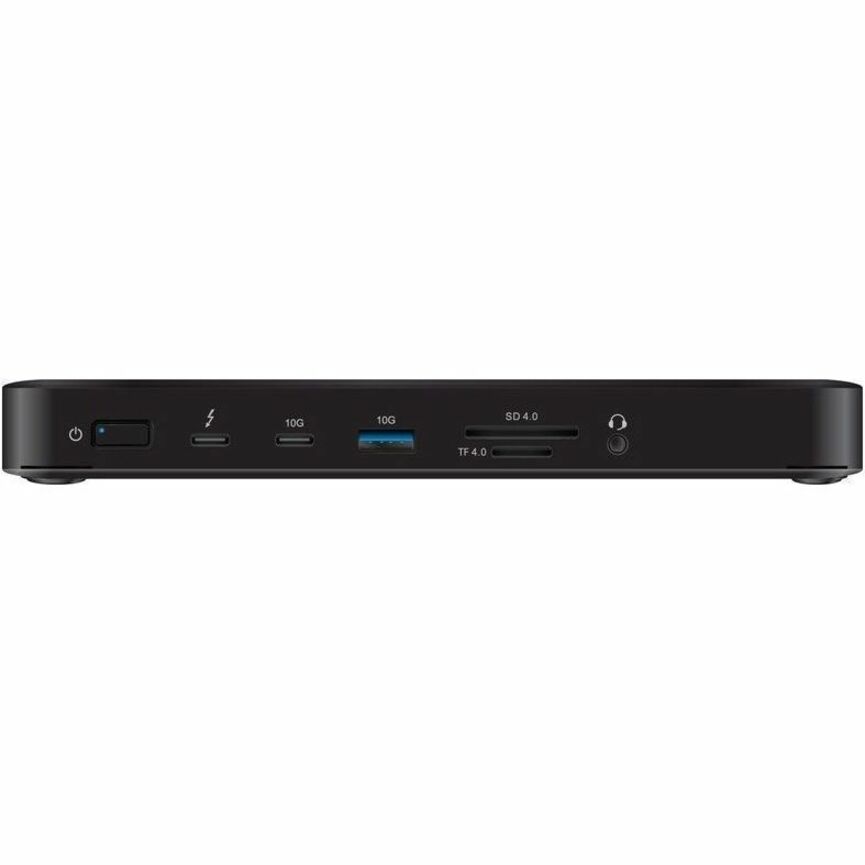

Highlights
Adopting Goshen Ridge solution
Designed for TBT4?/USB4? based PCs and compatible with TBT3?/DP-Alt-mode PCs.
Support Thunderbolt 4 max 40Gbps for high speed data and outstanding video transfer, compatible with TBT3?, USB4?, DP?Alt mode, USB protocol
Among 3 streams, allow to output 2 streams at the same time and allow to output single 8K30Hz or dual 4K60Hz displays in Extended mode on Windows based system
Among 2 videos (From DisplayLink®) allow to output dual 4K60Hz in Extended mode on both Mac (include M1, M2,M3) and Windows based systems
Among all 7 video ports, allow to output max 3 videos when connected to M1, M2,M3; 4 videos when connected to M1 Pro/Max, M2 Pro/Max, M3 Pro/Max and other Mac series and Windows NoteBooks
RJ45 supports max 2.5G bandwidth
USB ports support max 10G data transmission
SD/TF supports SD4.0 with max 312MBps
Self-powered from DC power adapter with max 96W for host, max 140W for host and Dock
Support smart power which enables to flexibly distribute power to PC and Hub in real time according to the consumption of connected devices
Compatibility Details: Support TBT4?/USB4?/TBT3?/DP-Alt-mode Hosts - Support Windows 10 or upwards, Mac 13.5.2 (Limitations may vary on different Apple proprietary Silicon
Supports both the Kensington Anti-theft lock as well as the standard Nano Anti-theft lock(which uses Only 70% of the physical space)
Specifications
General Information
Manufacturer
Club 3D
Manufacturer Part Number
CSV-1583
Brand Name
Club 3D
Product Line
Universal
Product Model
CSV-1583
Product Name
Thunderbolt 4 Certified 16-in-1 Quadra Displays Docking Station
Product Type
Docking Station

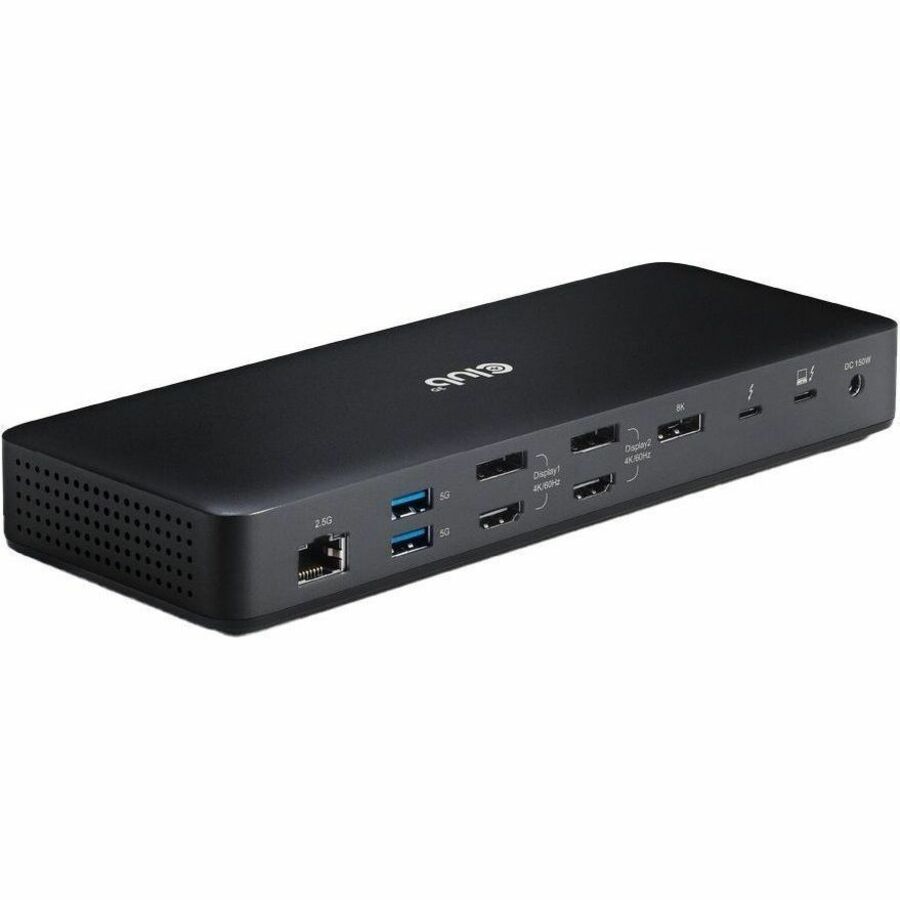

Interfaces/Ports
Host Interface
Thunderbolt 4
Total Number of USB Ports
4
Number of USB Type-C Ports
1
USB Type-A
Yes
USB Type-C
Yes
USB Type-C Detail
1 x USB-C
Number of USB Type-A Ports
3
Number of RJ-45 Ports
1
Network (RJ-45)
Yes
Number of DisplayPorts
3
DisplayPort
Yes
Headphone/Microphone Combo Port
Yes
Number of HDMI Ports
2
HDMI
Yes
Thunderbolt
Yes
Thunderbolt Ports Quantity
2
Number of Thunderbolt 4 Ports
2
Network & Communication
Ethernet Technology
2.5 Gigabit Ethernet
Physical Characteristics
Height
8.86"
Width
3.35"
Depth
1.14"
Weight (Approximate)
1.31 lb
Power Description
Maximum Power Supply Wattage
150 W
Software
Operating System Supported
Windows 10, macOS Ventura 13.5.2
Technical Information
Connectivity Technology
Wired
Number of Displays Supported
4
Device Supported
Notebook, MacBook, Computer
Supported Resolutions
3840 x 2160, 7680 x 4320
Screen Mode Supported
4K @ 60Hz, 8K
Memory Card Reader
Yes
Memory Card Supported
SD, TransFlash
Warranty
Limited Warranty
24 Month
Miscellaneous

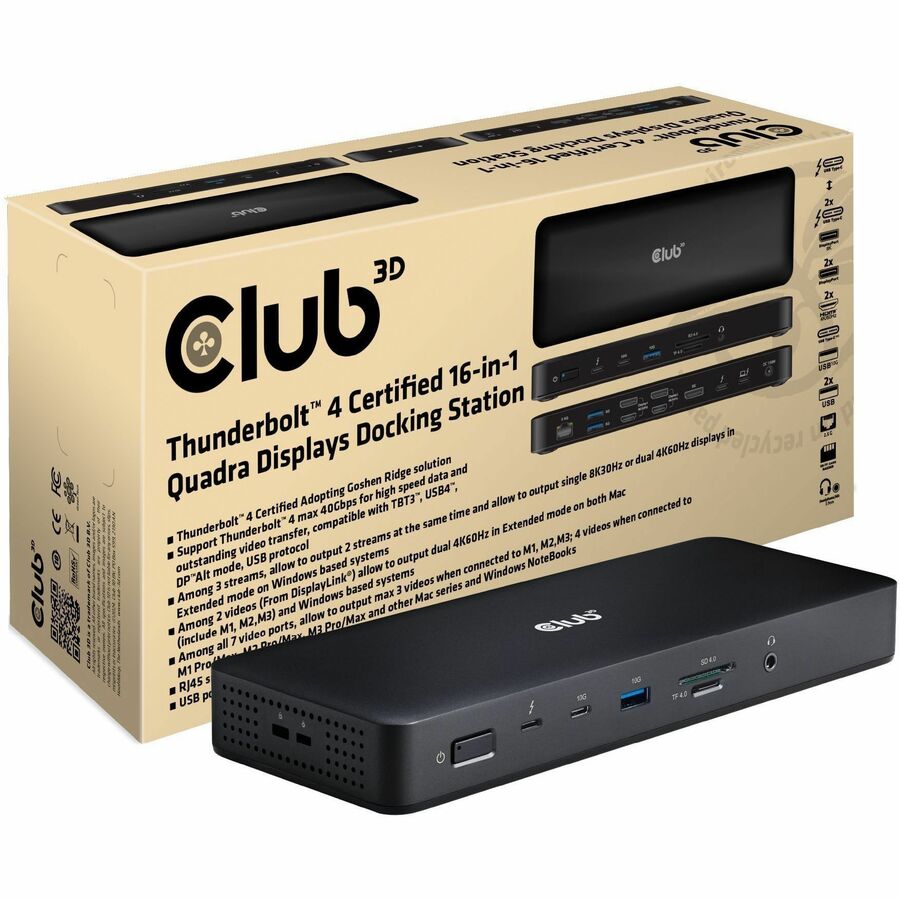

Package Contents
Thunderbolt 4 Certified 16-in-1 Quadra Displays Docking Station
Power Adapter 150Watt
TB4 Cable 0.8m / 2.62 ft M/M(for Connection to Host)
Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
