Thunderbolt Station 4 | TS4
The iconic Thunderbolt Station is back, now in its 4th iteration, featuring the classic design first introduced by CalDigit.
Not only is the TS4 the most powerful dock ever created, the dock with the most ports, the dock with the highest charging capabilities, the first dock with 2.5GbE, it is the dock that will drive us into the Thunderbolt 4 generation.
More is More

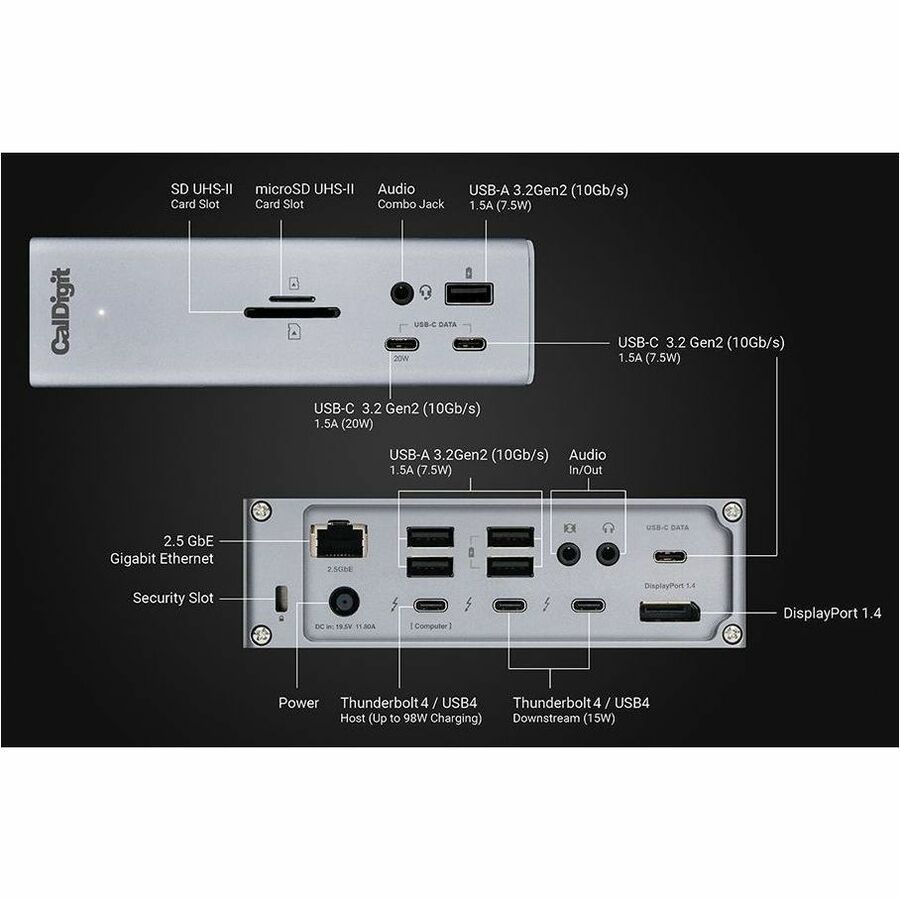

The TS4 offers a staggering 18 ports of connectivity, the most featured on any Thunderbolt dock ever.
The purpose of a device like this is to never run out of ports, and for the majority of us, that should certainly not be the case with the TS4.
Universally Compatible
Having the ability to use the TS4 on any Type-C computer or tablet is incredibly convenient.
Compatible with Thunderbolt 4, Thunderbolt 3, USB4, and USB-C computers, the TS4 adapts to the host computer it connects to, providing the features available to your computer or tablet.
• Thunderbolt 4 PC
• Intel Thunderbolt 3 Mac
• M1/M2/M3 Pro, M1/M2/M3 Max & M1/M2 Ultra Mac
• M1/M2/M3 Mac
• Thunderbolt 3 PC
• USB4 PC
• USB-C PC
• USB-C Windows Tablet
• Thunderbolt or USB-C iPad
• Thunderbolt or USB-C Chromebook
Fast & Consistent Charging
When it comes to laptop charging the TS4 provides up to 98W of sustained power delivery at all times thanks to the inclusion of a power supply that is more than capable of maintaining a consistent level of power.
Whilst many other Thunderbolt 4 docks state that they can charge at up to 96W, or above, they actually include an insufficient power supply. These docks will allocate host power based on how many devices are connected to them. Some of the host power will move to newly attached devices, thereby reducing the power delivery.
Rest assured that the CalDigit TS4's power supply will always provide the full 98W power delivery, and will never drop that performance even when new devices are connected to the TS4.
For laptops or tablets that require less than 98W, the TS4 will only supply the wattage required by your device.
Thunderbolt 4/USB4 Ports
The TS4 features three Thunderbolt 4/USB4 ports with 40Gb/s performance.
One of the ports is used as the host connection to the laptop, and the two remaining ports can be used to connect Thunderbolt 4, Thunderbolt 3, USB4, or USB-C devices to the TS4. This includes monitors, SSDs, hubs, and much more.
8 USB Ports
With 8 USB ports on the TS4, a mixture of USB-A and USB-C, you have plenty of port connectivity to connect your USB accessories.
All of the USB ports on the TS4 offer 10Gb/s performance.
20W USB-C Port
One of the front-facing USB-C ports can supply up to 20W of power for your attached USB-C device.
Limited Warranty: 2 Year
| Package Contents |
|
|---|---|
| Host Interface | Thunderbolt 4, USB4 |
| Product Type | Docking Station |
| Compatibility | Apple Products: iPad Pro iPad Air iPad mini M1/M2/M3 Pro M1/M2/M3 Max M1/M2 Ultra Mac M1/M2/M3 Mac MagSafe wireless charger SuperDrive |
| Device Supported | Computer, Notebook, iPad, Tablet, Display Screen, Monitor, Solid State Drive, Wireless Charger, Router, NAS, MacBook, Microphone, Hard Drive |
| Manufacturer Part Number | TS4-US |
| Packaged Quantity | 1 |
| Limited Warranty | 2 Year |
| Weight (Approximate) | 1.41 lb |
| Connectivity Technology | Wired |
| Form Factor | Desktop |
| Manufacturer | CalDigit, Inc |
| Product Model | TS4 |
| Product Name | TS4 Docking Station |
| Brand Name | CalDigit |
| Charging Capability | Yes |
| Operating System Supported | Mac OS X 11.4 Big Sur, Windows 10 |
| Memory Card Supported | SD, microSD |
| Height | 5.55" |
| Width | 1.65" |
| Memory Card Reader | Yes |
| Ethernet Technology | 2.5 Gigabit Ethernet |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 230 W |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Thunderbolt | Yes |
| Number of Displays Supported | 2 |
| Number of DisplayPorts | 1 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| USB Type-C | Yes |
| USB Type-C Detail | 3 x USB-C (10Gb/s), Front 20W USB-C Port: 20W, Remaining USB-C Ports: 7.5W |
| DisplayPort Version | 1.4 |
| Number of USB Type-C Ports | 3 |
| Number of USB Type-A Ports | 5 |
| Thunderbolt Ports Quantity | 3 |
| USB Power Delivery | 98W |
| Supported Resolutions | 7680 x 4320, 6144 x 3456, 5120 x 2880, 3840 x 2160, 3440 x 1440, 2560 x 1440 |
| Number of USB 3.2 Gen 2 Type-C Ports | 3 |
| Number of USB 3.2 Gen 2 Type-A Ports | 5 |
| Number of Thunderbolt 4 Ports | 3 |
| USB Type-A | Yes |
| Screen Mode Supported | 8K, 6K @ 60Hz, 5K @ 60Hz, 4K @ 60Hz, 8K @ 60Hz, 4K @ 144Hz, 2K @ 240Hz |
