Genuine Brainboxes through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Serial/Parallel Adapters
Country of origin
United Kingdom
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

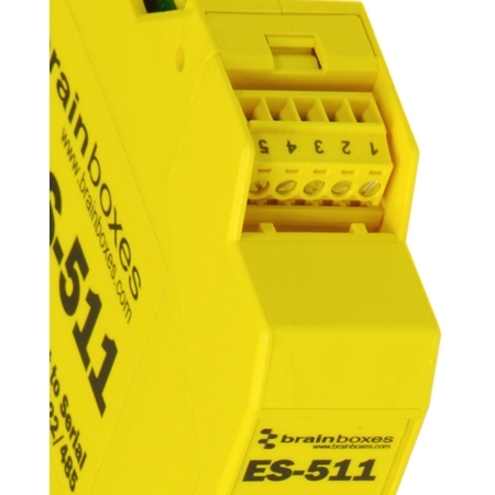

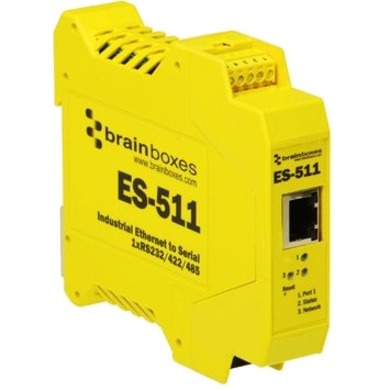

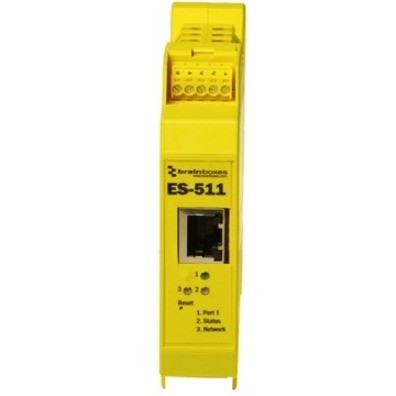

Ethernet to Serial Device with 1 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex. ES-511 has removable Screw Terminals Blocks for easy wiring, a slim 'end on' case and integral DIN rail mount.
Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values. Our Industrial ES range provides simple instant networked serial ports in demanding environments.
Serial Port Tunnelling (peer to peer) allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply.
More from the Manufacturer
Industrial Ethernet to Serial 1xRS232/422/485
1 Port RS-232/422/485 Industrial Ethernet to Serial Device Server
Serial Port Tunnelling allows serial cable replacement over any distance, no software required
Install Virtual Com ports, communicate over TCP/IP or use the Software APIs for Visual Basic, C# and more

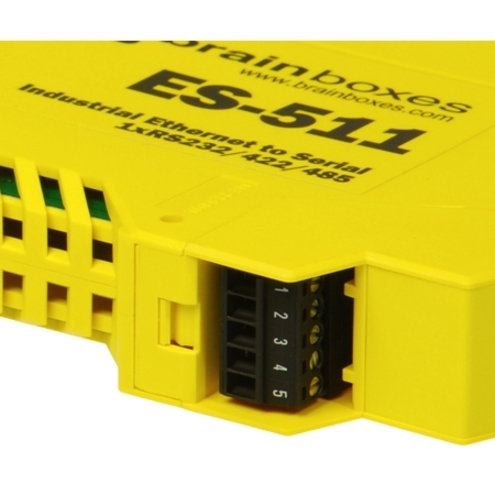

Data rate from 110 to 1,000,000 baud (1 MegaBaud). Removable, colour-coded, number terminal blocks
-30°C to +80°C/-22ºF to +176ºF Operating Temperature range

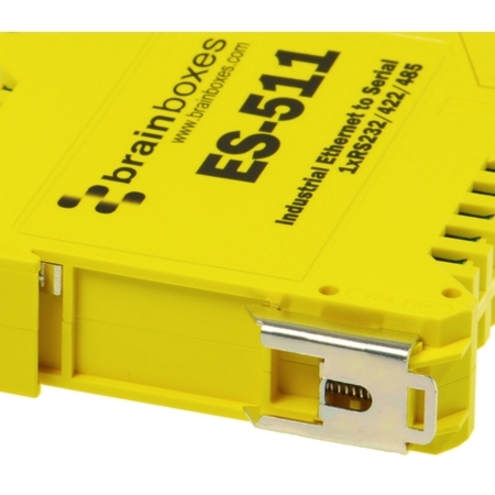

Robust, Slim Design, Integrated DIN rail mount
Ethernet to Serial Device with 1 Port software selectable as RS232, RS422/485 Full duplex or RS422 Half duplex. ES-511 has removable Screw Terminals Blocks for easy wiring, a slim 'end on' case and integral DIN rail mount.
Our Industrial Ethernet to Serial has an operating temperature range of -30 to +80 degrees Celsius and with +5VDC to +30VDC Dual input reverse polarity protected power supply making it perfect for industrial applications. Data transfer rates up to 1,000,000 baud (1 MegaBaud), coupled with 1Mbit/s line drivers deliver uncompromising performance. Baud rates can be standard values such as 9,600, 115,200, 230,000, 921,600 or user definable non standard values. Our Industrial ES range provides simple instant networked serial ports in demanding environments.
Serial Port Tunnelling (peer to peer) allows serial cable replacement over any distance, no software required. Suitable to be wired into existing power and network infrastructure or can be used with our PW-600 power supply.
Warranty
Limited Warranty: Lifetime
Highlights
1 Port RS-232/422/485 Industrial Ethernet to Serial Device Server
Serial Port Tunnelling allows serial cable replacement over any distance, no software required
Install Virtual Com ports, communicate over TCP/IP or use the Software APIs for Visual Basic, C# and more
Data rate from 110 to 1,000,000 baud (1 MegaBaud). Removable, colour-coded, number terminal blocks
-30°C to +80°C/-22ºF to +176ºF Operating Temperature range
Robust, Slim Design, Integrated DIN rail mount
Specifications
General Information
Manufacturer
Brainboxes Limited
Manufacturer Part Number
ES-511
Brand Name
Brainboxes
Product Model
ES-511
Product Name
Industrial Ethernet to Serial 1xRS232/422/485
Product Type
Serial Adapter
Interfaces/Ports
Number of Serial Ports (External)
1
Physical Characteristics
Form Factor
DIN Rail Mountable
Height
0.9"
Width
4.1"
Depth
4.5"
Weight (Approximate)
3.63 oz
Technical Information
Platform Supported
PC, Linux
Warranty
Limited Warranty
Lifetime
Miscellaneous
Package Contents
Industrial Ethernet to Serial 1xRS232/422/485
Installation CD Including Manual
Microsoft Signed Drivers & Utilities
Quick Start Guide
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
