Genuine Eaton through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
U208-002-IND
Category
Serial/Parallel Adapters
Overview

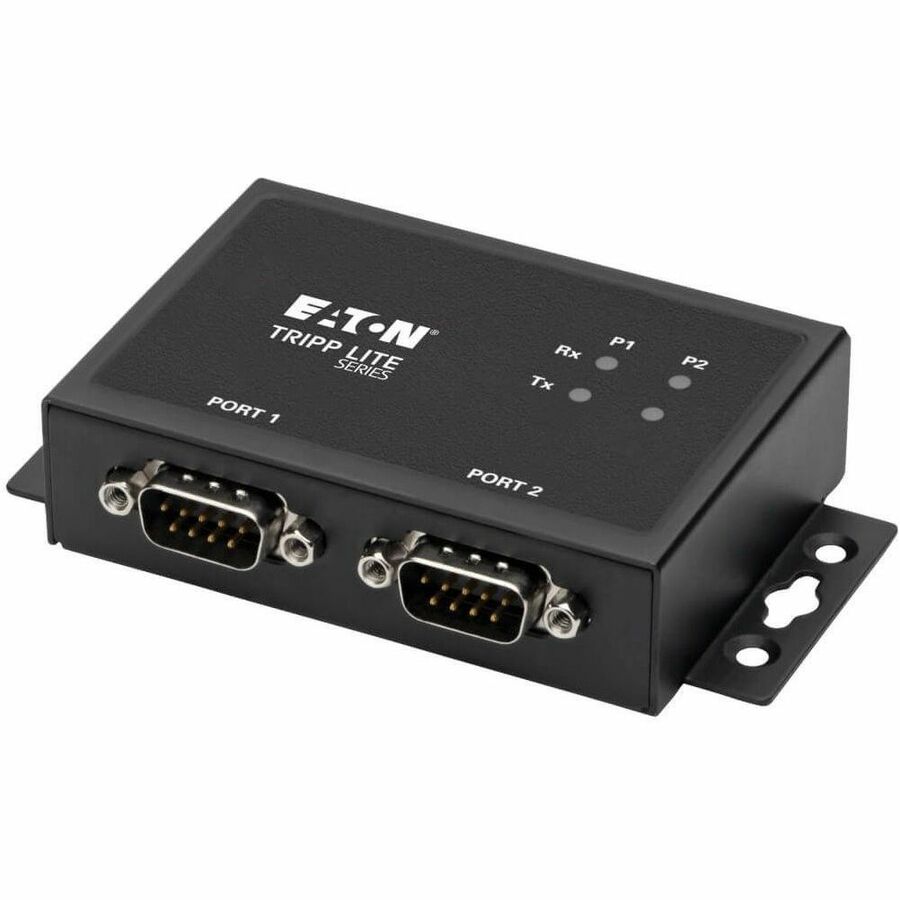

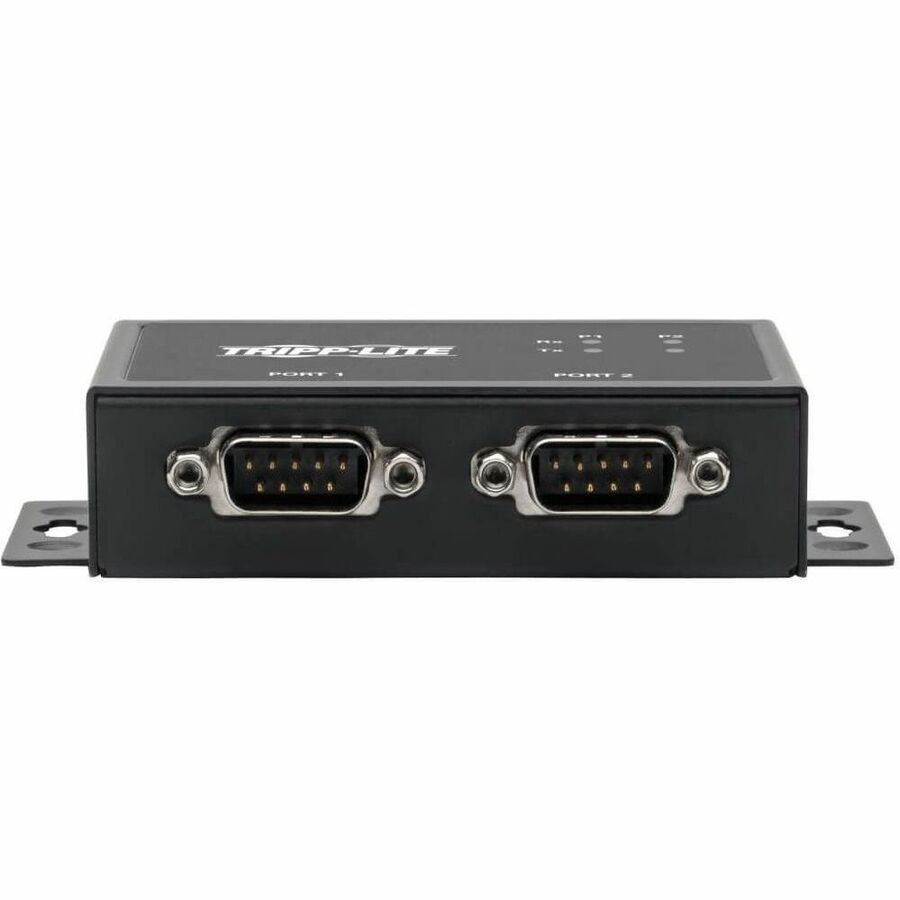

Connects Up to Two 9-Pin Serial Devices to Your Computer, Laptop or Tablet's USB-A Port

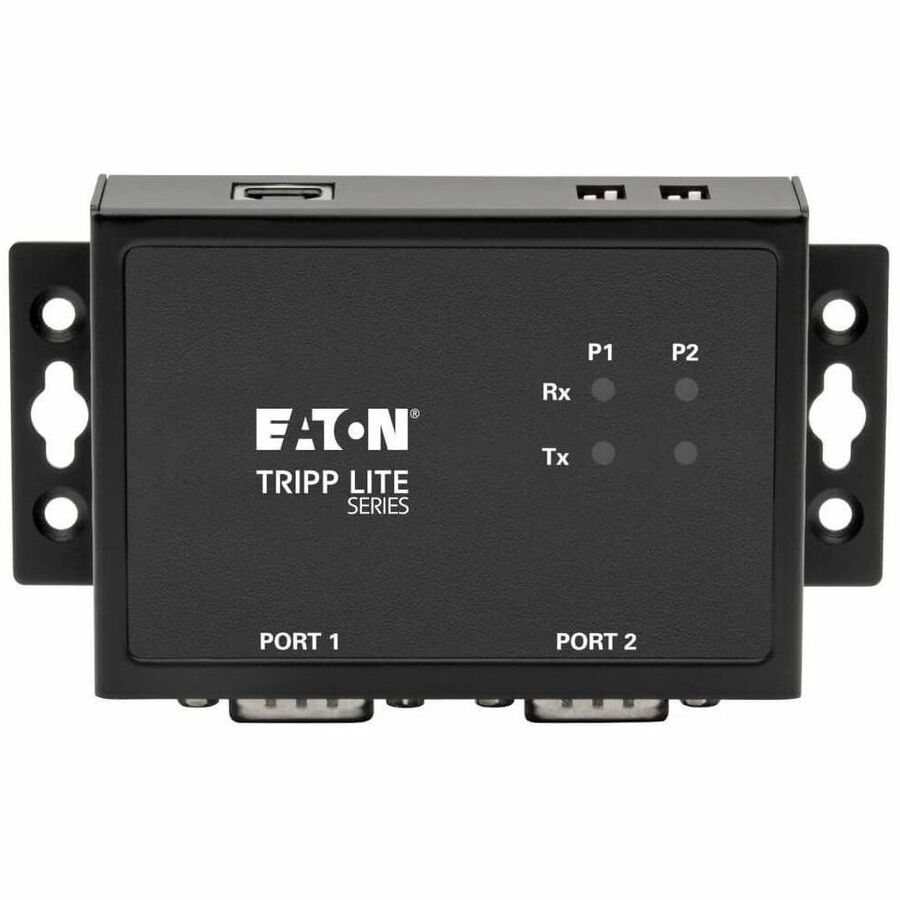

This USB to serial converter turns your computer's USB port into two DB9 ports capable of connecting RS-422 and RS-485 serial devices, such as modems, handheld scanners and GPS systems. No external power source is needed. Just connect the included USB cable between the U208-002-IND and your computer, and insert the included CD into your computer's CD drive in order to launch the driver. You'll be able to configure and share data among point-of-sale equipment and other serial devices. LEDs indicate when serial data is being sent or received.

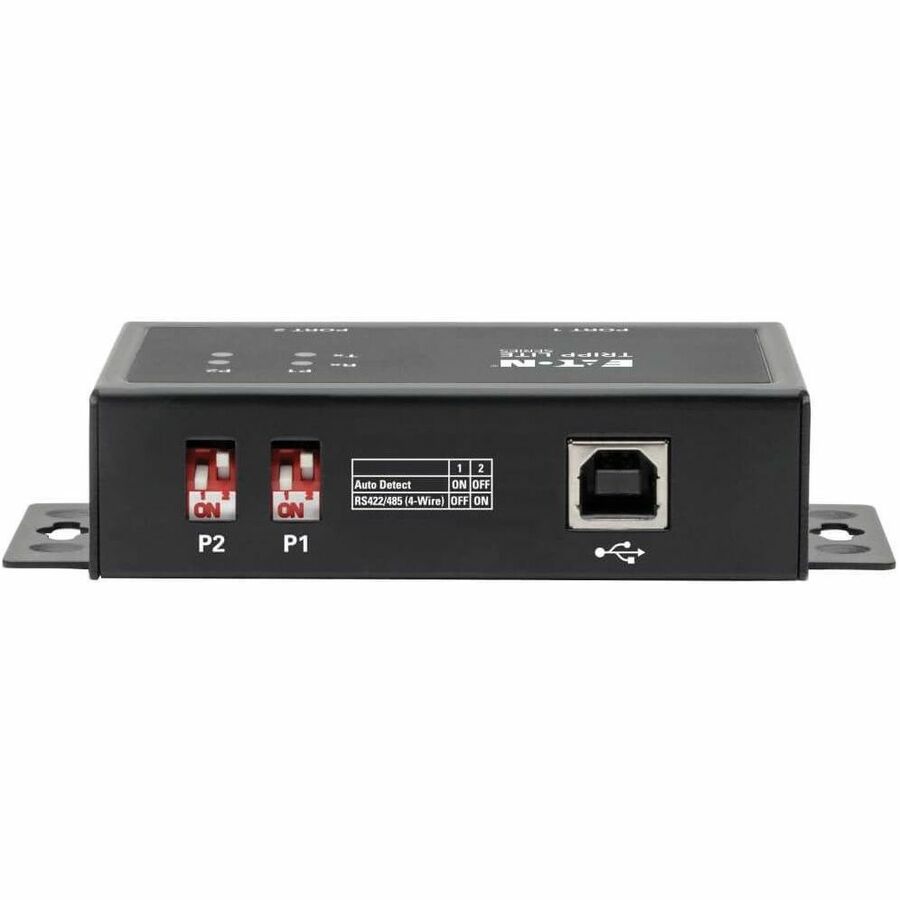

Independent DIP Switches for Easy Port Configuration
The U208-002-IND's serial ports can be set to automatically detect an RS-422 or RS-485 device by adjusting their DIP switch settings. The ports can also be set specifically for use in 4-wire mode.
COM Retention Feature for Convenient Reassigning of COM Values to Ports
This USB to RS-485 adapter with built-in FTDI chipset offers COM retention. It automatically reassigns the same COM port values to each port, so when the cable is disconnected or the system is rebooted, no additional configuration is needed. The cable auto-detects and auto-switches RS-422 and RS-485 devices. It also supports RS-485 auto-transceiver turn around with unique featured ATTA hardware.
Rugged All-Metal Housing Designed to Last in Harsh Industrial Applications
The wall-mountable USB to serial converter with an industrial-grade steel enclosure offers electrostatic discharge (ESD) protection to ±15kV. It supports serial communications speeds up to one Mbps and USB 2.0 specifications, though it is backward compatible with USB 1.1 devices.
2-Year Warranty
The U208-002-IND is backed by a 2-year warranty, ensuring reliability and performance.
Warranty
Limited Warranty: 2 Year
About Eaton
Eaton is an intelligent power management company dedicated to improving the quality of life and protecting the environment for people everywhere. We are guided by our commitment to do business right, to operate sustainably and to help our customers manage power ─ today and well into the future. By capitalizing on the global growth trends of electrification and digitalization, we're accelerating the planet's transition to renewable energy and helping to solve the world's most urgent power management challenges.
Highlights
USB to serial converter lets you connect two 9-pin serial devices to your computer or laptop's USB-A port.
Auto-detects and -switches RS-422 and RS-485 serial devices
Independent DIP switch controls provide easy port configuration
Automatically reassigns COM values to each port to avoid additional configuration
USB-powered, so no bulky or obtrusive external power supply is required
Compatible with Windows, Mac and Linux-works with most computers
2-year limited warranty
Specifications
General Information
Manufacturer
Eaton Corporation
Manufacturer Part Number
U208-002-IND
Brand Name
Tripp Lite series
Product Model
U208-002-IND
Product Name
U208-002-IND RS422/485 USB to Serial FTDI Adapter
Product Type
Serial Adapter
Interfaces/Ports
Number of Serial Ports (External)
2
Physical Characteristics
Form Factor
External
Height
0.9"
Width
4.2"
Depth
1.7"
Weight (Approximate)
6.40 oz
Technical Information
Host Interface
USB Type B
Platform Supported
Linux, Mac, PC
Warranty
Limited Warranty
2 Year
Miscellaneous

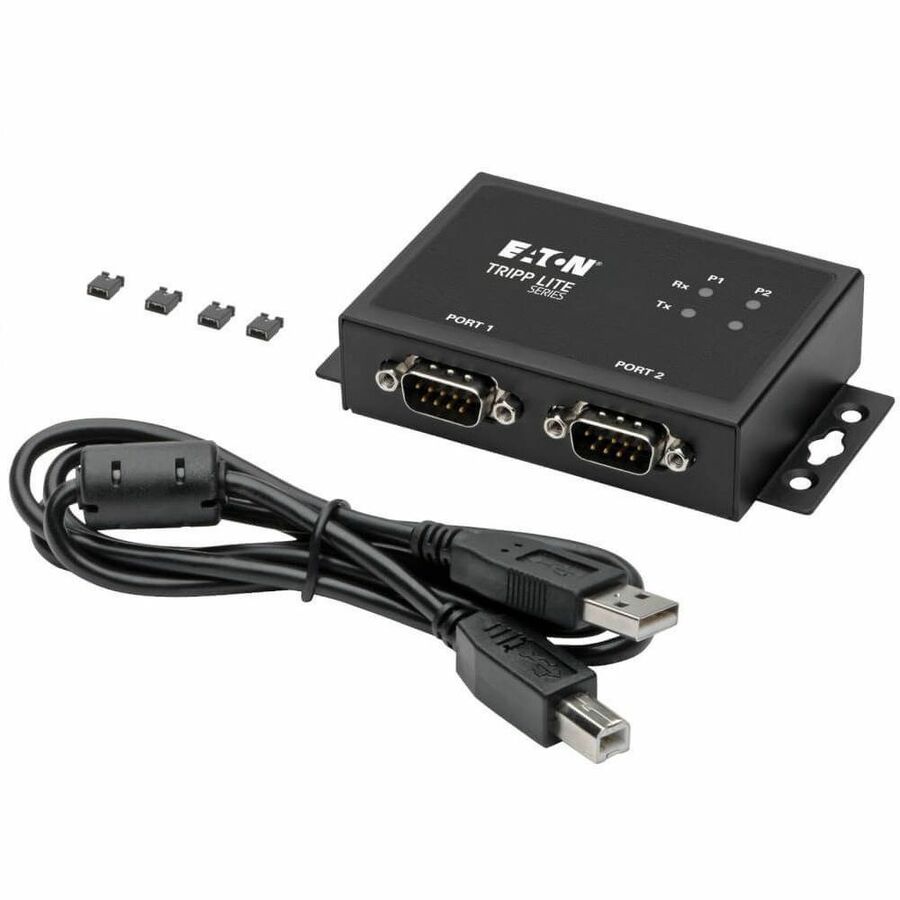

Package Contents
U208-002-IND RS422/485 USB to Serial FTDI Adapter
USB-A to USB-B Cable (M/M), 3 ft
4 x 2-pin Jumpers
Driver CD
Owner's Manual
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
