DIN Rail Mountable - PC - 1 x Number of Serial Ports External - TAA Compliant
MSRP$161.23
$152.99*
Save 5%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote — commercial pricing may differ.
Genuine Brainboxes through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Ethernet to Serial device server providing access to one RS422/485 serial port. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
More from the Manufacturer

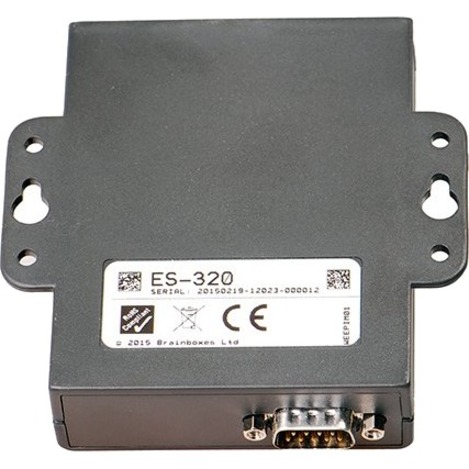

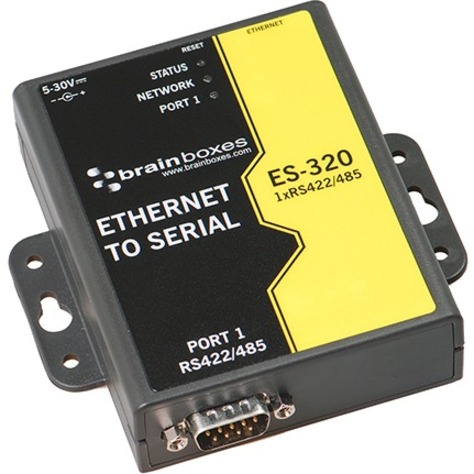

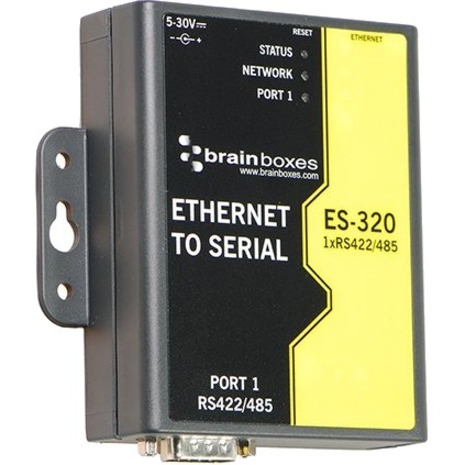

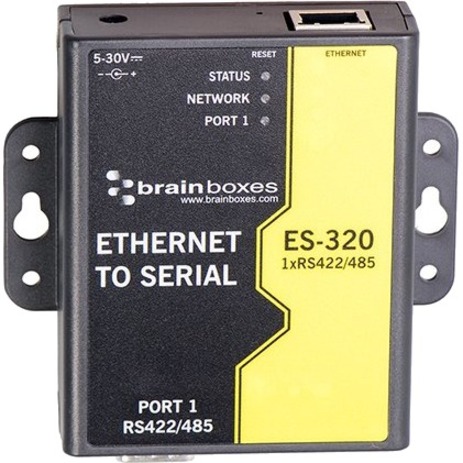

ES-320 ETHERNET TO SERIAL DEVICE SERVER
Ethernet 1 Port RS422/485
1 port RS422/485
Max baud rate 1,000,000 1 MegaBaud
10/100Base TX Ethernet port
User friendly interface, simple to use, powerful in operation
Web configuration and RFC2217 compliant interface for non-Windows users
IP-30 rated enclosure
LED status indication
Optional DIN rail mounting kit
Power supply included (power input 5-30V DC)
Simple operation for each and every operating system!
Lifetime Warranty
Lifetime Support
1 Port RS-422/485
Ethernet to Serial Device Server
Data rate from 110 to 1,000,000 baud
User friendly interface, simple to use, powerful in operation
Serial Port Tunnelling allows serial cable replacement over any distance, no software required
Power supply included (power input 5-30V DC)
Ethernet to Serial device server providing access to one RS422/485 serial port. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance. Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Limited Warranty: Lifetime
Brainboxes 1 Port RS422/485 Ethernet to Serial Adapter
| General Information | |
|---|---|
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | ES-320 |
| Brand Name | Brainboxes |
| Product Model | ES-320 |
| Product Name | 1 Port RS422/485 Ethernet to Serial Adapter |
| Product Type | Serial Adapter |
| Interfaces/Ports | |
| Number of Serial Ports (External) | 1 |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Height | 1.1" |
| Width | 4.1" |
| Depth | 4.2" |
| Weight (Approximate) | 4.27 oz |
| Technical Information | |
| Platform Supported | PC |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
