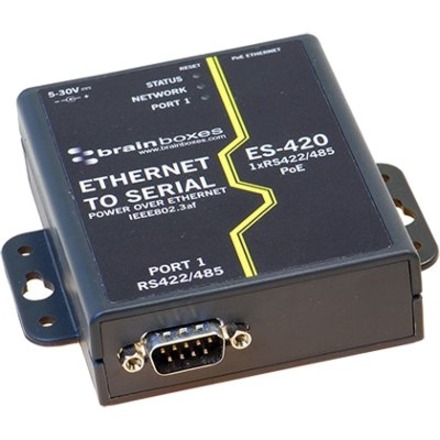

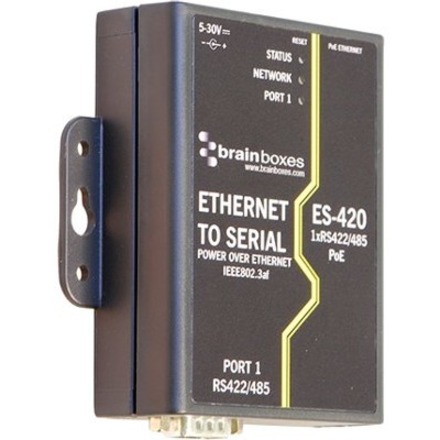

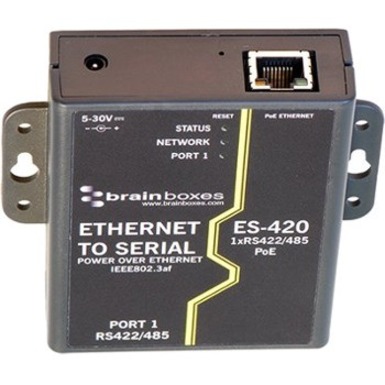

Brainboxes 1 Port RS422/485 PoE Ethernet to Serial Adapter
DIN Rail Mountable - PC - 1 x Number of Serial Ports External - TAA Compliant
SKU
Category
Serial/Parallel Adapters
MSRP$212.68
$201.81*
Save 5%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 6 and Nov 10, then process your delivery right after.
*Government pricing. Buying for commercial use? Request a quote — commercial pricing may differ.
Genuine Brainboxes through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Serial/Parallel Adapters
Country of origin
United Kingdom
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview
Ethernet to Serial device server with Power over Ethernet providing access to one RS422/485 serial port. Data transfer rates up to 1,000,000 baud, coupled with 1Mbit/s line drivers deliver uncompromising performance.
Power over Ethernet (PoE) uses IEEE 802.3af standard, compatible with any PoE switch.
Our ES range provides simple instant networked serial ports. RS485 - 1 twisted pair - half duplex configuration with autogating provides trouble free data transmission due to automatic control of data direction. A web interface allows secure configuration and control of the serial ports over a local network or the internet using any browser. For Windows our in-house designed (32 bit and 64 bit) driver gives you local COM ports, retaining existing software applications and allowing you to connect across your network to remote devices just as if they were attached locally. Serial Port Tunnelling (individually configurable) allows serial cable replacement over any distance, no software required. You can access the device via TCP/IP sockets from any networked device like an Android tablet, PC or phone. On Windows OS TCP/IP sockets are handled by the Winsock API, this will differ on other OSs.
Warranty
Limited Warranty: Lifetime
Highlights
1 Port RS-422/485 with Power over Ethernet IEEE802.3af
Ethernet to Serial Device Server
Data rate from 110 to 1,000,000 baud
User friendly interface, simple to use, powerful in operation
Serial Port Tunnelling allows serial cable replacement over any distance, no software required
Optional DIN rail mounting kit and stand alone power supply
