2 Computer(s) - 1 Local User(s) - 13123.36 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 2 x Network (RJ-45) - 6 x USB - DisplayPort - 12 V DC Input Voltage - Rack-mountable - 1U - TAA Compliant
MSRP$1,813.67
$1,500.20
Save 17%Special order — estimated available by September 10, 2026.
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

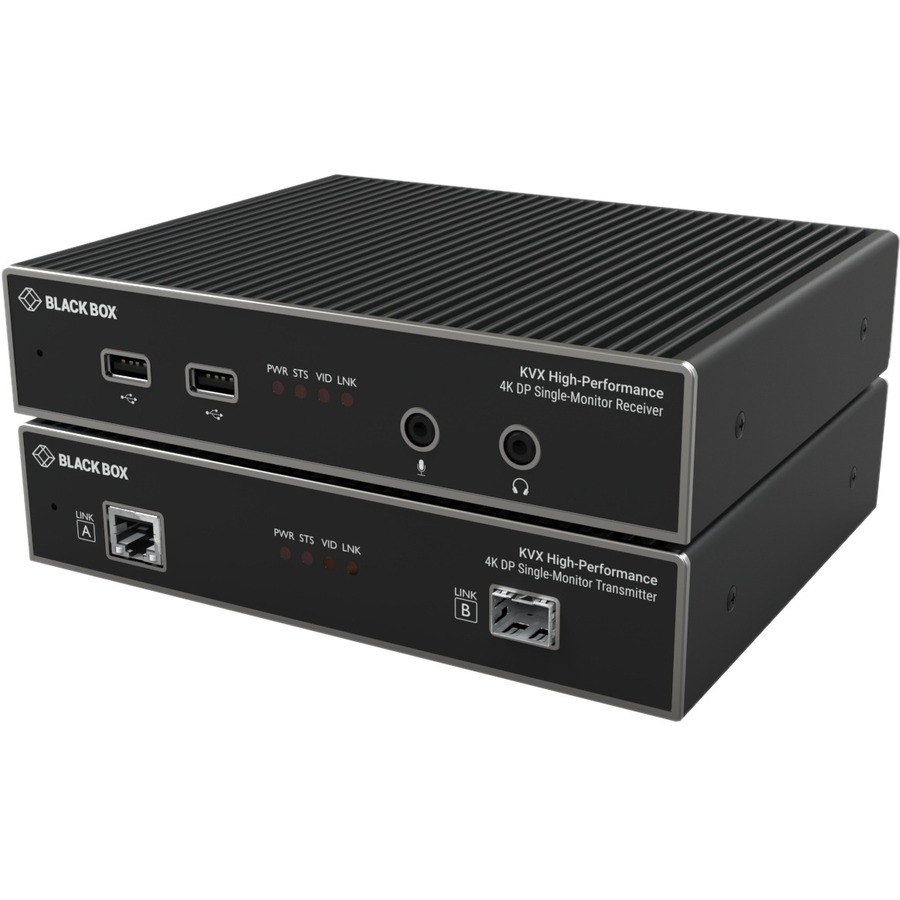

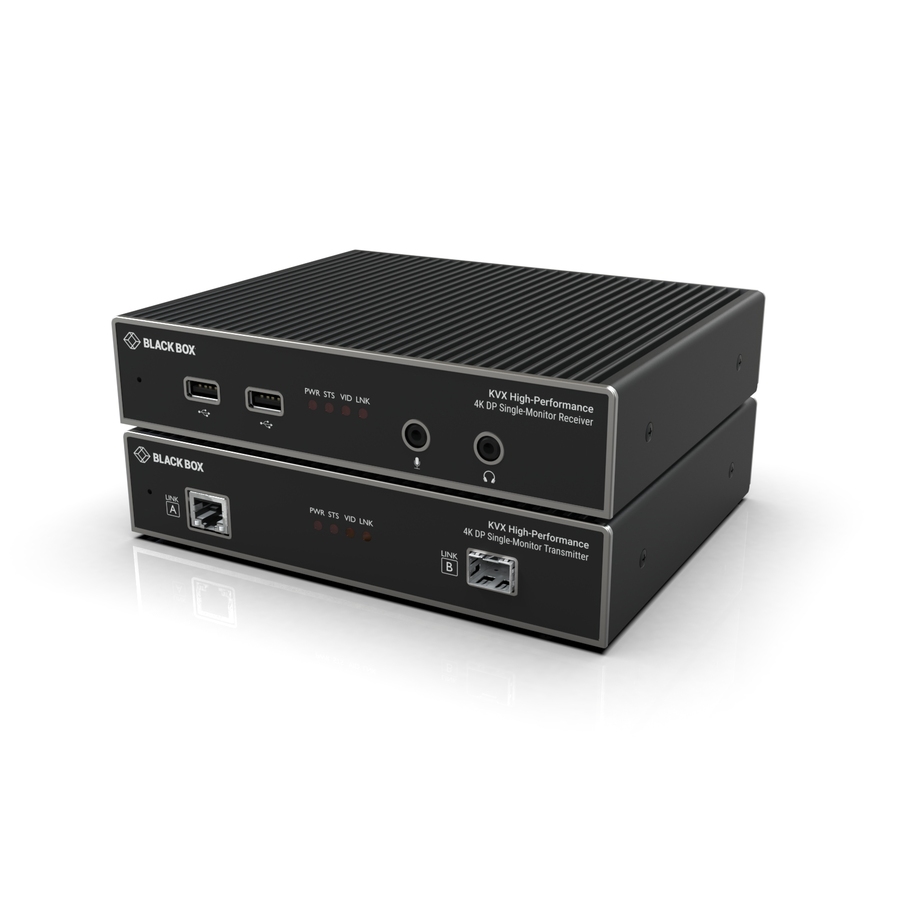

True Plug and play High-Performance point-to-point KVM extension. Using DisplayPort 1.2 KVXHP-100 supports single monitor setups with up to 4096x2160 at 60Hz using 8 bits per color, 4:4:4 chroma sampling, and USB 2.0 (HID) - all transmitted over a single cable. Whether your requirements are CATx or fiber, KVXHP is equipped to handle both interfaces providing a single solution for all use cases.
19" Rackmount Option
The optional rackmount tray (KVXHP-RMK) holds up to two KVX-HP extender units for quick mounting into any 19" rack and leaves enough space to hold the power supplies and cable management. To concentrate multiple KVM extensions in your rack, use our Central Power Hub solution (ACR1000-CPH8R-R2/ ACR1000-CPH16R-R2) for a clutter-free, space-saving installation in 1RU. The hub powers up to eight or sixteen 12VDC devices replacing multiple single power supplies.
Dual-head models for two monitor connections or quad-head models with support for four DisplayPort monitors are also available.
Limited Warranty: 2 Year
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure. On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
| General Information | |
|---|---|
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | KVXHP-100 |
| Brand Name | Black Box |
| Product Series | KVXHP |
| Product Model | KVXHP-100 |
| Product Name | KVXHP-100 KVM Extender |
| Product Type | KVM Extender |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| Headphone | Yes |
| Microphone | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 6 |
| Physical Characteristics | |
| Rack Height | 1U |
| Form Factor | Rack-mountable |
| Transmitter Height | 1.55" |
| Transmitter Width | 7.31" |
| Transmitter Depth | 6.06" |
| Receiver Height | 1.55" |
| Receiver Width | 7.31" |
| Receiver Depth | 6.06" |
| Transmitter Weight (Approximate) | 3 lb |
| Receiver Weight (Approximate) | 2.95 lb |
| Power Description | |
| Input Voltage | 12 V DC |
| Input Voltage Range | 100-240 VAC |
| Power Consumption | 18 W |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 2 |
| Number of Local Users Supported | 1 |
| Maximum Operating Distance | 13123.36 ft |
| Device Type | KVM Extender |
| Video | |
| Graphic Mode | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE), Restriction of Hazardous Substances (RoHS) |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
