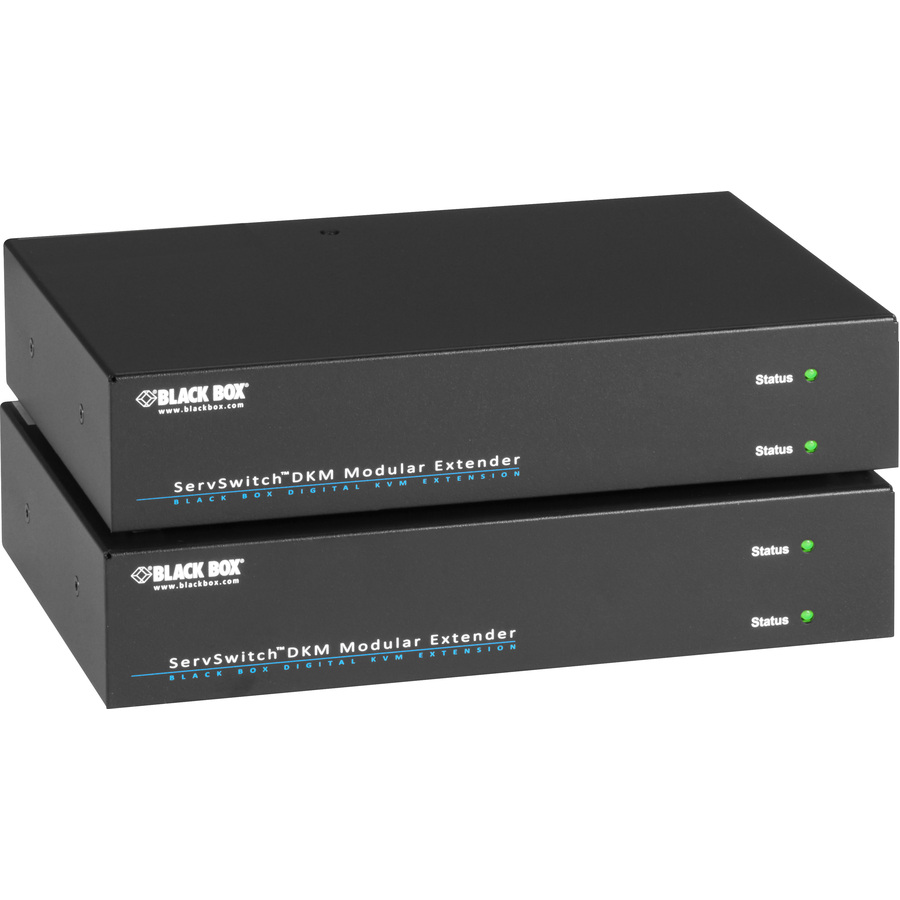

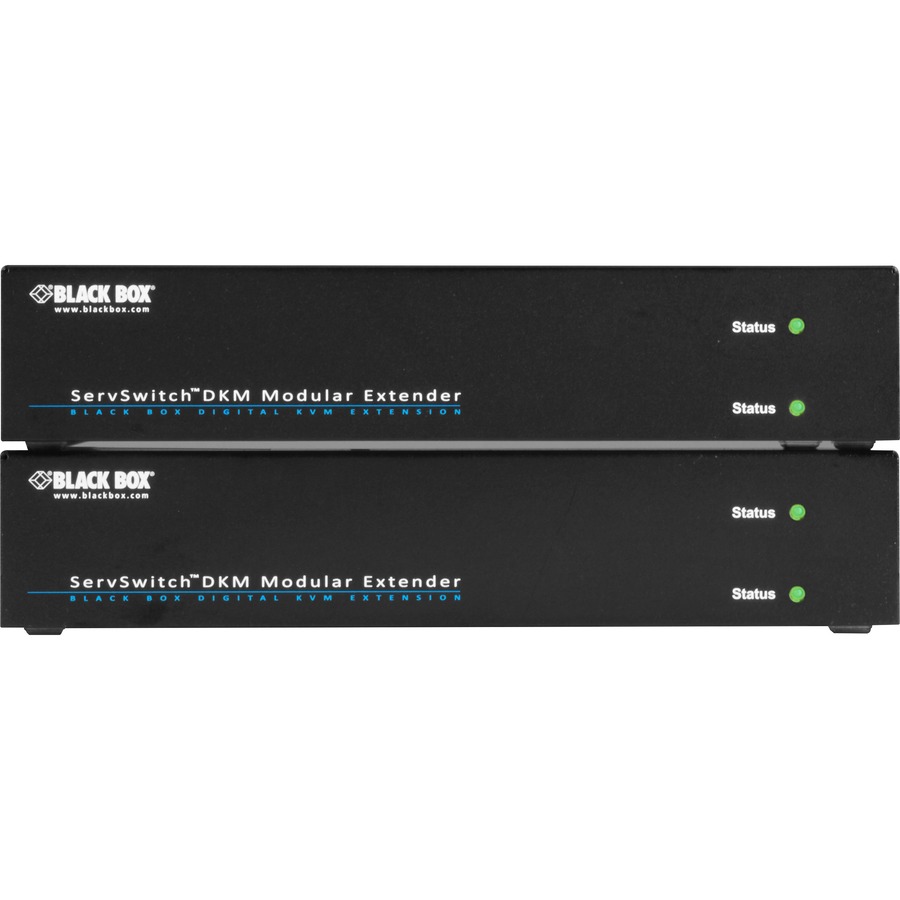

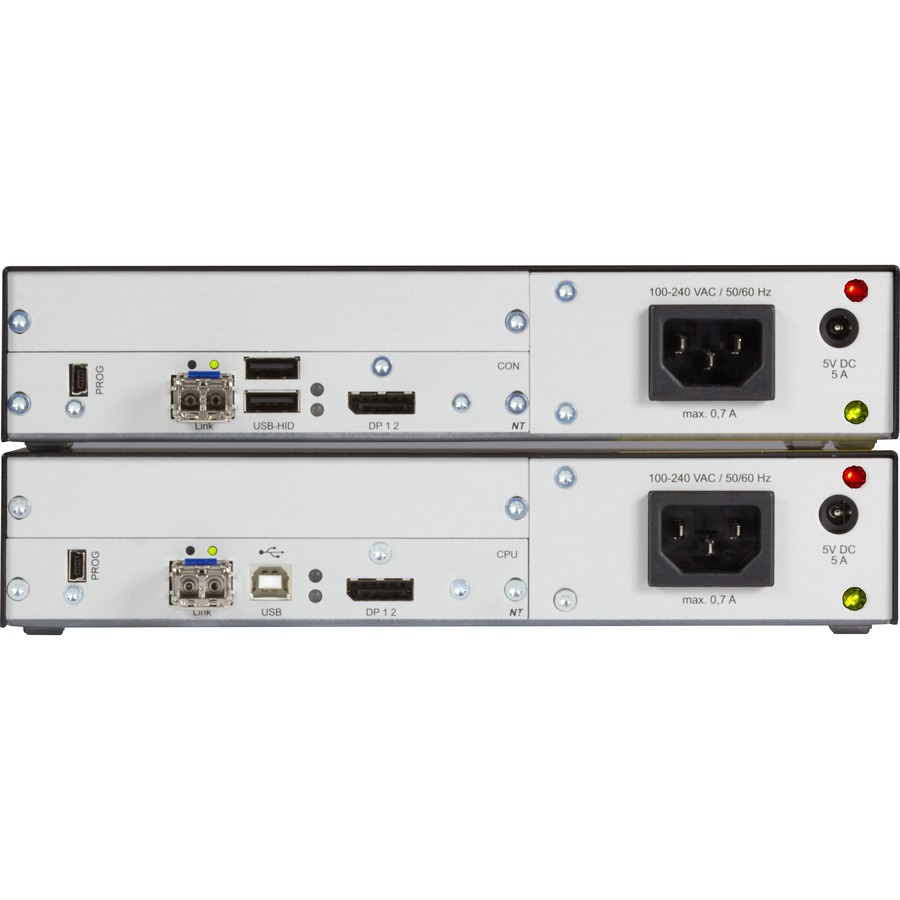

Black Box KVM Extender - DisplayPort 1.2 4K60, USB HID, Single-mode Fiber
1 Computer(s) - 1 Local User(s) - 16404.20 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 5 x USB - DisplayPort - 120 V AC, 240 V AC Input Voltage - TAA Compliant
SKU
AMS9204A
Category
KVM Consoles/Extenders
MSRP$6,627.06
$6,301.94
Save 5%
Back-ordered
Special order — estimated available by September 10, 2026.
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
AMS9204A
Category
KVM Consoles/Extenders
Overview
• This product is built to order (parts below are completely assembled prior to shipment).
• Includes external power supply.
This DKM FX Fiber Extender Kit is comprised of 2 modular housing chassis with 2 slots and transmitter and receiver interface cards. The DKM FX extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.
These DKM FX components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM FX HD Video and Peripheral Matrix Switch setup, call our FREE Tech Support.
Supports integrated DisplayPort digital audio.
Audio format PCM can be transferred with a sample rate up to 96 Hz via the DisplayPort interface.
Supports up to 2 daughter cards.
Warranty
Limited Warranty: 2 Year
About Black Box
For over forty years, Black Box has been a world-leading provider of premier IT infrastructure solutions. Today, we continue to design and manufacture award-winning products for Pro AV, KVM, cabling and networking known for their advanced functionality, flawless performance, outstanding reliability and fail-safe security. Our solutions are used every day in government, education, commercial enterprises and any other organization that requires the utmost quality and performance from their IT infrastructure.
On top of creating industry-leading products, Black Box demonstrates every day a complete commitment to providing our customers with the best technical support and service in the industry. Our award-winning, dedicated support staff works around the clock to ensure our customers’ systems are always up and running optimally. They are truly as important to the successful IT, communications and business operations of our customers as the powerful products and solutions we deliver.
Highlights
Integrated DisplayPort digital audio. USB HID signals. Video resolutions up to 4K at 60 Hz, including 4096 x 2160 and 3840 x 2160.
USB HID signals.
Video resolutions up to 4K at 60 Hz, including 4096 x 2160 and 3840 x 2160 with 8- / 10-bit Color
Specifications
General Information
Manufacturer
Black Box Corporation
Manufacturer Part Number
AMS9204A
Brand Name
Black Box
Product Model
AMS9204A
Product Name
KVM Extender - DisplayPort 1.2 4K60, USB HID, Single-mode Fiber
Product Type
KVM Extender
Interfaces/Ports
USB
Yes
DisplayPort
Yes
Number of USB Ports
5
Power Description
Input Voltage
120 V AC, 240 V AC
Input Voltage Range
100V AC to 240V AC
Technical Information
Connectivity Technology
Wired
Number of Computers Supported
1
Number of Local Users Supported
1
Maximum Operating Distance
16404.20 ft
Video
Graphic Mode
4K
Maximum Video Resolution
4096 x 2160
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
DKM FX Extender Modular Housing, 2-Slot Chassis (ACXMODH2R-P-R2)
DKM FX Transmitter Modular Interface Card (ACX2MT-DP4KHS-SM)
DKM FX Receiver Modular Interface Card (ACX2MR-DP4KHS-SM)
