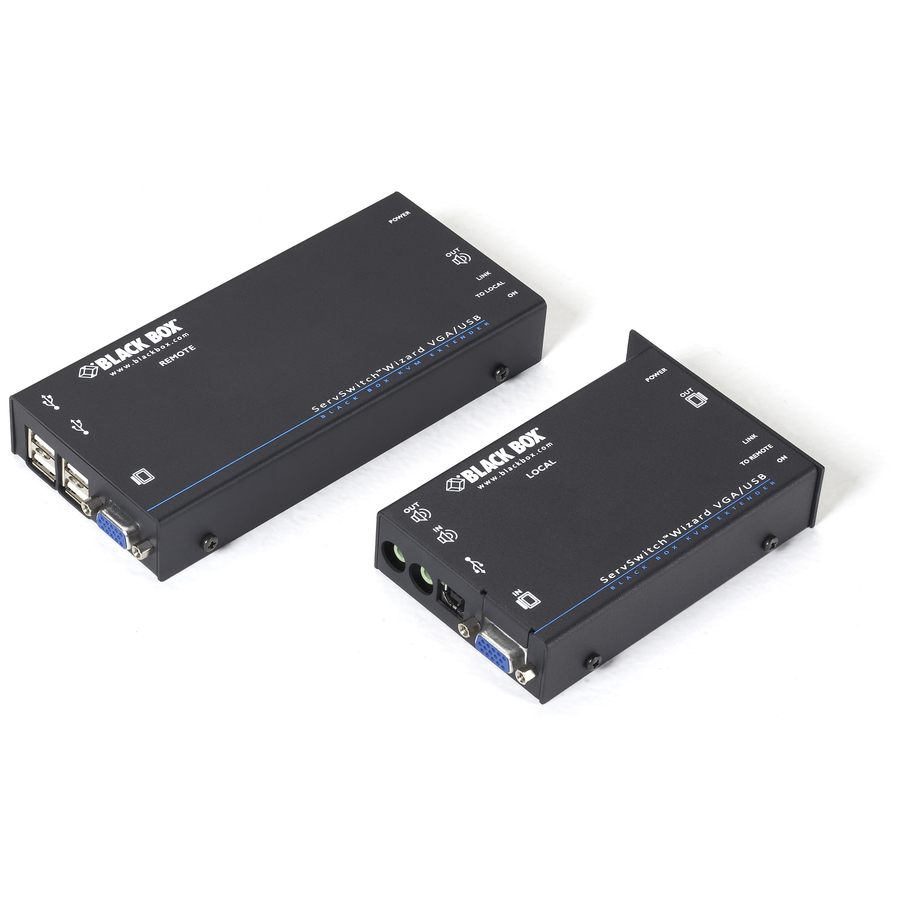

Black Box ServSwitch Wizard USB KVM Extender With Audio
Black Box

Black Box ServSwitch Wizard USB KVM Extender With Audio

1 Computer(s) - 1 Local User(s) - 1 Remote User(s) - 1000 ft Range - 1900 x 1200 Maximum Video Resolution - 4 x Network (RJ-45) - 5 x USB - 2 x VGA - 5 V DC Input Voltage - Rack-mountable, Desktop

SKU
ACU5050A-R2
Category
KVM Consoles/Extenders

MSRP$1,423.80

$1,115.31

Save 22%

In stock: 19

Get a quote

Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
ACU5050A-R2
Category
KVM Consoles/Extenders

Overview

The power of transparent USB

The ServSwitch Wizard? USB SRX KVM Extender, single-video, from Black Box, combines VGA, USB 1.1 or USB 2.0, and audio, and sends them up to 164 feet across a single CATx cable. It's easy to fine-tune the video image on the remote unit and get crystal-clear stereo audio and transparent USB.

DDC EDID read and store support

Modern graphics adapter cards - even with analog output - require the presence of Display Data Channel (DDC) information. Without it, they output low-quality video or none at all. The ServSwitch Wizard USB SRX Extender reads the DDC information from the attached display and stores it in the local unit's non-volatile memory.

Small form factor

The ServSwitch Wizard USB SRX KVM Extender's compact chassis enables you to mount it side by side in the Rackmount Chassis for ServSwitch KVM Extender (ACU5000A). Use it to mount up to 16 single-video units in just 2U.

Local access

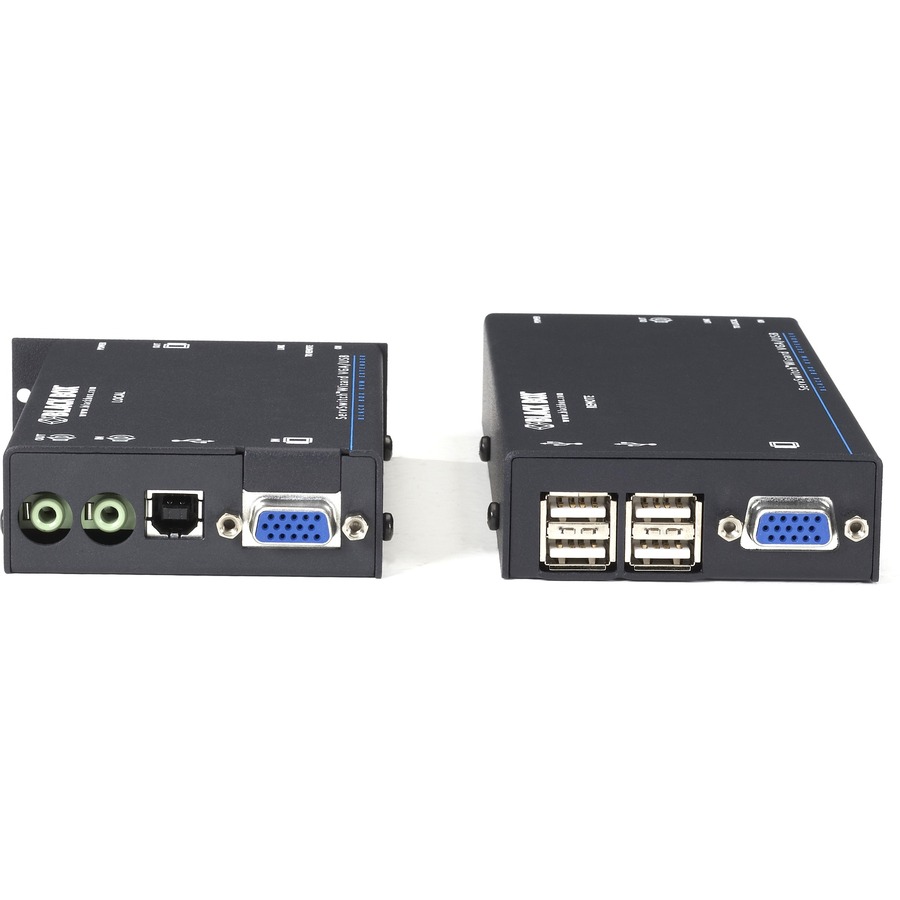

The local unit features audio and VGA feed-through, giving you local access just by plugging a keyboard and mouse directly into the spare PC USB ports.

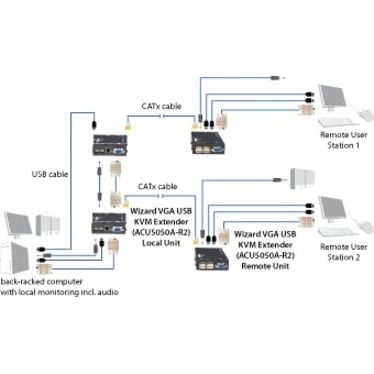

Dual-user configuration

With two single-video units, you can connect two workstations with keyboards, monitors, and mice to one CPU tower. Two users can use local connections to monitor and diagnose the CPU. This setup is ideal for a remote CPU that doesn't need to be monitored simultaneously by two users.

Highlights

  • VGA Video resolution 1600x1200
  • Extended profile DDC EDID ensures optimal video with high-performance display devices
  • Transparent USB 2.0 support
  • Local VGA and stereo audio feedthrough
  • Dual-video monitoring at the CPU
  • Automatic cut-out fuses protect against power surges
  • Rackmount multiple local and remote units in the optional chassis
  • Remote unit includes a built-in 4-port USB hub

Specifications

Package Contents
  • 1 x Transmitter
  • 1 x Receiver
  • 1 x VGA M/M cable (all pins) 1.8m (6 ft.)
  • 1 x 3.5mm audio cable 3m (10 ft.)
  • 1 x USB Type A B cable 1.8m (6 ft.)
  • 2 x sets of rubber feet
  • 1 x 5VDC, 2.5Amp external power supply
Product TypeKVM Console/Extender
Input Voltage5 V DC
Manufacturer Part NumberACU5050A-R2
Limited Warranty2 Year
Connectivity TechnologyWired
Form FactorRack-mountable, Desktop
ManufacturerBlack Box Corporation
MicrophoneYes
Product NameServSwitch Wizard USB KVM Extender With Audio
Product LineServSwitch
Brand NameBlack Box
Country of OriginUnited Kingdom
Environmentally FriendlyYes
Maximum Video Resolution1900 x 1200
Maximum Operating Distance1000 ft
USBYes
VGAYes
Number of Network (RJ-45) Ports4
Network (RJ-45)Yes
Number of USB Ports5
Number of VGA Ports2
Number of Computers Supported1
Number of Local Users Supported1
Number of Remote Users Supported1
Transmitter Height1"
Transmitter Width2.90"
Transmitter Depth6.40"
Receiver Height1"
Receiver Width2.90"
Receiver Depth6.40"
Transmitter Weight (Approximate)1 lb
Receiver Weight (Approximate)1 lb
