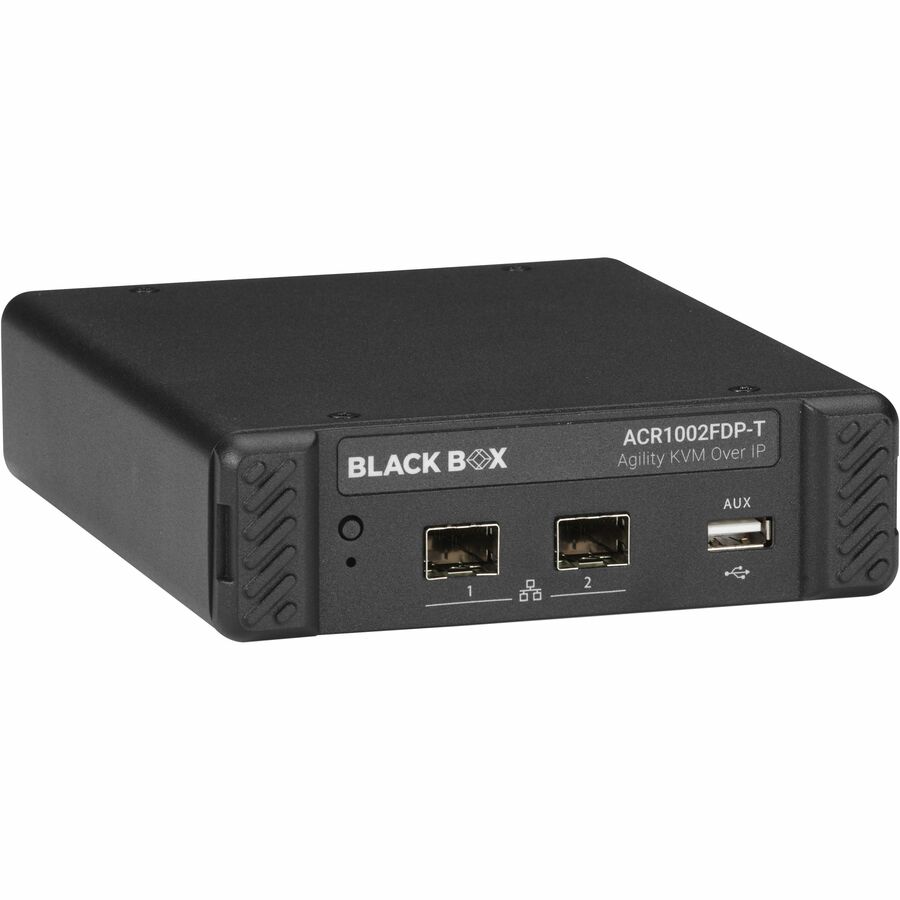

Black Box Agility KVM over IP Fiber Extender - Dual-Monitor, DisplayPort, USB 2.0
65616.80 ft Range - WQXGA - 2560 x 1600 Maximum Video Resolution - 2 x USB - DisplayPort - 12 V DC Input Voltage - For Mac - TAA Compliant
- SKU
- ACR1002FDP-T
- Category
- KVM Consoles/Extenders
MSRP$2,760.21
$2,492.38
Save 10%Back ordered — ships when restocked.
Genuine Black Box through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- ACR1002FDP-T
- Category
- KVM Consoles/Extenders
Overview
Black Box Agility IP KVM Extenders: Secure, Long-Distance, Pixel-Perfect Remote Access
Protect mission-critical computers by placing them in a secure, climate-controlled data center while delivering a pixel-perfect desktop experience to users. Black Box Agility high-performance IP KVM extenders provide dual-monitor DisplayPort video, audio, and USB over a single fiber cable - ideal for organizations needing low-latency KVM over IP.
Plug-and-Play Setup
Deploy instantly with no drivers or software required.
Single-Fiber, IP-Based Connectivity
Transmit video, audio, and USB over one fiber cable for simple, flexible installations.
Extend Signals Over Long Distances
Reach 1640 ft (500 m) or up to 12 miles (20 km) with the appropriate SFP module - perfect for control rooms, broadcast facilities, and secure remote workstations.
Pixel-Perfect DisplayPort Video
Deliver 2560 x 1600 @ 60 Hz or dual 1920 x 1200 @ 60 Hz with spatially lossless encoding for color-accurate, artifact-free video and real-time responsiveness.
Full USB Support
Connect keyboards, mice, tablets, touchscreens, and USB 2.0 storage devices. USB-HID functions can be disabled for added security.
Optimized for Mac Pro
Magic Eye technology supports high-bandwidth dithered video without degrading link performance.
Redundant Network Operation
Dual network ports enable automatic failover to maintain continuous uptime.
Dual-Touchscreen Ready
Supports two touch displays with an on-screen keyboard and floating launch button.
Highlights
- Supports fiber at up to 1 GbE using optional SFP modules (1 SFP included, optional SFP for the second slot is not included)
- Achieves DisplayPort resolutions of (1) 2560 x 1600 @ 60 Hz or (2) 1920 x 1200 @ 60 Hz
- Provides bi-directional analog audio (with combined headset jack on the receiver)
- Includes USB True Emulation for fast switching
- Works with advanced diagnostic and troubleshooting tools
- Plug-and-play
Specifications
| Additional Warranty Information | 2 Year Double Diamond? Warranty (Standard) |
|---|---|
| Product Type | KVM Extender Transmitter |
| Input Voltage | 12 V DC |
| Manufacturer Part Number | ACR1002FDP-T |
| Platform Supported | Mac |
| Limited Warranty | 2 Year |
| Connectivity Technology | Wired |
| Manufacturer | Black Box Corporation |
| Product Model | ACR1002FDP-T |
| Product Name | Agility KVM over IP Fiber Extender - Dual-Monitor, DisplayPort, USB 2.0 |
| Power Consumption | 7 W |
| Product Line | Agility |
| Brand Name | Black Box |
| Country of Origin | United Kingdom |
| Maximum Video Resolution | 2560 x 1600 |
| Graphic Mode | WQXGA |
| Maximum Operating Distance | 65616.80 ft |
| USB | Yes |
| Number of USB Ports | 2 |
| DisplayPort | Yes |
| Transmitter Height | 1.50" |
| Transmitter Width | 5.30" |
| Transmitter Depth | 5.90" |
| Receiver Weight (Approximate) | 1.70 lb |
| TAA Compliant | Yes |
| Device Type | KVM Extender |
| Product Color | Black |
| Color Family | Black |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
