SKU
VM51616H
Category
Video Switchboxes
Overview

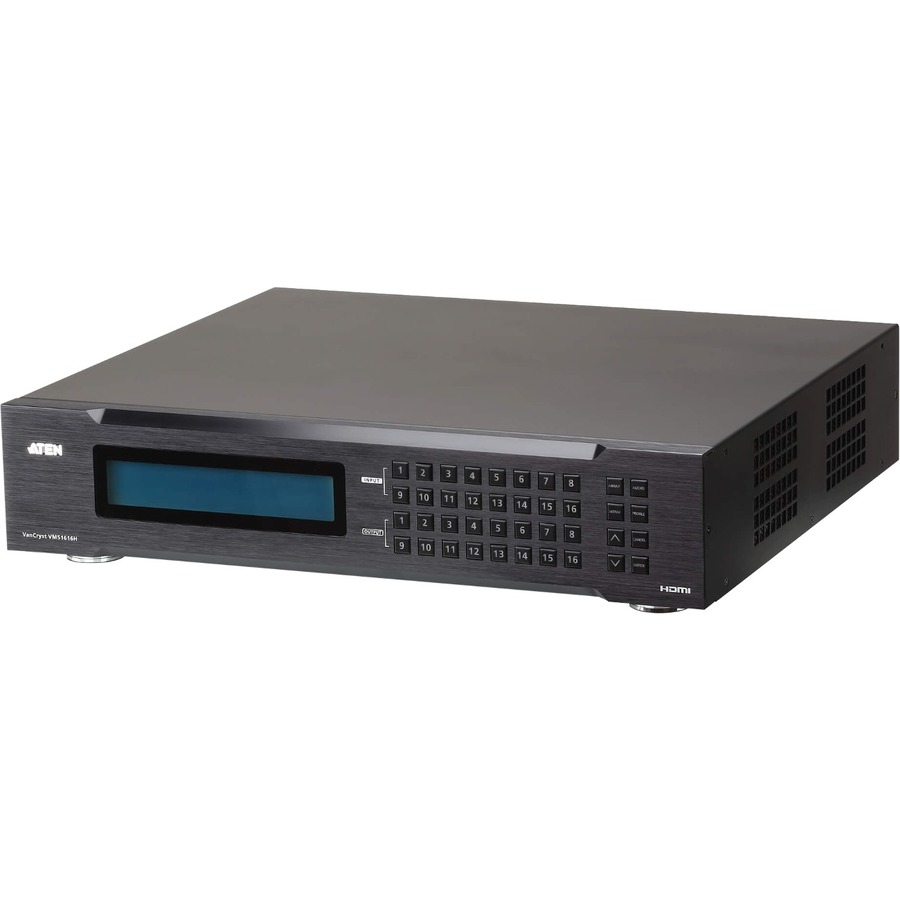

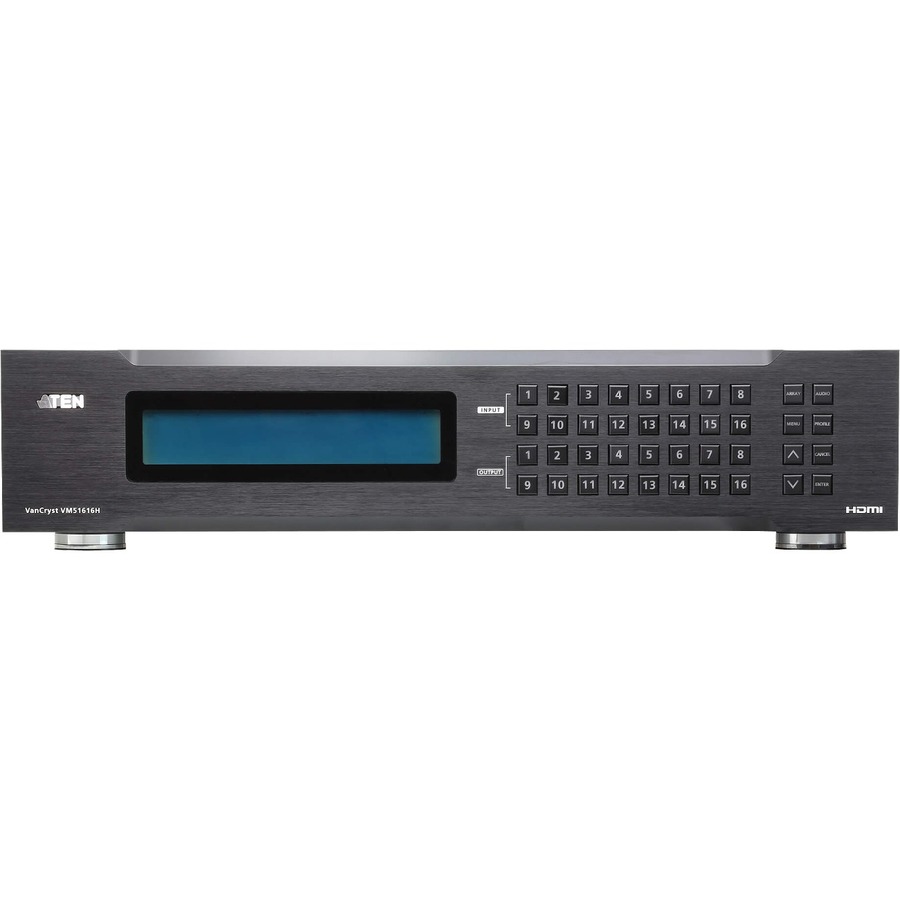

The VM51616H is a 16 x 16 HDMI Matrix Switch that offers an easy and affordable way to route any of 16 HDMI video and audio sources to 16 HDMI displays, with a quick view of all port connections via the front panel LCD or local HDMI output for multiple source preview.
The VM51616H features seamless switching that employs an FPGA matrix architecture to ensure continuous video streams, real-time control and stable signal transmissions. With a built-in high-performance scaler, the VM51616H easily converts various input resolutions to optimum output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall function with an intuitive web GUI that allows you create 32 connection profiles that can be customized into different video wall layouts.
The VM51616H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently delivered to multiple locations, such as railway stations, competition venues, casinos, control centers, conference rooms, logistics centers, security management, and more.
Highlights
Connects any of 16 HDMI sources to any of to 16 HDMI displays
Multiple means for system configuration including front-panel pushbuttons, RS-232 control, and Ethernet connections for web-based GUI or Telnet
Seamless Switch? - features close-to-zero second switching for continuous video streams, real-time switching, and stable signal transmissions*
Scaler -features a video scaling function to convert input resolutions to the optimum display resolutions
Video Wall -allows you to create custom video wall layouts via intuitive web GUI*
EDID Expert? -selects optimum EDID settings for smooth power-up, high-quality display, and use of the best resolution across different screens
FrameSync - prevents image tearing by synchronizing the scaler output frame rate to the input signal frame rate
Superior video quality - HDTV resolution of 480p, 720p, 1080i and 1080p (1920 x 1080)
HDMI (3D, Deep color); HDCP 1.4 compatible
Consumer Electronics Control (CEC) support
Specifications
Package Contents
16 x 16 HDMI Matrix Switch with Scaler
1 x Power Cord
1 x Rack Mounting Kit
1 x User Instructions
Product Type
Audio/Video Switchbox
Device Supported
Display, TV, Speaker
Manufacturer Part Number
VM51616H
Packaged Quantity
1
Limited Warranty
3 Year
Weight (Approximate)
17.33 lb
Connectivity Technology
Cable
Form Factor
Rack-mountable
Manufacturer
ATEN Technology, Inc
Product Model
VM51616H
Product Name
16 x 16 HDMI Matrix Switch with Scaler
Product Line
VanCryst
Brand Name
ATEN
Country of Origin
Taiwan
Height
3.5"
Width
17"
Depth
15"
Graphics Modes
Full HD
Environmentally Friendly
Yes
Maximum Video Resolution
1920 x 1080
Maximum Operating Distance
49.21 ft
Number of HDMI Inputs
16
Number of HDMI Outputs
17
HDMI In
Yes
HDMI Out
Yes
Media Type Supported
Twisted Pair
Number of Displays Supported
16
Number of Input Devices Supported
16
Connectivity (RJ-45)
Yes
Number of Connectivity (RJ-45) Ports
1
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
