SKU
VM3200
Category
Video Switchboxes
Overview

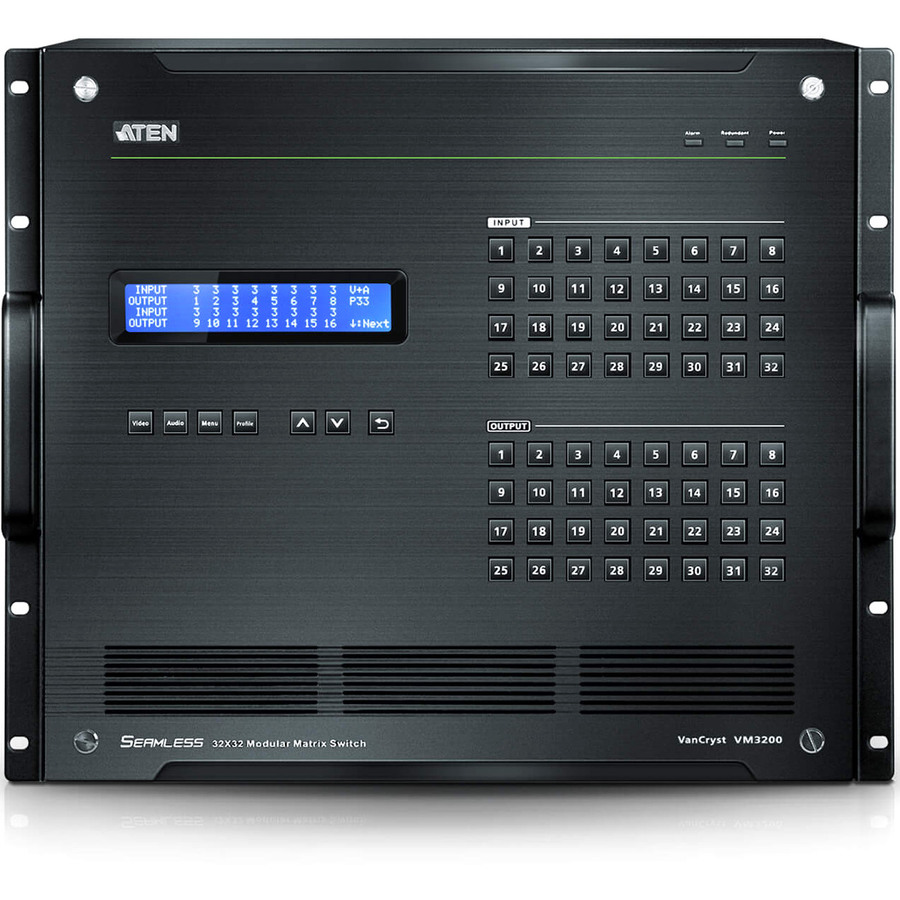

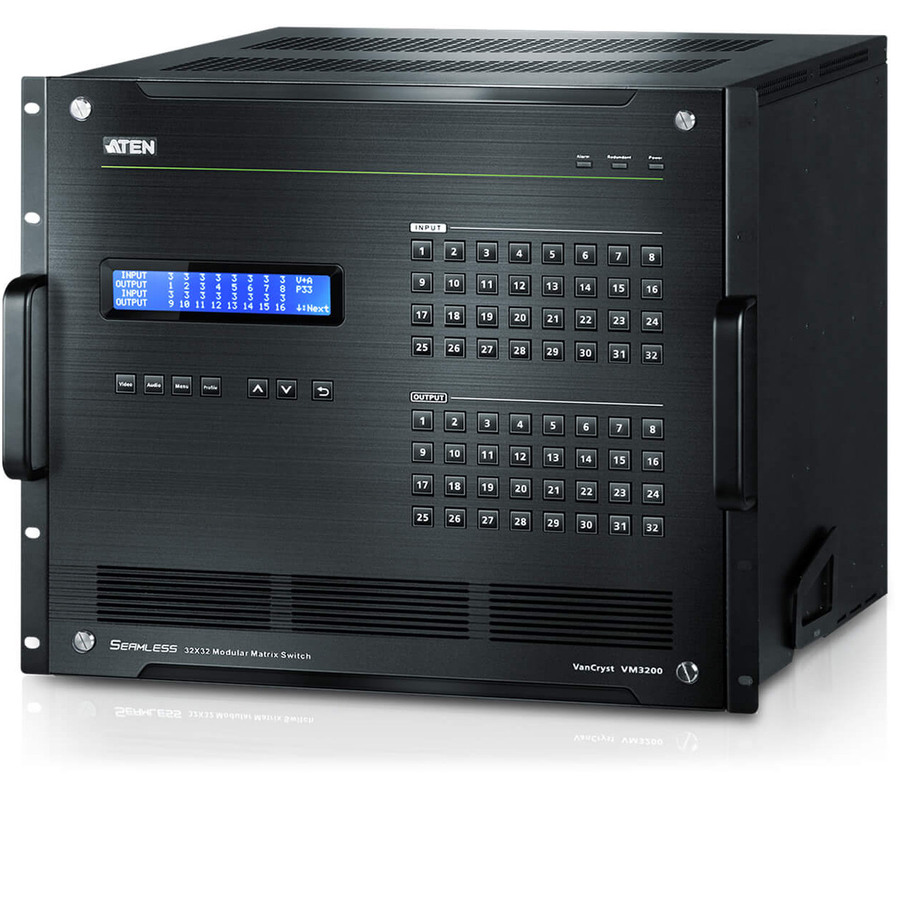

The VM3200 Modular Matrix Switch offers advanced access and real-time control of multiple local and remote A/V input devices and displays from a single chassis. The VM3200 allows users to independently switch and route video and/or audio content directly to various monitors, displays, projectors, and/or speakers simply by pressing front panel pushbuttons. A built-in Scaler encodes the video format in order to provide seamless, real-time switching. The front panel LCD shows a quick view of active port connections. The switch also includes an option to select an EDID Mode that yields the best resolution across different monitors.
The VM3200 is easily expandable and accommodates a lineup of hot-swappable ATEN I/O boards. Equipped with automatic signal conversion, it allows various combinations of digital video interfaces, including HDBaseT (VM7514 / VM8514), HDMI (VM7804 / VM8804), DVI (VM7604 / VM8604), 3G-SDI (VM7404), and VGA (VM7104). This makes it ideal for large-scale A/V applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers, and any application that requires customizable, high-speed A/V signal routing.
Highlights
Connects any of 32 video sources to any of 32 displays in combination with ATEN Modular Matrix Solutions
Built-in Scaler on each output port converts input resolutions into the display's native resolution
Supports 4K resolutions up to UHD (3840 x 2160) and DCI (4096 x 2160) with refresh rates of 30 Hz (4:4:4) and 60 Hz (4:2:0)
Seamless Switch? - ATEN FPGA design unifies video formats to provide continuous video streams, real-time switching, and stable signal transmissions*
Video Wall - allows you to create custom video wall layouts via intuitive web GUI
Live stream of connected video channels and image preview of video wall layouts via web GUI
Calendar-based scheduling plays connection profiles synchronized with real-time clock
EDID Expert? - selects optimum EDID settings for smooth power-up and highest quality display
Multiple Control Methods - system management via front-panel pushbuttons, RS-232, RS-485/422, and Ethernet (Telnet / Web GUI) connections

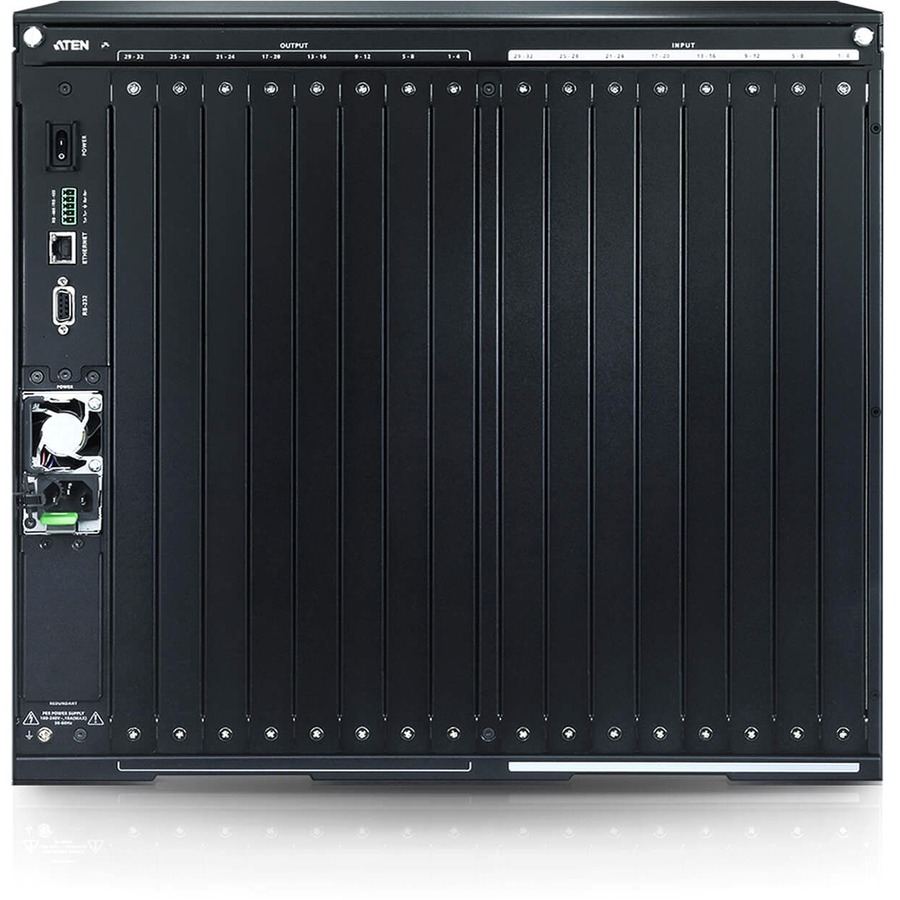

Hot-pluggable fan and power modules for easy maintenance and higher reliability
Specifications
Package Contents
32x32 Modular Matrix Switch
1 x Power Cord
1 x Terminal Block Connector
1 x User Instructions
Product Type
Audio/Video Switchbox
Device Supported
Display
Manufacturer Part Number
VM3200
Packaged Quantity
1
Limited Warranty
3 Year
Weight (Approximate)
40.12 lb
Connectivity Technology
Cable
Form Factor
Rack-mountable
Manufacturer
ATEN Technology, Inc
Product Model
VM3200
Product Name
32x32 Modular Matrix Switch
Product Line
VanCryst
Brand Name
ATEN
Country of Origin
Taiwan
Height
15.7"
Width
18.6"
Depth
19"
Graphics Modes
4K
Environmentally Friendly
Yes
Maximum Video Resolution
4096 x 2160
Media Type Supported
Twisted Pair
Number of Displays Supported
32
Number of Input Devices Supported
32
Connectivity (RJ-45)
Yes
Number of Connectivity (RJ-45) Ports
1
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
