8 Computer(s) - 1 Local User(s) - 32 Remote User(s) - 2048 x 1536 - 1U
MSRP$1,200.00
$980.50
Save 18%In stock: 7
Genuine ATEN Technology through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

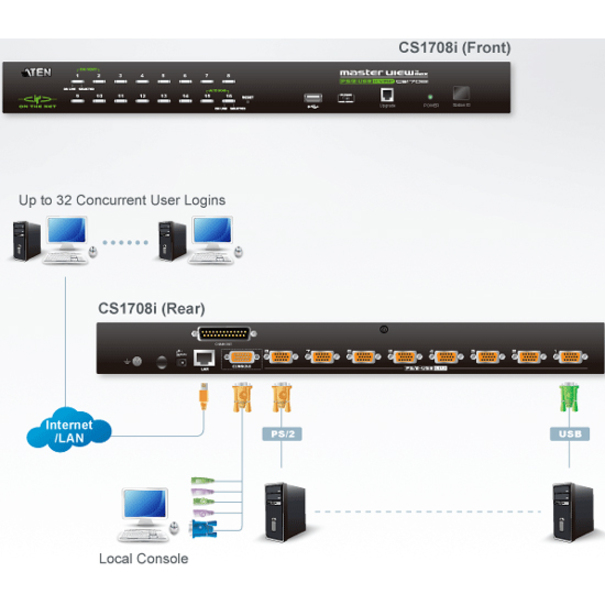

The CS1708i KVM switches is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol. The CS1708i supports up to 32 concurrent user logins for single-bus computer access. A built-in feature that resembles an Internet chat program - the message board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.
More from the Manufacturer
Local/Remote Share Access 8-Port PS/2-USB VGA KVM over IP Switch
Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1920 x 1200 @ 60Hz and 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions
Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
Panel array mode enables user to monitor multiple servers from singlescreen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
The CS1708i KVM switches is an IP-based KVM control unit that allows both local and remote operators to monitor and access multiple computers. Remote users access the switches over the Internet by means of a web browser using TCP/IP for its remote communications protocol. The CS1708i supports up to 32 concurrent user logins for single-bus computer access. A built-in feature that resembles an Internet chat program - the Message Board - lets them communicate with each other. The ability to exchange information in real time allows them to cooperatively manage the installation in a smooth and efficient manner.
Among the CS1708i other outstanding features, a Panel Array Mode provides the ability to monitor up to 8 servers per switch; while the Mouse DynaSync™ feature automatically synchronizes the local and remote mouse pointer movements for perfect alignment regardless of what the mouse acceleration settings on the server are.
The CS1708i supports the highest security protocols, such as TLS 1.2 encryption for the browser, and RC4 encryption for secure keyboard, mouse, and video data transmission. For easier and more efficient user management integration, the CS1708i also supports authentication and authorization via remote servers, such as RADIUS, LDAP, LDAPS, and MS Active Directory.
These powerful features not only help administrators manage their server room in an efficient and flexible manner, they provide a cost effective management solution for the SMB sector.
Management
Up to 64 user accounts
Convenient computer selection via front panel pushbuttons, hotkeys and multilingual on-screen display (OSD) menus
Up to 32 concurrent logins
Multilanguage web UI support featuring a tree-structured local and remote OSD
Adjustable video quality for flexible adaptation to diverse network environments
Auto Scan feature for monitoring user-selected computers
Broadcast mode – operations from the keyboard can be simultaneously performed on all selected computers on the installation (software installation, system-wide shutdown, etc.)
Firmware upgradable
Backup and restore configuration and user account settings
Event logging
Enable/disable browser access
IPv6 capable
Ease-to-Use Interface
Browser-based and AP GUIs, together with a menu-driven OSD for the local console, provide a powerful, intuitive, user-friendly, multilanguage interface to minimize user training time and increase productivity
Multiplatform client support (windows, Mac OS X, Linux, Sun)
Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
Port names automatically reconfigured when station sequence is changed
Panel array mode enables user to monitor multiple servers from single screen at the same time - each selected server's video output appears in a separate panel - users can easily select the number of panels to view
Windows client and Java client software support; Java client works with all operating systems
Advanced Security
Flexible encryption design allows users to choose any combination of DES, 3DES, AES, RC4, or Random for independent KB/Mouse and video data encryption
Supports TLS 1.2 data encryption and RSA 2048 bit certificates for secure user logins from a browser
External (Remote) authentication support: RADIUS, LDAP, LDAPS, MS Active Directory
Support for IP/MAC Filter
Local and remote access logged and authenticated
Virtual Remote Desktop
Resizable remote desktop window
Message board allows logged in users to communicate with each other, and allows a user to take exclusive control of the KVM functions
Mouse DynaSync™
On-screen keyboard with multilanguage support
BIOS-level access
Hardware
8-port remote access KVM switch - monitor and control up to 8 computers from a single KVM console
Daisy chain up to 15 additional units - control up to 128 computers from a single console*
Auto-sensing of station's position on daisy chained installations; no need for manual dip switch setting; front panel LED indicates station's position
Hot pluggable - add or remove computers without having to power down the switch
Multiplatform support - Windows, Linux, Mac, and Sun
Front panel USB hub allows connected computers to access USB peripherals
Dual Interface - supports PS/2 or USB keyboard and mouse computer connections with automatic interface detection
USB / PS/2 keyboard and mouse emulation - computers boot even when the console focus is elsewhere
Supports USB keyboards for Windows, Mac and Sun
Superior video quality - up to 2048 x 1536; DDC2B for the local console; up to 1920 x 1200 @ 60Hz** and 1600 x 1200 @ 60Hz / 24 bit color depth for remote sessions
Video DynaSync™ - stores the console monitor's EDID (Extended Display Identification Data) to optimize display resolution
Rack mountable in a 1U system rack
Simply Better Connections ATEN Technology, Inc. is the technology leader and global manufacturer of KVM and Pro AV connectivity solutions, and the U.S. subsidiary of ATEN International Co., Ltd. (TWSE: 6277), established in 1979. A certified member of the HDBaseT Alliance, holding over 640 industry patents, ATEN offers integrated KVM, Professional Audio (Pro AV), and Intelligent Power solutions, across all industries including corporate , commercial, government , industrial, entertainment, educational and retail environments. A technology-first company, ATEN’s advanced ability to quickly develop customized solutions in KVM, Pro AV, PDU , USB , and data communication lines allows the company to build products that connect, manage and optimize electronics based on customer need. ATEN’s comprehensive portfolio of innovative, reliable products is available worldwide, with local U.S support. For more information, visit: http://www.aten.com/us/en/ Markets & Solutions Broadcasting & Media Today's broadcasting and media environment demands versatile, adaptable, and forward-thinking solutions. With media delivery and technology evolving at a rapid rate, media professionals are now looking toward multi-platform content support, efficient power management, and immersive image delivery. Professionals in the field require the power to access content remotely via stable, secure, and fast multimedia data channels. Corporate The corporate environment requires integrated solutions that are flexible, forward–thinking, and that make communication simple. Corporations need to be able to seamlessly and securely distribute information to key stakeholders around the world. They need KVM and A/V solutions that create a framework for effortless meetings, data sharing, and communication with customers. Education Teaching technology and techniques are evolving quickly. Technology has now become a critical educational resource that has helped lessons to become more personalized, collaborative, and interactive. Educators are taking advantage of various innovations to improve teaching effectiveness, learning outcomes, and even extend the reach of institutional resources.. Government Changes in technology have transformed the way government services operate. Today's tech-savvy citizens expect government agencies to maintain up-to-the-minute, secure, and reliable information that is readily available. To meet these challenges, government departments require a dynamic, scalable communication solution that seamlessly delivers information between different stakeholders and heterogeneous systems.
| General Information | |
|---|---|
| Manufacturer | ATEN Technology, Inc |
| Manufacturer Part Number | CS1708I |
| Brand Name | ATEN |
| Product Model | CS1708i |
| Product Name | CS1708i KVM Switchbox |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Physical Characteristics | |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 6.3" |
| Depth | 17" |
| Weight (Approximate) | 6.19 lb |
| Technical Information | |
| KVM Technology | Digital |
| Number of Computers Supported | 8 |
| Number of Local Users Supported | 1 |
| Number of Remote Users Supported | 32 |
| Video | |
| Maximum Video Resolution | 2048 x 1536 |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
