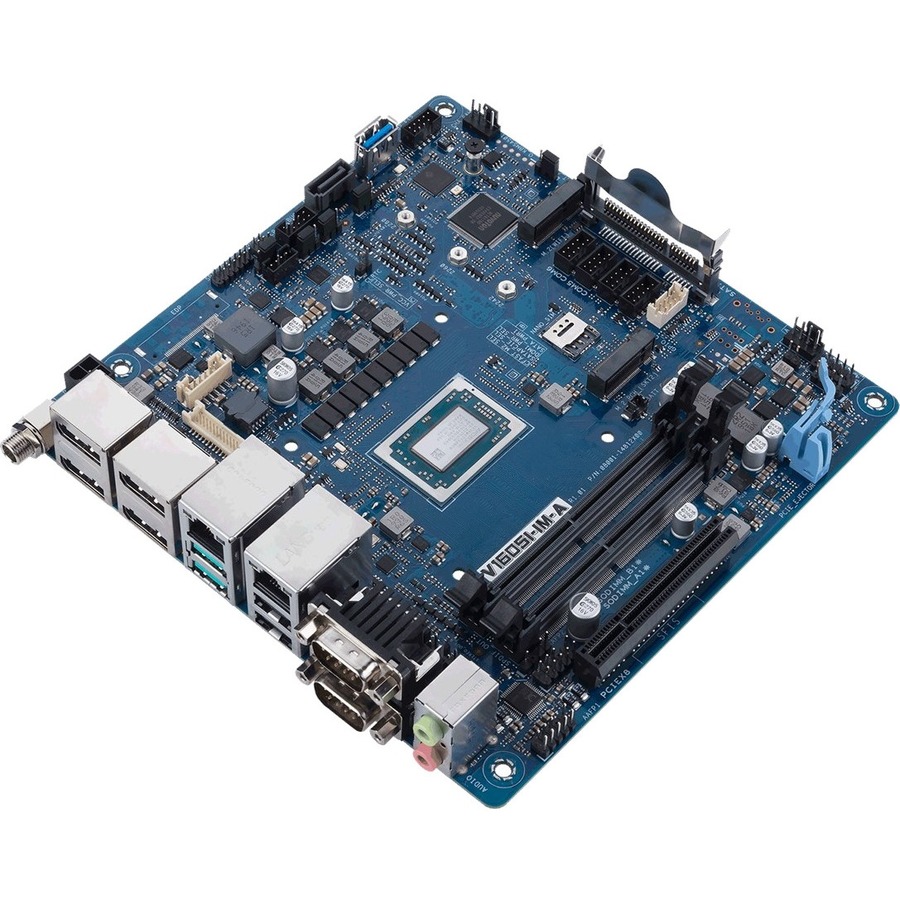

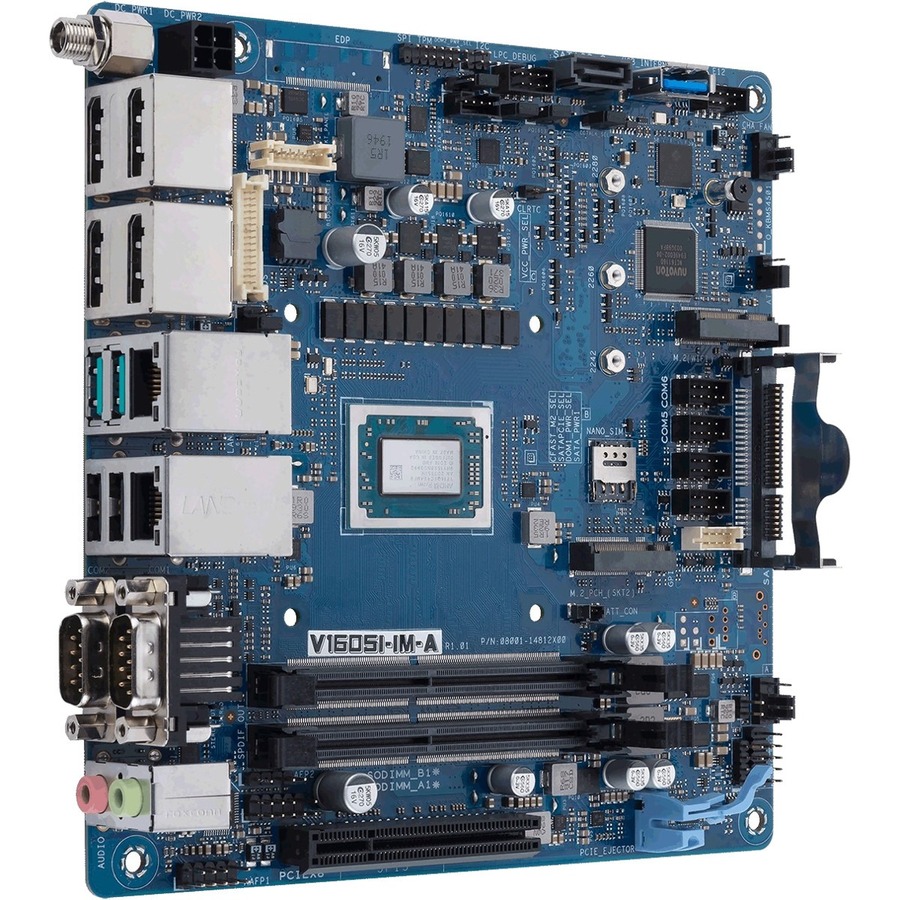

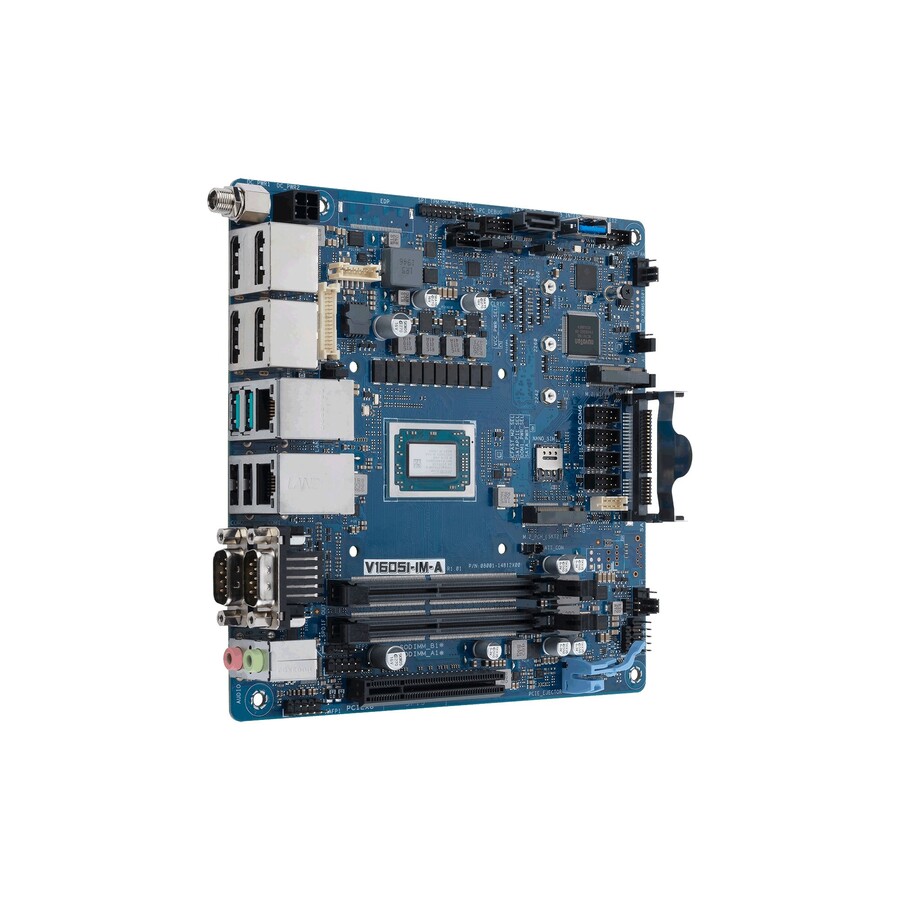

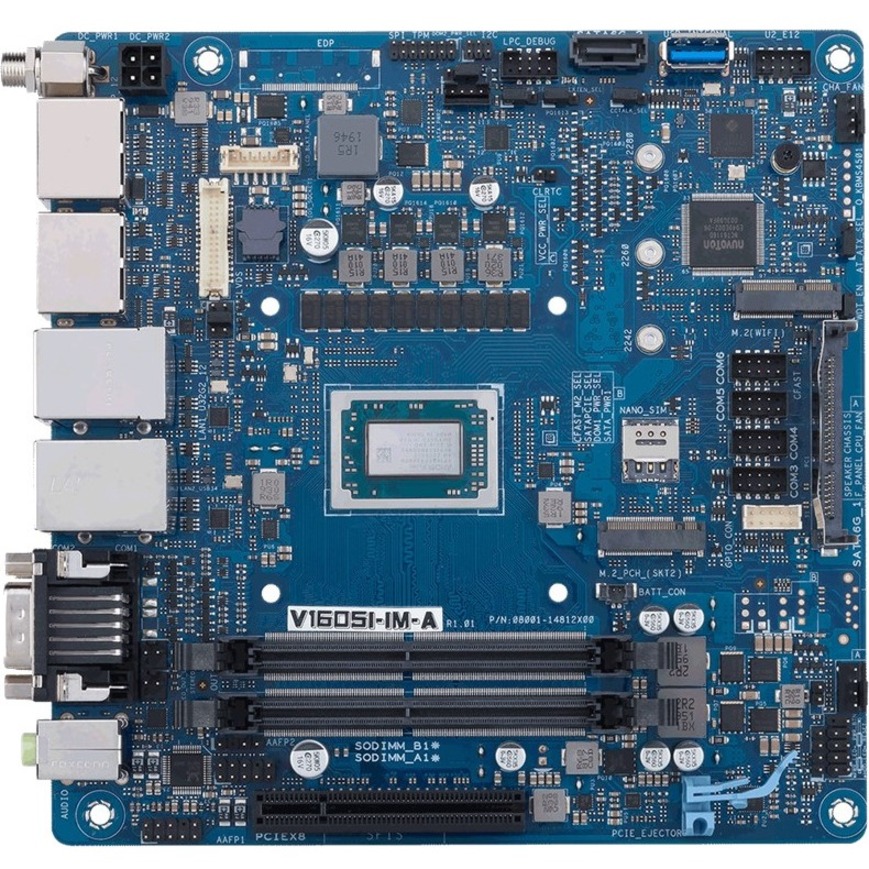

Asus V1605I-IM-A Desktop Motherboard - AMD Chipset - Mini ITX

AMD Ryzen Embedded V1000-Series V1605 Mini-ITX motherboard, two SO-DIMM slots, four DisplayPort (option upon request), two M.2 slots, two SATA port (option upon request), PCIe x8

• Supports AMD Ryzen Embedded V1000-Series V1605

• Two SO-DIMM slots support up to 32GB DDR4 2400 MHz SDRAM

• Lockable DC-in connector supported

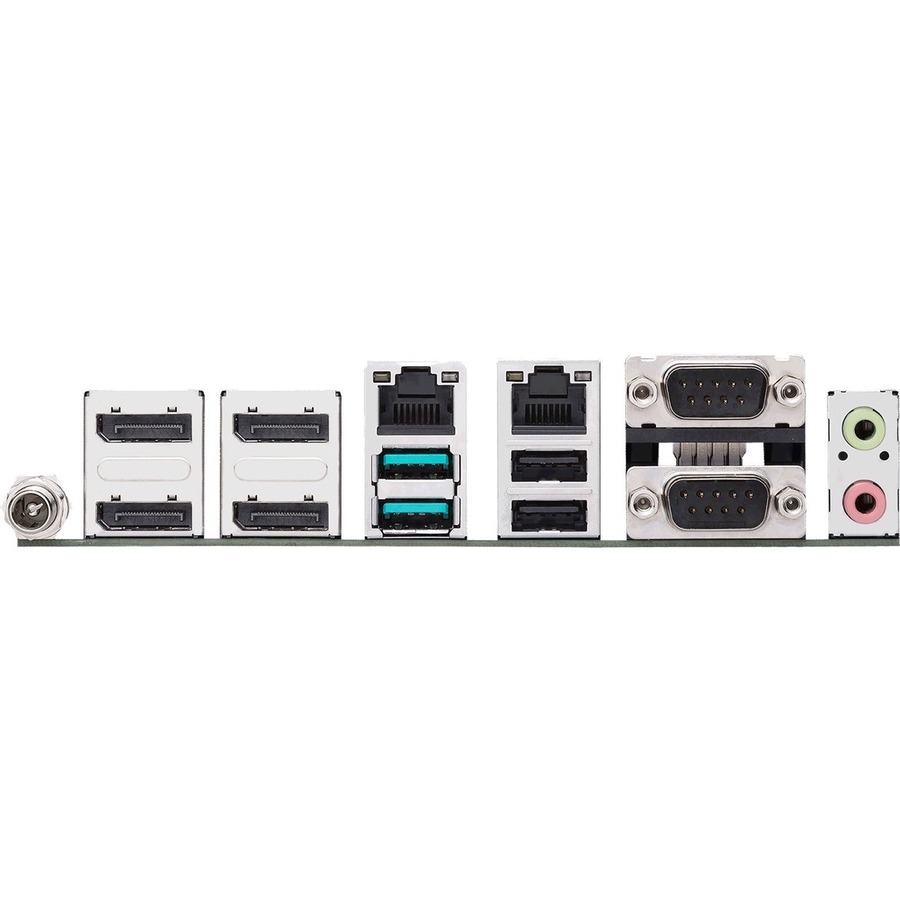

• Supports Four display configurations with multiple interfaces, including 3 DisplayPort and 1 LVDS (factory default), 4 DisplayPort (option upon request), 3 DisplayPort and 1 eDP (option upon request)

• Advanced I/O and connectivity features: CCtalk & CFAST supported

• Seven years of longevity with extended product life cycles

• Wide temperature range endurance: 0~60°C

ASUS V1605I-IM-A is a Mini-ITX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, legacy options for industrial applications, GPIO ports, dual Intel LAN as well as rich expandability with a PCIe x8 slot, two M.2 sockets (E and B key) and lockable DC-in connector. ASUS V1605I-IM-A is an ideal choice for a wide range of embedded applications. As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets.

ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
