Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
H310I-IM-B
Category
Motherboards
Overview
8th/9th Gen Intel ® Core? i7/i5/i3 LGA 1151 Mini-ITX motherboard with H310 chipset, two SO-DIMM slots, DisplayPort, DVI-D, LVDS, eDP, two M.2 slots, PCIe x16
• Supports Intel ® 8th/9th Gen Core? processors (LGA1151) with the Intel H310 chipset
• Two 260-pin SO-DIMM slots support up to 64GB DDR4 2666/2400/2133 MHz SDRAM
• Supports dual display configurations with multiple interfaces, including DisplayPort, DVI-D, LVDS, eDP

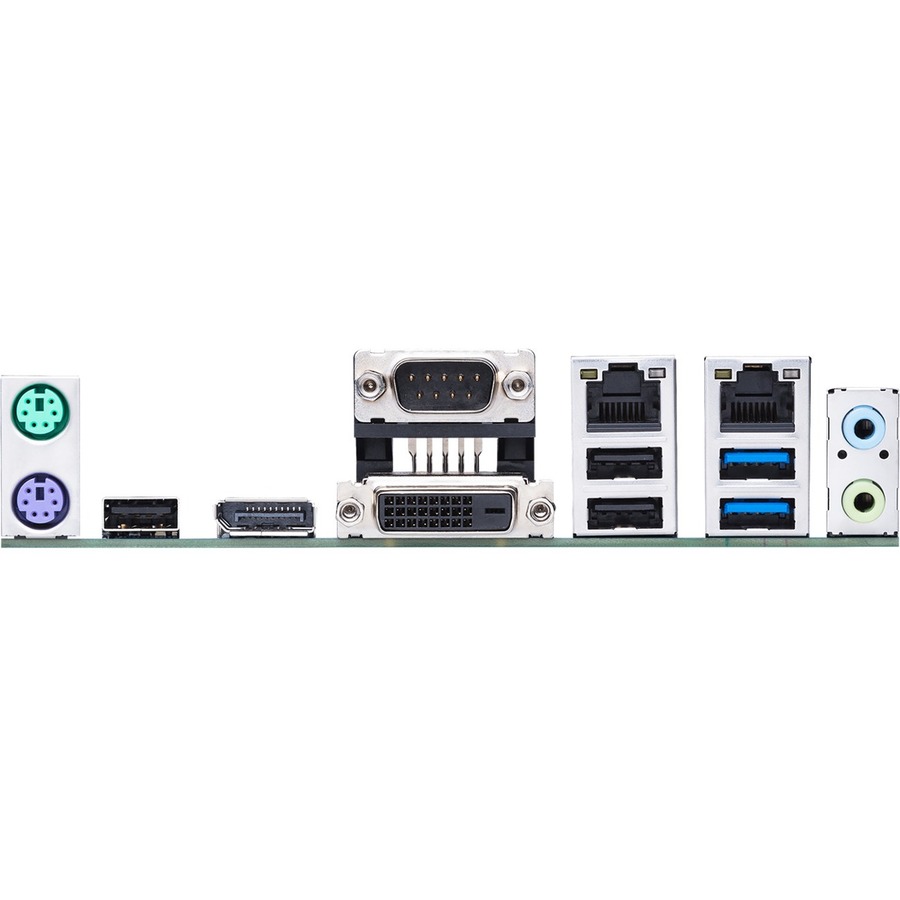

• Advanced I/O and connectivity features
• Seven years of longevity with extended product life cycles
• Wide temperature range endurance: 0-60°C

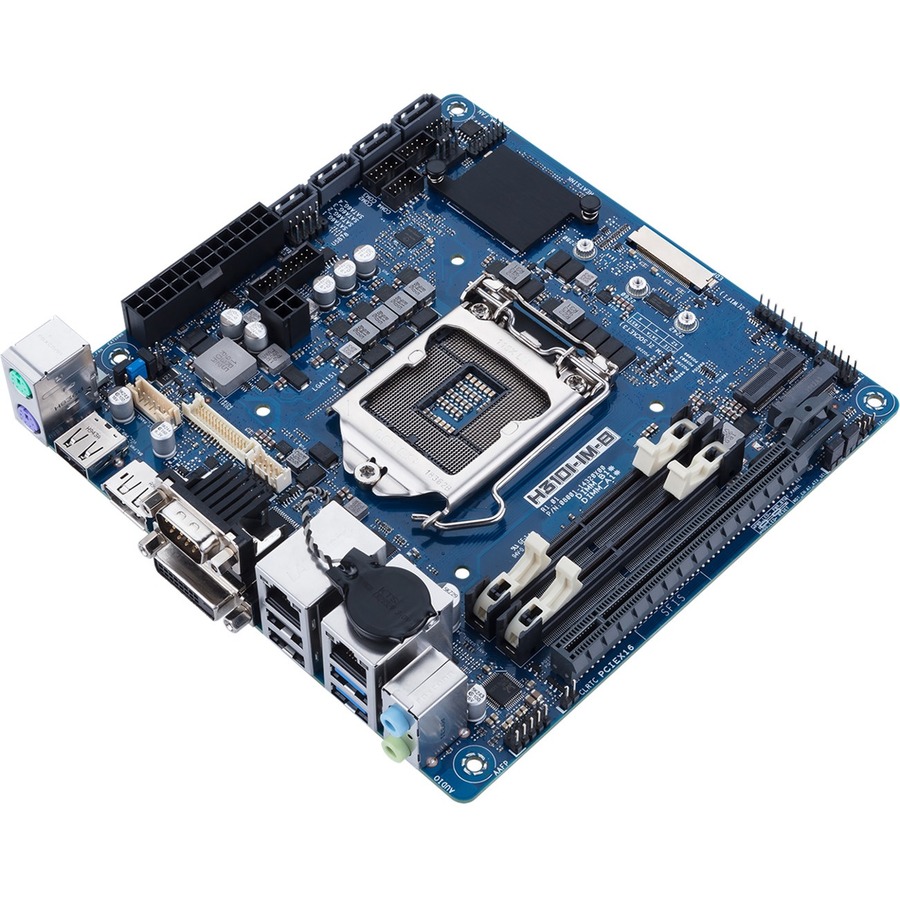

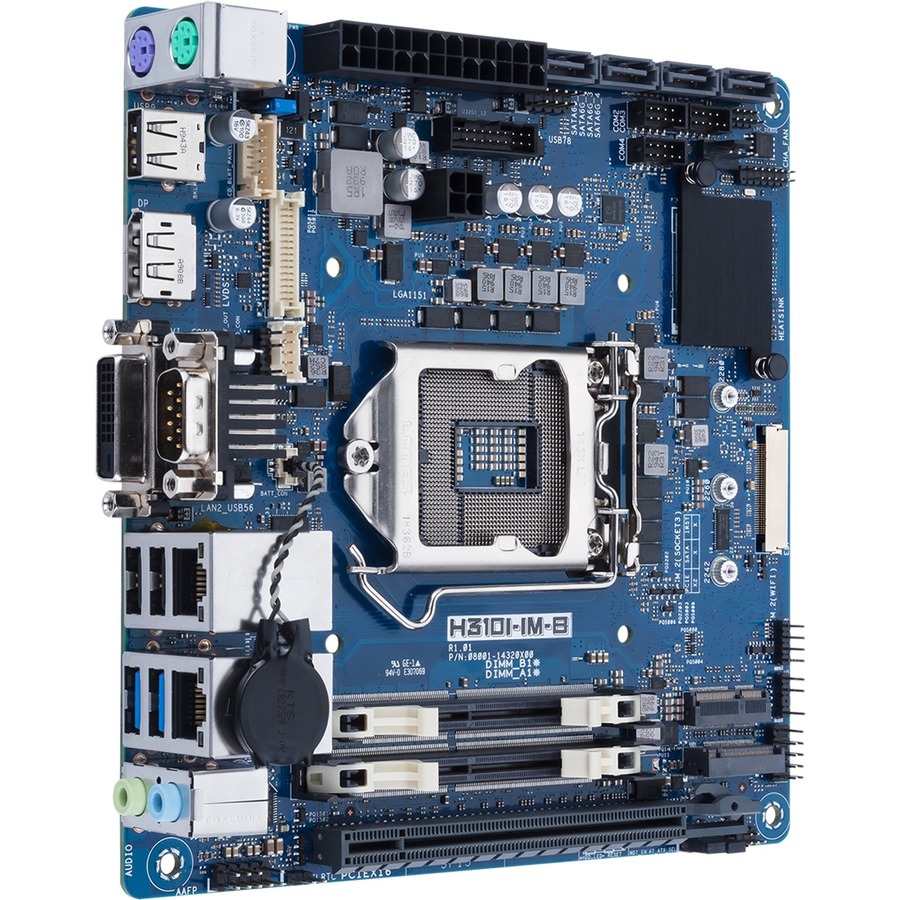

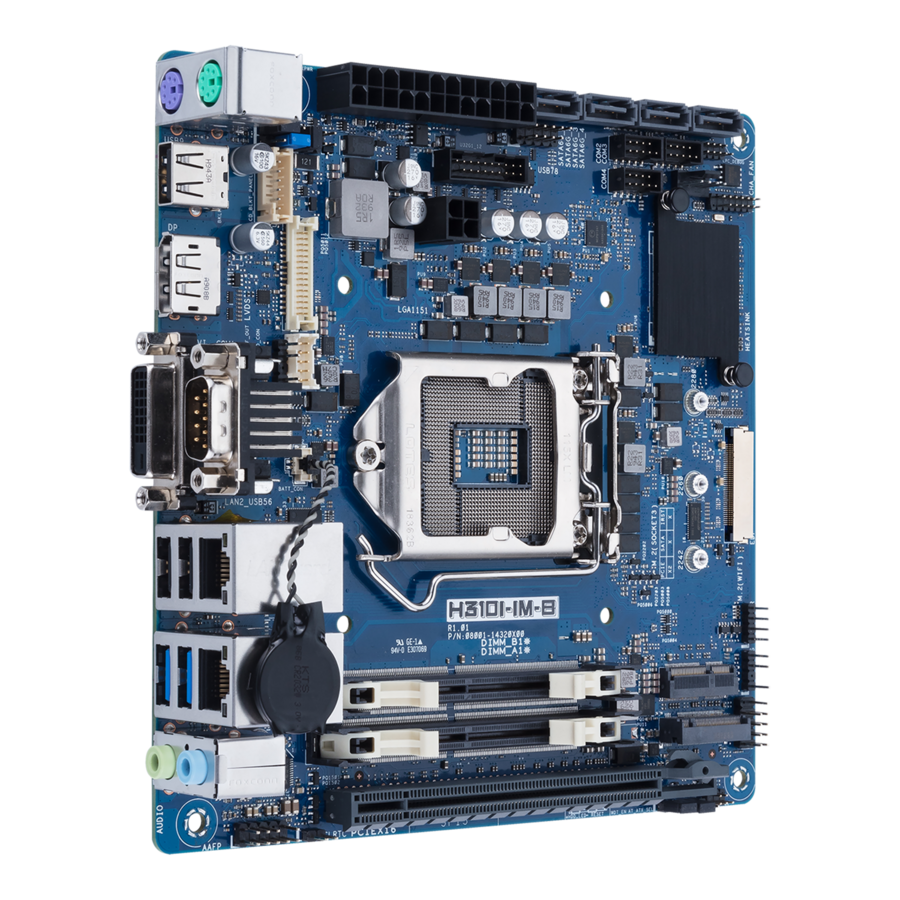

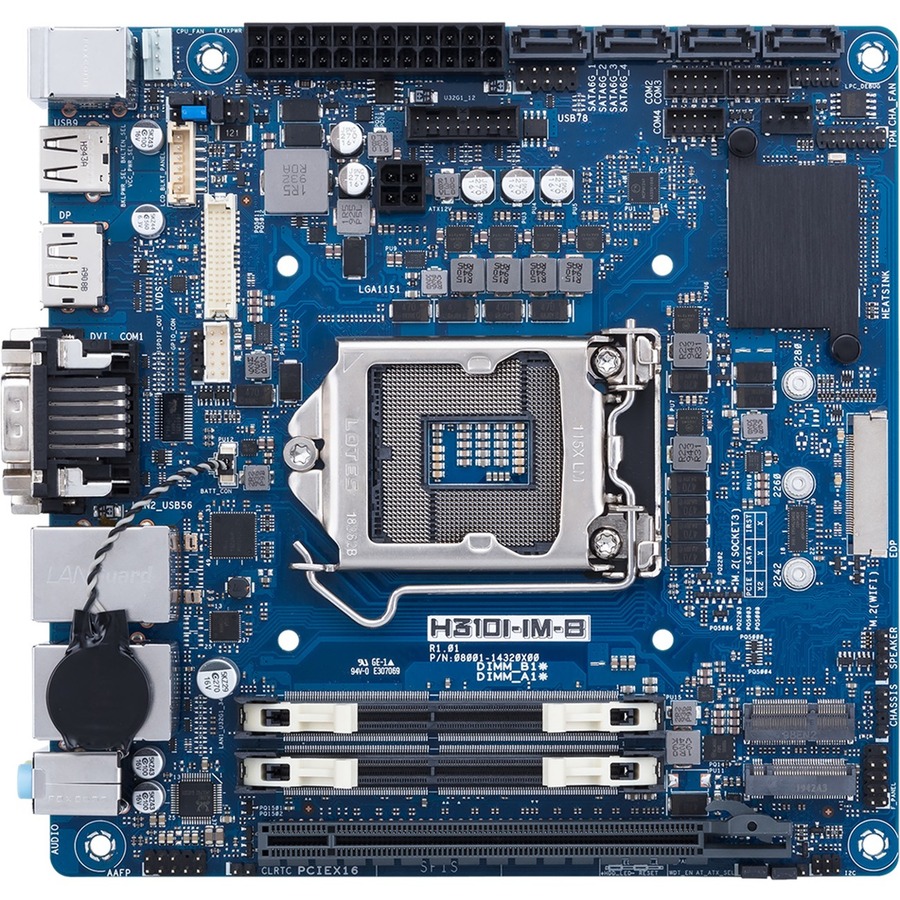

ASUS H310I-IM-B is a Mini-ITX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, legacy options for industrial applications, GPIO ports, dual Intel LAN as well as rich expandability with a PCIe x16 slot, two M.2 sockets (E and M key), ASUS H310I-IM-B is an ideal choice for a wide range of embedded applications.
As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets. ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
Highlights
Compatible Intel Core i3 processor is smart and responsive, which lets you use multiple applications without any lag
DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor
With 3 USB 2.0 ports, connect devices for a quick data movement
