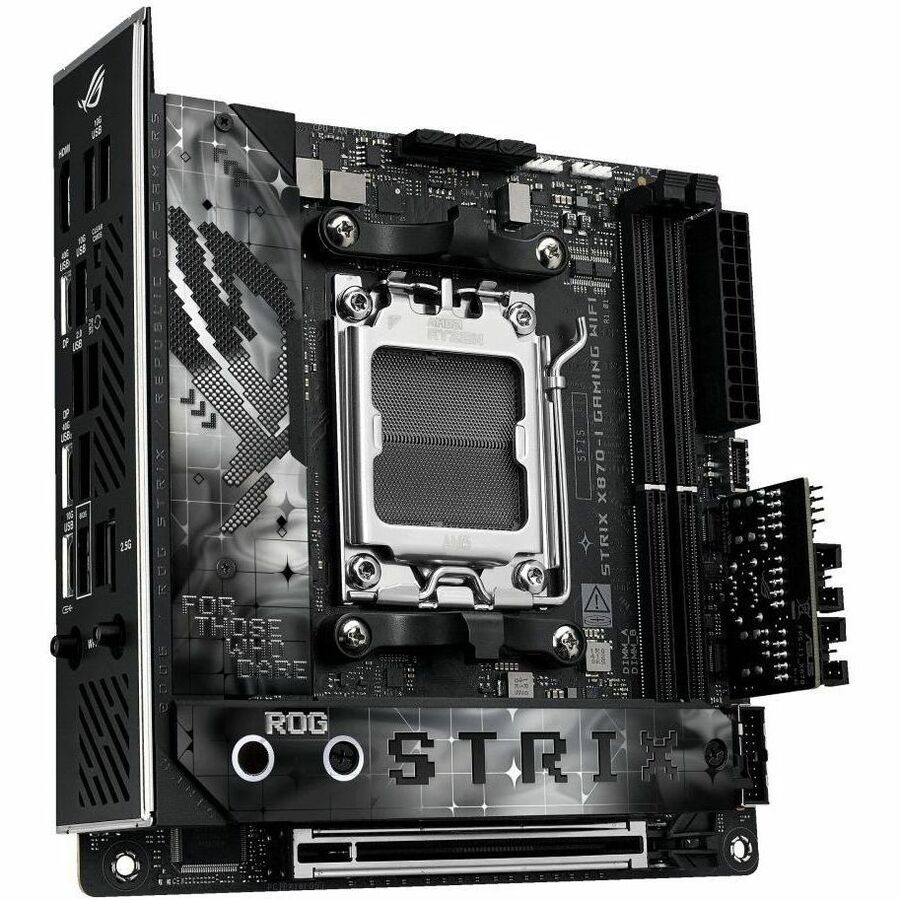

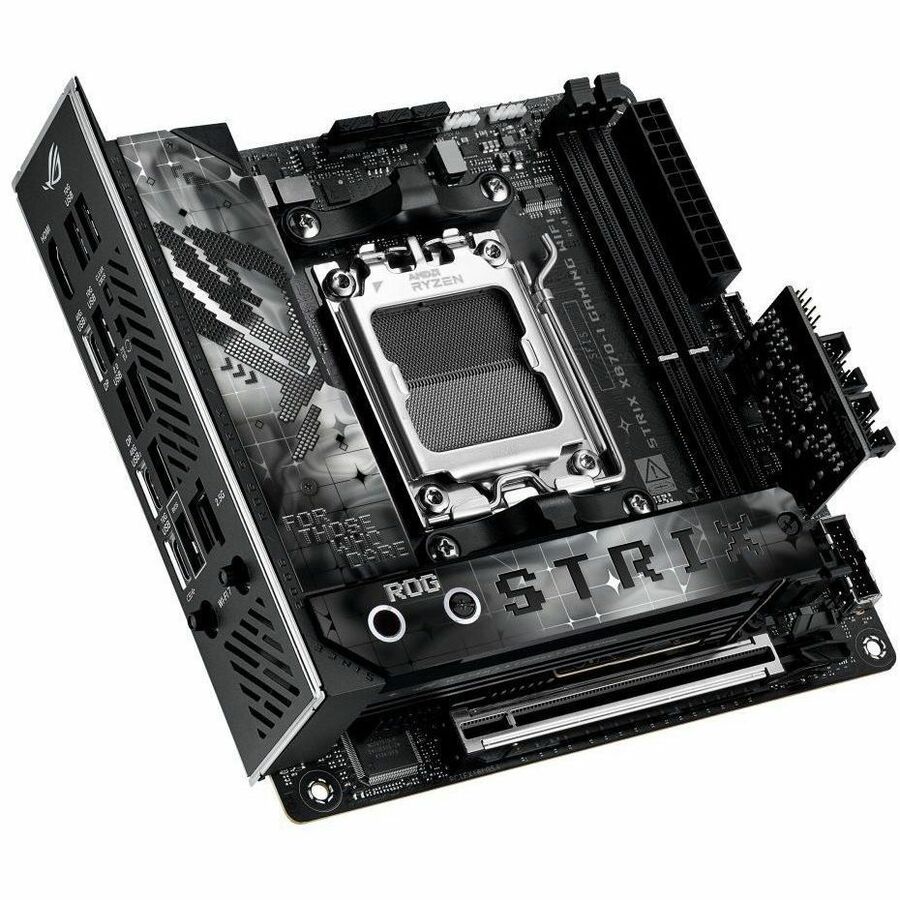

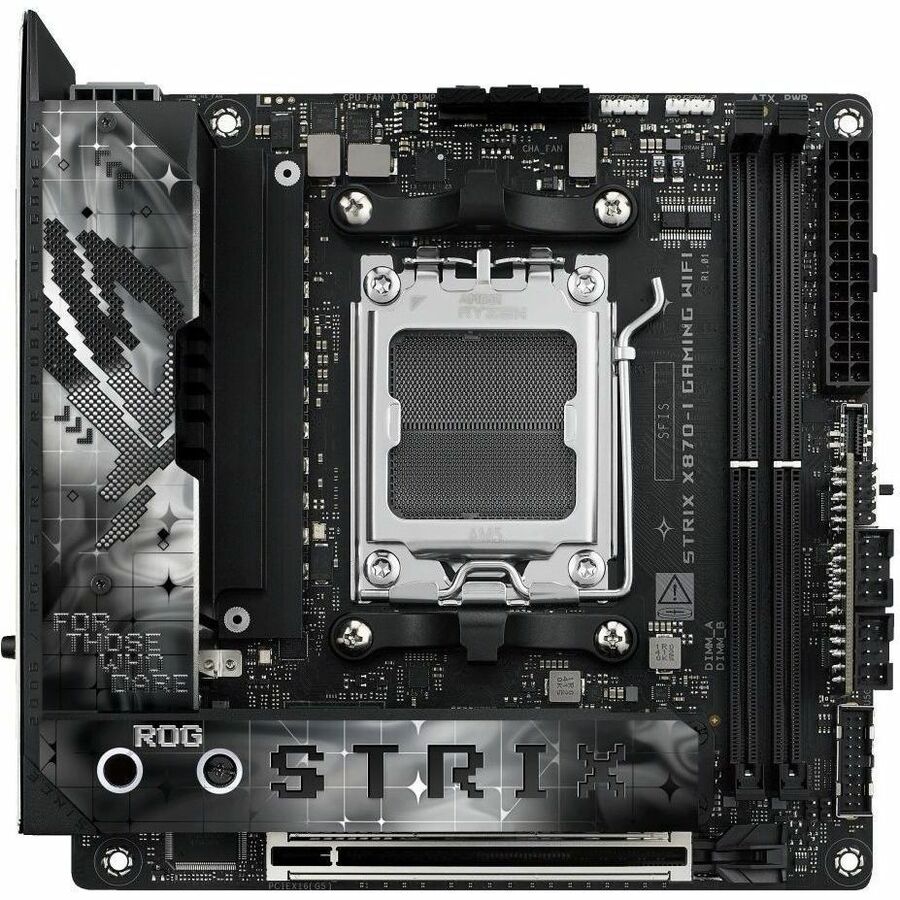

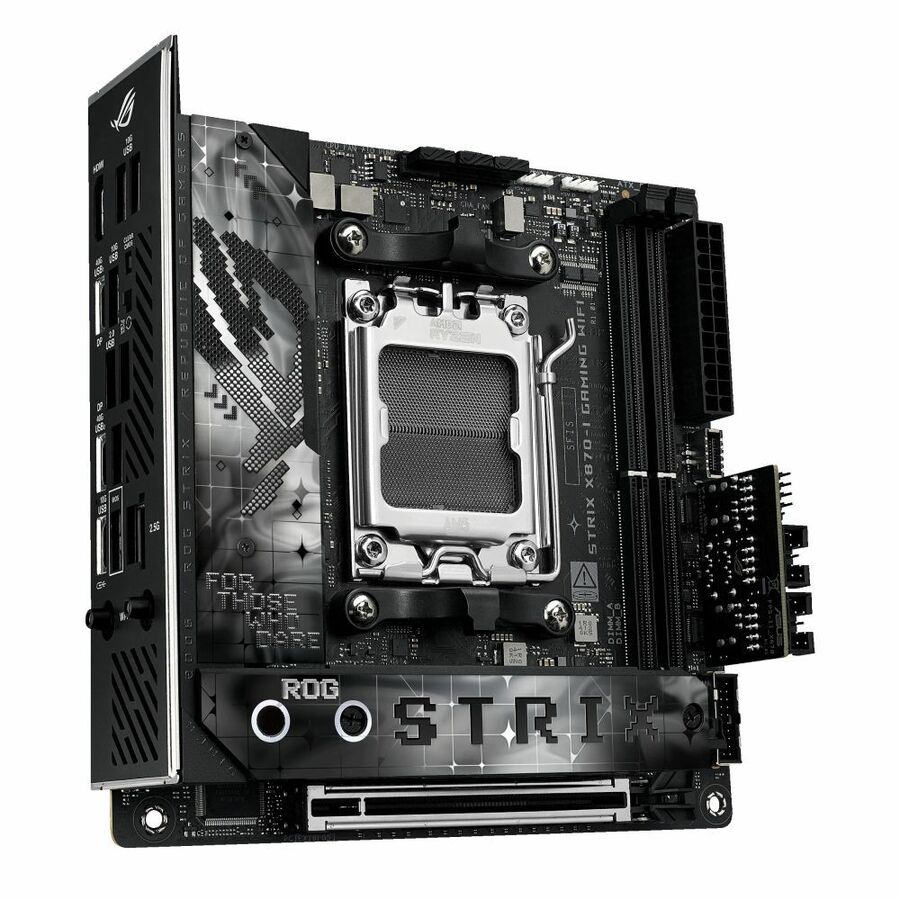

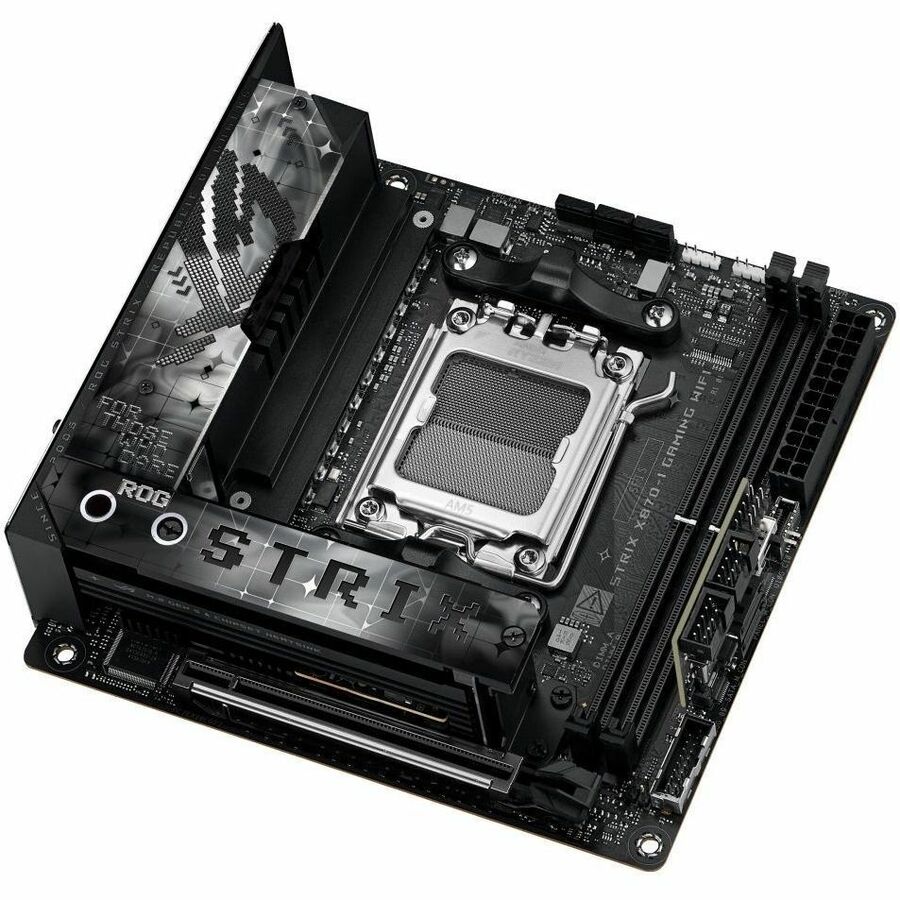

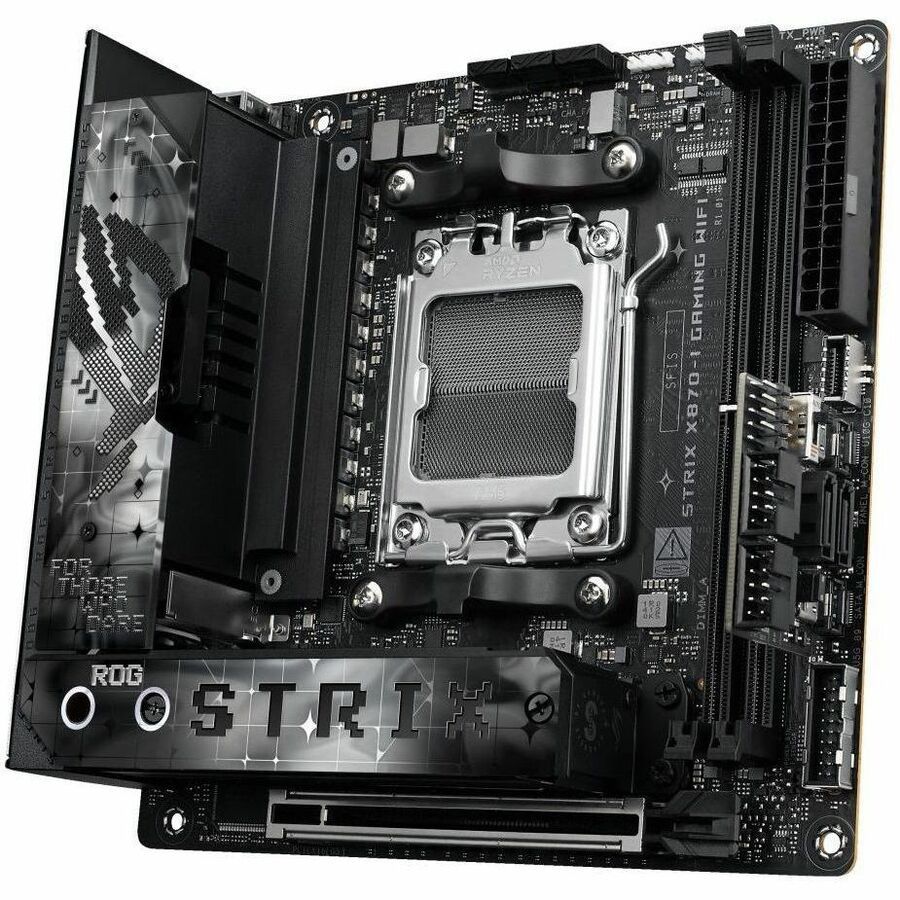

Asus ROG Strix X870-I GAMING WIFI Gaming Desktop Motherboard - AMD X870 Chipset - Socket AM5 - Mini ITX
Ryzen 7, Ryzen 9 Processor Supported - 96 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - IEEE 802.11be - HDMI - DisplayPort - 2 x SATA Interfaces
- SKU
- ROGSTRIXX870IGAMINGWIFI
- Category
- Motherboards
$492.42
Back ordered — ships when restocked.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- ROGSTRIXX870IGAMINGWIFI
- Category
- Motherboards
Overview
AMD X870 Mini-ITX motherboard with 10+2+1 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, WiFi 7 with ASUS WiFi Q-Antenna, two M.2 slots, PCIe ® 5.0 x16 SafeSlots with PCIe Slot Q-Release Slim, two USB4 ® ports, ROG Strix Hive II, AI Overclocking, AI Cooling II, AI Networking II, and Aura Sync RGB lighting.
• Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• AMD AM5 Socket: Ready for AMD Ryzen? 9000, 8000 and 7000 series desktop processors
• Intelligent Control: ASUS-exclusive AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance
• ROG Strix Overclocking technologies: Dynamic OC Switcher, Core Flex, Asynchnorous Clock and PBO Enhancement
• Robust Power Solution: 10+2+1 power solution rated for 110A per stage with ProCool II power connectors
• Optimized Thermal Design: Massive heatsinks with integrated I/O cover and high-conductivity thermal pads, connected with an L-shaped backplate
• Latest M.2 Support: One onboard PCIe ® 5.0 M.2 slot and one PCIe 4.0 M.2 slots, all with substantial cooling solutions
• Abundant Connectivity: Dual USB4 ® Type-C ports, USB 10Gbps Type-C ® front-panel connector, seven additional USB 10Gbps ports, PCIe 5.0 x16 SafeSlot, HDMI? port
• High-Performance Networking: On-board WiFi 7 (802.11be) with Intel ® 2.5 Gb Ethernet
• DIY Friendly Design: Bundled ROG FPS-II Card and ROG Strix Hive II, PCIe Slot Q-Release Slim, M.2 Q-Latch, Q-Antenna, Q-Dashboard, Q-LED, BIOS FlashBack? button, Clear CMOS button and pre-mounted I/O shield
• Immersive Audio: ROG Strix Hive II external audio solution with ESS? SABRE 9260Q DAC, along with Dolby Atmos ®
• Unmatched Personalization: ASUS-exclusive Aura Sync RGB lighting, including two addressable Gen 2 headers
• Renowned Software: ASUS DriverHub, ASUS GlideX, HWiNFO, Norton 360 for Gamers (60-day free trial), bundled 60-day AIDA64 Extreme trial subscription and intuitive UEFI BIOS dashboard.
Highlights
- Ryzen 7 processors supported for faster, dependable performance and better access to data and information
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
- RAID supported levels provide data reliability and fault tolerance
- Enjoy the freedom of wireless connectivity and get the devices connected faster with IEEE 802.11be wireless standard support
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
- Have a perfect symmetry of hardware components needed in the media server or NAS box with Mini ITX form factor
Specifications
| Package Contents |
|
|---|---|
| Product Type | Gaming Desktop Motherboard |
| Error Checking | ECC |
| Manufacturer Part Number | ROGSTRIXX870IGAMINGWIFI |
| Maximum Memory Supported | 96 GB |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 3.95 lb |
| Form Factor | Mini ITX |
| Manufacturer | ASUS Computer International |
| Product Model | X870-I GAMING WIFI |
| Product Name | Strix X870-I GAMING WIFI Gaming Desktop Motherboard |
| Processor Supported | Ryzen 7, Ryzen 9 |
| Product Line | Strix |
| RAID Levels | 0, 1, 10 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket AM5 |
| Brand Name | Asus ROG |
| Memory Technology | DDR5 SDRAM |
| Width | 6.7" |
| Depth | 6.7" |
| Chipset Manufacturer | AMD |
| Chipset Model | X870 |
| Number of Memory Slots | 2 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Number of SATA Interfaces | 2 |
| Wireless LAN Standard | IEEE 802.11be |
| Bluetooth Standard | Bluetooth 5.4 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 2 |
| HDMI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 10 |
| Total Number of Onboard USB Ports | 3 |
| PCI Express Standard | PCI Express 4.0, PCI Express 5.0 |
| Total Number of PCI Express Slots | 2 |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 2 |
| Number of M.2 Interfaces | 2 |
| Memory Speed Supported | 8000 MHz |
| 2.5Gigabit Ethernet | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| AI-powered | Yes |
