AMD X870E Chipset - Socket AM5 - ATX
Ryzen 7, Ryzen 9 Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 2 x Memory Slots - Gigabit Ethernet - IEEE 802.11be - DisplayPort - 4 x SATA Interfaces
$714.29
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 26 and Nov 30, then process your delivery right after.
Genuine ASUS Computer International through authorized distribution — NDAA §889 screened before checkout.

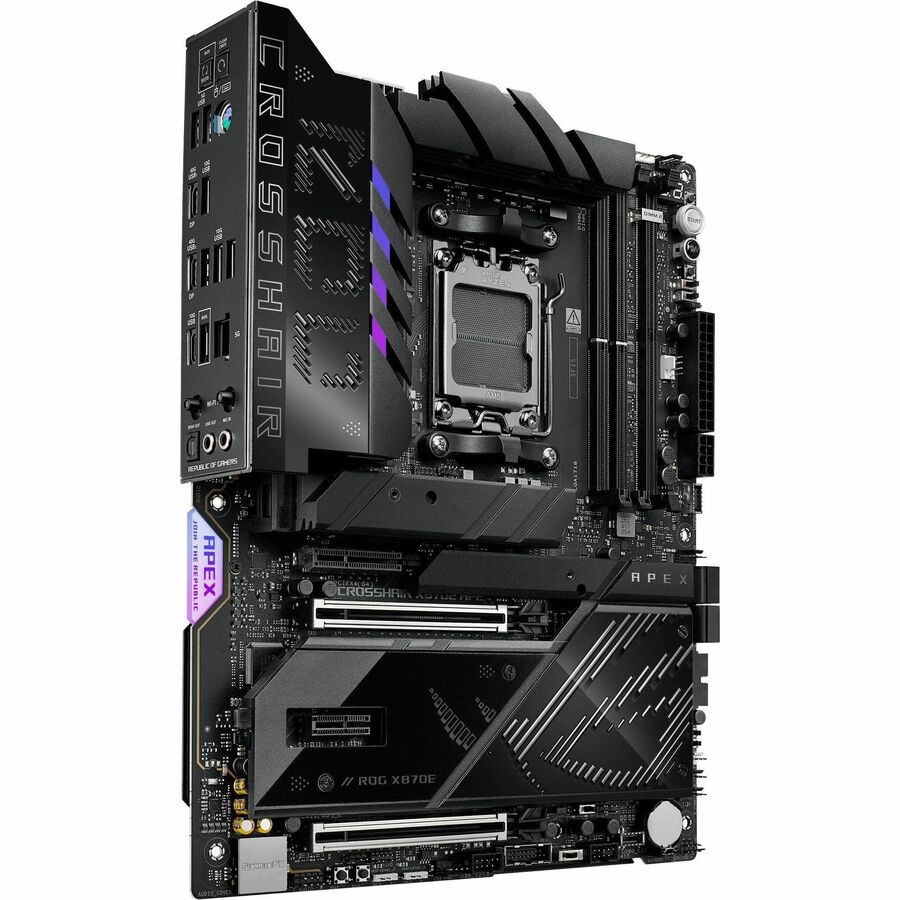

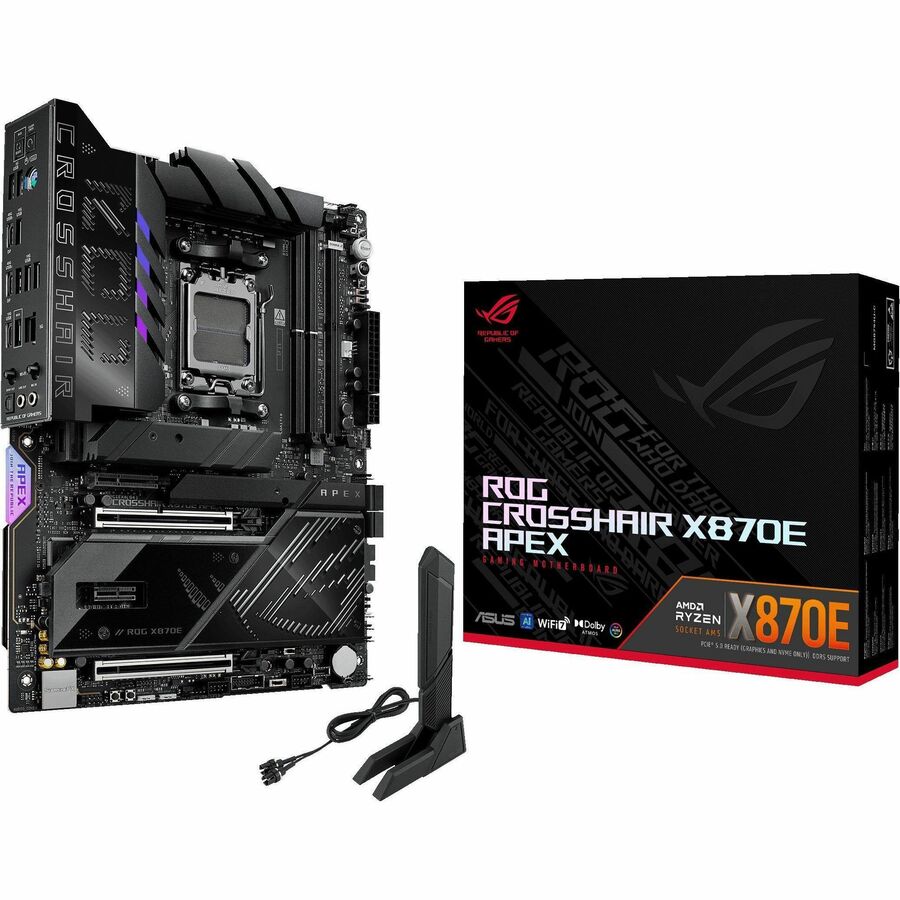

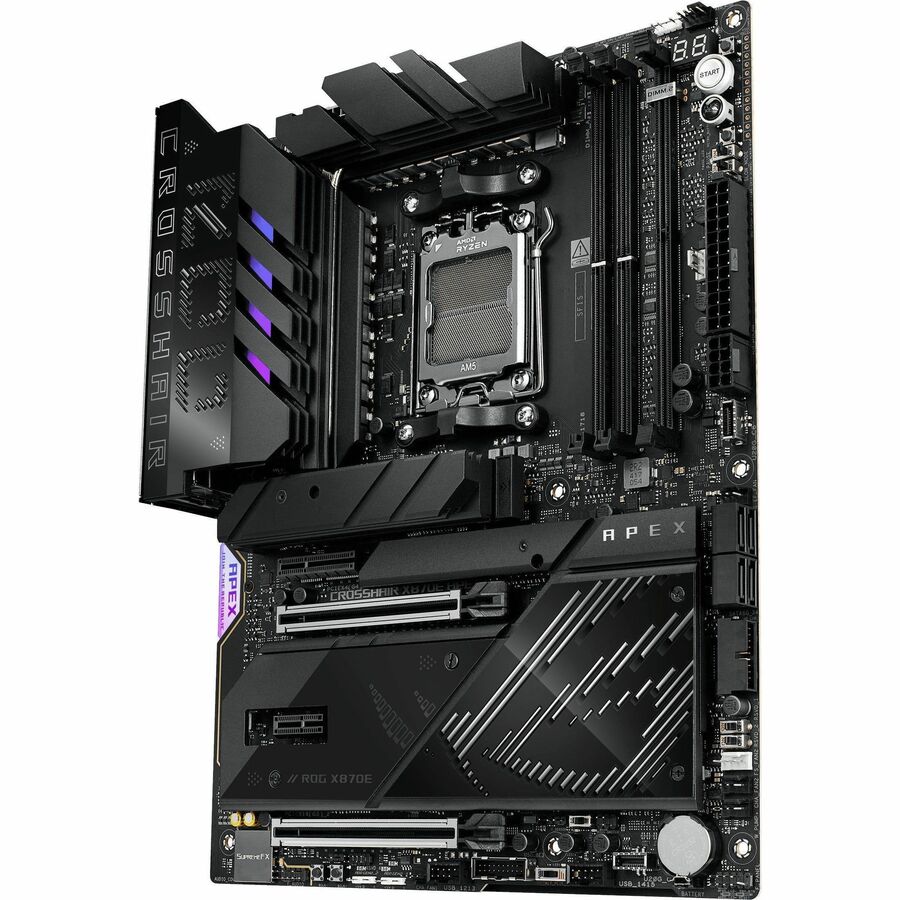

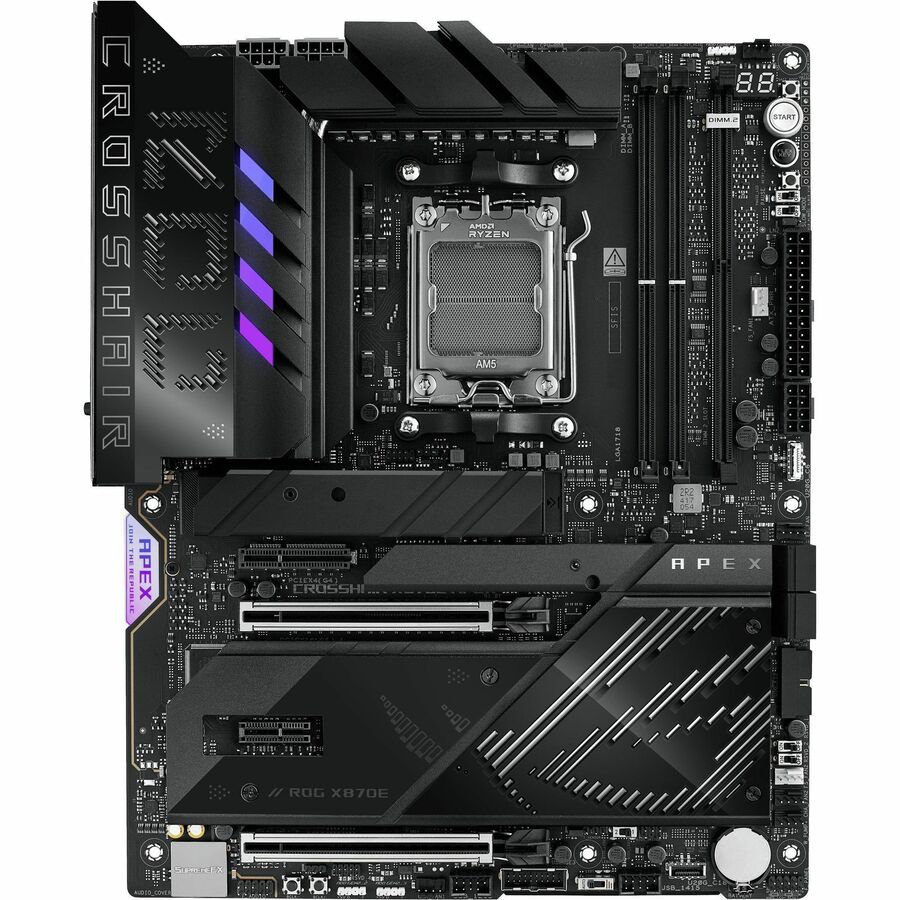

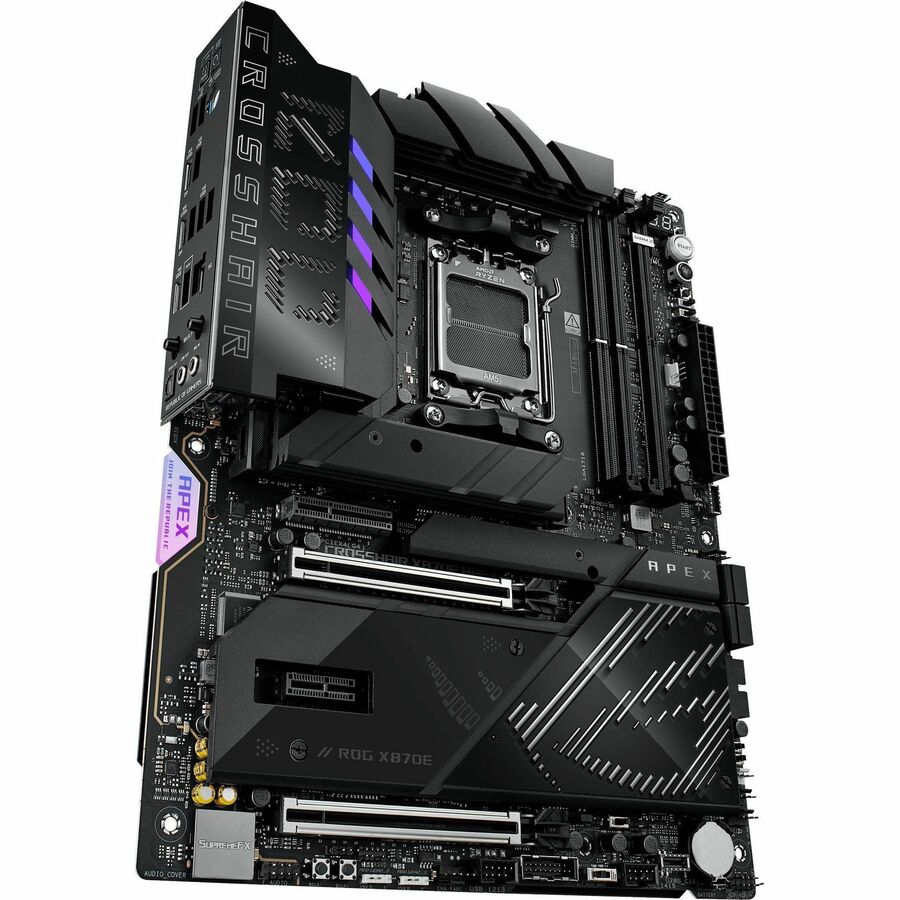

ROG CROSSHAIR X870E APEX
AMD X870E (AM5 Socket) ATX motherboard, Advanced AI PC-ready, 18+2+2 power stages, Dynamic OC Switcher, Core Flex, DDR5 slots with AEMP, ROG Memory Fan Kit for DDR5 overclocking, Wi-Fi 7 with ASUS WiFi Q-Antenna, three PCIe ® 5.0 M.2 slots onboard, two PCIe 4.0 slots on an ROG DIMM.2 card, PCIe ® 5.0 x16 SafeSlots with PCIe ® Slot Q-Release Slim and full support for next-gen graphics cards, two USB4 ® ports, two USB 20Gbps Type-C ® front-panel connectors (one with Quick Charge 4+ up to 60W and USB Wattage Watcher), AI Overclocking, AI Cooling II, and AI Networking II
• Ready for Advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• AMD AM5 Socket: Ready for AMD Ryzen? 9000, 8000 and 7000 Series Desktop Processors
• Intelligent Control: ASUS-exclusive AI Advisor, AI Overclocking, AI Cooling II, AI Networking II and AEMP to simplify setup and improve performance
• ROG Overclocking Technologies: Dynamic OC Switcher, Core Flex, Asynchronous Clock and PBO Enhancement
• Robust Power Solution: 18(110A)+2(110A)+2(80A) power stages with ProCool II power connectors, MicroFine alloy chokes and premium SMD capacitors
• Optimized Thermal Design: Massive heatsinks with integrated I/O cover, high-conductivity thermal pads, and connected with a heatpipe
• Latest M.2 Support: Three onboard PCIe ® 5.0 M.2 slots and two PCIe ® 4.0 M.2 slots on an ROG DIMM.2 card, all with substantial cooling solutions
• ROG Memory Fan Kit: Cooling solution can unleash memory overclocking up to 9600+ MT/s
• Abundant Connectivity: Dual USB4 ® Type-C ® ports, two USB 20Gbps Type-C ® front-panel connectors (one with Quick Charge 4+ up to 60W and USB Wattage Watcher), six additional USB 10Gbps ports, t, two PCIe ® 5.0 x16 SafeSlots with full support for next-gen graphics cards
• High-Performance Networking: Onboard Wi-Fi 7 (802.11be) with ASUS WiFi Q-Antenna, Realtek 5Gb Ethernet
• DIY Friendly Design: PCIe ® Slot Q-Release Slim, new M.2 Q-Latch, M.2 Q-Release, M.2 Q-Slide, Q-Antenna, Q-Dashboard, Q-Code, Q-LED, FlexKey button, Start button, BIOS FlashBack button, Clear CMOS button and pre-mounted I/O shield
• Immersive Audio: ROG SupremeFX ALC4080 codec with Savitech SV3H712 amplifier
• Unmatched Personalization: Three gen 2 ARGB headers, all configurable with ASUS-exclusive Aura Sync RGB lighting
Limited Warranty: 3 Year
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | ROG CROSSHAIR X870E APEX |
| Brand Name | Asus ROG |
| Product Line | Crosshair X870E Apex |
| Product Name | CROSSHAIR X870E APEX Gaming Desktop Motherboard |
| Product Type | Gaming Desktop Motherboard |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| I/O Expansions | |
| Total Number of Expansion Slots | 8 |
| Total Number of PCI Express Slots | 8 |
| Number of PCI Express x1 Slots | 1 |
| Number of PCI Express x4 Slots | 1 |
| PCI Express Standard | PCI Express 3.0, PCI Express 4.0, PCI Express 5.0 |
| Number of PCI Express x16 Slots | 6 |
| Interfaces/Ports | |
| Total Number of USB Ports | 10 |
| S/PDIF | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | DIMM, UDIMM |
| Maximum Memory Supported | 128 GB |
| Memory Speed Supported | 9600 MHz, 8200 MHz, 8000 MHz |
| Memory Technology | DDR5 SDRAM |
| Error Checking | ECC |
| Network & Communication | |
| Bluetooth | Yes |
| Bluetooth Standard | Bluetooth 5.4 |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Wireless LAN Standard | IEEE 802.11be |
| Onboard Interfaces | |
| Number of SATA Interfaces | 4 |
| Number of M.2 Interfaces | 5 |
| Total Number of Onboard USB Ports | 10 |
| Number of Onboard USB 2.0 Ports | 4 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Chipset Model | X870E |
| Total Processor Supported | 1 |
| Processor Socket | Socket AM5 |
| Processor Supported | Ryzen 7, Ryzen 9 |
| Technical Information | |
| AI-powered | Yes |
| Video | |
| Onboard Video | CPU Dependent Video |
| Warranty | |
| Limited Warranty | 3 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS), Taiwan Restriction of Hazardous Substances (Taiwan RoHS), Waste Electrical and Electronic Equipment Directive (WEEE) |
