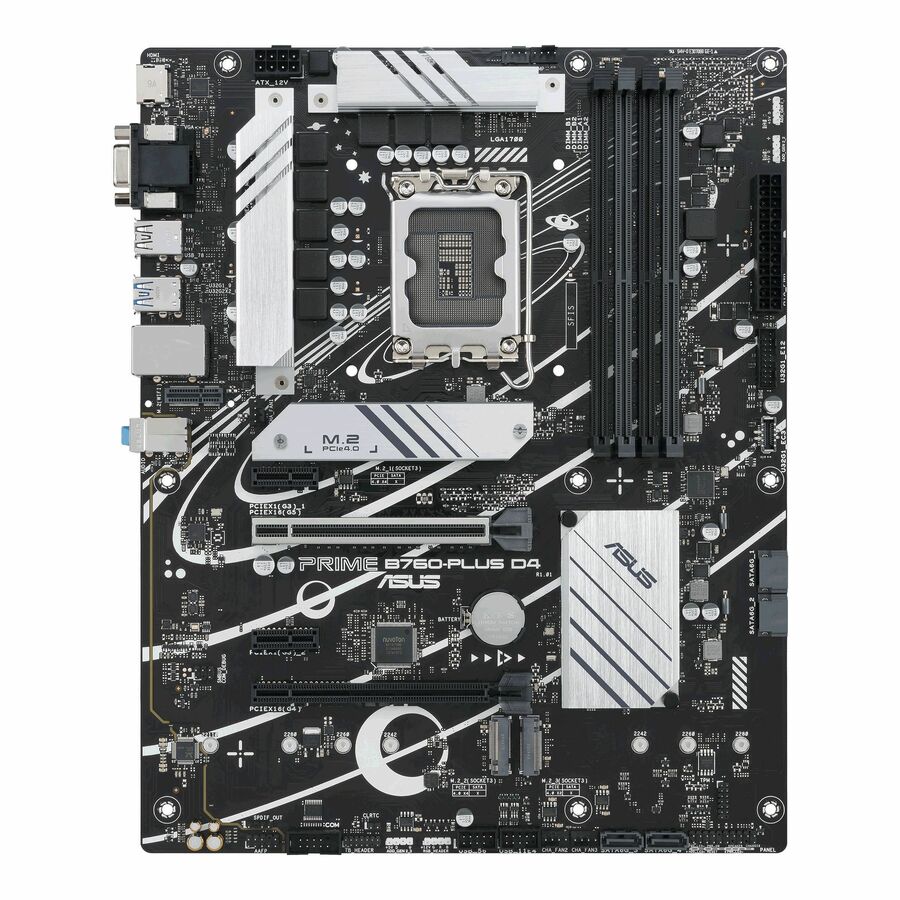

Asus Prime B760-PLUS D4 Desktop Motherboard - Intel B760 Chipset - Socket LGA-1700 - ATX
Core, Pentium Gold, Celeron Processor Supported - 128 GB DDR4 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - HDMI - DisplayPort - 4 x SATA Interfaces
- SKU
- 90MB1CW0-M0AAY0
- Category
- Motherboards
Request pricing
Confirmed with stock and TAA status before any payment.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- 90MB1CW0-M0AAY0
- Category
- Motherboards
Overview

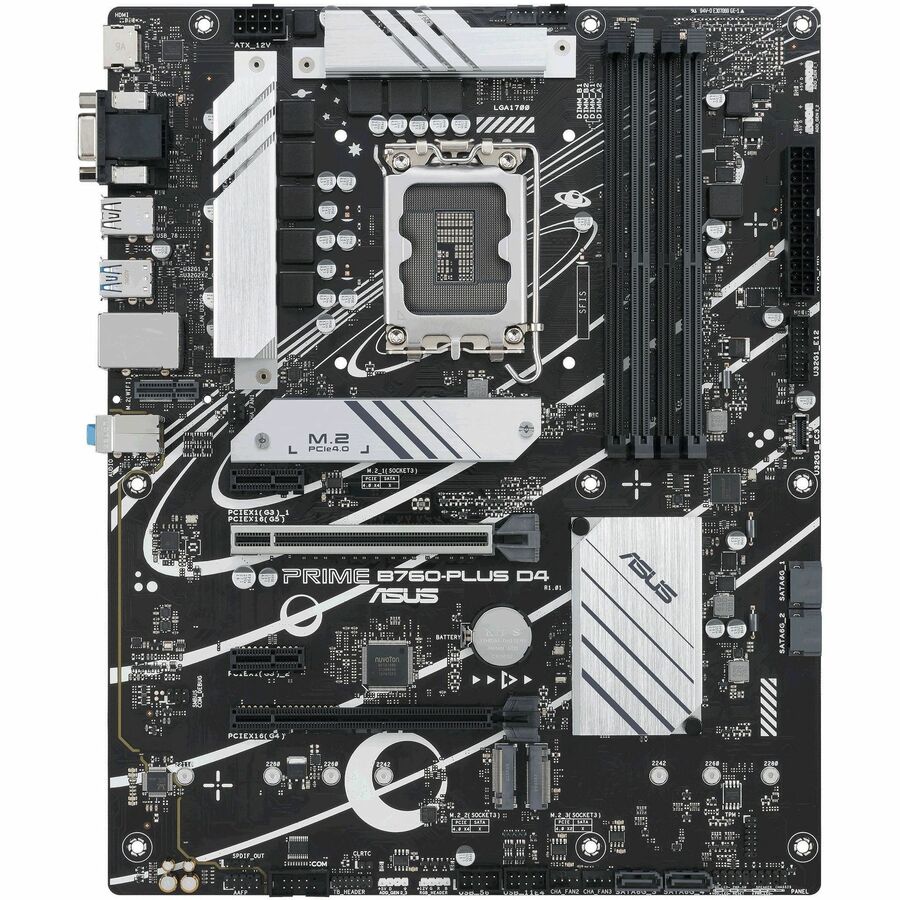

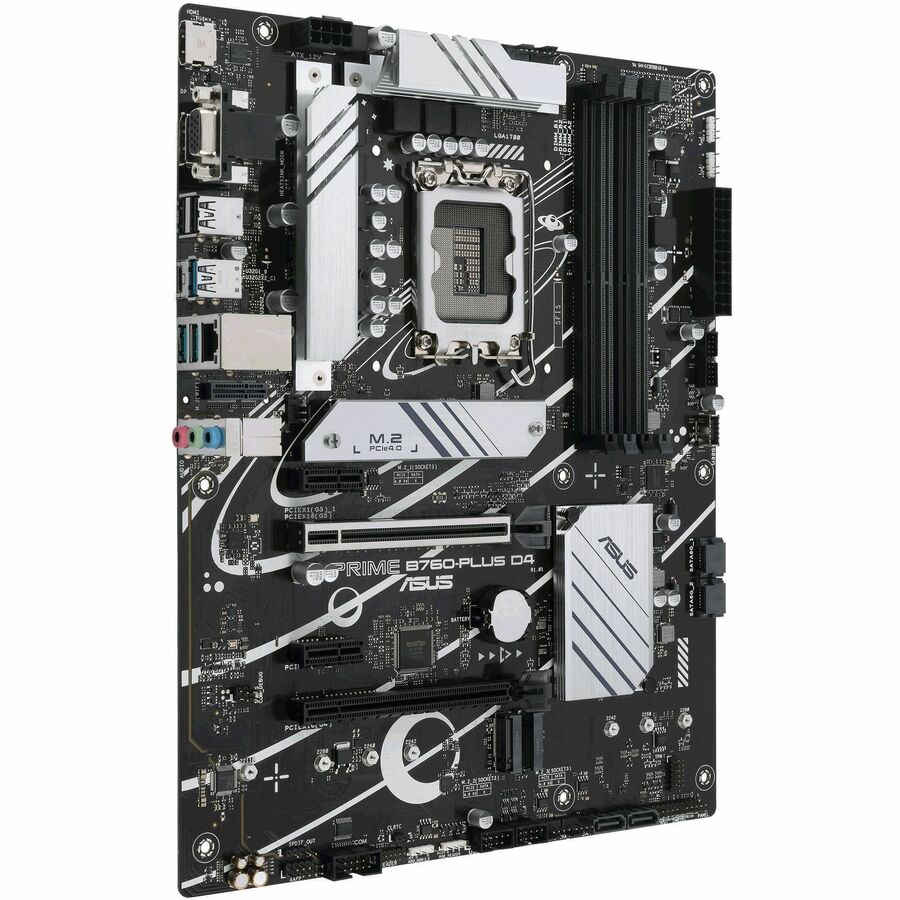

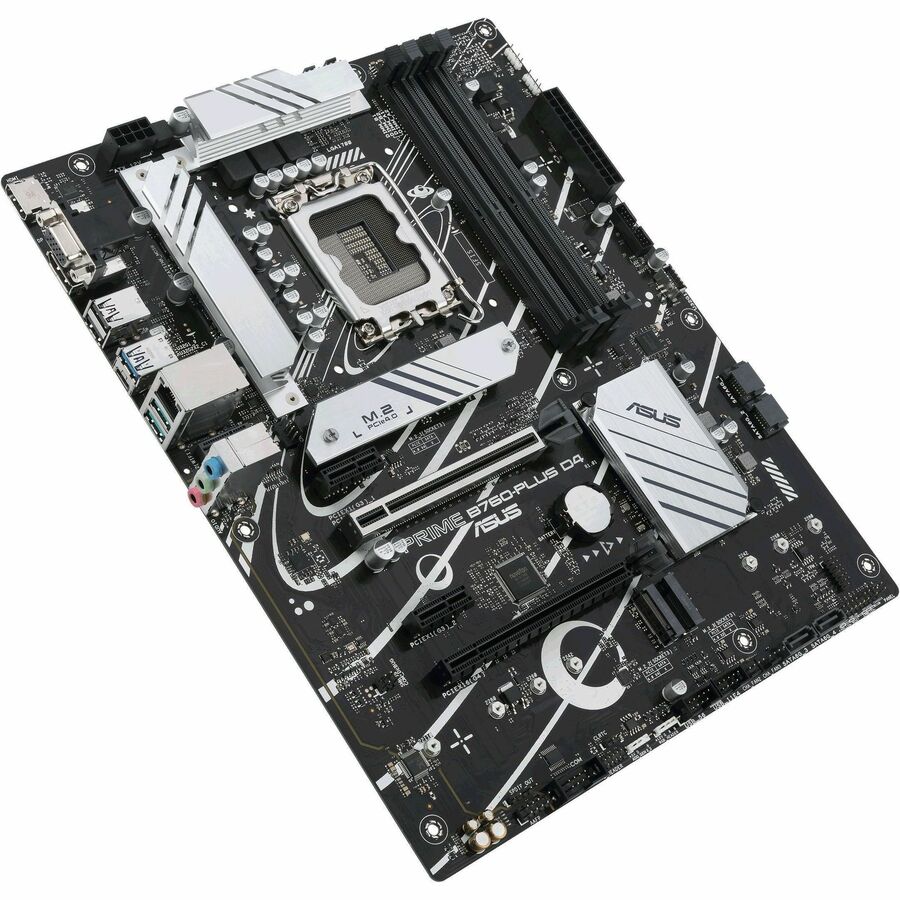

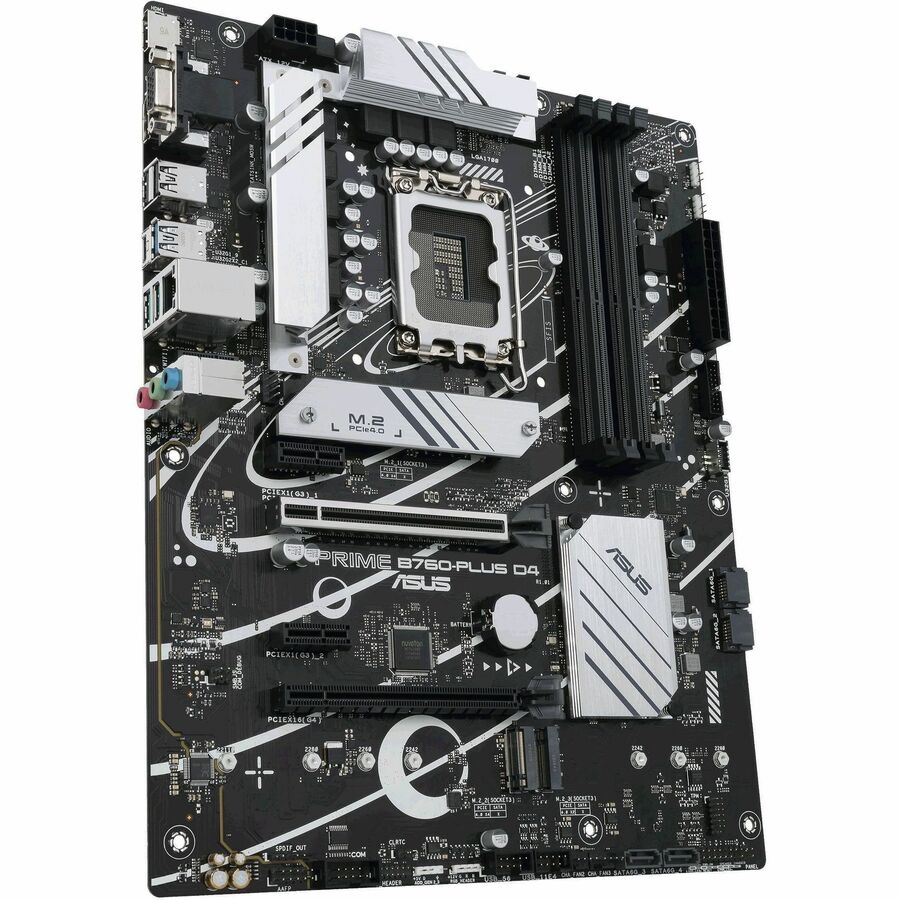

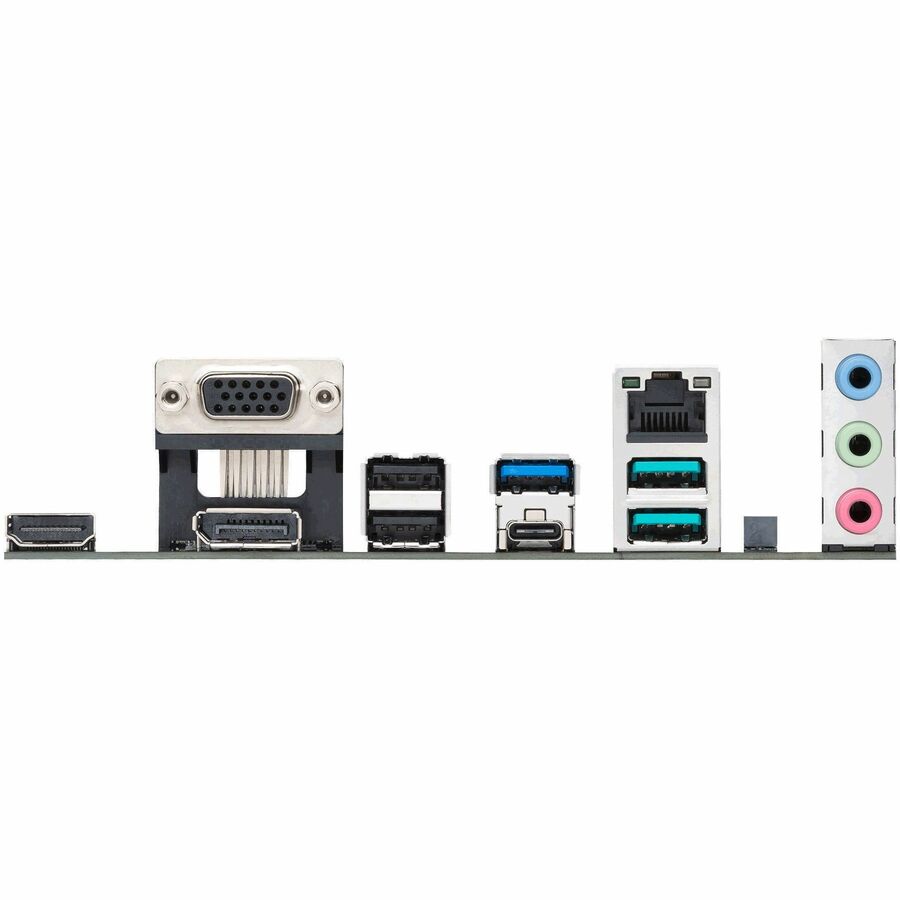

ASUS Prime B760-PLUS D4, an Intel ® B760 LGA 1700 ATX motherboard with PCIe 5.0, three PCIe 4.0 M.2 slots, DDR4, Realtek 2.5Gb Ethernet, DisplayPort, VGA, HDMI ® , SATA 6 Gbps, USB 3.2 Gen 2x2 Type-C ® , front USB 3.2 Gen 1 Type-C ® , Thunderbolt? (USB4 ® ) support, Aura Sync
• Intel ® LGA 1700 Socket: Ready for 13 th and 12 th Gen Intel ® processors
• Ultrafast Connectivity: PCIe 5.0, three PCIe 4.0 M.2, Realtek 2.5Gb Ethernet, USB 3.2 Gen 2x2 Type-C ® , front USB 3.2 Gen 1 Type-C ® and Thunderbolt? (USB4 ® ) header support
• Comprehensive Cooling: VRM heatsinks, M.2 heatsink, PCH heatsink, hybrid fan headers and Fan Xpert 2+
• ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability
• Aura Sync RGB Lighting: Onboard Addressable Gen 2 headers and Aura RGB header for RGB LED strips, easily synced with Aura Sync-capable hardware
ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13 th Gen Intel ® Core? Processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760-PLUS D4 provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.
FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760-PLUS D4 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.
Intelligent Control
ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
All-Around Energy Efficiency
The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 2+ software provides comprehensive control over fans and all-in-one (AIO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode that reduces chassis fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AIO coolers can also be controlled via the UEFI BIOS.
Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
Highlights
- Core processors supported for faster, dependable performance and better access to data and information
- DDR4 SDRAM compatible slot - Allows the memory to operate at an effective bus speed while using minimal power, resulting in an optimal computer performance and improved memory heat dissipation
- Supported 0 RAID levels provide data reliability and fault tolerance
- Wireless support reduces the number of cables required to connect peripherals
- HDMI interface connects the top of the line PCs, Blu-ray players, and cutting edge Gaming Controllers
- DisplayPort host interface allows audio and video signals to be shared in a single cable transmission to ensure maximum efficiency
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX desktop motherboard
Specifications
| Package Contents |
|
|---|---|
| Product Type | Desktop Motherboard |
| Manufacturer Part Number | 90MB1CW0-M0AAY0 |
| Maximum Memory Supported | 128 GB |
| S/PDIF | Yes |
| Limited Warranty | 3 Year |
| Form Factor | ATX |
| Manufacturer | ASUS Computer International |
| Product Model | B760-PLUS D4 |
| Product Name | PRIME B760-PLUS D4 Desktop Motherboard |
| Processor Supported | Core, Pentium Gold, Celeron |
| Product Line | Prime |
| RAID Levels | 0, 1, 5, 10 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket LGA-1700 |
| Brand Name | Asus |
| Memory Technology | DDR4 SDRAM |
| Width | 12" |
| Depth | 9.6" |
| Chipset Manufacturer | Intel |
| Chipset Model | B760 |
| Number of Memory Slots | 4 |
| Audio Channels | 7.1 |
| Bluetooth | Yes |
| Gigabit Ethernet | Yes |
| Wireless LAN | Yes |
| Number of SATA Interfaces | 4 |
| Number of PCI Express x1 Slots | 1 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 2 |
| HDMI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| PCI Express Standard | PCI Express 5.0, PCI Express 4.0, PCI Express 3.0 |
| Total Number of PCI Express Slots | 4 |
| Thunderbolt | Yes |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 4 |
| Number of M.2 Interfaces | 3 |
| Memory Speed Supported | 5066 MHz, 5000 MHz, 4800 MHz, 4600 MHz, 4400 MHz, 4266 MHz, 4000 MHz, 3733 MHz, 3600 MHz, 3466 MHz, 3400 MHz, 3333 MHz, 3200 MHz, 3000 MHz, 2933 MHz, 2800 MHz, 2666 MHz, 2400 MHz, 2133 MHz |
| Number of USB 3.2 Gen 1 Type-A Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| 2.5Gigabit Ethernet | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Processor Generation Supported | 14th Gen, 13th Gen, 12th Gen |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
