Ryzen R1505G - 64 GB DDR4 SDRAM Maximum RAM - DDR4-2400/PC4-19200 - SODIMM - 2 x Memory Slots - Gigabit Ethernet - DisplayPort - 1 x SATA Interfaces
$281.24
Special order — estimated available by September 10, 2026.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

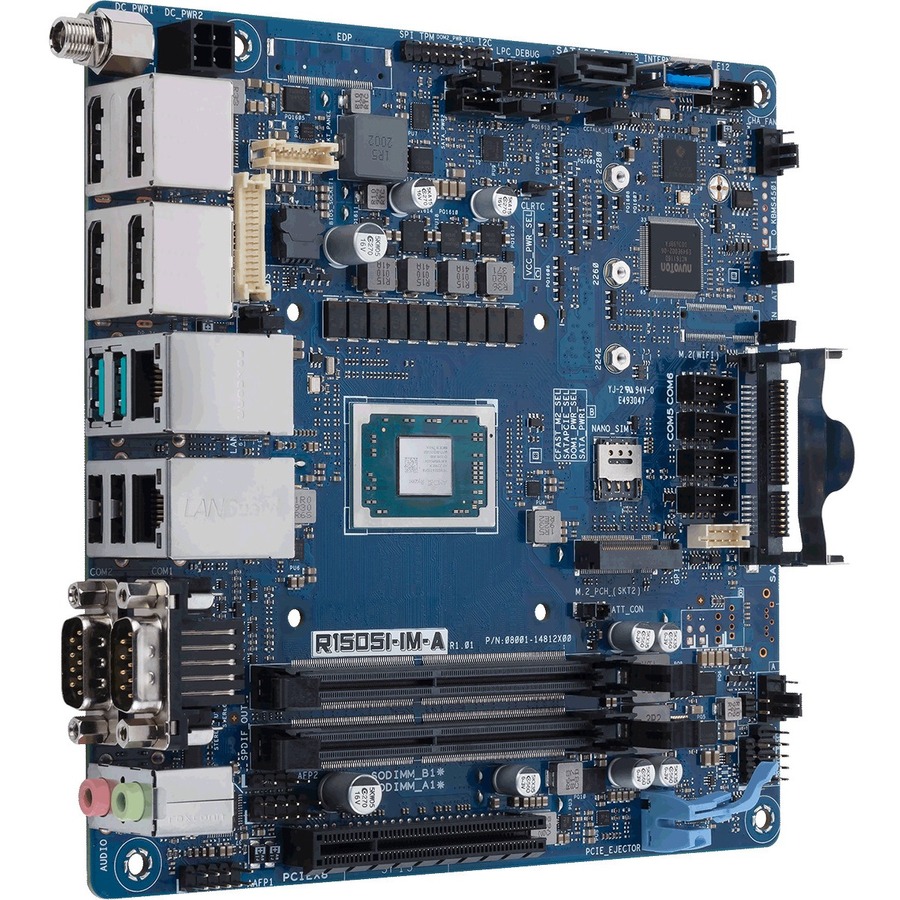

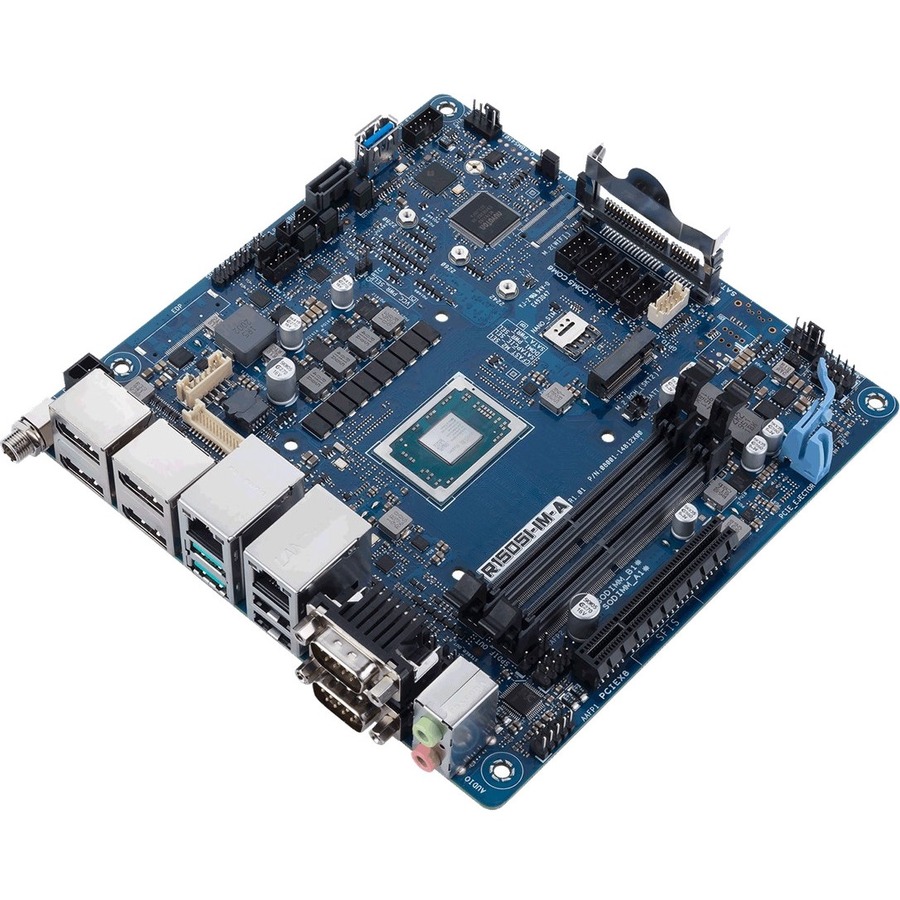

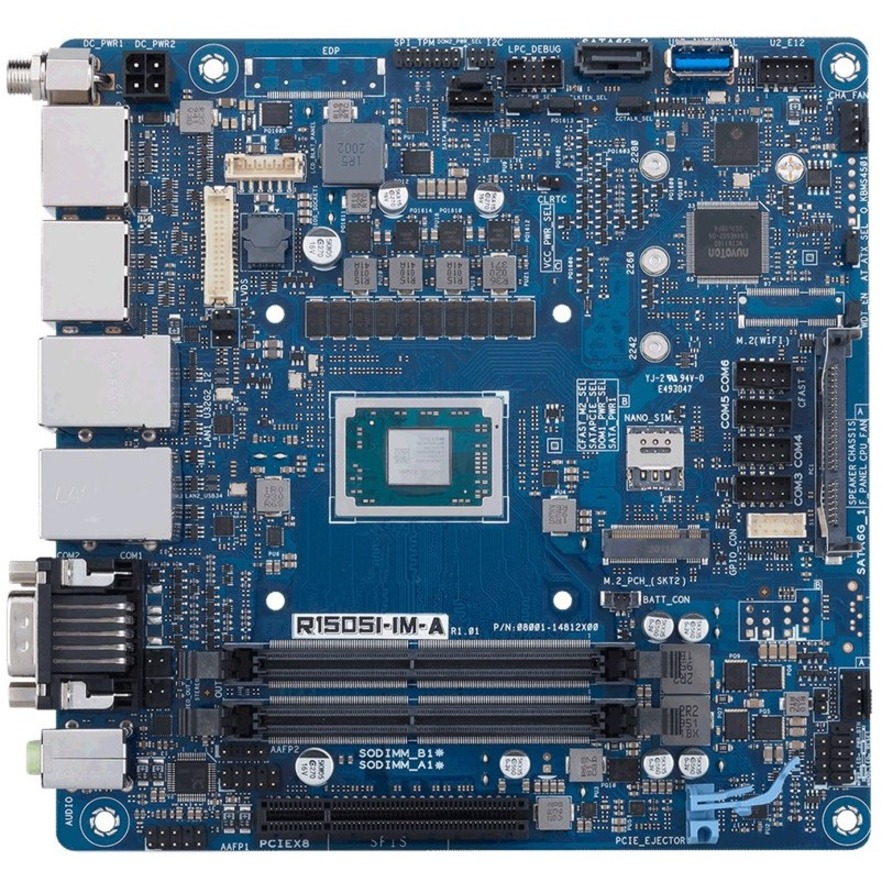

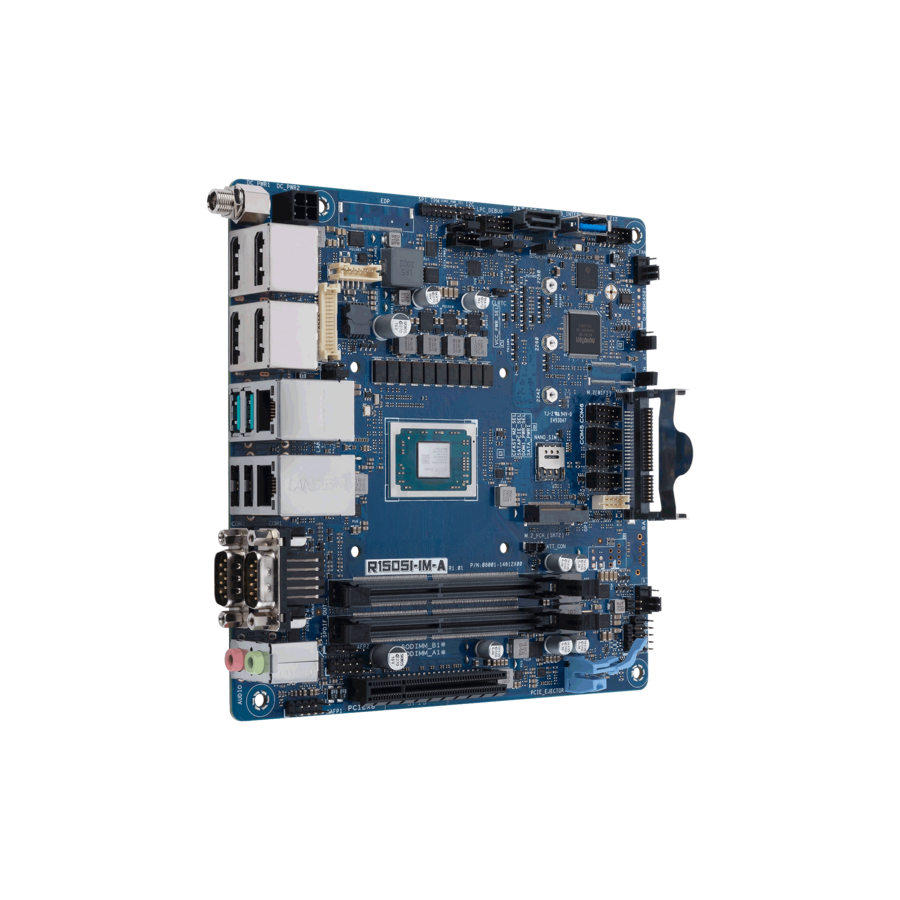

AMD Ryzen Embedded R1000-Series R1505 Mini-ITX motherboard, two SO-DIMM slots, three DisplayPort (option upon request), one M.2 slot, two SATA port (option upon request) PCIe x8
• Supports AMD Ryzen Embedded R1000-Series R1505
• Two SO-DIMM slots support up to 32GB DDR4 2400 MHz SDRAM
• Lockable DC-in connector supported

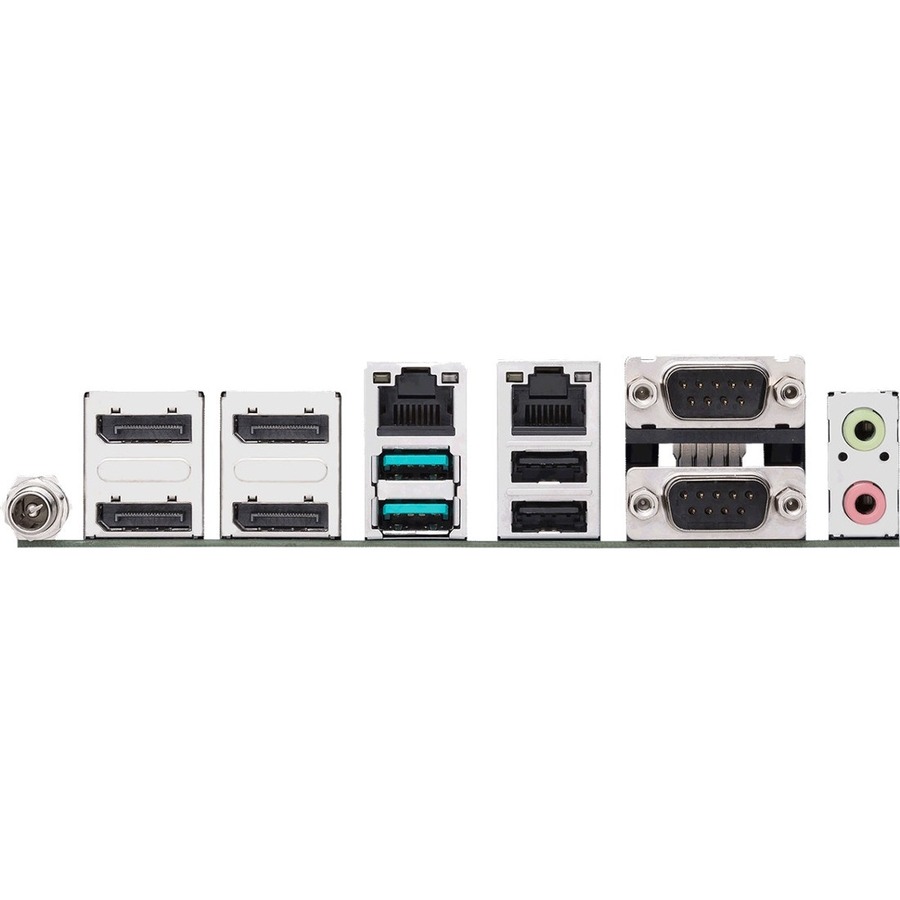

• Supports Three display configurations with multiple interfaces, including 2 DisplayPort and 1 LVDS (factory default), 3 DisplayPort (option upon request), 2 DisplayPort and 1 eDP (option upon request)
• Advanced I/O and connectivity features: CCtalk & CFAST supported
• Seven years of longevity with extended product life cycles
• Wide temperature range endurance: 0~60°C
ASUS R1505I-IM-A is a Mini-ITX industrial motherboard featuring rich I/O capabilities, advanced connectivity and flexible customization options in a smaller board that reduces chassis sizes for space-restrictive installations. Offering multiple display outputs, legacy options for industrial applications, GPIO ports, dual Intel LAN as well as rich expandability with a PCIe x8 slot, one M.2 socket (B key) and lockable DC-in connector. ASUS R1505I-IM-A is an ideal choice for a wide range of embedded applications. As the world's No.1 motherboard brand, ASUS offers industrial motherboards with durable, industrial-grade components for reliable 24/7 operation in harsh environments and use in different vertical markets.
ASUS provides a faster time-to-market with customization and motherboard modulation by leveraging over 30 years of design and innovation expertise, world-class after sales service, material supply flexibility, the ability to respond rapidly to forecast changes and long-term technical support, enabling customers to find the perfect solution to match their requirements.
Limited Warranty: 2 Year
About ASUS ASUS is a multinational company best known for their motherboards, PCs, monitors, graphics cards and routers. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise. About ROG Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world. © 2024 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
| Audio | |
|---|---|
| Audio Channels | 7.1 |
| General Information | |
| Manufacturer | ASUS Computer International |
| Manufacturer Part Number | R1505I-IM-A |
| Brand Name | Asus |
| Product Model | R1505I-IM-A |
| Product Name | R1505I-IM-A Desktop Motherboard |
| Product Type | Desktop Motherboard |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| I/O Expansions | |
| Total Number of Expansion Slots | 1 |
| Total Number of PCI Express Slots | 1 |
| Number of PCI Express x8 Slots | 1 |
| Integrated Processor | |
| Integrated Processor Type | Ryzen |
| Integrated Processor Model | R1505G |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.2 Ports | 2 |
| DisplayPort | Yes |
| DVI | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Memory | |
| Number of Memory Slots | 2 |
| Memory Form Factor | SODIMM |
| Maximum Memory Supported | 64 GB |
| Memory Speed Supported | 2400 MHz |
| Memory Standard | DDR4-2400/PC4-19200 |
| Memory Technology | DDR4 SDRAM |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| Onboard Interfaces | |
| Number of SATA Interfaces | 1 |
| Number of M.2 Interfaces | 1 |
| Total Number of Onboard USB Ports | 4 |
| Number of Onboard USB 2.0 Ports | 3 |
| Number of Onboard USB 3.2 Ports | 1 |
| Onboard S/PDIF Header | Yes |
| Physical Characteristics | |
| Form Factor | Mini ITX |
| Width | 6.7" |
| Depth | 6.7" |
| Processor & Chipset | |
| Chipset Manufacturer | AMD |
| Total Processor Supported | 1 |
| Processor Supported | Ryzen |
| Video | |
| Onboard Video | CPU Dependent Video |
| Warranty | |
| Limited Warranty | 2 Year |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
