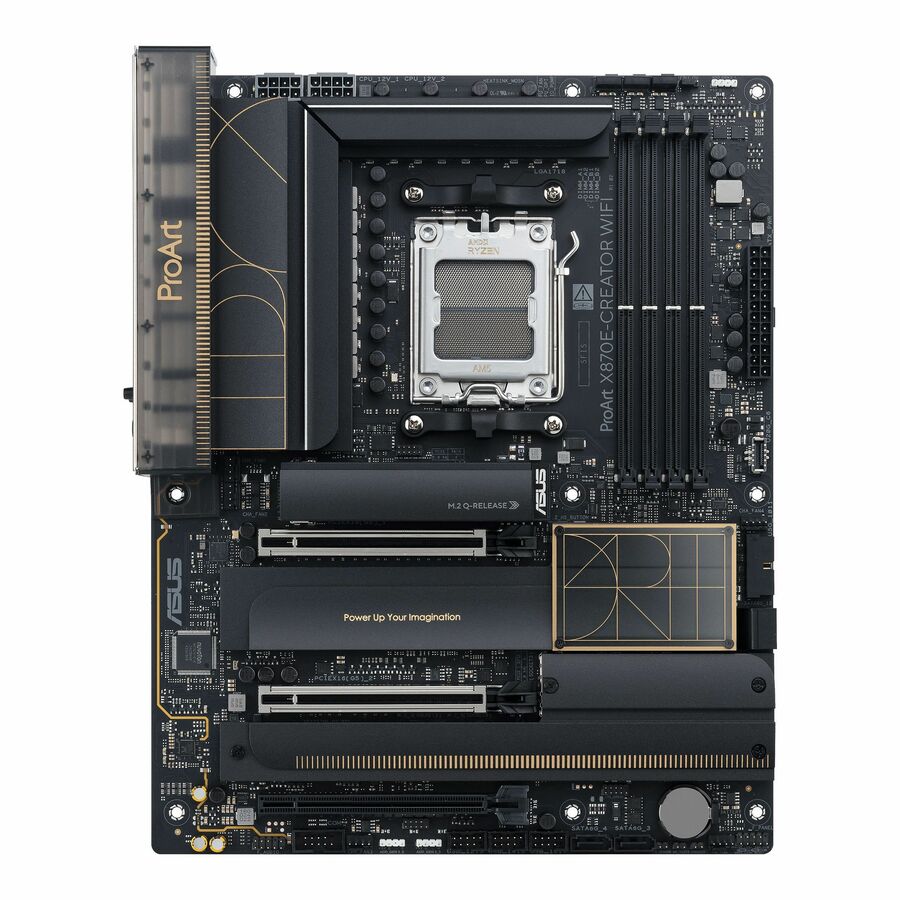

Asus ProArt X870E-CREATOR WIFI Gaming Desktop Motherboard - AMD X870E Chipset - Socket AM5 - ATX

X870E-CREATOR WIFI

The ProArt X870E-Creator WiFi empowers creators of all levels by maximizing the performance of the latest AMD Ryzen? 9000, 8000 and 7000 Series processors with 16+2+2 team power stages, DDR5 slots, PCIe ® 5.0 and lightning-fast connectivity including dual USB4 ® , 10G and 2.5G Ethernet, and WiFi 7.

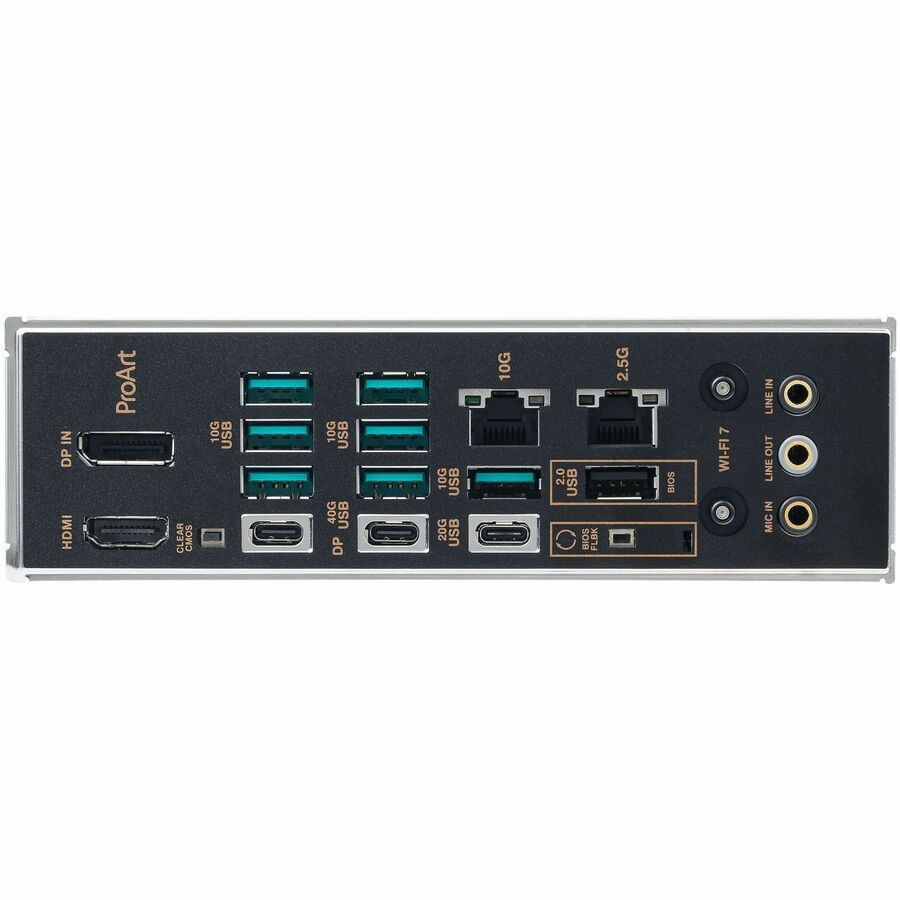

This motherboard manifests a professional, elegant and precise vision for content creators of all kinds, with a style elevated by tone-on-tone layers of black infused with metallic gold touches. A translucent I/O cover also gives users a stylish peek at the premium connectors within.

All You Need for Maximum Productivity | Dual USB4 ® Connectivity

Get immersed in your creations with two USB4 ports for connecting to all your content-creation gadgets, enjoying up to 40 Gbps bi-directional data transfers. To further push your creative work with one 8K or two 4K color-accurate monitors, you can connect your discrete graphics card to the onboard DisplayPort? In port on the rear I/O panel and direct the video output via the USB4 port.

Up to

40Gbps

Bi-directional bandwidth

DisplayPort 1.4

Supports one 8K or dual 4K displays

Daisy-Chaining

For up to five devices

Up to

15W

Charging

Ultrafast Networking 10 Gb & 2.5 Gb Ethernet

Dual Ethernet ports provide fast data transfers simultaneously for 2.5 Gb internet streaming or uploading and 10 Gb for local network-attached storage (NAS), allowing for improved data organization and security.

WiFi 7

The revolutionary WiFi 7 is up to 4.8X faster than standard WiFi 6, thanks to technology like 320 MHz channels* on the 6GHz band and 4K QAM**. Multi-Link Operation (MLO) provides a more stable WiFi connection and lower latency, unlocking the realms of the unknown in gaming, streaming and industrial IoT.

ASUS WiFi Q-Antenna

Dual transceivers support the 2.4, 5 and 6 GHz bands to enable faster throughput, with directional sensitivity to improve signal quality and cover greater distances.

PCIe 5.0 Support

Fully embracing the latest standard, the ProArt X870E-Creator WiFi offers PCIe 5.0 support to give unfettered bandwidth to the fastest SSDs and graphics cards available.

Four Onboard M.2 Slots

ProArt X870E-Creator WiFi features two PCIe 5.0 M.2 slots to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

PCIe 5.0 Expansion Slots

Both of the x16 expansion slots are PCIe 5.0, offering incredible speeds of up to 64 GB/s for compatible devices. To bear the brunt of massive graphics cards, they are also protected with SafeSlot retention brackets, and the top slot can be released easily via Q-Release Slim.

Quick-charging Your USB Devices

USB 20Gbps Type-C front-panel connector with Quick Charge 4+

This header boosts data transfers with speeds of up to 20 Gbps. It also features Quick Charge 4+, which can quickly charge your pen display, tablet or mobile phone at up to 30 watts.

The Core of Your Powerful Workstation | Robust Power Design

Designed to meet the needs of high-core-count CPUs, the ProArt X870E-Creator WiFi features 16(80A)+2(80A)+2 power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amps each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.
