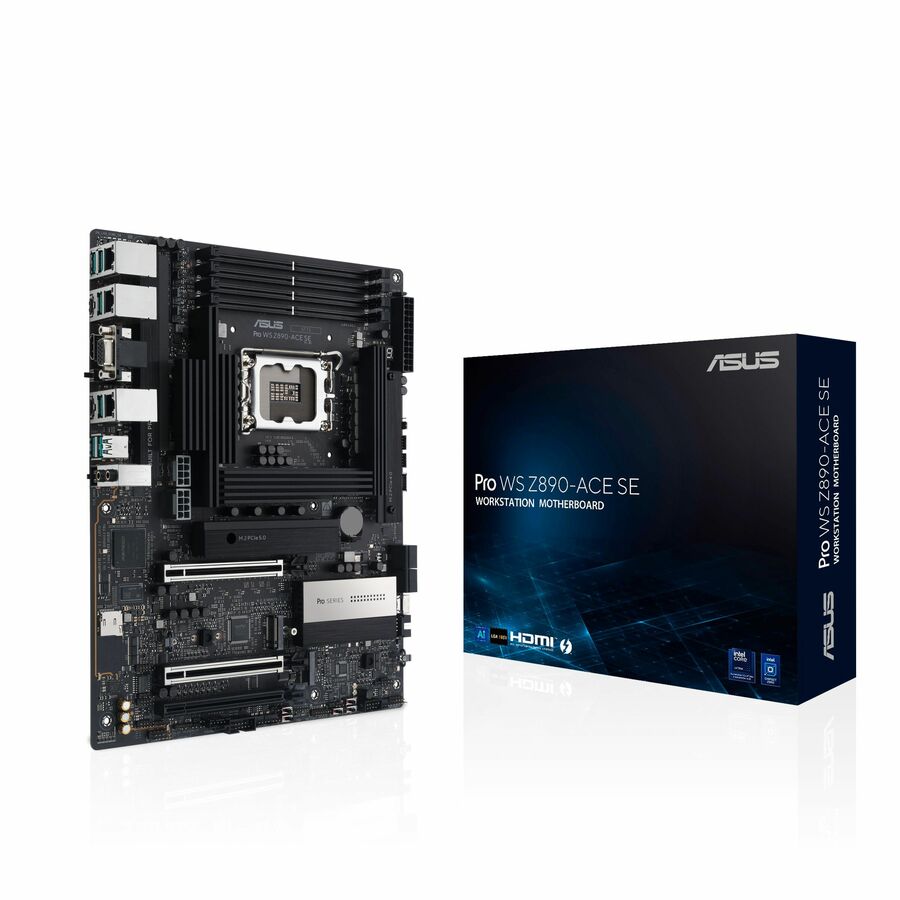

Asus Pro WS Z890-ACE SE Workstation Motherboard - Intel Z890 Chipset - Socket LGA-1851 - ATX
Core Ultra Processor Supported - 192 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - 2.5Gigabit Ethernet - HDMI - DisplayPort - 8 x SATA Interfaces
- SKU
- PRO WS Z890-ACE SE
- Category
- Motherboards
$481.95
Back ordered — ships when restocked.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PRO WS Z890-ACE SE
- Category
- Motherboards
Overview
Intel Z890 LGA1851 ATX workstation motherboard with PCIe ® 5.0, DDR5 support, 10Gb & 2.5Gb Ethernet, four M.2 slots, plus a USB 20Gpbs front-panel connector and onboard BMC.
• Ready for advanced AI PCs: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
• Intel LGA1851 socket: Ready for Intel ® Core? Ultra 9, 7, and 5 desktop processors
• Robust performance: 16+2+1+2 teamed power stages, ProCool II power connectors, high-quality alloy chokes and durable capacitors
• Future-proofed connectivity: Thunderbolt? 4, 10Gb & 2.5Gb Ethernet, two PCIe ® 5.0 PCIe slots with full support for next-gen graphics cards, one PCIe 5.0 M.2 and three PCIe 4.0 M.2 slots and a USB 20Gbps front-panel header
• Exclusive AI and overclocking technologies: AI Overclocking, AI Cooling II, AI Advisor and NPU boost
• DIY-friendly design: PCIe Slot Q-Release Slim with SafeSlot, M.2 Q-Latch, BIOS FlashBack?, Q-Connector
• Server-grade IPMI remote management and onboard BMC: Hardware- and software-level management with a dedicated LAN port link to an onboard AST2600 BMC controller, plus ASUS Control Center Express software for real-time monitoring and management
Highlights
- Core Ultra processors supported for faster, dependable performance and better access to data and information
- DDR5 SDRAM slot for convenient installation of memory
- Supported 0 RAID levels provide data reliability and fault tolerance
- HDMI interface enables the user to experience a fantastic sound/video quality at the expense of a single cable
- DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
- Features Thunderbolt I/O that lets you move data between your devices and computers with unprecedented speed
- Retrieve a significant number of PCI slots, expansion slots, and peripheral ports that have an enhanced heat dissipation capability with the ATX workstation motherboard
Specifications
| Package Contents |
|
|---|---|
| Product Type | Workstation Motherboard |
| Error Checking | ECC |
| Manufacturer Part Number | PRO WS Z890-ACE SE |
| Maximum Memory Supported | 192 GB |
| Limited Warranty | 3 Year |
| Form Factor | ATX |
| Manufacturer | ASUS Computer International |
| Product Model | WS Z890-ACE SE |
| Product Name | Pro WS Z890-ACE SE Workstation Motherboard |
| Processor Supported | Core Ultra |
| Product Line | Pro |
| RAID Levels | 0, 1, 5, 10 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Processor Socket | Socket LGA-1851 |
| Brand Name | Asus |
| Memory Technology | DDR5 SDRAM |
| Width | 12" |
| Depth | 9.6" |
| Chipset Manufacturer | Intel |
| Chipset Model | Z890 |
| Number of Memory Slots | 4 |
| Graphics Controller Model | AST2600 |
| Audio Channels | 7.1 |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 8 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 3 |
| HDMI | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 3 |
| DisplayPort | Yes |
| Total Number of USB Ports | 8 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| PCI Express Standard | PCI Express 4.0, PCI Express 5.0 |
| Total Number of PCI Express Slots | 3 |
| Thunderbolt | Yes |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 3 |
| 10Gigabit Ethernet | Yes |
| Number of M.2 Interfaces | 4 |
| Memory Speed Supported | 9066 MHz |
| 2.5Gigabit Ethernet | Yes |
| Number of Thunderbolt 4 Ports | 2 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| AI-powered | Yes |
