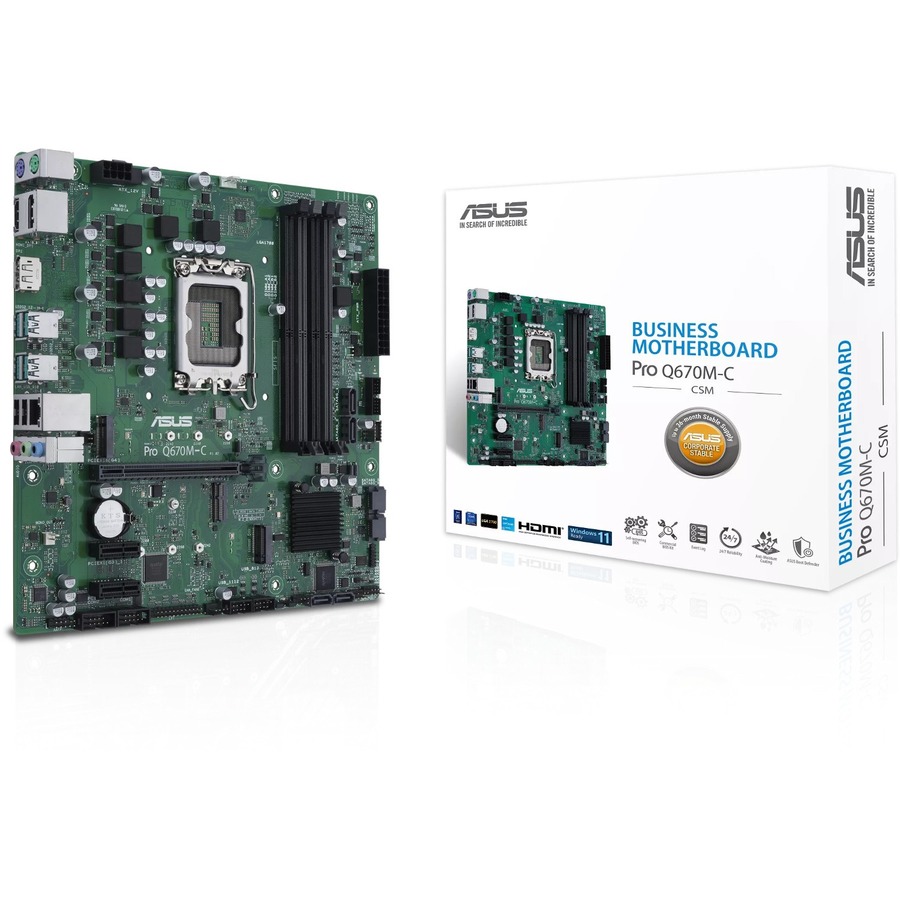

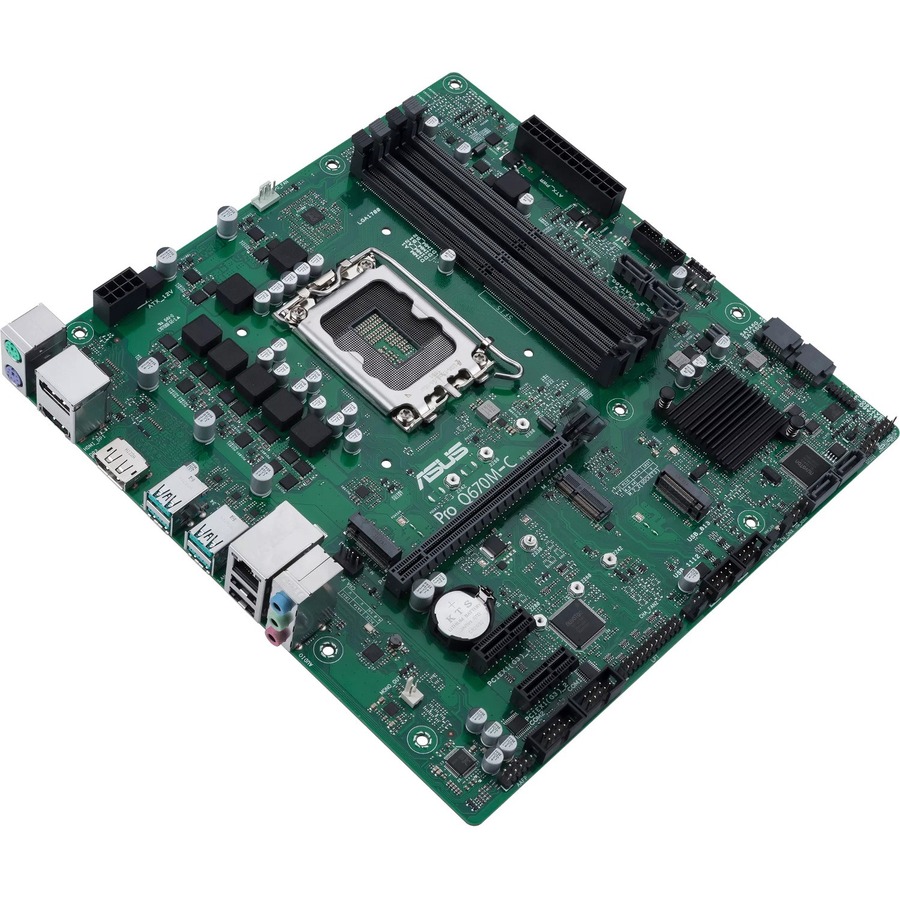

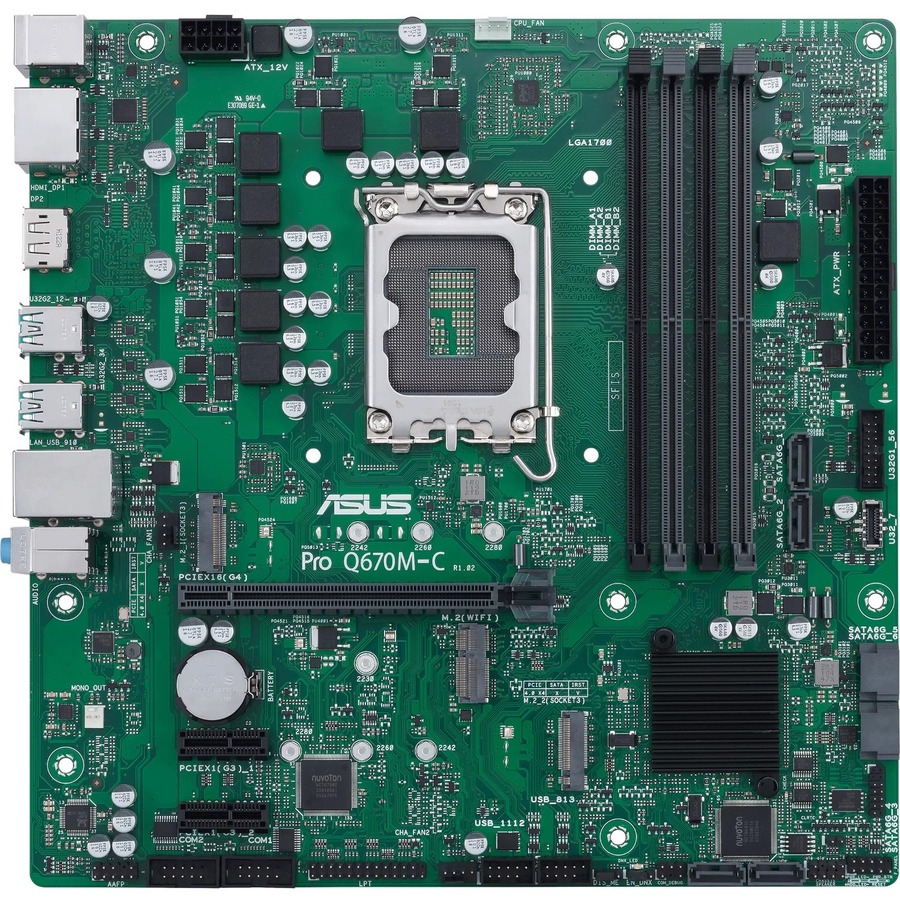

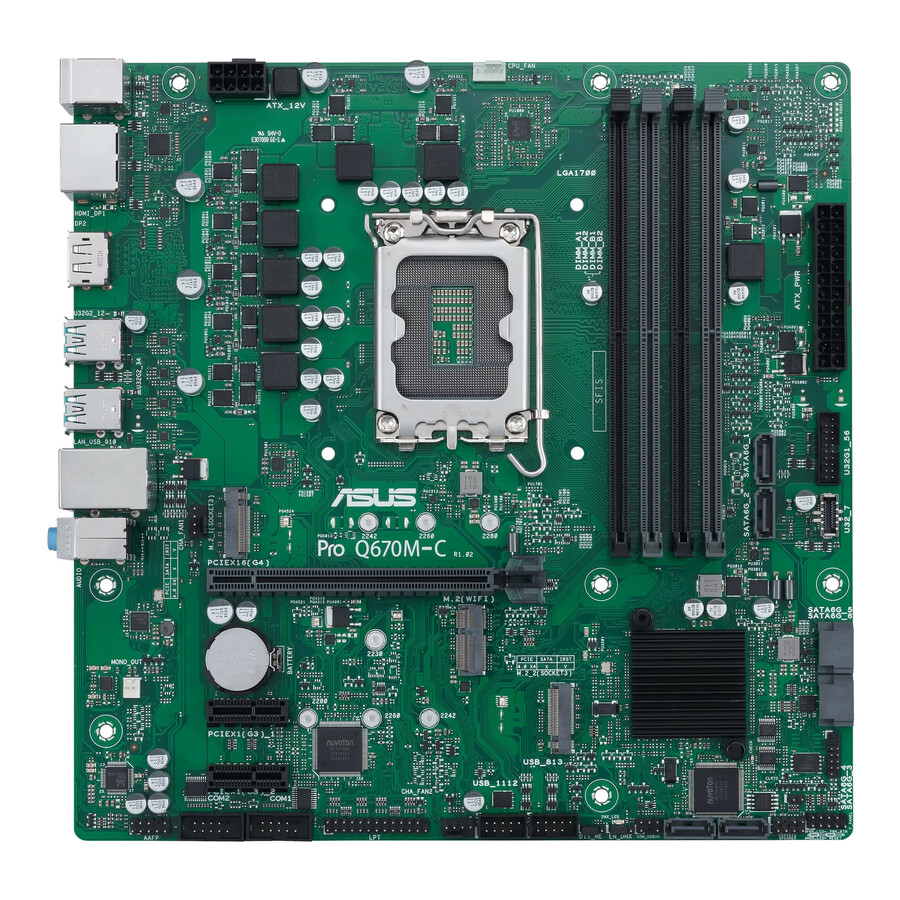

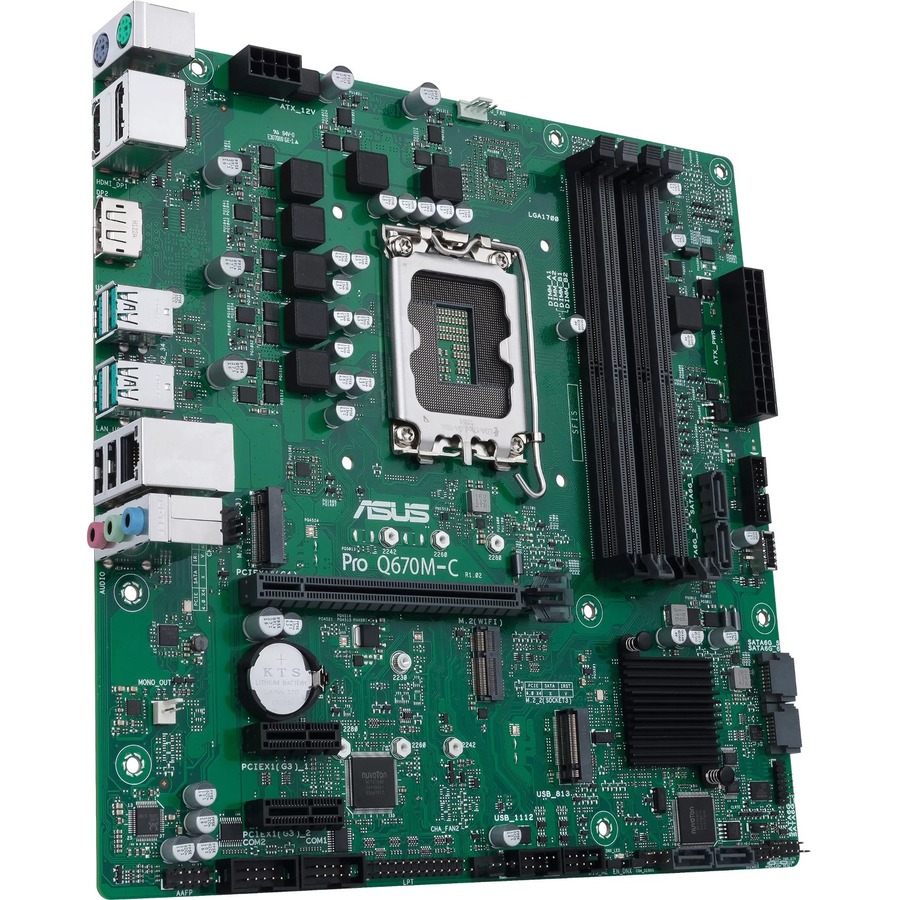

Asus PRO Q670M-C-CSM Desktop Motherboard - Intel Q670 Chipset - Socket LGA-1700 - Intel Optane Memory Ready - Micro ATX
Core i3, Core i5, Pentium, Core i9, Celeron Processor Supported - 128 GB DDR5 SDRAM Maximum RAM - DIMM, UDIMM - 4 x Memory Slots - Gigabit Ethernet - HDMI - DisplayPort - 6 x SATA Interfaces
- SKU
- PRO Q670M-C-CSM
- Category
- Motherboards
$131.33
Back ordered — ships when restocked.
Genuine ASUS Computer International through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- PRO Q670M-C-CSM
- Category
- Motherboards
Overview
Micro-ATX Q670 business motherboard with Intel® vPro support and enhanced security, reliability, manageability and serviceability
• Intel ® LGA 1700 socket: Ready for 12th Gen Intel CoreTM processors
• ASUS CSM program : A stable motherboard supply, end-of-life notifications, and IT software for business motherboards
• ASUS Control Center Express : Integrated IT monitoring and management software that simplifies enterprise-level system administration
• Enhanced system security : Boot defender with NIST SP 800-193 compliance, a self-recovering BIOS, and TPM to safeguard PCs
• Consistent and reliable performance : High-quality components and rigorous testing to help ensure durability in harsh environments
• Efficient management and customization : An event log and commercial BIOS kit to enable easy maintenance
• Better serviceability : Q-LED diagnostic display and COM debug header to facilitate building and support processes
PRO
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express - server-grade IT management software.
Highlights
- Compatible Intel Core i3 processor is smart and responsive, which lets you use multiple applications without any lag
- The DDR5 SDRAM efficiently move data across electric components and provide smooth PC performance
- Supported 0 RAID levels provide data reliability and fault tolerance
- HDMI interface connects variety of HD devices including Gaming Controllers, Blu-ray players, laptops, PCs, digital cameras and many others for you to experience the ultimate HD display
- DisplayPort host interface lets you conveniently connect multiple monitors to increase productivity
- Micro ATX form factor for your accessibility convenience and simplicity of usage for Desktop Motherboard
- With 2 USB 2.0 ports, connect devices for a quick data movement
Specifications
| Product Type | Desktop Motherboard |
|---|---|
| Manufacturer Part Number | PRO Q670M-C-CSM |
| Maximum Memory Supported | 128 GB |
| Form Factor | Micro ATX |
| Manufacturer | ASUS Computer International |
| Product Model | PRO Q670M-C-CSM |
| Product Name | PRO Q670M-C-CSM Desktop Motherboard |
| Processor Supported | Core i3, Core i5, Pentium, Core i9, Celeron |
| RAID Levels | 0, 1, 5, 10 |
| Total Processor Supported | 1 |
| Controller Type | Serial ATA/600 |
| Product Series | PRO |
| Processor Socket | Socket LGA-1700 |
| Brand Name | Asus |
| Memory Technology | DDR5 SDRAM |
| Width | 9.6" |
| Depth | 9.6" |
| Environmentally Friendly | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | Q670 |
| Number of Memory Slots | 4 |
| Audio Channels | 7.1 |
| Gigabit Ethernet | Yes |
| Number of SATA Interfaces | 6 |
| Number of PCI Express x1 Slots | 2 |
| Onboard Video | CPU Dependent Video |
| RAID Supported | Yes |
| Number of PCI Express x16 Slots | 1 |
| HDMI | Yes |
| Number of Network (RJ-45) Ports | 1 |
| DisplayPort | Yes |
| Total Number of USB Ports | 6 |
| Number of USB 2.0 Ports | 2 |
| Total Number of Onboard USB Ports | 7 |
| Number of Onboard USB 2.0 Ports | 4 |
| Total Number of PCI Express Slots | 3 |
| Memory Form Factor | DIMM, UDIMM |
| Total Number of Expansion Slots | 3 |
| Number of M.2 Interfaces | 2 |
| Memory Speed Supported | 4800 MHz |
| Intel Optane Memory Ready | Yes |
| Intel RST | Yes |
| Number of Onboard USB 3.2 Ports | 3 |
| Number of USB 3.2 Gen 2 Type-A Ports | 4 |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
