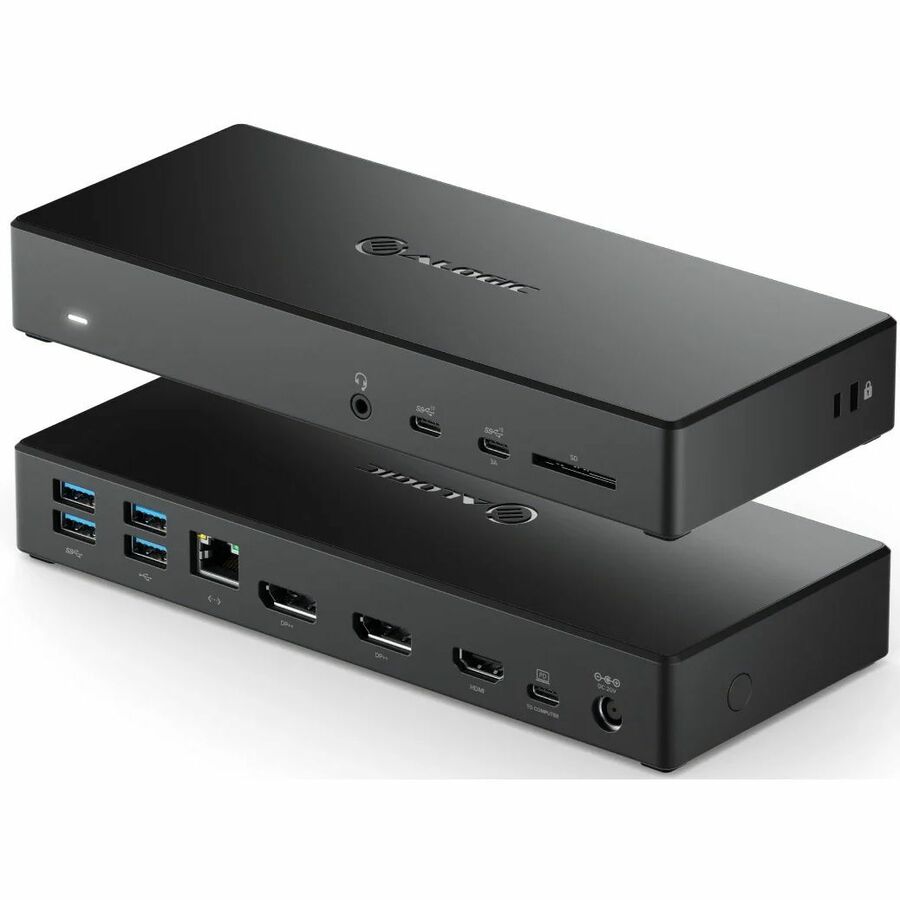

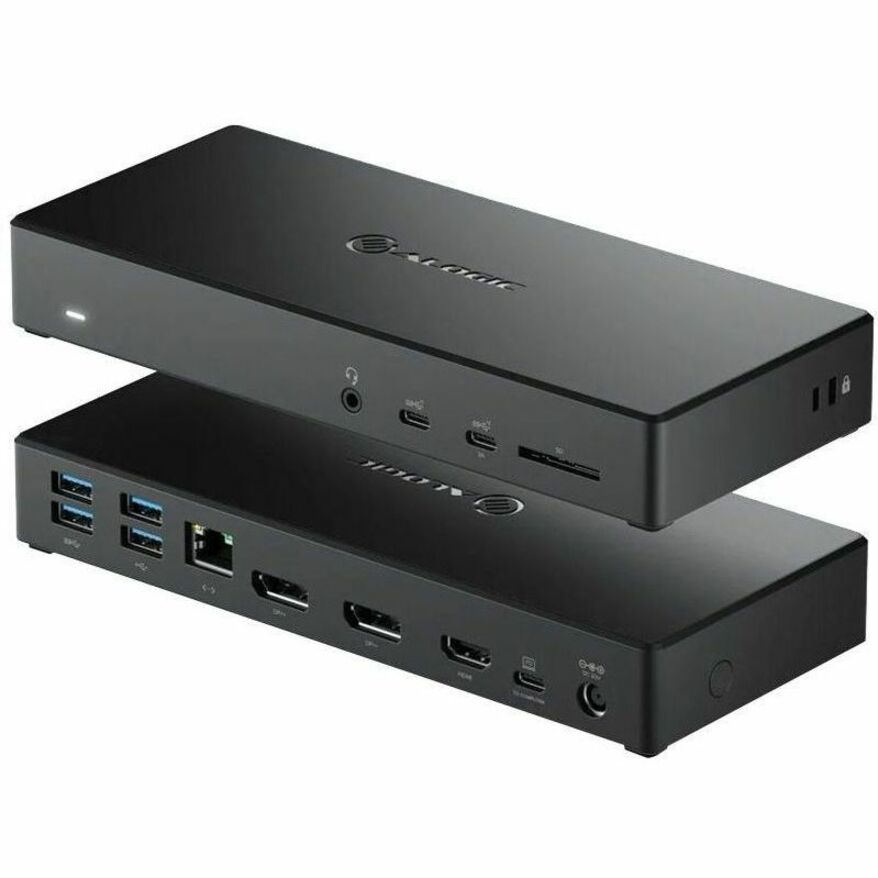

ALOGIC USB-C Triple Display DP Alt. Mode Docking Station
ALOGIC USB-C Triple Display DP Alt. Mode Docking Station - MA3 with 100W Power Delivery (Laptop Charging) - 2 x DP and 1 x HDMI with up to 4K 60Hz Support
SKU
Category
Docking Stations
MSRP$209.99
$200.35*
Save 5%
In stock: 3
*Government pricing. Buying for commercial use? Request a quote. Commercial pricing may differ.
Genuine Alogic through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Docking Stations
Country of origin
China
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview

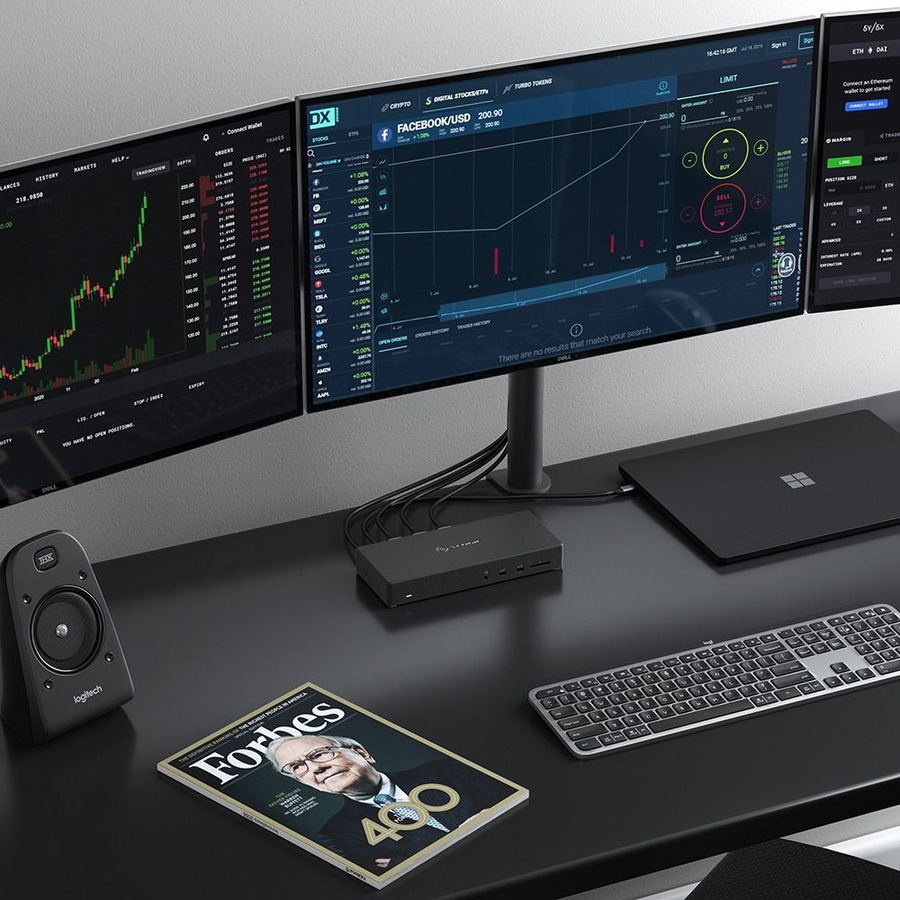

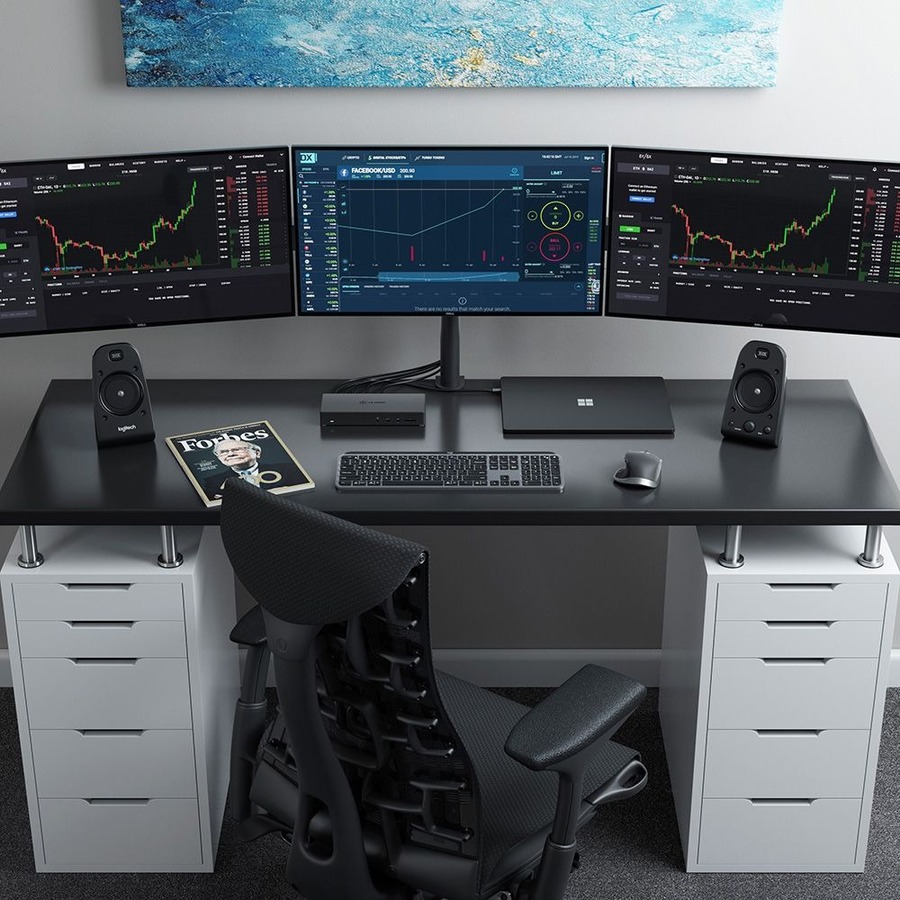

Triple Display The MA3 dock can support up to three external displays via the 2 x DisplayPort (DP ++ / DP 1.4) and 1 x HDMI 2.0 outputs. The dock will support extension or mirroring across the three external displays when used with a Windows Laptop.

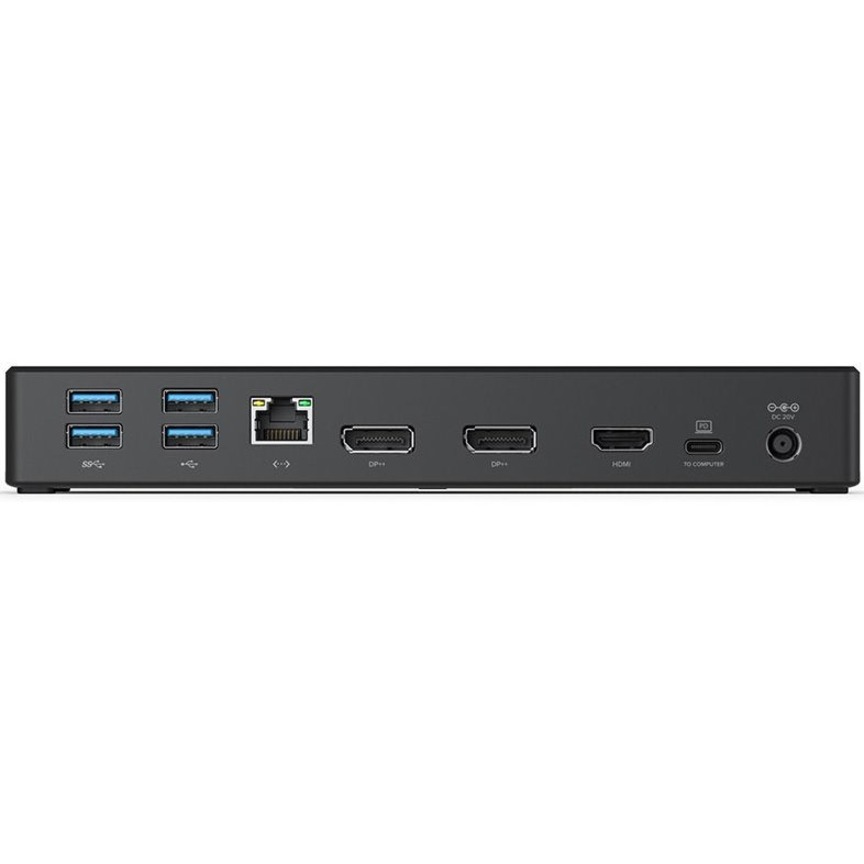

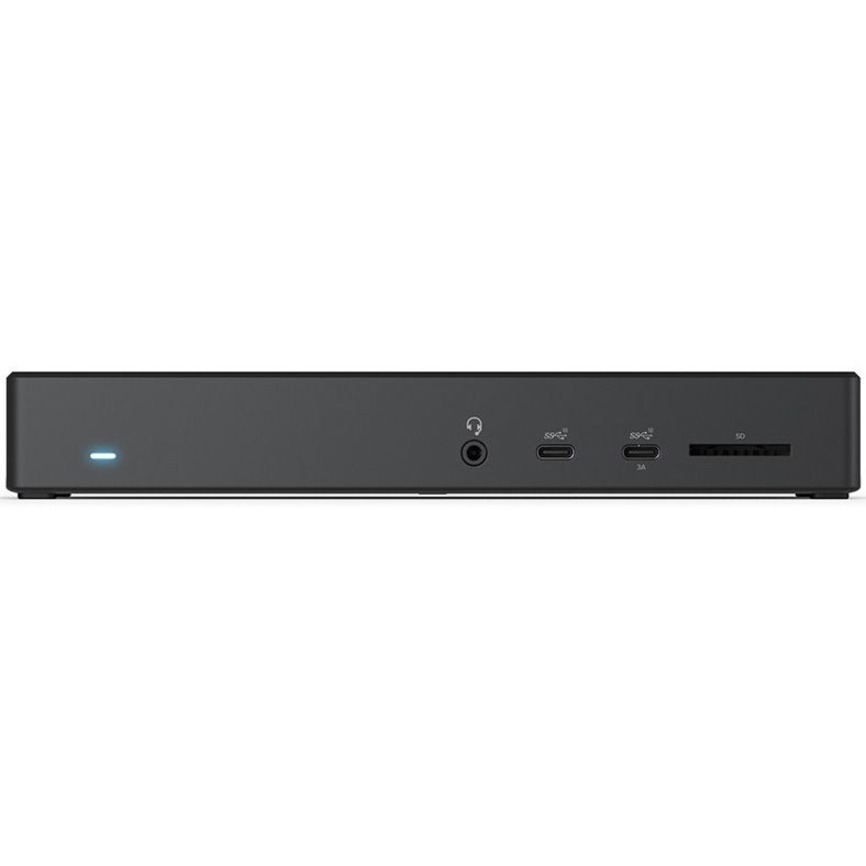

Comprehensive Connectivity The MA3 dock supports up to three displays at resolutions of up to 4K*. In addition to the ability to connect external monitors, the dock provides access to a full range of connections with USB 3.1 Gen 2/10G USB-C and USB 3.1 Gen 1 and USB 2.0 USB-A Ports, Gigabit Ethernet, 3.5mm Combo Jack and SD Card. The dock also features lock slots for securing it to a desk when being used in an office or a hot desking environment.
100W Laptop Charging/Power Delivery The dock charges your laptop with up to 100W of power when in use. This allows for a perfect single cable solution to add multiple displays, USB accessories, gigabit ethernet, headphone/Mic and charge your laptop all at the same time.
Warranty
Limited Warranty: 2 Year
Highlights
Comprehensive Connectivity
100W Power Delivery/Charging
No Driver Required
2 year warranty
Specifications
General Information
Manufacturer
Alogic
Manufacturer Part Number
DUCMA3
Brand Name
Alogic
Product Name
USB-C Triple DisplayDock - MA3 - with 100W Laptop Charging
Packaged Quantity
1
Product Type
Docking Station
Interfaces/Ports
Host Interface
USB Type C
Number of USB 2.0 Ports
2
Number of USB 3.1 Gen 1 Type-A Ports
2
USB Type-C
Yes
USB Type-C Detail
2 x USB-C 3.1 Gen 2 (10G) BC 1.2
Number of RJ-45 Ports
1
Network (RJ-45)
Yes
Number of DisplayPorts
2
DisplayPort
Yes
Headphone/Microphone Combo Port
Yes
Number of HDMI Ports
1
HDMI
Yes
USB Power Delivery
100W
Physical Characteristics
Product Color
Black
Height
11.42"
Width
34.65"
Weight (Approximate)
12.70 oz
Power Description
Maximum Power Supply Wattage
100 W
Technical Information
Connectivity Technology
Wired
Number of Displays Supported
3
Device Supported
Notebook, Monitor
Supported Resolutions
3840 x 2160
Screen Mode Supported
4K
Memory Card Reader
Yes
Memory Card Supported
SD
Warranty
Limited Warranty
2 Year
Miscellaneous
Package Contents
Docking Station 1 x 170W AC Power Adapter Power Cords: 1 x US 1 x UK 1 x EU 1 x AY 1 x User Manual
Compatibility
Compatible with all computers with a USB-C port (Windows 7 or newer, Mac or Chromebook)
