for Notebook, Microphone, Monitor, Tablet - Charging Capability - Memory Card Reader - SD, microSD - USB Type C - 2 Displays Supported - 4K - 3840 x 2160 - 4 x USB Ports - 2 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 2 x HDMI Ports - HDMI - Dark Gray - Wired - Gigabit Ethernet - Windows - 85W - Portable
MSRP$142.99
$121.68
Save 15%Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 27 and Dec 1, then process your delivery right after.
Genuine Alogic through authorized distribution — NDAA §889 screened before checkout.
Designed for Mac

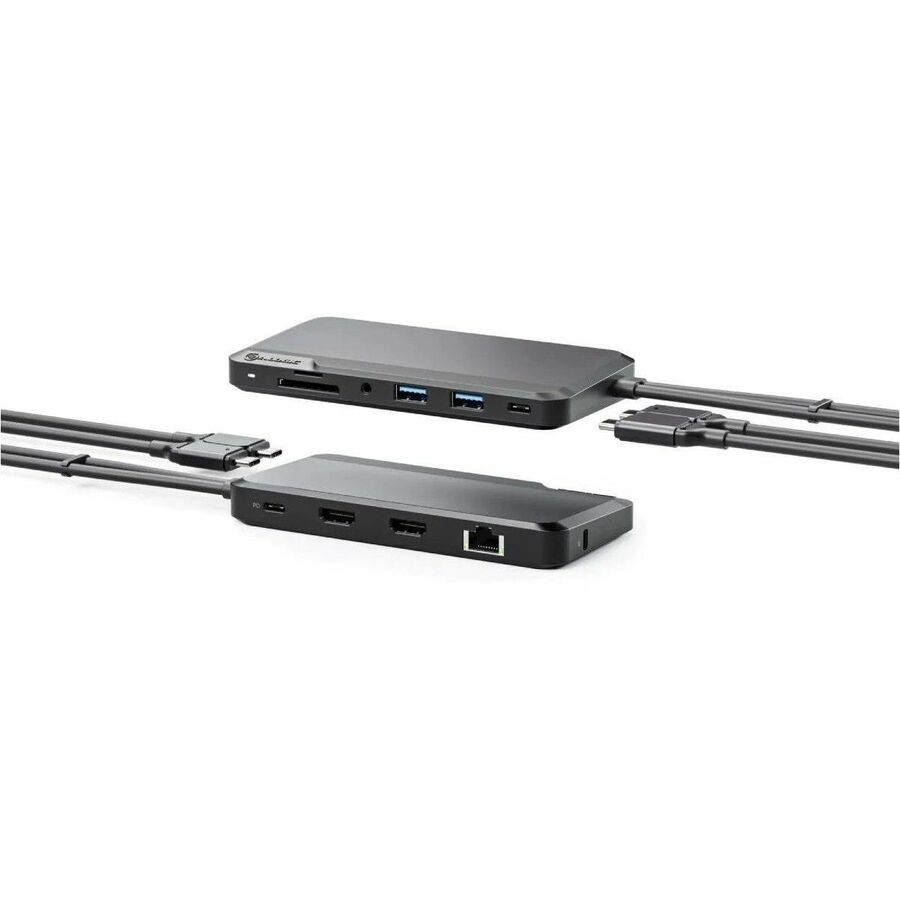

The ALOGIC MacBook Dock features twin magnetically connected USB-C cables to provide support for a wide range of Apple devices. The two USB-C connectors can be connected or detached as required giving the flexibility to use both cables with MacBooks featuring side-by-side USB-C ports and a single cable with any other USB-C (or Thunderbolt 3) enabled device such as iPad Pros. (Users of Windows computers should check out the ALOGIC Super Dock - U2CSH-SGR).
The primary USB-C cable can connect one monitor and all I/O ports on the dock to the computer or iPad while connecting the second USB-C cable allows for a second monitor to be connected to the dock for a dual screen workspace at up to 4K resolutions.

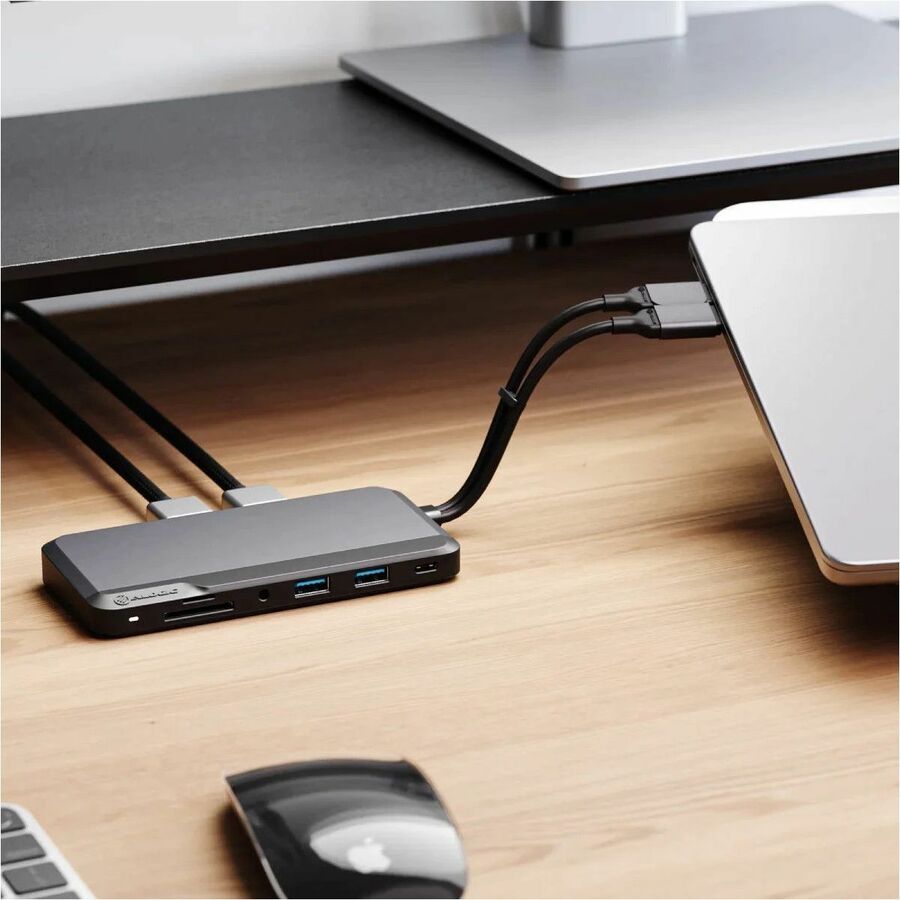

The dock is designed to be a natural extension of MacBook Pros; the twin magnetic connectors are designed to fit the dual USB-C ports perfectly.

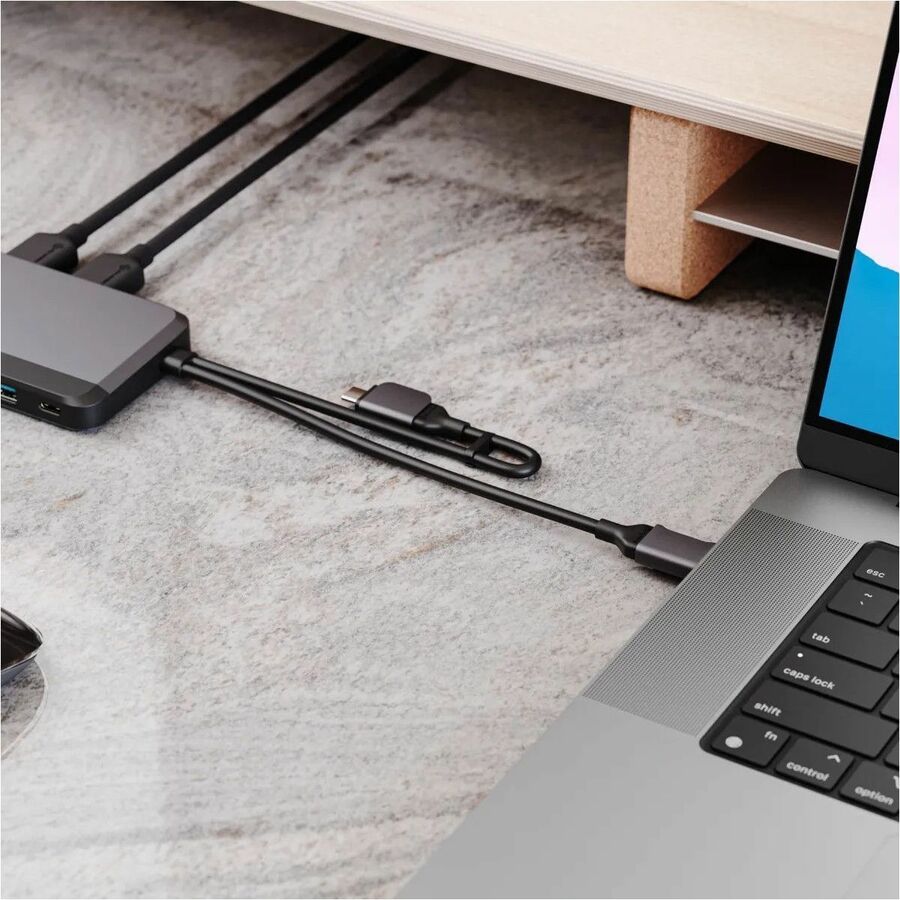

When the secondary cable is not in use, it can be clipped to itself for storage for a tidy setup.When the secondary cable is not in use, it can be clipped to itself for storage for a tidy setup.
Comprehensive Connectivity: 10-in-1
The MacBook Dock supports two displays at resolutions of up to 4K UHD 60Hz connected to the two HDMI 2.0 outputs when both USB-C cables are connected, or a single 4K monitor when only one USBC cable is connected to the computer.
In addition to the ability to connect external monitors, the dock provides access to a full range of connections for USB-C and USB-A peripherals, Ethernet, audio devices and SD and Micro SD card readers for transferring your data, photos and videos.
With support for USB Power Delivery Passthrough, you can connect your computer to a wide range of peripherals and even charge it from the MacBook Dock with up to 85W of power over a single cable (requires a suitable USB PD power supply which is available separately - see the ALOGIC range of RapidPower GaN chargers for suitable power adapters).
The dock also features a lock slot for securing it to a desk when being used in an office or a hot desking environment.
| General Information | |
|---|---|
| Manufacturer | Alogic |
| Manufacturer Part Number | U2CXH-DGR |
| Brand Name | Alogic |
| Product Name | 10-in-1 USB-C MacBook Dock |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
| Interfaces/Ports | |
| Host Interface | USB Type C |
| Total Number of USB Ports | 4 |
| Number of USB Type-C Ports | 2 |
| USB Type-A | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C 3.2 Gen 1 (5G) with PowerPass thru 100W - Data + Power, 1 x USB-C 3.2 Gen 1 (5G) - Data Only |
| Number of USB Type-A Ports | 2 |
| Number of RJ-45 Ports | 1 |
| Network (RJ-45) | Yes |
| Headphone/Microphone Combo Port | Yes |
| Number of HDMI Ports | 2 |
| HDMI | Yes |
| USB Power Delivery | 85W |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Physical Characteristics | |
| Product Color | Dark Gray |
| Form Factor | Portable |
| Height | 0.63" |
| Width | 2.44" |
| Weight (Approximate) | 5.29 oz |
| Software | |
| Operating System Supported | Windows |
| Technical Information | |
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Number of Displays Supported | 2 |
| Device Supported | Notebook, Microphone, Monitor, Tablet |
| Supported Resolutions | 3840 x 2160 |
| Screen Mode Supported | 4K |
| Memory Card Reader | Yes |
| Memory Card Supported | SD, microSD |
| Miscellaneous | |
| Compatibility | Compatible Devices: Apple MacBook Air M1/M2 Apple iPad Pro Apple MacBook/Pro/Air with Intel Processor, M1/M2 Pro, Max or Ultra Windows or Chromebook Device |
