for Monitor, Notebook, Desktop PC - Memory Card Reader - SD, microSD - 100 W - USB Type C - 4 Displays Supported - 4K @ 60Hz, Full HD - 3840 x 2160, 1920 x 1080 - 7 x USB Ports - 2 x USB 2.0 - 4 x USB Type-A Ports - USB Type-A - 3 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - DisplayPort - Space Gray - Wired - Gigabit Ethernet - Windows, macOS, ChromeOS - 85W
MSRP$264.99
$190.11
Save 28%In stock: 2
Genuine Alogic through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
Truly Universal Plug And Play
With Plug and Display? support for Windows, macOS and Chromebooks, as well as dual-screen support for legacy USB-A devices, it's never been simpler to create the perfect workstation or hotdesking environment. Just plug in and you're ready to go.
Connect up to 4 Displays
When linked to a computer using USB-C the DV4 dock can connect up to four* external displays via the 3x HDMI and 1x DisplayPort outputs for the ultimate in workstation display capabilities. This dock will also work with older laptops without USB-C, connecting via USB-A and allowing up to two displays to be used.
Expand your laptop's capabilities
The DV4 dock removes clutter and provides access to all of the ports required in a home office, education, or corporate environment.
Powerhouse Companion for your laptop | Connect up to 4 Displays

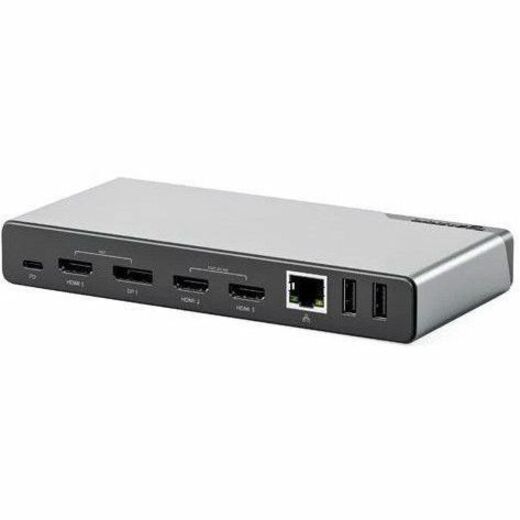

• Connect up to 4 extended displays with HDMI 2 + HDMI 3 + HDMI 1 + DisplayPort 1
• USB-C DP Alt Mode host required for HDMI 1 and DisplayPort 1 outputs.
• Connect to 2 extended displays with a USB-A host.
Connect up to 3 Displays
• Connect up to 3 extended displays with HDMI 2 + HDMI 3 + HDMI 1 OR DisplayPort 1
• HDMI 1 AND DisplayPort 1 in use will give mirrored displays
• USB-C host required for HDMI 1 and DisplayPort 1 outputs
Three Screens. Endless Possibilities.
See your work in whole new ways. Immerse yourself in the art you love. With your MacBook connected to one stunning 4K display and up to two 1080p screens, you'll finally have space for everything you need to live your best digital life. Even with all those tabs.
Up to 85W Power Delivery
Equipped with a USB Power Delivery power input, the dock can charge laptops with up to 85W of power when a USB PD power adapter is connected (ALOGIC recommend the DCG1X100 100W Rapid Power Gan power adapter for use with this product - available separately).
Clutter-free desk
The DV4 dock removes clutter and provides access to all of the ports required in a home office, education, or corporate environment.

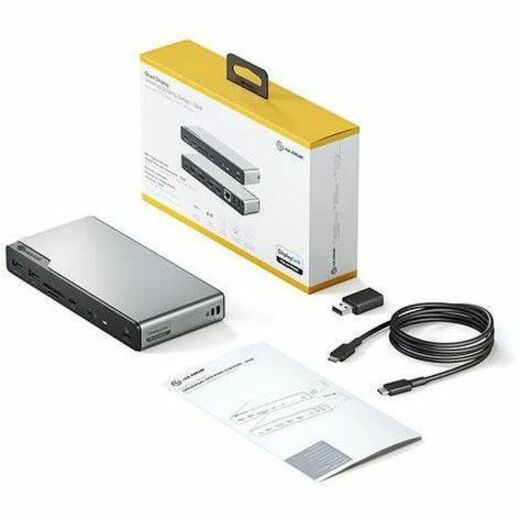

| Package Contents |
|
|---|---|
| Host Interface | USB Type C |
| Product Type | Docking Station |
| Device Supported | Monitor, Notebook, Desktop PC |
| Manufacturer Part Number | DUCDV4 |
| Limited Warranty | 2 Year |
| Weight (Approximate) | 15.34 oz |
| Connectivity Technology | Wired |
| Manufacturer | Alogic |
| Product Model | DV4 |
| Product Name | DV4 Universal Quad Display Docking Station |
| Product Line | Universal |
| Brand Name | Alogic |
| Operating System Supported | Windows, macOS, ChromeOS |
| Memory Card Supported | SD, microSD |
| Height | 1.06" |
| Width | 6.77" |
| Depth | 3.23" |
| Memory Card Reader | Yes |
| Ethernet Technology | Gigabit Ethernet |
| HDMI | Yes |
| Network (RJ-45) | Yes |
| Maximum Power Supply Wattage | 100 W |
| DisplayPort | Yes |
| Number of DisplayPort Outputs | 1 |
| Number of HDMI Outputs | 3 |
| Total Number of USB Ports | 7 |
| Number of USB 2.0 Ports | 2 |
| Number of Displays Supported | 4 |
| Headphone/Microphone Combo Port | Yes |
| Number of RJ-45 Ports | 1 |
| Kensington Security Slot | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C 3.2 Gen 1 (5Gps), 1 x USB-C Port for laptop connection (the included USB-C to USB-A adapter can be used for older computers) |
| DisplayPort Version | 1.4 |
| Number of USB Type-C Ports | 3 |
| Number of USB Type-A Ports | 4 |
| Product Color | Space Gray |
| USB Power Delivery | 85W |
| Supported Resolutions | 3840 x 2160, 1920 x 1080 |
| Number of USB 3.2 Gen 1 Type-A Ports | 2 |
| USB Type-A | Yes |
| Screen Mode Supported | 4K @ 60Hz, Full HD |
