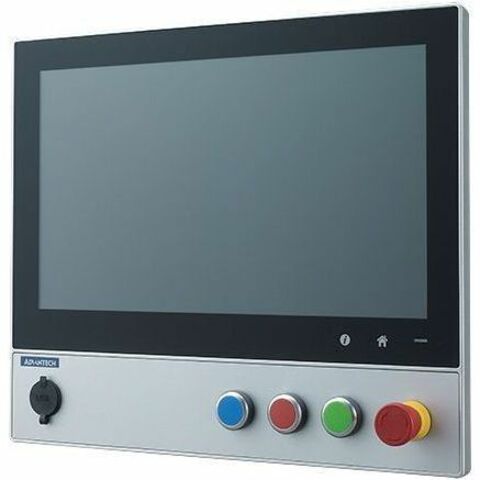

Advantech SPC-821-PBEK 22" Class LED Touchscreen Monitor
16:9
21.5" Viewable - Projected Capacitive - Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 250 Nit - LED Backlight - USB
SKU
Category
Touchscreen Monitors
$571.91
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 29 and Dec 3, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Touchscreen Monitors
Overview
SPC-800 is an arm-mounted HMI that can be integrated with an extension unit that supports RAFI FS22+ Series pushbuttons. Designed to support diverse industrial mounting standards, such as CP 40 (Rittal) and CS-480 (Bernstein), SPC-800 provides a versatile HMI that can be installed in a variety of intelligent factories and machines. The SPC-800 is powered by an Intel® Core i3-6100U 2.3 GHz processor that delivers advanced graphical performance to facilitate the realization of field IoT applications. The HMI is also equipped with a silicone-free enclosure that features all-around IP65-rated protection from water and dust. Moreover, with the inclusion of an I/O cover, all cables can be hidden for a tidy appearance and simplified wiring installation..
Highlights
15.6"/21.5" (Full) HD TFT LED LCD display
Intel® Core i3-6100U dual-core, 2.3 GHz processor
16:9 widescreen with P-CAP multi-touch control
Built-in function keys for intuitive operation
Scratch-resistant touch panel with 7H surface hardness
Silicone-free enclosure with all-round IP65-rated protection
Supports CP 40 (Rittal) and CS-480 B.Flex (Bernstein) mount standards
Front-facing USB ensures easy maintenance
Supports the RAFI FS22+ Series pushbuttons
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
SPC-821-PBEK
Brand Name
Advantech
Product Model
SPC-821-PBEK
Product Name
SPC-821-PBEK Touchscreen LED Monitor
Product Type
LED Touchscreen Monitor
Interfaces/Ports
USB
Yes
Number of USB Ports
3
Number of USB 3.0 Ports
2
Number of USB 2.0 Ports
1
Network & Communication
Connectivity Technology
Wired
Physical Characteristics
Height
16.5"
Width
21.5"
Depth
2.6"
Weight (Approximate)
23.37 lb
Power Description
Maximum Power Consumption
60 W
Technical Information
Screen Size Class
22"
Viewable Screen Size
21.5"
Screen Mode
Full HD
Panel Technology
Thin Film Transistor (TFT)
Aspect Ratio
16:9
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
Mount Type
Arm-mountable, Pole Mount
Backlight Technology
LED
Features
Dust Resistant, Water Resistant
Ingress Protection (IP) Rating
IP65
Touchscreen Information
Touchscreen Type
Projected Capacitive
Multi-touch Screen
Yes
Video
Maximum Resolution
1920 x 1080
Color Supported
16.7 Million Colors
Brightness
250 Nit
Environmental Conditions
Operating Temperature Range
32°F (0°C) to 131°F (55°C)
Operating Humidity Range
95% (Non-condensing)
Miscellaneous
Package Contents
SPC-821-PBEK Touchscreen LED Monitor
4 x HDD Screws
1 x Plug-In Block
1 x Warranty
1 x Grounding cable
1 x Bracket
1 x Flange
Environmental Compliance
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
