Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
FPM-724W-P9AU
Category
Touchscreen Monitors
Overview
In IIoT and Industry 4.0, more and more customers need data to be visualized to help process management and decision making. The FPM-715W/FPM-721W/FPM-724W are industrial-grade, widescreen monitor with sleek, simple lines and a true-flat touchscreen. Equipped with P-CAP 10-point multi-touch control and an IP66-rated front bezel,FPM-715W series is specifically designed for industrial applications. Moreover, FPM-715W/FPM-721W support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and various mount options to make these monitors ideal for factory and machine automation display applications.
Highlights

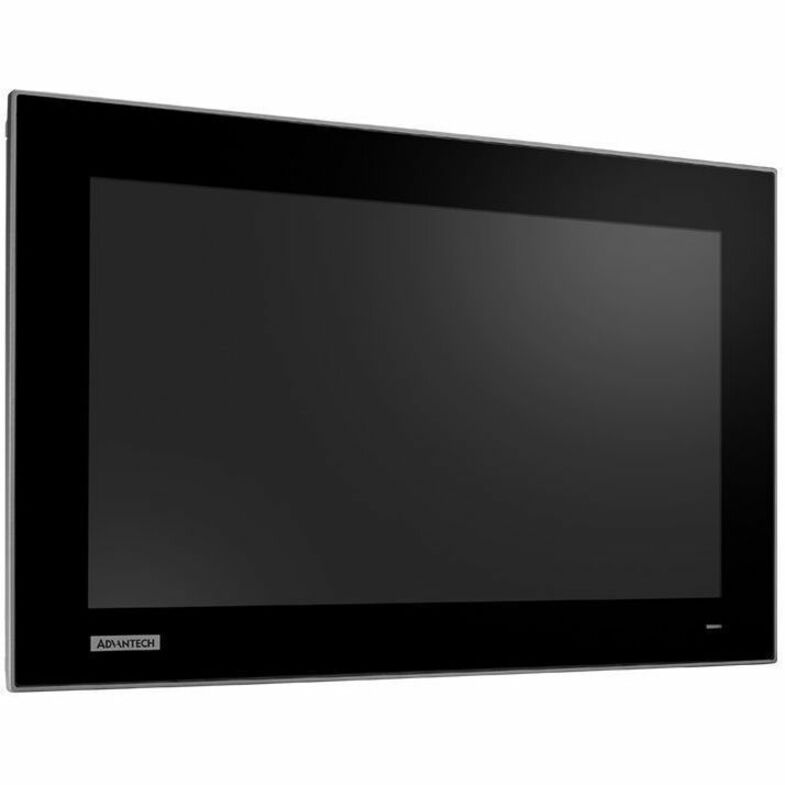

15.6"/21.5"/23.8" Full HD TFT LED LCD with true-flat touchscreen
16:9 wide screen aspect ratio, increases viewing area by 40%
Supports 10-point multi-touch control via USB interface in Windows 7/8/10 OS
Slim design enables easy installation
Supports various mount options: panel, desktop, and VESA arm
Touchscreen with reliable glass surface and P-CAP touch control
Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel

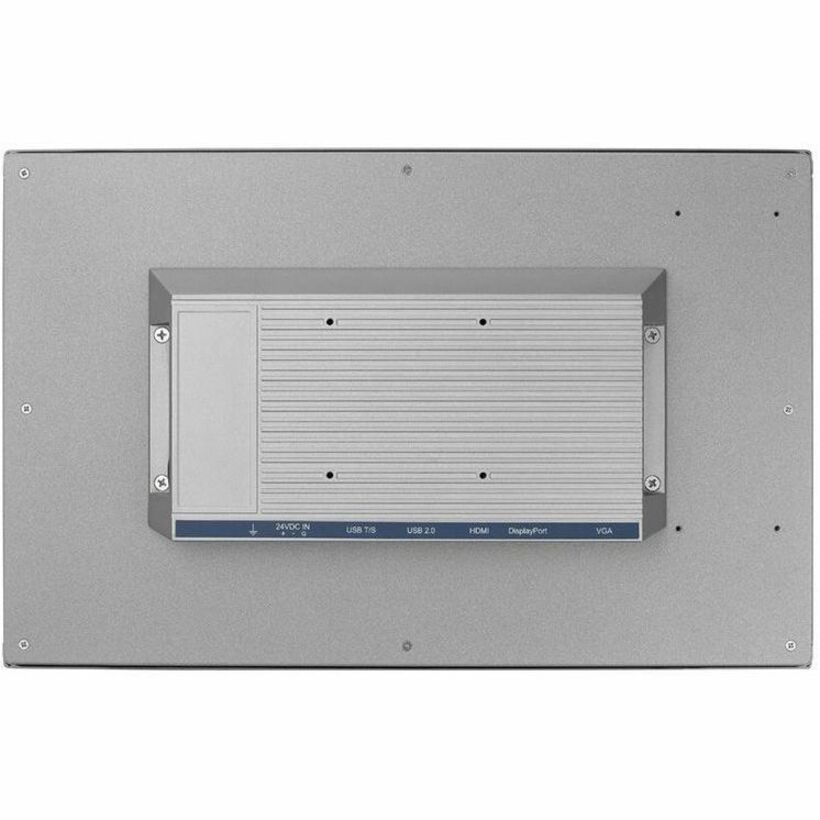

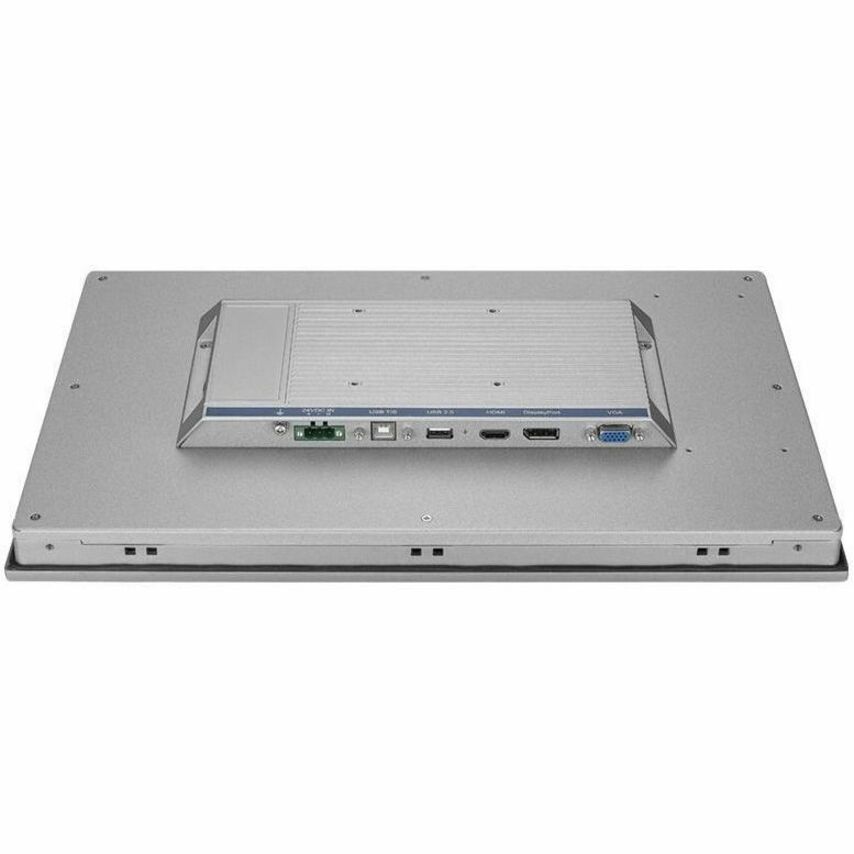

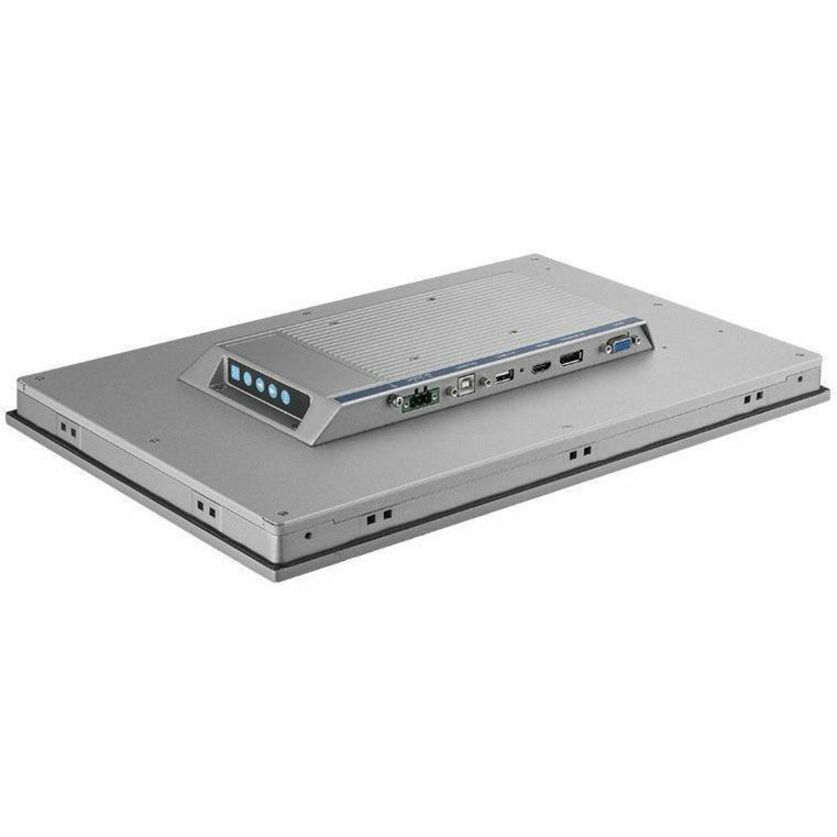

Lockable I/O connectors
Supports various mount options: panel, wall, desktop, rack or VESA arm mounting
Specifications
Aspect Ratio
16:9
Package Contents
FPM-724W-P9AU Touchscreen LED Monitor
1 x Terminal Block
10 x Clamper
10 x Clamper Screw
1 x GND Cable
1 x USB Touch Cable
1 x VGA Cable
7 x HDMI and DP Lockable Kit
Product Type
LED Touchscreen Monitor
Manufacturer Part Number
FPM-724W-P9AU
Touchscreen Type
Projected Capacitive
Weight (Approximate)
17.20 lb
Brightness
450 Nit
Color Supported
16.7 Million Colors
Features
Anti-glare
Manufacturer
Advantech Co., Ltd
Product Model
FPM-724W-P9AU
Product Name
FPM-724W-P9AU Touchscreen LED Monitor
Mount Type
Stand Mountable, Wall Mountable, Panel Mount, Arm-mountable, Desk Mountable, Rack-mountable
Product Series
FPM-724W
Viewable Screen Size
23.8"
Maximum Resolution
1920 x 1080
Brand Name
Advantech
Screen Mode
Full HD
Country of Origin
Taiwan
Height
14.7"
Width
23.5"
Depth
2.1"
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
USB
Yes
HDMI
Yes
Backlight Technology
LED
VESA Mount Compatible
Yes
VESA Mount Standard
75 x 75
Native Contrast Ratio
1,000:1
VGA
Yes
DisplayPort
Yes
Maximum Power Consumption
25.47 W
Multi-touch Screen
Yes
Panel Technology
Thin Film Transistor (TFT)
Screen Size Class
24"
Number of Simultaneous Touchpoints
10
Glass Hardness
7H
Ingress Protection (IP) Rating
IP66
Environmental Compliance
Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
