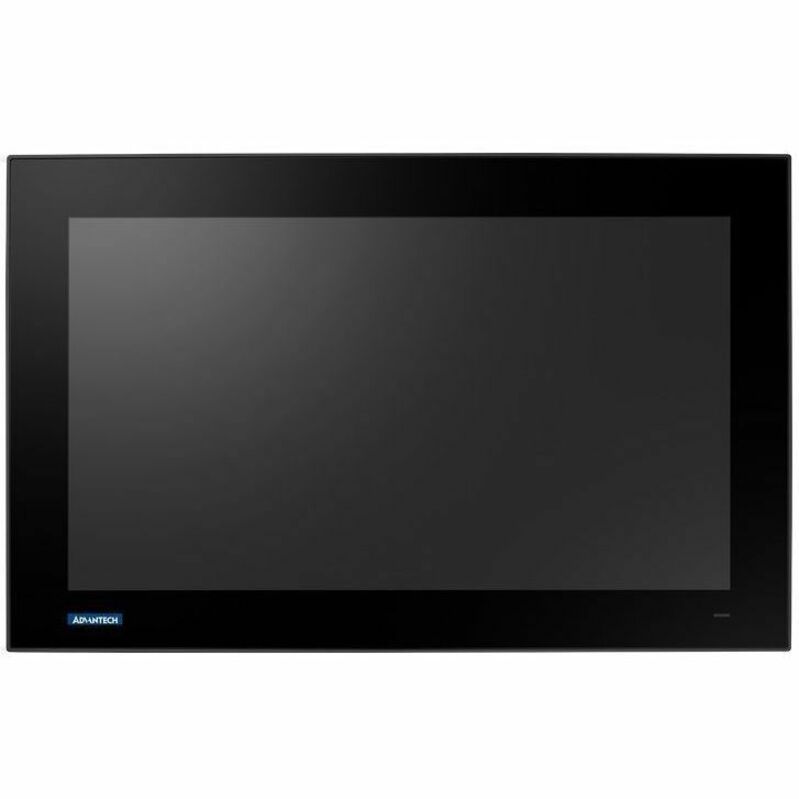

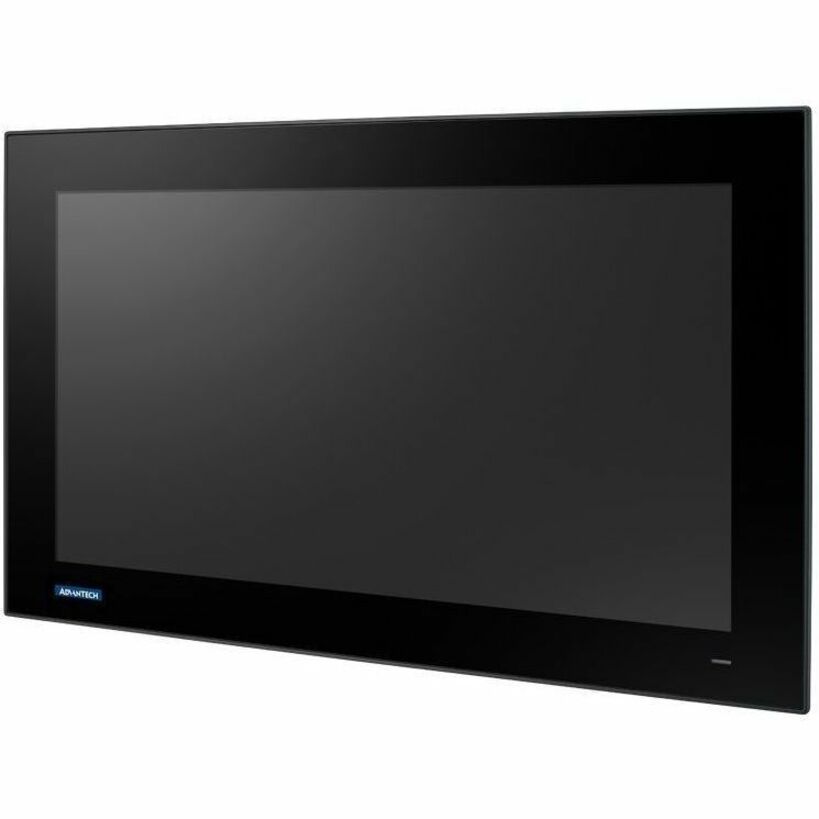

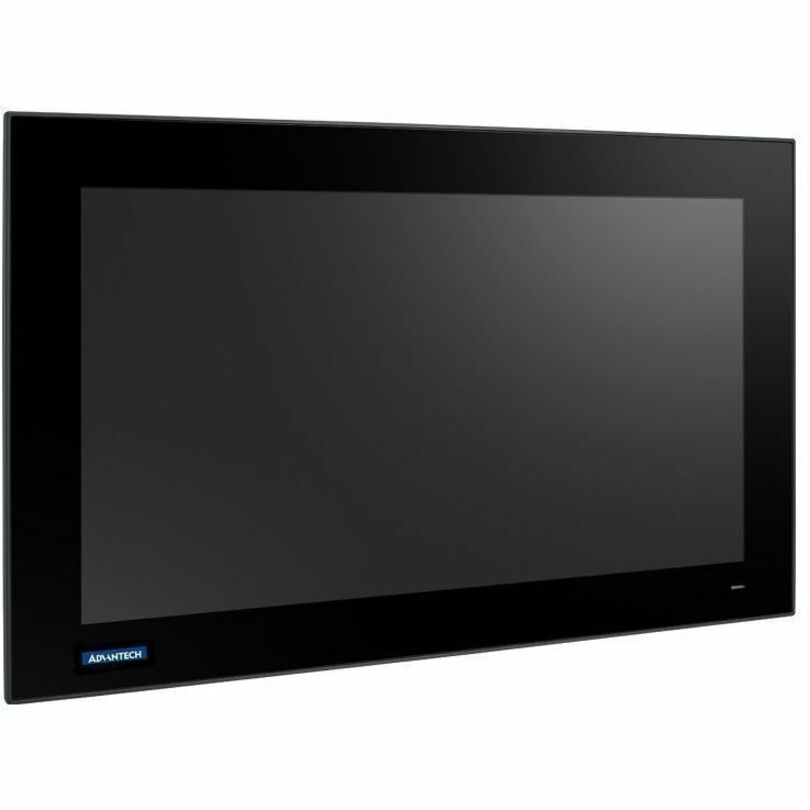

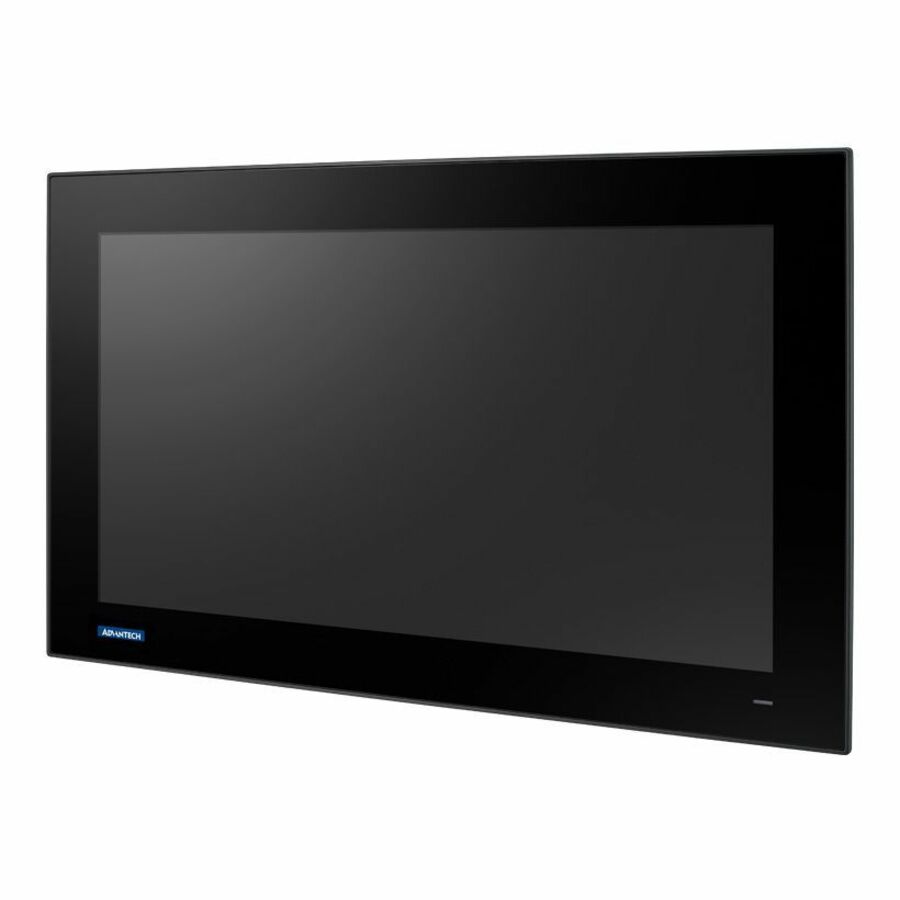

Advantech FPM-D18W-FCE 19" Class LED Touchscreen Monitor
Advantech

Advantech FPM-D18W-FCE 19" Class LED Touchscreen Monitor

18.5" Viewable - Projected Capacitive - Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 350 Nit - LED Backlight - USB

SKU
FPM-D18W-FCE
Category
Touchscreen Monitors

$845.01

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
FPM-D18W-FCE
Category
Touchscreen Monitors

Overview

Advantech's modular display series offers various display modules ranging between 12.1" and 23.8" inches in size to go with selections of computing boxes (TPC-B300/TPC-B510/ TPC-B520/TPC-B520L/TPC-B610) for multiple configurations that can be flexibly adapted to various scenarios. Modular display series are equipped with industrial grade LCD and Projected Capacitive touch screens, providing the best user experience and reliable operation. The modular design ensures flexible configuration and easy maintenance/upgrades. Its robust enclosure is equipped with a die-cast aluminum alloy front bezel and IP66 rating for protection from dust and water ingress.

More from the Manufacturer

Highlights

  • Modular front display design in three application-based module categories, enabling flexible configurations
  • Front panel module with P-CAP multi-touch sensor available in various sizes
  • Industrial-grade LED LCD
  • System status LED indicators in front panel
  • IP66-rated front panel and panel mount
  • Rear mounted computing box or monitor box module is compulsory to activate display module
  • Sunlight readable w/ high luminance (available in 12" , 15" , 15.6" and 21.5")

Specifications

Package Contents
  • FPM-D18W-FCE Touchscreen LED Monitor
  • 12 x Clamper-Bezel M5 for TPC-1770 A1
  • 12 x Clamper Screw M5x20L R/S D=9 H=3 (2+) ST Ni
  • 1 x Cardboard-Warranty REV. A2
Product TypeLED Touchscreen Monitor
Manufacturer Part NumberFPM-D18W-FCE
Touchscreen TypeProjected Capacitive
Brightness350 Nit
Color Supported16.7 Million Colors
FeaturesAnti-glare
ManufacturerAdvantech Co., Ltd
Product ModelFPM-D18W-FCE
Product NameFPM-D18W-FCE Touchscreen LED Monitor
Mount TypePanel Mount
Viewable Screen Size18.5"
Maximum Resolution1920 x 1080
Brand NameAdvantech
Screen ModeFull HD
Height12.2"
Width19.2"
Depth1.2"
Horizontal Viewing Angle178°
Vertical Viewing Angle178°
USBYes
Backlight TechnologyLED
VESA Mount CompatibleYes
Native Contrast Ratio1,000:1
Multi-touch ScreenYes
Panel TechnologyThin Film Transistor (TFT)
Screen Size Class19"
Ingress Protection (IP) RatingIP66
Operating Temperature Range-4°F (-20°C) to 140°F (60°C)
