Overview
SPC-815 (M) and SPC-821 (M) are standalone multi-touch industrial monitors that can be pole mounted and integrated with an extension unit that supports RAFI FS22+ Series pushbuttons. Designed to be compatible with diverse industrial mounting standards, such as CP 40 (Rittal) and CS-480 B.Flex (Bernstein), SPC-815 (M) and SPC-821 (M) provide versatile monitors that can be installed in a variety of intelligent factories. The monitors are also equipped with a silicone-free enclosure that features all-around IP65-rated protection from water and dust. Moreover, with the inclusion of an I/O cover, all cables can be hidden for a tidy appearance and simplified wiring installation.
More from the Manufacturer

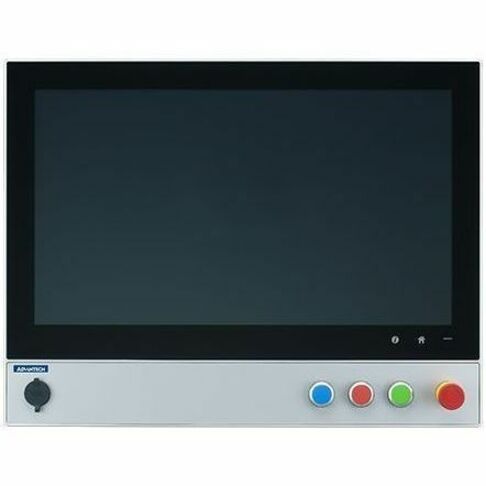

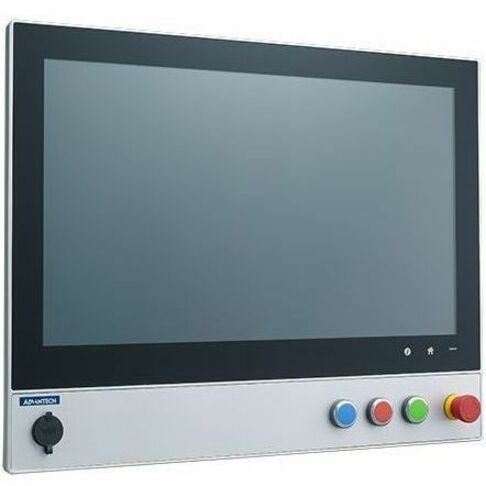

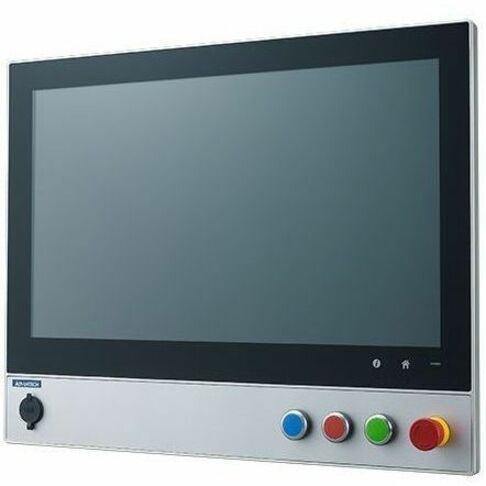

SPC-821(M)
21.5" Integrated-Button Industrial Monitor
All-round IP65-rated protection from water and dust
Supports the RAFI FS22+ Series pushbuttons
Silicone-free enclosure with all-round IP65-rated protection
Supports CP 40 (Rittal) and CS-480 B.Flex (Bernstein) mount standards
Front-facing USB ensures easy maintenance
PCAP multi-touch control
Highlights
15.6"/21.5" (Full) HD TFT LED LCD display
16:9 widescreen with P-CAP multi-touch control
Built-in function keys for intuitive operation
Scratch-resistant touch panel with 7H surface hardness
Front-facing LED indicators show operating status
Silicone-free enclosure with all-round IP65-rated protection
Supports CP 40 (Rittal) and CS-480 B.Flex (Bernstein) mount standards
Front-facing USB ensures easy maintenance
Supports the RAFI FS22+ Series pushbuttons
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
SPC-821-MLA
Brand Name
Advantech
Product Model
SPC-821-MLA
Product Name
SPC-821-MLA Touchscreen LED Monitor
Product Type
LED Touchscreen Monitor
Interfaces/Ports
HDMI
Yes
USB
Yes
DisplayPort
Yes
Physical Characteristics
VESA Mount Compatible
Yes
Height
16.5"
Width
21.5"
Depth
6.3"
Weight (Approximate)
17.64 lb
Technical Information
Screen Size Class
22"
Viewable Screen Size
21.5"
Screen Mode
Full HD
Panel Technology
Thin Film Transistor (TFT)
Aspect Ratio
16:9
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
Mount Type
Pole Mount
Backlight Technology
LED
Features
LED Indicator, Scratch Resistant
Ingress Protection (IP) Rating
IP65
Glass Hardness
7H
Touchscreen Information
Touchscreen Type
Projected Capacitive
Multi-touch Screen
Yes
Video
Maximum Resolution
1920 x 1080
Color Supported
16.7 Million Colors
Brightness
250 Nit
Environmental Conditions
Operating Temperature Range
32°F (0°C) to 131°F (55°C)
Miscellaneous
Package Contents
SPC-821-MLA Touchscreen LED Monitor
4 x HDD Screw M3x4L S/S D=5 H=1.2 (2+) ST Ni NK
1 x Plug-In Block 1x3P/5.08mm/PA66/F/VA/Sn/GR/H15
1 x Cardboard-Warranty REV. A2
1 x A Cable G-TEM 4.3 100CM C=GR/Y
1 x BKT Cover IO 432C for SPC-821
1 x Flange Accessory Kit for SPC-800 (M) PIPE Mounting
Environmental Compliance
China Restriction of Hazardous Substances (China RoHS)
