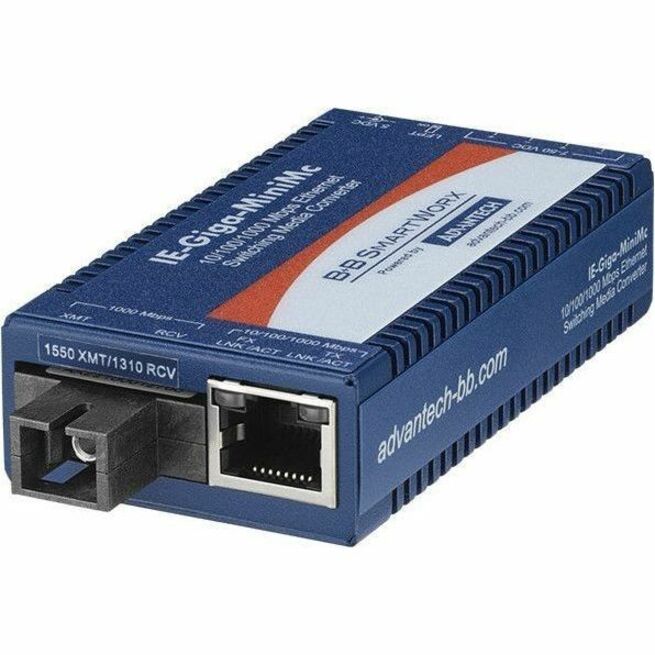

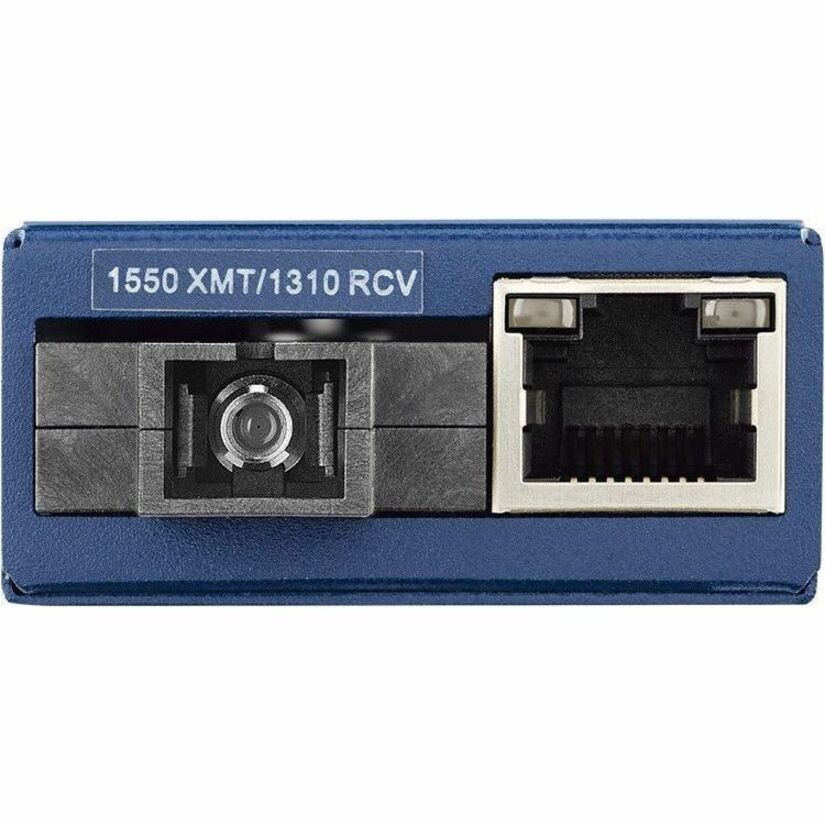

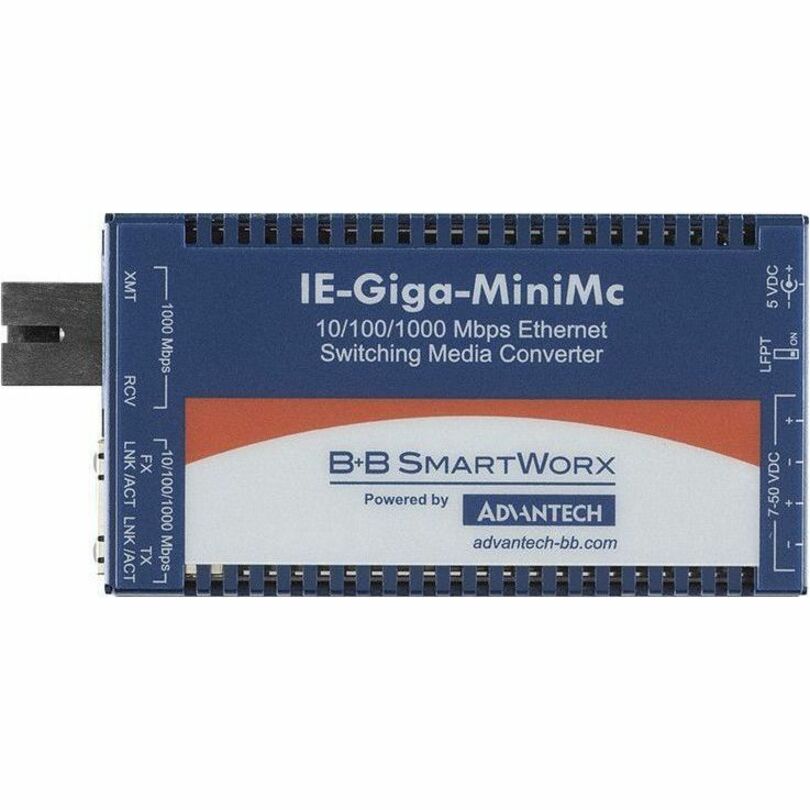

Advantech 10/100/1000Mbps Miniature Media Converter
Advantech

Advantech 10/100/1000Mbps Miniature Media Converter

1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - USB - 1310 nm, 1550 nm Fiber - Gigabit Ethernet - 10/100/1000Base-TX - 1000 Mbit/s - 10 km - AC/DC - Wall Mountable, Compact

SKU
IMC-370I-SSR-B
Category
Transceivers/Media Converters

MSRP$335.00

$270.72

Save 19%
Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
IMC-370I-SSR-B
Category
Transceivers/Media Converters

Overview

The IMC-370I series offers the most compact media converters. They can extend the 10/100/1000Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100/1000 auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, the IMC-370I series serves as a media and data rate converter that has NEMA TS2 rating, making it ideal for use in traffic applications.

The IMC-370I series supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. LFPT is a troubleshooting feature that combines TX LinkLoss (Twisted Pair, copper interface) and FX LinkLoss (Fiber, fiber interface) from both local and remote IMC Networks media converters, when used in pairs. This feature, when enabled, will pass a link fault through the device at each segment. If a link fails on one interface of the media converter, the media converter will force the link down on its link partner and then forward it to the next interface.

The IMC-370I supports plug-n-play functionality, auto negotiation, and AutoCross operation. It can be powered by AC/DC power, dual USB cable, or via installation in the centrally-powered media converter chassis.

Highlights

  • Metal enclosure with compact size
  • Industrial grade design that supports an extended operating temperature range
  • Provides status LED
  • NEMA TS2 for traffic control
  • Supports multiple power options: AC or DC adapter and dual USB cable
  • Supports Link Fault Pass Through (LFPT)
  • Support centralized powered IMC-318I Chassis

Specifications

Product TypeTransceiver/Media Converter
Manufacturer Part NumberIMC-370I-SSR-B
Maximum Distance Supported10 km
Power SourceAC/DC
Weight (Approximate)11.20 oz
Form FactorWall Mountable, Compact
ManufacturerAdvantech Co., Ltd
Product ModelIMC-370I-SSR-B
Product Name10/100/1000Mbps Miniature Media Converter
Network Technology10/100/1000Base-TX
Product LineIE-Giga-MiniMc
Product SeriesIMC-370I
Brand NameAdvantech
Plug/Connector TypeBarrel
Height0.8"
Width1.8"
Depth3.4"
Environmentally FriendlyYes
Maximum Data Transfer Rate1000 Mbit/s
Ethernet TechnologyGigabit Ethernet
USBYes
Number of Network (RJ-45) Ports1
Network (RJ-45)Yes
Number of SC Ports1
Media Type SupportedTwisted Pair, Optical Fiber
Total Number of Ports2
SC Port TypeDuplex
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
Fiber Optic Cable Wavelength1310 nm, 1550 nm
