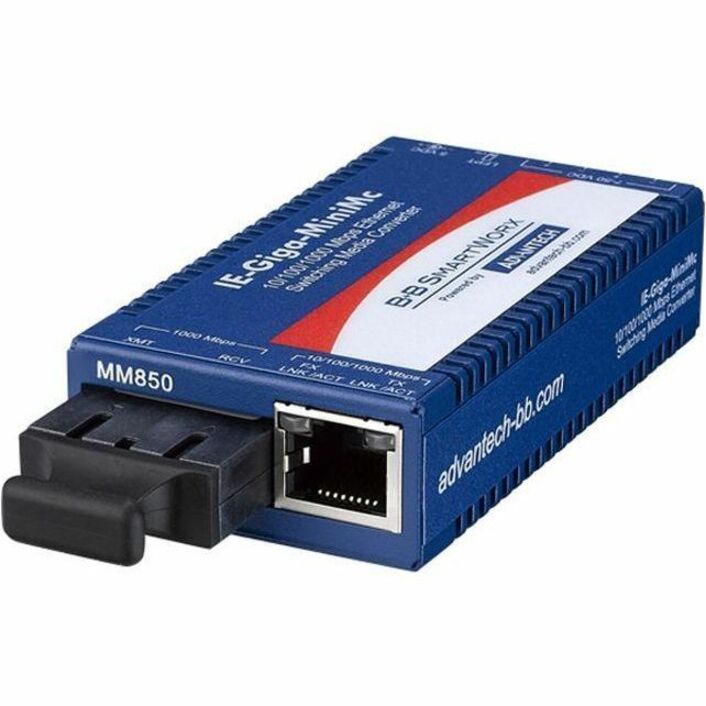

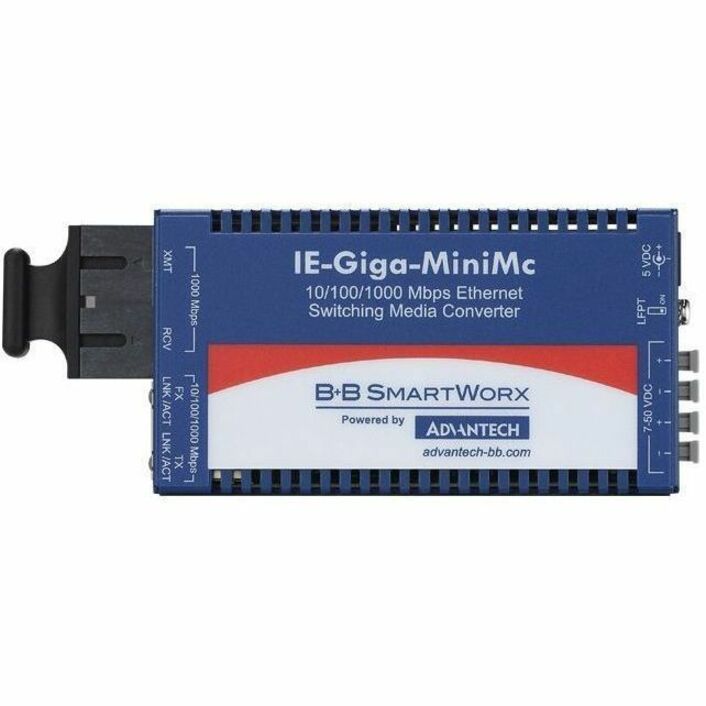

Advantech 10/100/1000Mbps Miniature Media Converter with LFPT
1 x Network (RJ-45) - 1 x SC Ports - Multi-mode - 850 nm Fiber - Gigabit Ethernet - 10/100/1000Base-TX - 0.55 km - AC/DC - DIN Rail Mountable, Wall Mountable, Compact
SKU
Category
Transceivers/Media Converters
$415.57
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 27 and Dec 1, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Transceivers/Media Converters
Overview
The IMC-370 series offers the most compact media converters. They can extend the 10/100/1000Mbps twisted-pair network segments up to 80km over fiber technology. Supporting both 10/100/1000 auto negotiation on the copper port and 1000Mbps full-duplex on the fiber port, the IMC-370I series serves as a media and data rate converter that has NEMA TS2 rating, making it ideal for use in traffic applications.

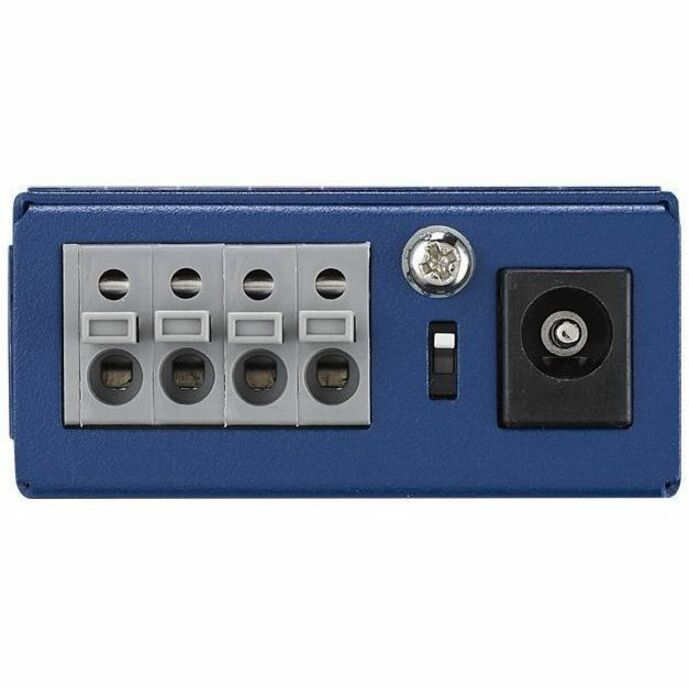

The IMC-370 series supports Link Fault Pass Through (LFPT) functionality which can be enabled/disabled by a DIP switch on the unit. This useful diagnostic feature assists the network administrator in indicating a fault condition on a given segment between the interfaces.
The IMC-370 supports plug-n-play functionality, auto negotiation, and AutoCross operation. It can be powered by AC/DC power, dual USB cable, or via installation in the centrally- powered media converter chassis.
Highlights
Supports twisted pair cables for durability and improved signal transfer while ensuring smooth and seamless data transfer
Connect different types of media within a network with this single port
With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
The DIN Rail Mountable provides convenient installation
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
IMC-370I-MM-PS-B
Brand Name
Advantech
Product Line
IE-Giga-MiniMc
Product Series
IMC-370I
Product Name
10/100/1000Mbps Miniature Media Converter with LFPT
Product Type
Transceiver/Media Converter
Interfaces/Ports
Total Number of Ports
1
Network (RJ-45)
Yes
Number of Network (RJ-45) Ports
1

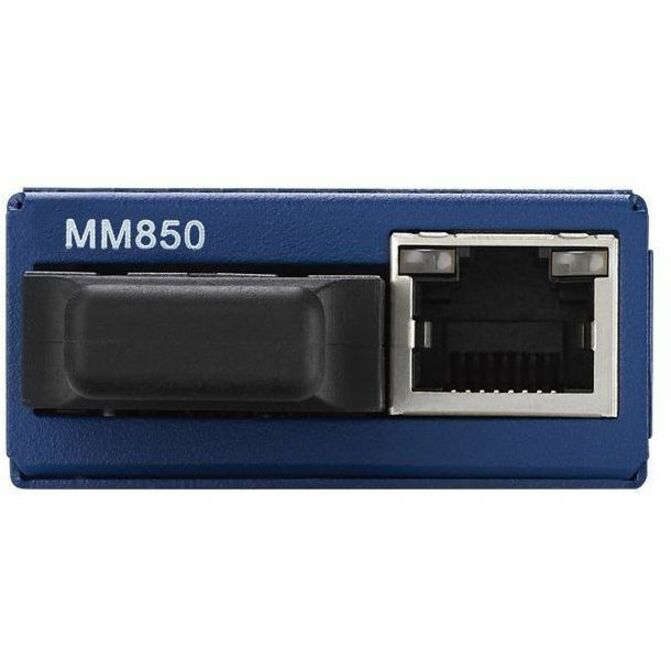

Number of SC Ports
1
Media & Performance
Media Type Supported
Twisted Pair, Optical Fiber
Fiber Mode Supported
Multi-mode
Fiber Optic Cable Wavelength
850 nm
Maximum Distance Supported
0.55 km
Network & Communication
Ethernet Technology
Gigabit Ethernet
Network Technology
10/100/1000Base-TX
Physical Characteristics
Form Factor
DIN Rail Mountable, Wall Mountable, Compact
Height
0.8"
Width
1.8"
Depth
3.4"
Weight (Approximate)
11.18 oz
Power Description
Power Source
AC/DC
Plug/Connector Type
Barrel
Miscellaneous
Package Contents
10/100/1000Mbps Miniature Media Converter with LFPT
