Overview
Introduction

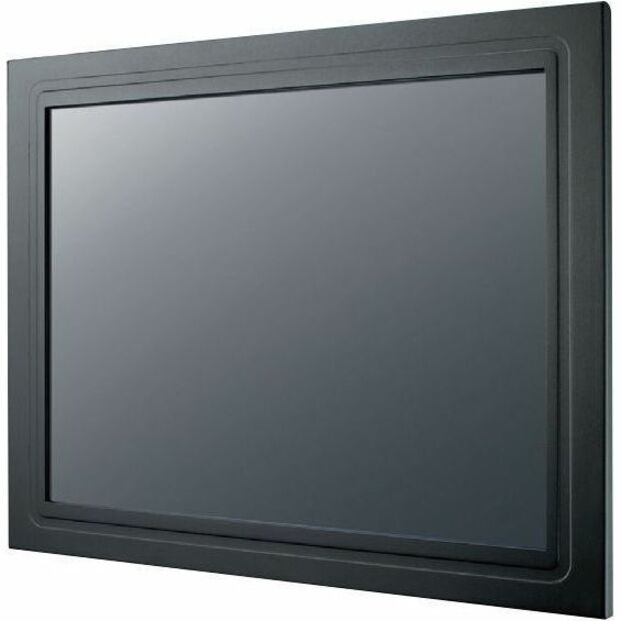

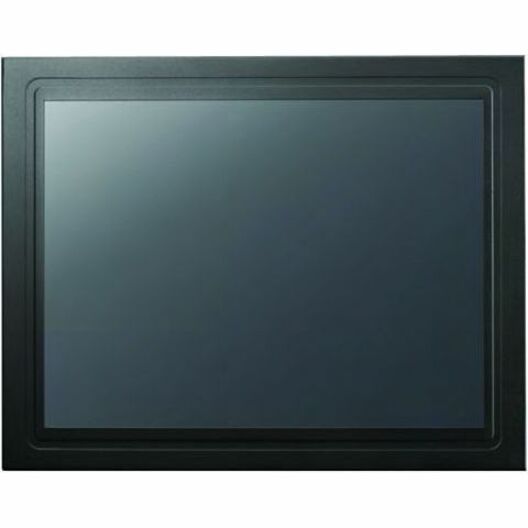

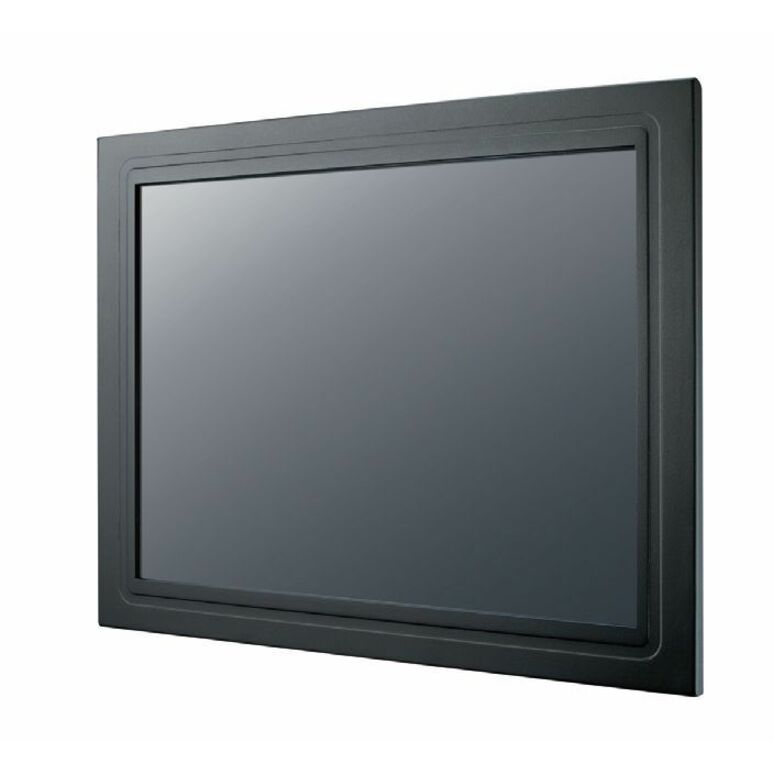

The Advantech IDS-3219 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports front and VESA mounting which brings the benefits of easy installation and provides flexibility for different applications.
Warranty
Limited Warranty: 2 Year
Highlights
19" SXGA LCD panel with LED backlight for 20% power saving and environmental protection
Versatile mounting methods for front mounting and VESA mounting
Anti-Reflective treatment (optional)
Ultra high brightness solution of 1200 cd/m2 for outdoor applications (optional)
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
IDS-3219R-35SXA1E
Brand Name
Advantech
Product Model
IDS-3219
Product Name
19" SXGA Industrial Panel Mount Monitor
Product Type
LED Touchscreen Monitor

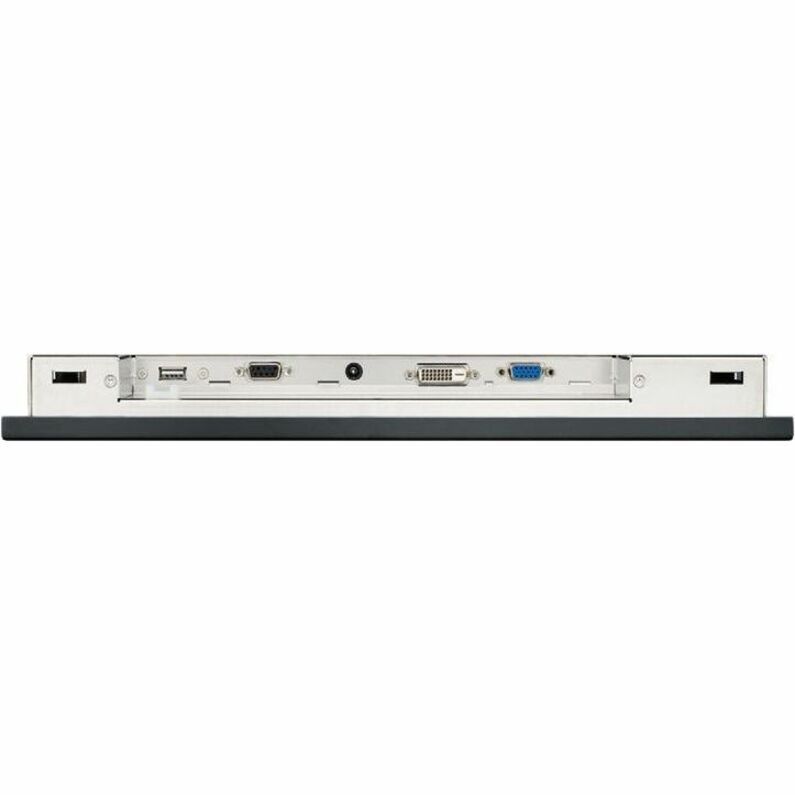

Interfaces/Ports
USB
Yes
VGA
Yes
Number of USB Ports
1
DVI-D
Yes
Physical Characteristics

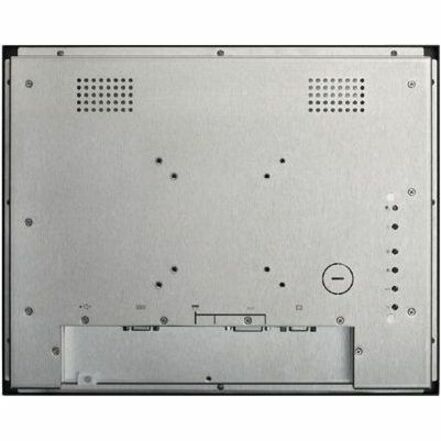

VESA Mount Compatible
Yes
VESA Mount Standard
100 x 100
Height
14.7"
Width
17.7"
Depth
1.6"
Technical Information
Screen Size Class
19"
Viewable Screen Size
19"
Screen Mode
SXGA
Response Time
5 ms
Horizontal Viewing Angle
170°
Vertical Viewing Angle
160°
Mount Type
Panel Mount, Front Mount
Backlight Technology
LED
Features
Anti-reflective, On-screen Display (OSD), Power Switch, AutoTune
Glass Hardness
3H
Touchscreen Information
Touchscreen Type
5-wire Resistive
Video
Maximum Resolution
1280 x 1024
Color Supported
16.7 Million Colors
Native Contrast Ratio
1,000:1
Brightness
350 Nit
Warranty
Limited Warranty
2 Year
Environmental Conditions
Operating Temperature Range
32°F (0°C) to 113°F (45°C)
Non-operating Temperature Range
-4°F (-20°C) to 140°F (60°C)
Operating Humidity Range
5% to 95% (Non-condensing)
Miscellaneous
Package Contents
19" SXGA Industrial Panel Mount Monitor 1 x M cable USB-A(M)/USB-A(M) 180 cm 1 x VGA cable 15P(M) 180 cm 8 x clamper 8 x clamper screw M4_25L 1 x cable clamp 1 x cable clamp screw 1 x cable tie
