SKU
IDK-2119R-K2SXA2E
Category
Touchscreen Monitors
Overview

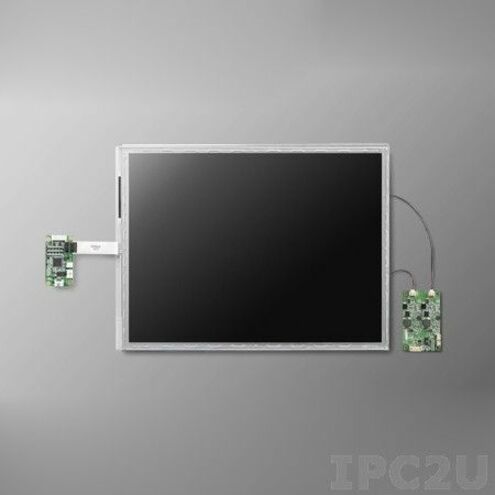

The Advantech IDK-2119 series comes with a 19" 1200 cd/m2 industrial grade LCD display, and an LED driver board. The series is also available with flexible options for touch screens and enhanced treatment such as AR surface treatment and optical bonding solution. IDK-2119 series supports 1200 cd/m2 high brightness with low power consumption at the maximum consumption of 35.42 W. Equipped with high level of brightness and wide operating temperature, IDK-2119 provides superior sunlight readability and is perfect for applications whether in semi-outdoor or outdoor environments.
Highlights
19" LCD supports 1280 x 1024 pixels and wide operating temperature
(0 ~ 50° C)
Ultra-high brightness of 1200 cd/m2
with LED backlight
High contrast ratio of 1000:1
High uniformity of 85%
Superior sunlight readability
LVDS signal interface
Low power consumption 35.42 W
AR surface treatment (optional)
Manually VR brightness control (optional)
Auto-dimming solution with light sensor (optional)
Optical bonding (optional)
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
IDK-2119R-K2SXA2E
Brand Name
Advantech
Product Series
IDK-2119
Product Model
IDK-2119R-K2SXA2E
Product Name
19" 1,200 cd/m2 Ultra High Brightness Industrial Display Kit with LED B/L
Product Type
LED Touchscreen Monitor
Interfaces/Ports
USB
Yes
Physical Characteristics
Height
12.8"
Width
15.6"
Depth
0.9"
Weight (Approximate)
6.09 lb
Power Description
Maximum Power Consumption
35.42 W
Technical Information
Screen Size Class
19"
Viewable Screen Size
19"
Screen Mode
SXGA
Response Time
5 ms
Horizontal Viewing Angle
160°
Vertical Viewing Angle
170°
Backlight Technology
LED
Glass Hardness
3H
Touchscreen Information
Touchscreen Type
5-wire Resistive
Video
Maximum Resolution
1280 x 1024
Color Supported
16.7 Million Colors
Native Contrast Ratio
1,000:1
Brightness
1200 Nit
Environmental Conditions
Operating Temperature Range
32°F (0°C) to 122°F (50°C)
Operating Humidity Range
5% to 95% (Non-condensing)
Miscellaneous
Package Contents
19" 1,200 cd/m2 Ultra High Brightness Industrial Display Kit with LED B/L
