Advantech FPM-3171G 17" Class LCD Touchscreen Monitor
17" Viewable - Resistive - 1280 x 1024 - SXGA - 16.7 Million Colors - 350 Nit - LED Backlight - DVI - USB - VGA
- SKU
- FPM-3171G-R3BE
- Category
- Touchscreen Monitors
$1,496.57
Back ordered — ships when restocked.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- FPM-3171G-R3BE
- Category
- Touchscreen Monitors
Overview
Introduction

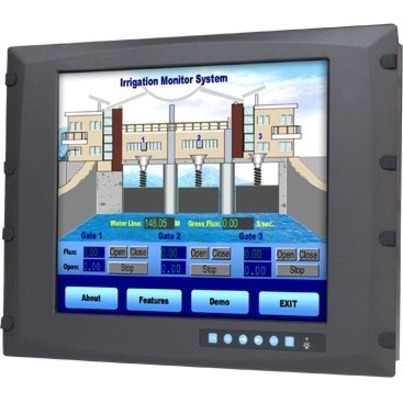

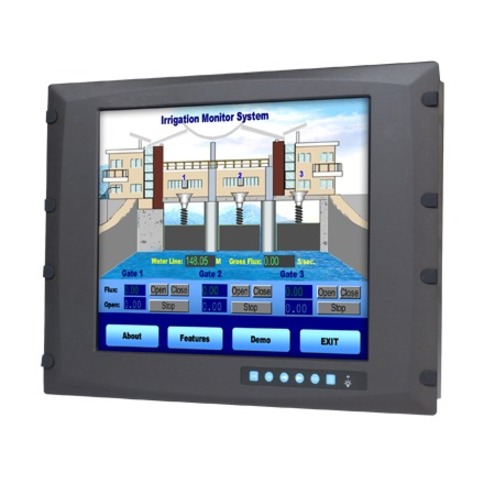

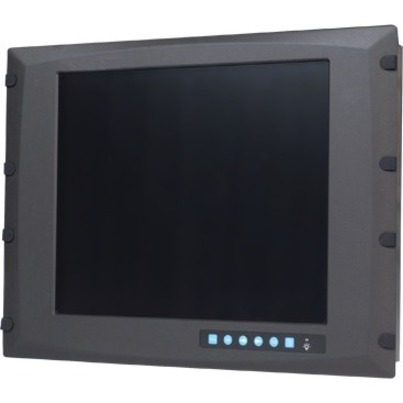

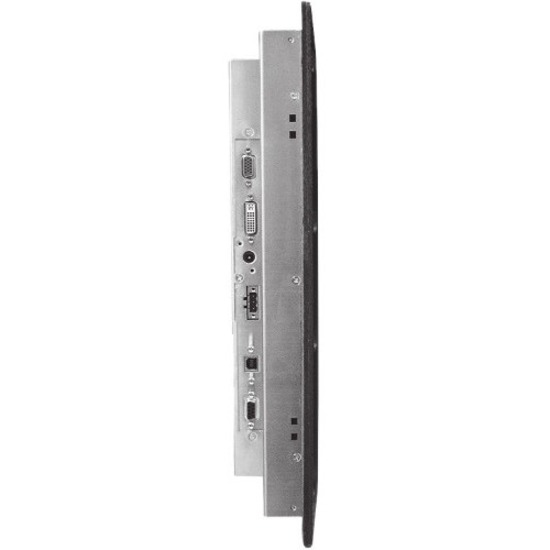

FPM-3171G is a 17" color TFT LCD flat panel monitor specifically designed for industrial applications. With a display size of 17" , FPM-3171G provides an adequate display area with sharp and vivid images. The monitor also supports direct VGA signal transmissions, allowing users to upgrade the displays without altering the existing infrastructure. The provision of OSD function keys makes it easy to adjust the onscreen display. Furthermore, the stainless steel chassis and IP65-rated aluminum front panel ensure suitability for industrial applications.
Highlights
- 17" SXGA TFT LED LCD with 50K backlight lifetime.
- Robust design with stainless steel chassis and aluminum front panel.
- Anti-glare screen with tempered glass and IP65-certified front panel.
- Lockable OSD control pad on rear cover.
- Supports 24 V DC power input.
- Supports panel, wall, desktop, rack, or VESA arm mounting.
- Supports 8U pre-drilled rackmount mounting holes.
Specifications
| Product Type | LCD Touchscreen Monitor |
|---|---|
| Manufacturer Part Number | FPM-3171G-R3BE |
| Packaged Quantity | 1 |
| Touchscreen Type | Resistive |
| Weight (Approximate) | 20.39 lb |
| Brightness | 350 Nit |
| Color Supported | 16.7 Million Colors |
| Manufacturer | Advantech Co., Ltd |
| Product Model | FPM-3171G |
| Product Name | 3171G-R3BE Touchscreen LCD Monitor |
| Mount Type | Panel Mount, Wall Mountable, Arm-mountable, Rack-mountable |
| Product Series | FPM-3000G |
| Viewable Screen Size | 17" |
| Maximum Resolution | 1280 x 1024 |
| Brand Name | Advantech |
| Screen Mode | SXGA |
| Country of Origin | Taiwan |
| Height | 14" |
| Width | 19" |
| Depth | 2.5" |
| Environmentally Friendly | Yes |
| USB | Yes |
| Backlight Technology | LED |
| VESA Mount Compatible | Yes |
| Operating Power Consumption | 23 W |
| Native Contrast Ratio | 1,000:1 |
| DVI | Yes |
| VGA | Yes |
| Screen Size Class | 17" |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
