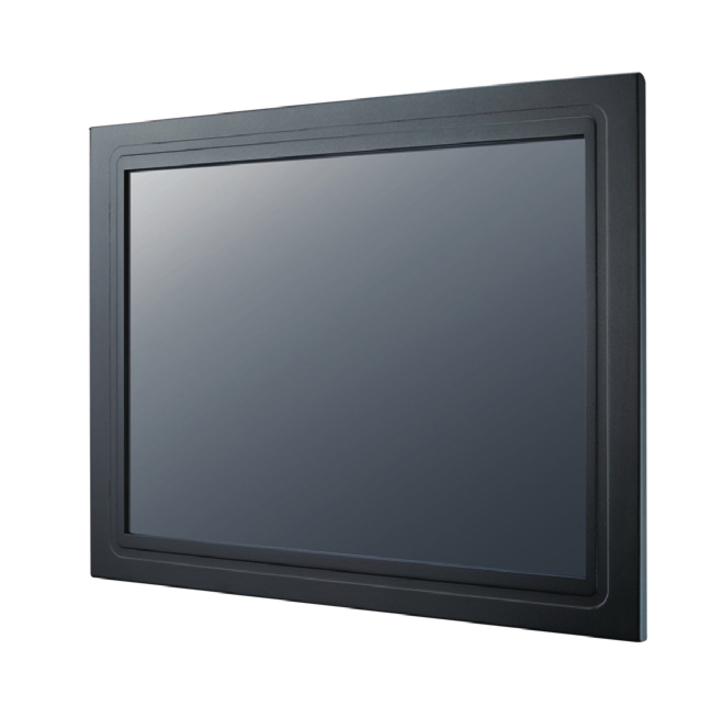

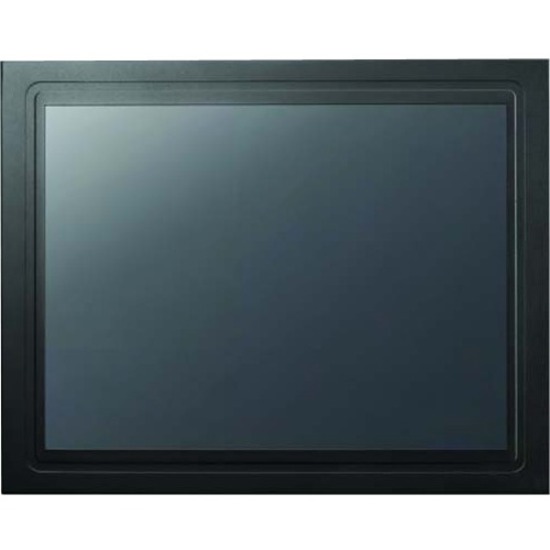

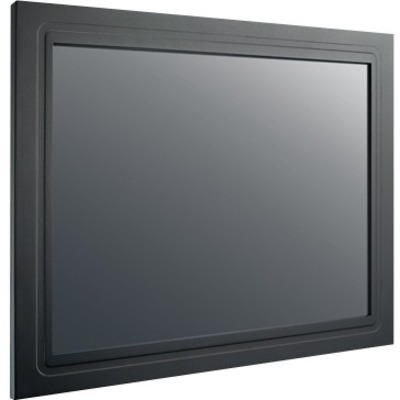

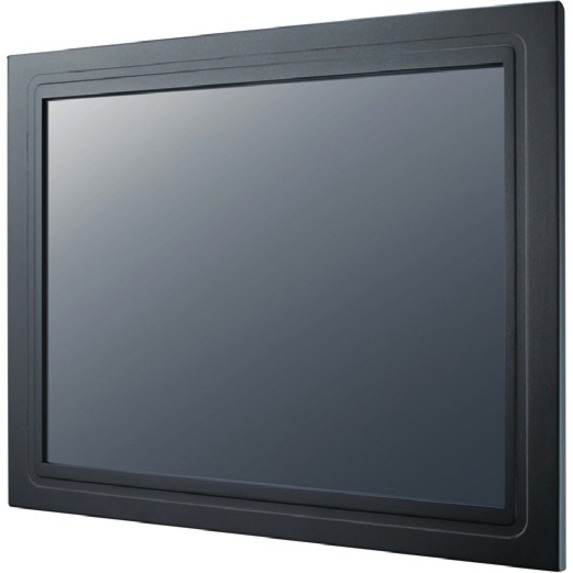

Advantech IDS-3217 17" Class LCD Touchscreen Monitor - 5 ms
17" Viewable - 5-wire Resistive - Multi-touch Screen - 1280 x 1024 - SXGA - 16.2 Million Colors - 250 Nit - LED Backlight - DVI - USB - VGA
- SKU
- IDS-3217ER-25SXA1E
- Category
- Touchscreen Monitors
$469.15
Back ordered — ships when restocked.
Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- IDS-3217ER-25SXA1E
- Category
- Touchscreen Monitors
Overview
• 17" SXGA LCD panel with LED backlight for 20% power saving and environmental protection
• -20 ~ +60° C wide range operating temperature
• 5-wire resistive touchscreen solution or 3mm tempered smudge resistant protected glass
• Combo touch interface: RS-232 and USB
• Dual signal interface with VGA & DVI (on selected models)
• Standard integrated frame

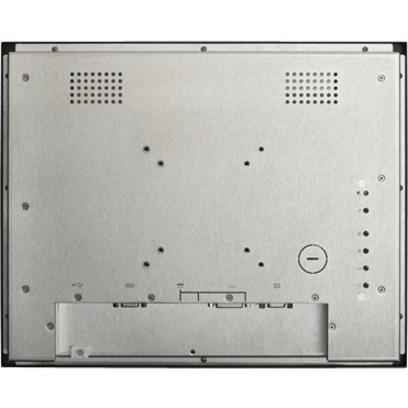

• Versatile mounting methods for front mounting and VESA mounting
• Anti-Reflective treatment (optional)
• Ultra high brightness solution of 1200 cd/m2 for outdoor applications (optional)
Highlights
- Experience vivid colors and sharp contrast with sxga lcd touchscreen monitor for immersive viewing
- SXGA touchscreen offers SXGA resolution up to 1280 x 1024 pixels for sharp, detailed visuals ideal for office and industrial use
- 5-wire Resistive touch technology uses glass and film layers with metallic coating for accurate and durable touch detection
- LED backlight enhances color range and contrast for lifelike visuals and smooth touch navigation
- Captivating visuals with about 250 Nit brightness levels for clear and vivid touchscreen performance
- VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
Specifications
| Product Type | LCD Touchscreen Monitor |
|---|---|
| Manufacturer Part Number | IDS-3217ER-25SXA1E |
| Response Time | 5 ms |
| Touchscreen Type | 5-wire Resistive |
| Weight (Approximate) | 10.36 lb |
| Brightness | 250 Nit |
| Color Supported | 16.2 Million Colors |
| Features | 3H Surface Hardness, On-screen Display (OSD) |
| Manufacturer | Advantech Co., Ltd |
| Product Model | IDS-3217 |
| Product Name | 17" SXGA Industrial Panel Mount Monitor |
| Mount Type | Panel Mount |
| Viewable Screen Size | 17" |
| Maximum Resolution | 1280 x 1024 |
| Brand Name | Advantech |
| Screen Mode | SXGA |
| Country of Origin | Taiwan |
| Height | 14.1" |
| Width | 16.7" |
| Depth | 1.5" |
| Horizontal Viewing Angle | 170° |
| Vertical Viewing Angle | 160° |
| Environmentally Friendly | Yes |
| USB | Yes |
| Backlight Technology | LED |
| VESA Mount Compatible | Yes |
| Native Contrast Ratio | 1,000:1 |
| DVI | Yes |
| VGA | Yes |
| Number of USB Ports | 1 |
| Multi-touch Screen | Yes |
| Screen Size Class | 17" |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
More Touchscreen Monitors from Advantech

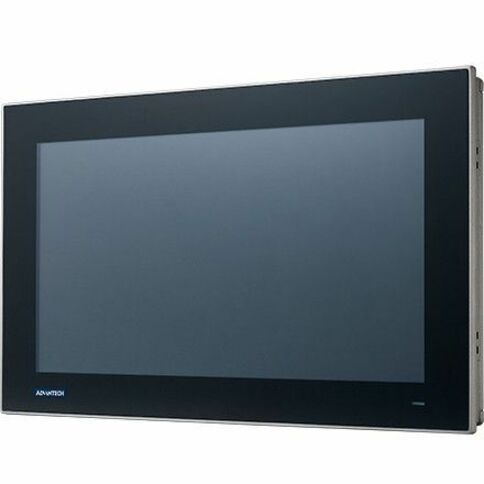

View the Advantech catalog →- AdvantechAdvantech FPM-121W-P7AE 22" Class LED Touchscreen Monitor - 21.5" Viewable - Projected Capacitive - 10 Point(s) Multi-touch Screen - 1920 x 1080 - Full HD - Thin Film Transistor (TFT) - 16.7 Million Colors - 250 Nit - LED Backlight - HDMI - USB - DisplayPort - USB HubFPM-121W-P7AE
