SKU
FPM-D24W-BE
Category
Touchscreen Monitors
Overview

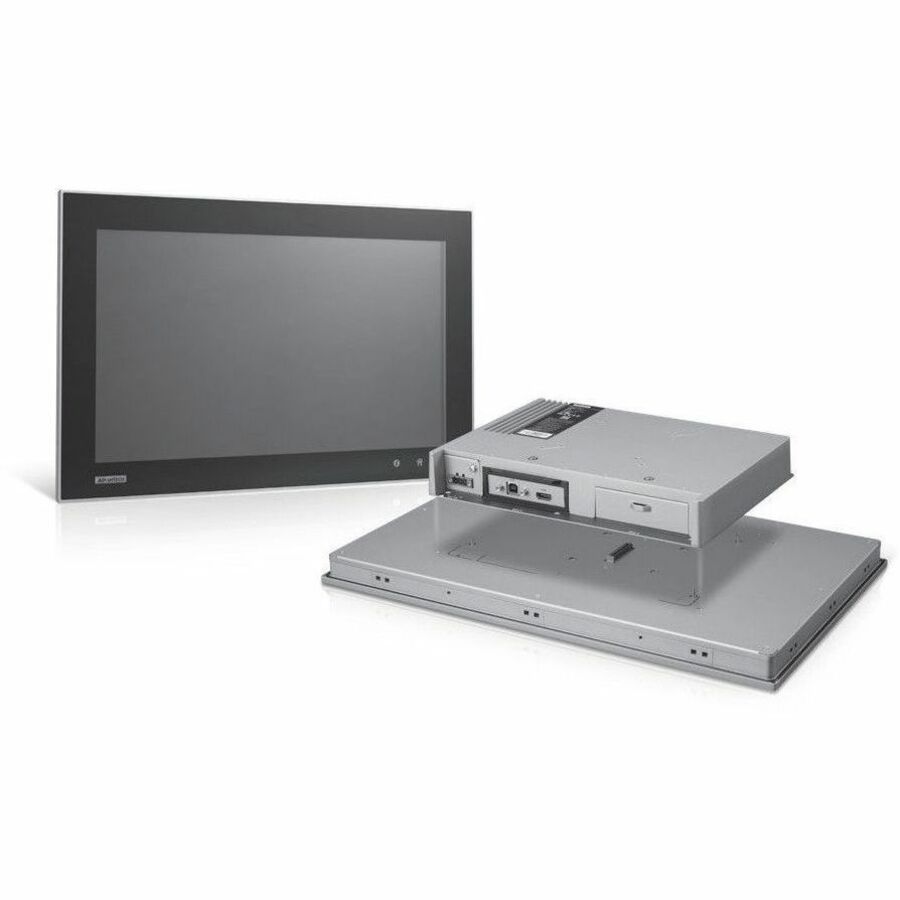

The modular industrial monitors, constructed by the powerful combination of Display Modules, Monitor Boxes and I/O Modules, extend the functionality of classical industrial monitors. The flexible modularized design, equipped with the powerful FPM-M700 I/O modules, allows users to change the video interface according to their usage demands. Additionally, unlike traditional industrial touch monitors that can only support controllers in a one-to-one capacity, the FPM series monitors can support two controllers simultaneously. Moreover, with the inclusion of Picture-in-Picture (PiP) technology, users can easily change the display layout and switch between units that need operating.
The FPM-7002 model also supports Advantech's iLINK technology, a long-distance data transmission solution. This technology is designed to resolve issues of touch signal degradation. The optional Wi-Fi and NFC features also allow users to flexibly configure the monitor systems.
Highlights
Industrial-grade LED LCD with a lifespan of 50,000 hours
Modular design enables fliexible configuration of video interfaces (HDMI, DP) and long distance transmission (iLink)
Display modules available in various sizes with projected capacitive or 5-wire resistive touch control
Front-facing iKey for OSD buttons
Capability of controlling 2 modular PCs simultaneously via FPM-M700 I/O modules
Supports Picture-in-Picture technology
IP66-rated front panel protects against water and dust
Supports a signal transmission distance of up to 100 m with iLINK technology
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
FPM-D24W-BE
Brand Name
Advantech
Product Series
FPM-7002
Product Model
FPM-D24W-BE
Product Name
FPM-D24W-BE Touchscreen LED Monitor
Product Type
LED Touchscreen Monitor
Physical Characteristics
VESA Mount Compatible
Yes
Height
14.7"
Width
23.5"
Depth
2.8"
Power Description
Operating Power Consumption
25 W
Maximum Power Consumption
70 W
Technical Information
Screen Size Class
24"
Viewable Screen Size
23.8"
Screen Mode
Full HD
Panel Technology
Thin Film Transistor (TFT)
Horizontal Viewing Angle
178°
Vertical Viewing Angle
178°
Mount Type
Panel Mount, Wall Mountable, Desk Mountable
Backlight Technology
LED
Features
Anti-glare, On-screen Display (OSD), Picture in Picture
Ingress Protection (IP) Rating
IP66
Touchscreen Information
Touchscreen Type
Projected Capacitive
Video
Maximum Resolution
1920 x 1080
Color Supported
16.7 Million Colors
Native Contrast Ratio
1,000:1
Brightness
350 Nit
Environmental Conditions
Operating Temperature Range
32°F (0°C) to 131°F (55°C)
Operating Humidity Range
10% to 90% (Non-condensing)
Miscellaneous
Environmental Compliance
China Restriction of Hazardous Substances (China RoHS)
