Advantech FPM-7061T-R3AE 7" Class LED Touchscreen Monitor - 4:3
6.5" Viewable - 5-wire Resistive - 640 x 480 - VGA - Thin Film Transistor (TFT) - 16.2 Million Colors - 800 Nit - LED Backlight - USB - DisplayPort
SKU
Category
Touchscreen Monitors
$730.30
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 4 and Nov 8, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Touchscreen Monitors
Overview

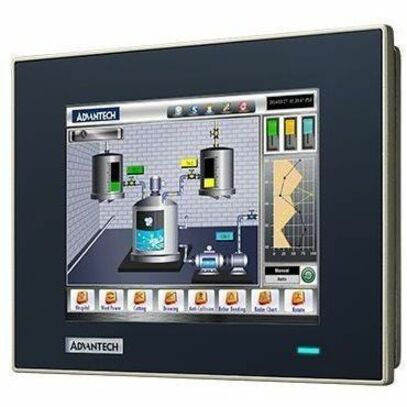

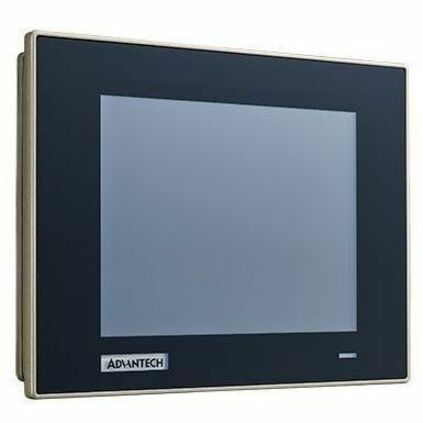

FPM-7000T series monitors are the first, true-flat, 4:3, industrial-grade monitors. The 5-wire resistive touchscreen is enclosed in a highly durable, die cast aluminum alloy front bezel that provides IP66-rated protection from water and dust ingress. Additionally, the FPM-7000T series monitors support a wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F) and various mount options to ensure easy installation and support for diverse environments.
More from the Manufacturer
FPM-7061T
6.5" VGA Industrial Monitor with Resistive Touch Control, Direct VGA/DP, and Wide Operating Temperature
6.5" VGA TFT LED LCD with 50,000 backlight life time
Robust design with IP66 compliance aluminum front panel
Wide operating temperature support -20~60°C
Anti-glare screen with tempered glass
Supports Panel, Wall, Desktop, or VESA arm mounting
USB interface for touchscreen function

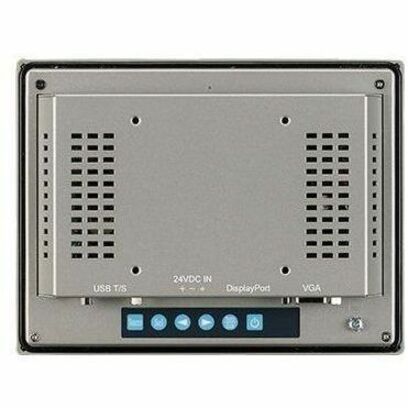

OSD control pad on rear cover

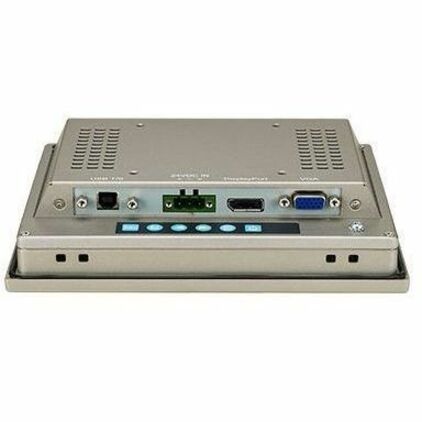

Lockable I/O connectors
Highlights
6.5" VGA TFT LED LCD with 50K backlight lifetime
Robust system with IP66-rated aluminum front panel
Wide operating temperature range (-20 ~ 60 °C/-4 ~ 140 °F)
Anti-glare touchscreen with tempered glass
Supports various mount options: panel, wall, desktop, and VESA arm
USB interface for touchscreen functionality
OSD control buttons on rear panel
Lockable I/O connectors
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
FPM-7061T-R3AE
Brand Name
Advantech
Product Series
FPM-7000T
Product Model
FPM-7061T-R3AE
Product Name
FPM-7061T-R3AE Widescreen Touchscreen LED Monitor
Product Type
LED Touchscreen Monitor
Interfaces/Ports
USB
Yes
DisplayPort
Yes
Physical Characteristics
VESA Mount Compatible
Yes
VESA Mount Standard
75 x 75
Height
5.9"
Width
7.8"
Depth
1.8"
Weight (Approximate)
2.65 lb
Technical Information
Screen Size Class
7"
Viewable Screen Size
6.5"
Screen Mode
VGA
Panel Technology
Thin Film Transistor (TFT)
Aspect Ratio
4:3
Horizontal Viewing Angle
160°
Vertical Viewing Angle
140°
Mount Type
Stand Mountable, Wall Mountable, Panel Mount, Desk Mountable, Arm-mountable
