Advantech IDS-3206 7" Class LCD Touchscreen Monitor - 25 ms
Advantech

Advantech IDS-3206 7" Class LCD Touchscreen Monitor - 25 ms

6.5" Viewable - 4-wire Resistive - 640 x 480 - XGA - 16.2 Million Colors - 800 Nit - LED Backlight - DVI - USB - VGA - 2 Year

SKU
IDS-3206G-80VGA1E
Category
Touchscreen Monitors

$309.14

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
IDS-3206G-80VGA1E
Category
Touchscreen Monitors

Overview

Introduction

The Advantech IDS-3206 Embedded Industrial Panel Mount Monitor series offers flexible options for LCD, touchscreen, signal interface and chassis mounting. The series with standard integrated frame design, supports rear and VESA mounting which brings the benefits of easy installation and provide flexibility for different applications.

Highlights

  • 6.5" VGA LCD panel with LED backlight for 20% power saving and environmental protection
  • 0° C ~ +50° C range operating temperature
  • 4-wire resistive touchscreen solution or 3mm tempered smudge resistant protected glass
  • USB touch interface

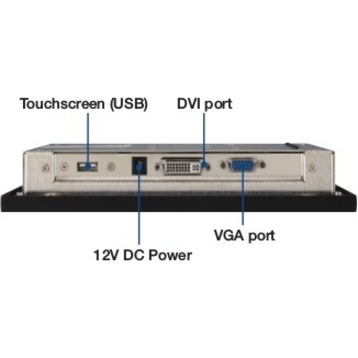

  • Dual signal interface with VGA & DVI
  • Standard integrated frame

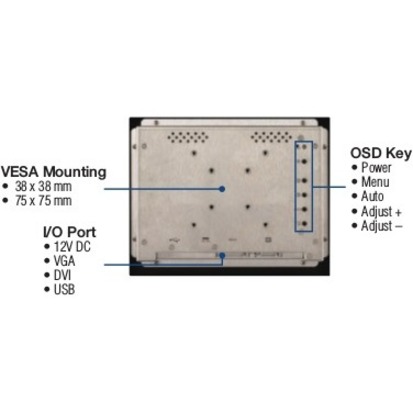

  • Versatile mounting method for rear mounting and VESA mounting
  • Anti-reflective treatment for sunlight readable enhancement (optional)

Specifications

Package Contents
  • 6.5" VGA Industrial Panel Mount Monitor
  • 1 x M Cable USB-A(M)/USB-A(M) 180CM
  • 1 x VGA cable 15P(M) 1.8 meter
  • 4 x Clamper
  • 4 x Screw of clamper M4_25L
Product TypeLCD Touchscreen Monitor
Manufacturer Part NumberIDS-3206G-80VGA1E
Response Time25 ms
Limited Warranty2 Year
Touchscreen Type4-wire Resistive
Weight (Approximate)2.65 lb
Brightness800 Nit
Color Supported16.2 Million Colors
ManufacturerAdvantech Co., Ltd
Product ModelIDS-3206
Product Name6.5" VGA Industrial Panel Mount Monitor
Mount TypeRear Mount
Viewable Screen Size6.5"
Maximum Resolution640 x 480
Brand NameAdvantech
Screen ModeXGA
Country of OriginTaiwan
Height6.8"
Width8.6"
Depth1.5"
Environmentally FriendlyYes
USBYes
Backlight TechnologyLED
VESA Mount CompatibleYes
VESA Mount Standard75 x 75
Operating Power Consumption36 W
Native Contrast Ratio600:1
DVIYes
VGAYes
Number of USB Ports1
Screen Size Class7"
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
