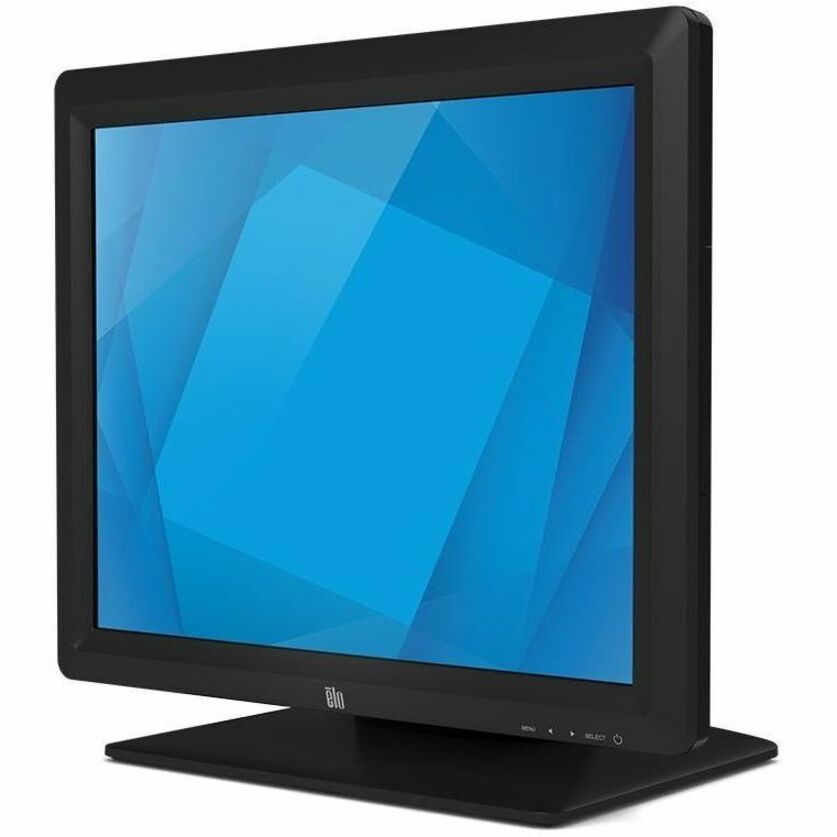

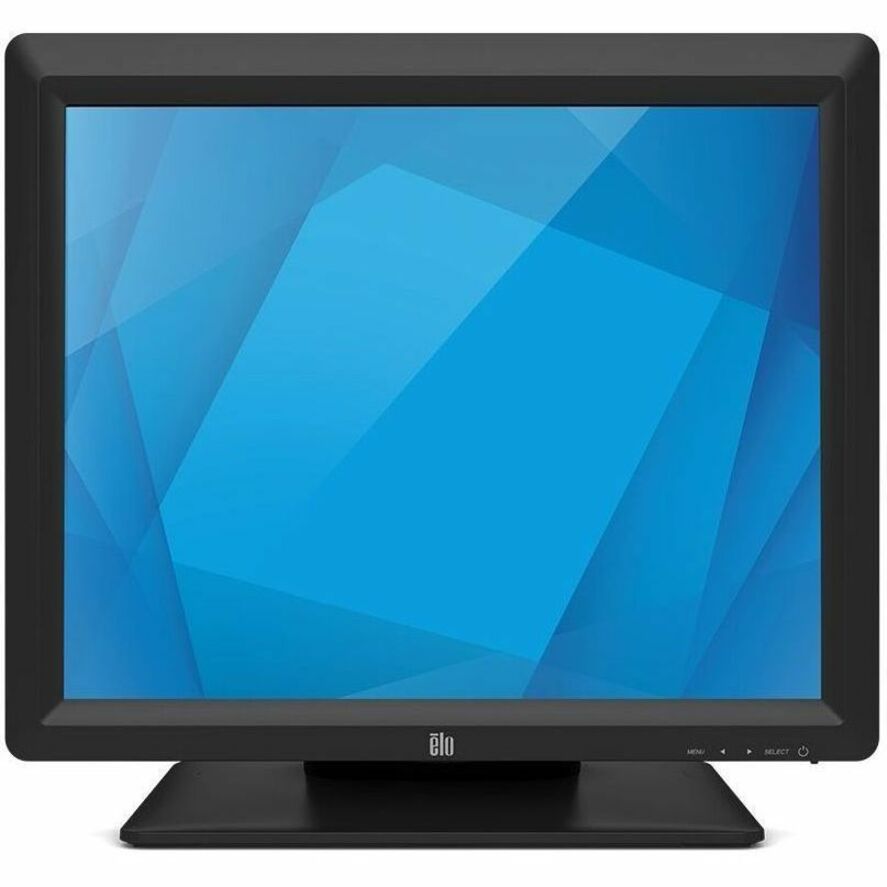

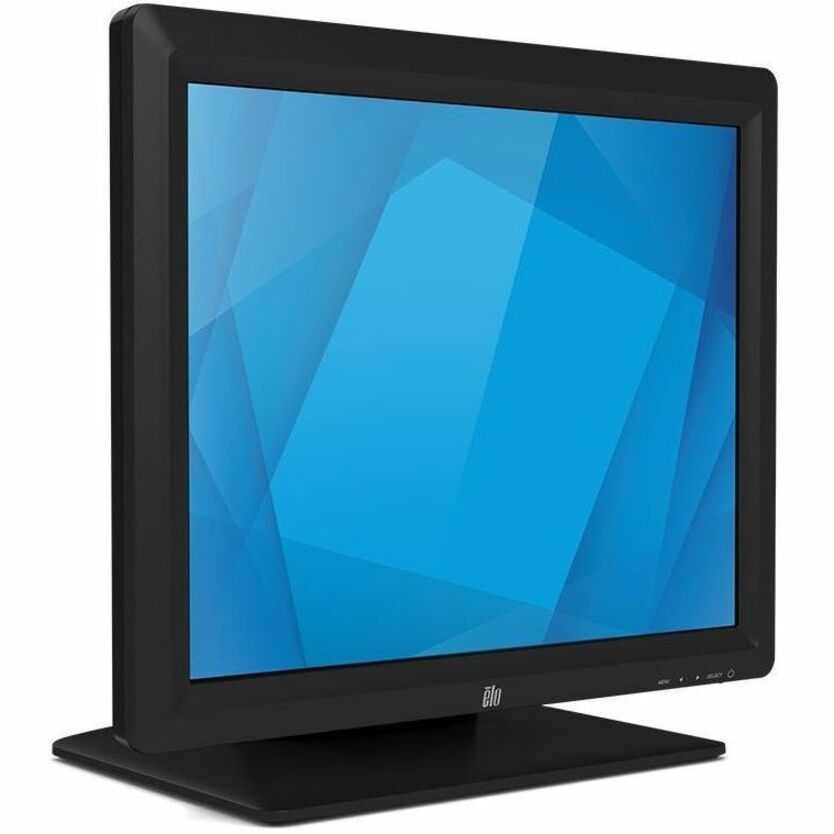

Elo 1517L 15" Class LED Touchscreen Monitor - 4:3 - 23 ms
15" Viewable - TouchPro Projected Capacitive - 1024 x 768 - XGA - Thin Film Transistor (TFT) - 16.2 Million Colors - 270 Nit - LED Backlight - HDMI - USB - VGA - Black - 3 Year
SKU
Category
Touchscreen Monitors
MSRP$825.00
$717.73
Save 13%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 4 and Nov 8, then process your delivery right after.
Genuine Elo Touch Solutions through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Touchscreen Monitors
Overview
The Elo 1517L standard format touchscreen monitor is built to withstand the rigors of continuous public use with a rugged built-for-touch design. Its stylish, thin and modern look, coupled with a retail-focused feature set and is an attractive solution for commercial touchscreen monitor needs. The 1517L is well suited for point-of-sale, point-of-information, point-of-service, interactive signage and loyalty systems. The touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
Integrated touch. | MSR ready.
The 1517L offers an optional three-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation (USB only), is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
Flexible mounting.

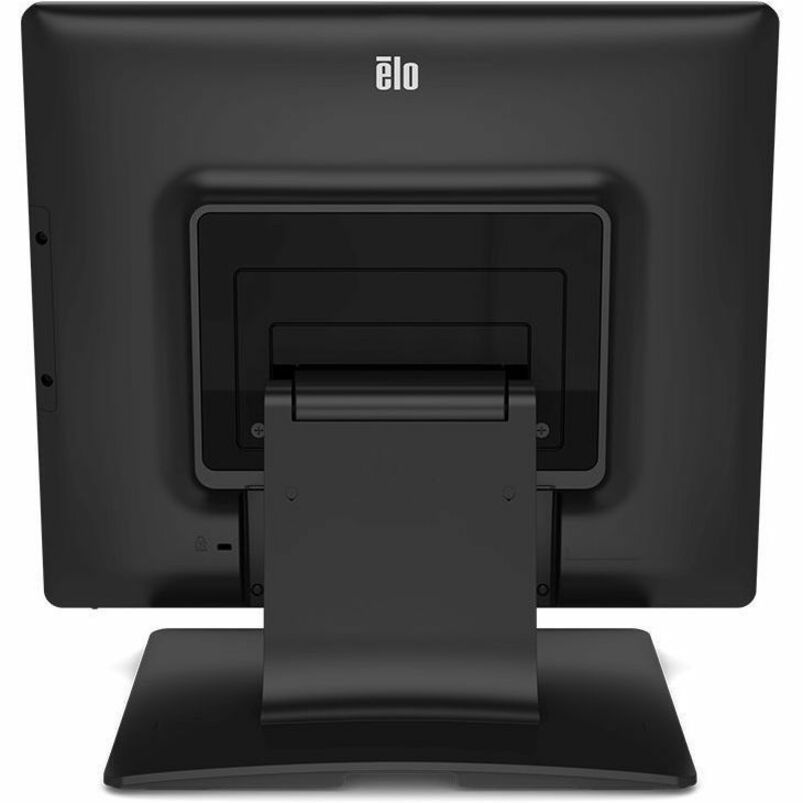

The Elo 1517L offers multiple mounting options to ensure installation flexibility including: wall- and pole-mount via standard VESA mount patterns as well as tabletop accommodations with the use of the desktop stand. Capped through-mount holes on the base of the touch monitor ensure table-top security.
Other features.
• Sleek and thin design with built-for-touch reliability
• Flexible and space-saving
• 60% Energy savings using LED technology
• Sealed touchscreen against dirt, dust and liquids
• Removable base and mounting options including VESA, wall and pole-mounting
• USB and RS232 serial connections
• Typical power consumption: 12W, internal and external power options
• Three-year standard warranty
Warranty
Limited Warranty: 3 Year
Highlights
Enjoy vibrant visuals and responsive interaction with the advanced xga, led touchscreen monitor LED touchscreen
XGA touchscreen supports XGA resolution up to 1024 x 768 pixels for dependable image quality in standard applications
LED backlight enhances color range and contrast for lifelike visuals and smooth touch navigation
Enjoy crisp visuals and vibrant hues with 270 Nit brightness for effortless touch navigation
VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
HDMI connectivity supports HD devices like gaming consoles, laptops, and cameras for an ultimate high-definition experience
Specifications
General Information
Manufacturer
Elo Touch Solutions, Inc
Manufacturer Part Number
E596184
Brand Name
Elo
Product Model
1517L
Product Name
1517L 15" Touchscreen Monitor
Product Type
LED Touchscreen Monitor
Interfaces/Ports
HDMI
Yes
USB
Yes
VGA
Yes
USB Type-B
Yes
Physical Characteristics
Color Family
Black
VESA Mount Compatible
Yes
Product Color
Black
VESA Mount Standard
75 x 75
Height
12.5"
Width
14.1"
Depth
2"
Height with Stand
12.50"
Width with Stand
14.10"
Depth with Stand
7.80"
Weight (Approximate)
9.48 lb
Power Description
Maximum Power Consumption
10.50 W
Technical Information
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Panel Technology
Thin Film Transistor (TFT)
Response Time
23 ms
Aspect Ratio
4:3
Horizontal Viewing Angle
160°
Vertical Viewing Angle
150°
Mount Type
Wall Mountable, Pole Mount, Desk Mountable
Placement
Tabletop
Backlight Technology
LED
Features
On-screen Display (OSD), Color Temperature Selection, Energy Saving Mode
Horizontal Frequency
31.50 kHz to 60 kHz
Vertical Frequency
56 Hz to 75 Hz
Active Display Area (H x V)
11.90" x 8.90"
Touchscreen Information
Touchscreen Type
TouchPro Projected Capacitive
Video
Maximum Resolution
1024 x 768
Color Supported
16.2 Million Colors
Native Contrast Ratio
800:1
Brightness
270 Nit
Warranty
Limited Warranty
3 Year
Environmental Conditions
Operating Temperature Range
32°F (0°C) to 104°F (40°C)
Operating Humidity Range
20% to 80% (Non-condensing)
Miscellaneous
Package Contents
1517L 15" Touchscreen Monitor
Quick Install Guide
VGA Cable (DB-15 Male to DB-15 Male)
Touch USB Cable (USB Type A Plug to USB Type B Plug)
Power Cable IEC 60320-C5 to NA/EU Plug
Stand Base Assembly
Filler Plate
HDMI Cable
Environmental Compliance
China Restriction of Hazardous Substances (China RoHS), Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
