Genuine Elo Touch Solutions through authorized distribution — NDAA §889 screened before checkout.
SKU
Category
Touchscreen Monitors
Overview

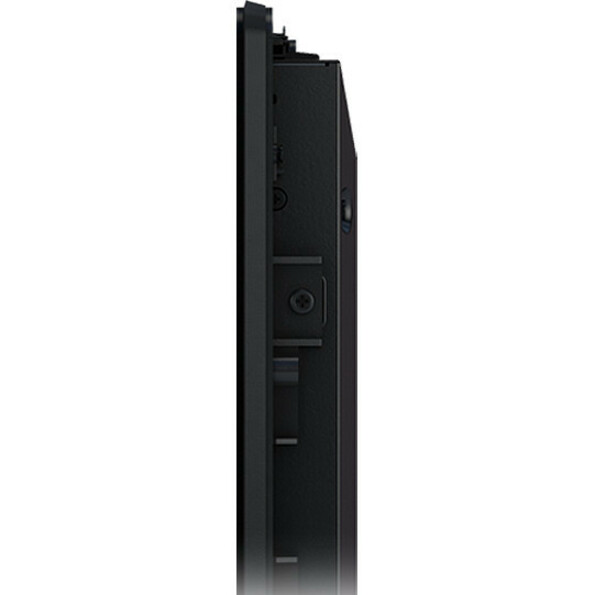

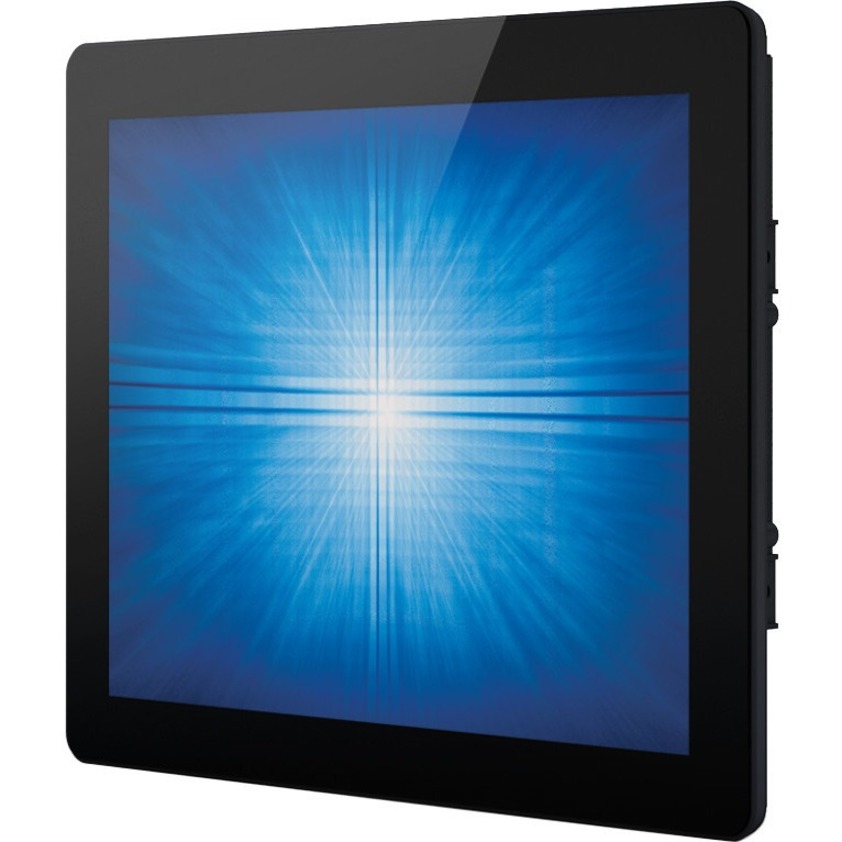

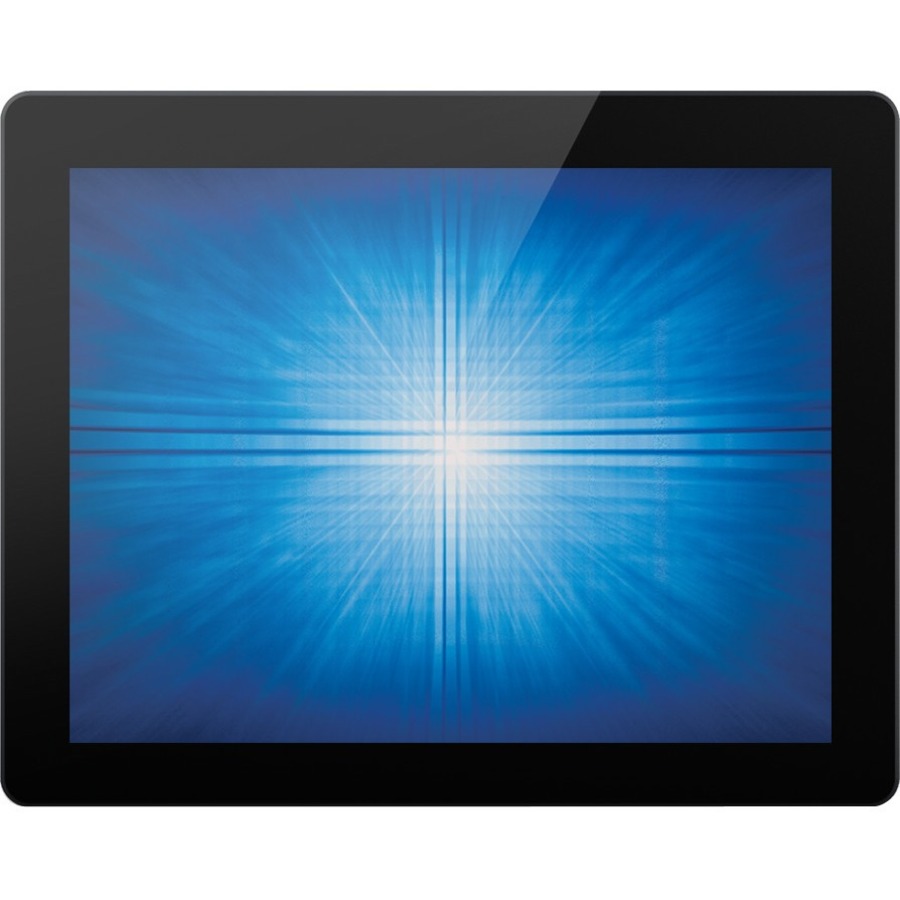

The Elo 1590L 15-inch open-frame LCD touch display features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact touch display is designed for touch, with proven Elo expertise and reliability built in. The 1590L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Instantly grabbing and holding users' attention, the 15-inch open frame is perfect for kiosks, casino and amusement, retail self-service, and industrial automation environments.

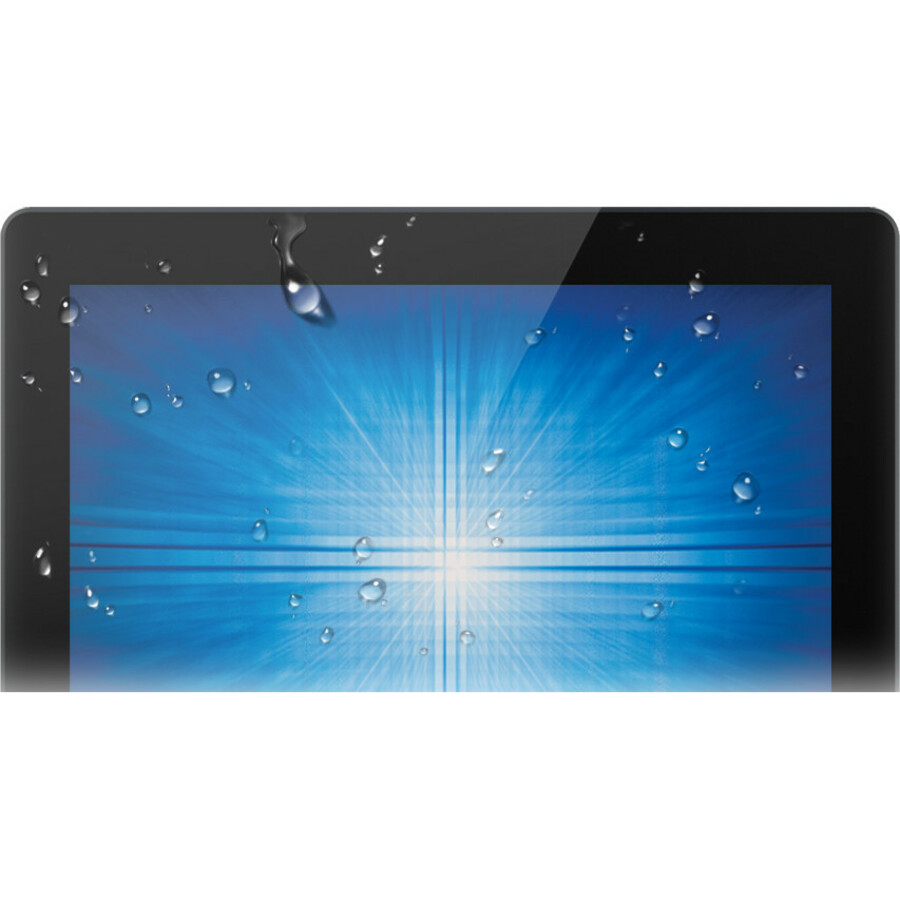

Easily integrated. The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
• Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
• Display Port and VGA video interfaces
• 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
Warranty
Limited Warranty: 3 Year
Highlights
The open-frame lcd touchscreen monitor is ideal for clubhouse gaming, entertainment, and self-service kiosks with reliable touchscreen performance
XGA touchscreen supports XGA resolution up to 1024 x 768 pixels for dependable image quality in standard applications

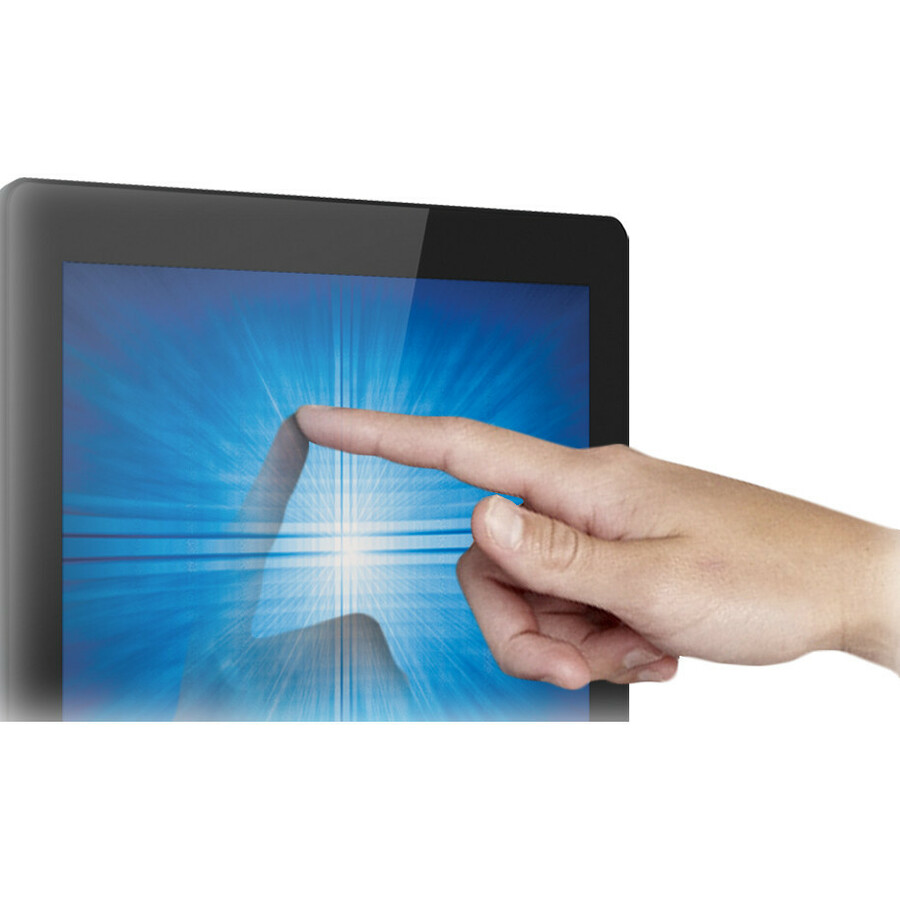

5-wire Resistive technology works with almost any objectstylus, gloved hand, pen, or fingersfor versatile touch input
LED backlight technology reduces power use and hazardous materials for eco-friendly performance
Captivating visuals with about 250 Nit brightness levels for clear and vivid touchscreen performance
The 700:1 contrast ratio offers superior shading for realistic images and smooth, responsive touch navigation
VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
Features HDMI input for seamless connection with PCs, Blu-ray players, and advanced gaming consoles for high-quality visuals
Specifications
General Information
Manufacturer
Elo Touch Solutions, Inc
Manufacturer Part Number
E326154
Brand Name
Elo
Product Model
1590L
Product Name
1590L 15" Open Frame Touchscreen (Rev B)
Product Type
Open-frame LCD Touchscreen Monitor
Interfaces/Ports
HDMI
Yes
USB
Yes
VGA
Yes
DisplayPort
Yes
Physical Characteristics
VESA Mount Compatible
Yes
Product Color
Black
Height
10.4"
Width
13.2"
Depth
1.7"
Weight (Approximate)
6.40 lb
Power Description
Operating Power Consumption
12.50 W
Technical Information
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Response Time
16 ms
Aspect Ratio
4:3
Mount Type
Rack-mountable, Front Mount
Backlight Technology
LED
Touchscreen Information
Touchscreen Type
5-wire Resistive
Video
Maximum Resolution
1024 x 768
Color Supported
16.2 Million Colors
Contrast Ratio
700:1
Brightness
250 Nit
Warranty
Limited Warranty
3 Year
Miscellaneous
Package Contents
1590L 15" Open Frame Touchscreen (Rev B)
HDMI cable
VGA Cable
RJ45 OSD Remote
Touch USB Cable
User Manual CD
Quick Install Guide
"L" (Side Mount) Brackets and w/Screws
EEI Label
Japan Class-B TM info sheet
Environmentally Friendly
Yes
Environmental Compliance
Restriction of Hazardous Substances (RoHS), China Restriction of Hazardous Substances (China RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
