Genuine Elo Touch Solutions through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
E210772
Category
Touchscreen Monitors
Overview

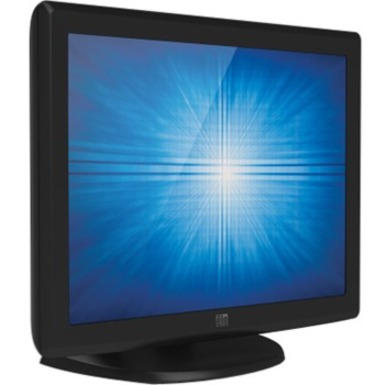

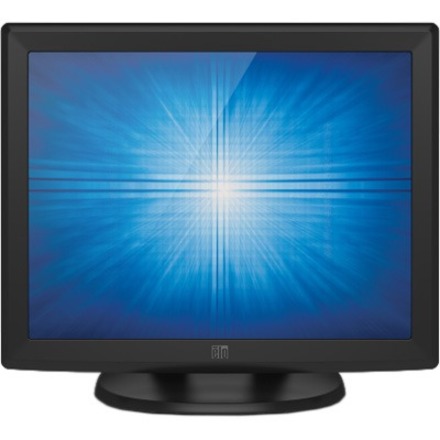

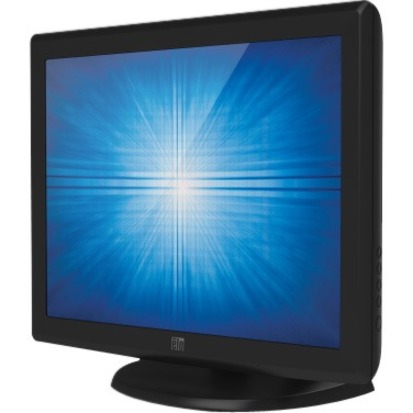

The Elo Touch Solutions 1515L touchmonitor is designed, developed and built to provide a cost-effective touch solution for system integrators and VARs. It packs Elo quality and reliability into a integrated, affordable touchmonitor with a footprint smaller than a standard 15" display. This cost and space-saving touchmonitor is "designed for touch"- the technology is built into the 1515L from the ground up and not added as an afterthought by altering the original monitor. It includes a stable base, with controls that are placed on the side rather than the front and are locked-out for public use. The 1515L can function as a desktop or wall-mounted unit and includes a VESA mounting option. The optional 3-track magnetic stripe reader (MSR), is easily installed by the user, providing an elegant, integrated solution. The display is factory sealed against dirt and dust, and the unit offers a choice of touchscreen technologies: the anti-glare clarity and superior performance of IntelliTouch surface acoustic wave, time- tested AccuTouch five-wire resistive, and IntelliTouch Pro projected capacitive (PCAP) for a multi-touch experience and zero-bezel, seamless design.
The Elo 1515L 15" LCD desktop touchmonitor provides an affordable product in a convenient, space- saving design that both first-time and experienced users can deploy more easily, reliably, and more cost- effectively than ever before.
Warranty
Limited Warranty: 3 Year
Highlights
The XGA lcd touchscreen monitor is perfect for retail, hospitality, and point-of-sale applications
XGA touchscreen supports XGA resolution up to 1024 x 768 pixels for dependable image quality in standard applications
LED backlight technology reduces power use and hazardous materials for eco-friendly performance
Enjoy crisp visuals and vibrant hues with 250 Nit brightness for effortless touch navigation
The 700:1 contrast ratio offers superior shading for realistic images and smooth, responsive touch navigation
16.7 million colors supported for lifelike visuals and smooth touch-based creative workflows

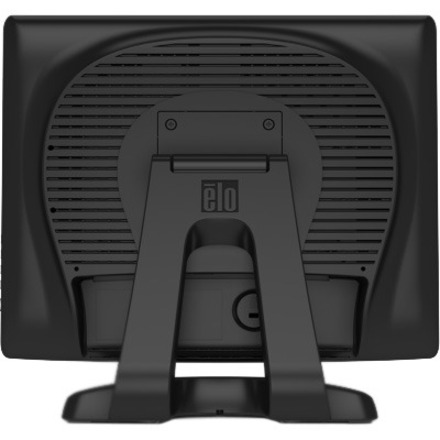

VESA mount compatibility allows flexible installation on walls or stands to suit your workspace needs
Specifications
General Information
Manufacturer
Elo Touch Solutions, Inc
Manufacturer Part Number
E210772
Brand Name
Elo
Product Series
1000
Product Model
1515L
Product Name
1515L 15" Desktop Touchmonitor
Product Type
LCD Touchscreen Monitor
Interfaces/Ports
USB
Yes
VGA
Yes
Physical Characteristics
Color Family
Gray
VESA Mount Compatible
Yes
Product Color
Dark Gray
VESA Mount Standard
75 x 75
Height
12.2"
Width
13.8"
Depth
6.9"
Weight (Approximate)
7.30 lb
Weight with Stand (Approximate)
10.60 lb
Power Description
Operating Power Consumption
13 W
Technical Information
Screen Size Class
15"
Viewable Screen Size
15"
Screen Mode
XGA
Response Time
11.70 ms
Aspect Ratio
4:3
Horizontal Viewing Angle
140°
Vertical Viewing Angle
115°
Backlight Technology
LED
Touchscreen Information
Touchscreen Type
AccuTouch
Video
Maximum Resolution
1024 x 768
Color Supported
16.7 Million Colors
Contrast Ratio
700:1
Brightness
250 Nit
Warranty
Limited Warranty
3 Year
Miscellaneous
Environmentally Friendly
Yes
Environmental Compliance
China Restriction of Hazardous Substances (China RoHS)
