Advantech IDS-3112N-60XGA1E 12" Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms
Advantech

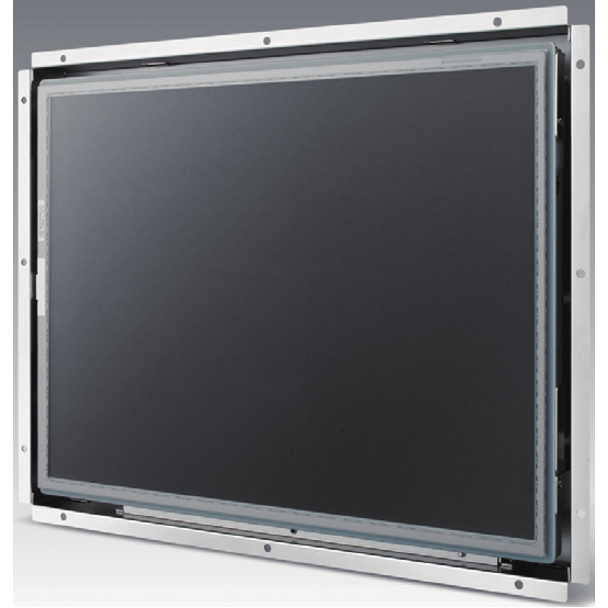

Advantech IDS-3112N-60XGA1E 12" Class Open-frame LCD Touchscreen Monitor - 4:3 - 16 ms

12.1" Viewable - 5-wire Resistive - 1024 x 768 - XGA - 16.2 Million Colors - 600 Nit - LED Backlight - DVI - USB - VGA - 2 Year

SKU
IDS-3112N-60XGA1E
Category
Touchscreen Monitors

$340.74

Back ordered

Back ordered — ships when restocked.

Get a quote

Genuine Advantech through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.

SKU
IDS-3112N-60XGA1E
Category
Touchscreen Monitors

Overview

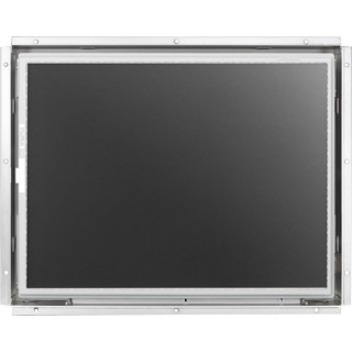

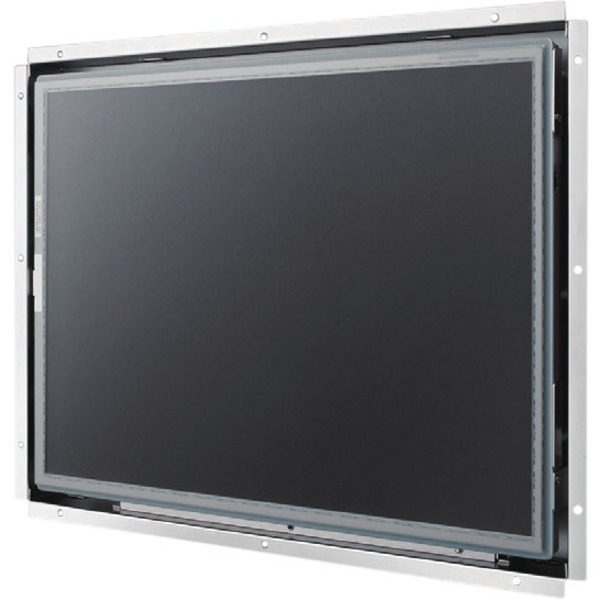

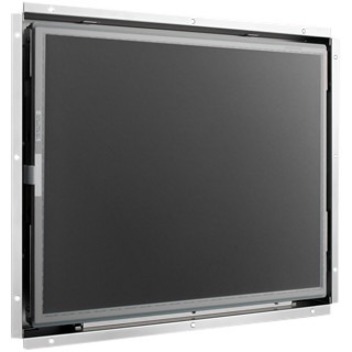

The Advantech IDS-3112 Open Frame Monitor Series offer ultra slim design supporting a 12.1" 1024 x 768 and 800 x 600 pixels TFT LCD screen, with -20 ~ 60° C wide operating temperature, and optional resistive touchscreen. The series supports rear and VESA mounting and is ideal for different embedded applications.

Highlights

  • 12.1" 1024 x 768 XGA, 800 x 600 SVGA panel with LED backlight for 20% power saving and environmental protection
  • -20°C~+60°C wide operating temperature support
  • 5-wires resistive touchscreen solution
  • Combo touch interface of RS-232 and USB
  • Dual signal interface with VGA and DVI
  • Integrated bracket for easy installation

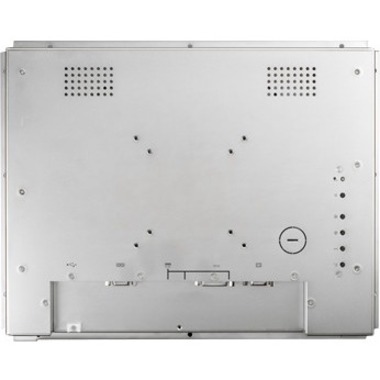

  • Versatile mounting methods for Rear mounting and VESA mounting
  • Anti-Reflective surface treatment for sunlight readable enhancement (optional)
  • Ultra high brightness solution of 1200 nits for outdoor application (optional)
  • Datasheet (PDF)

Specifications

Aspect Ratio4:3

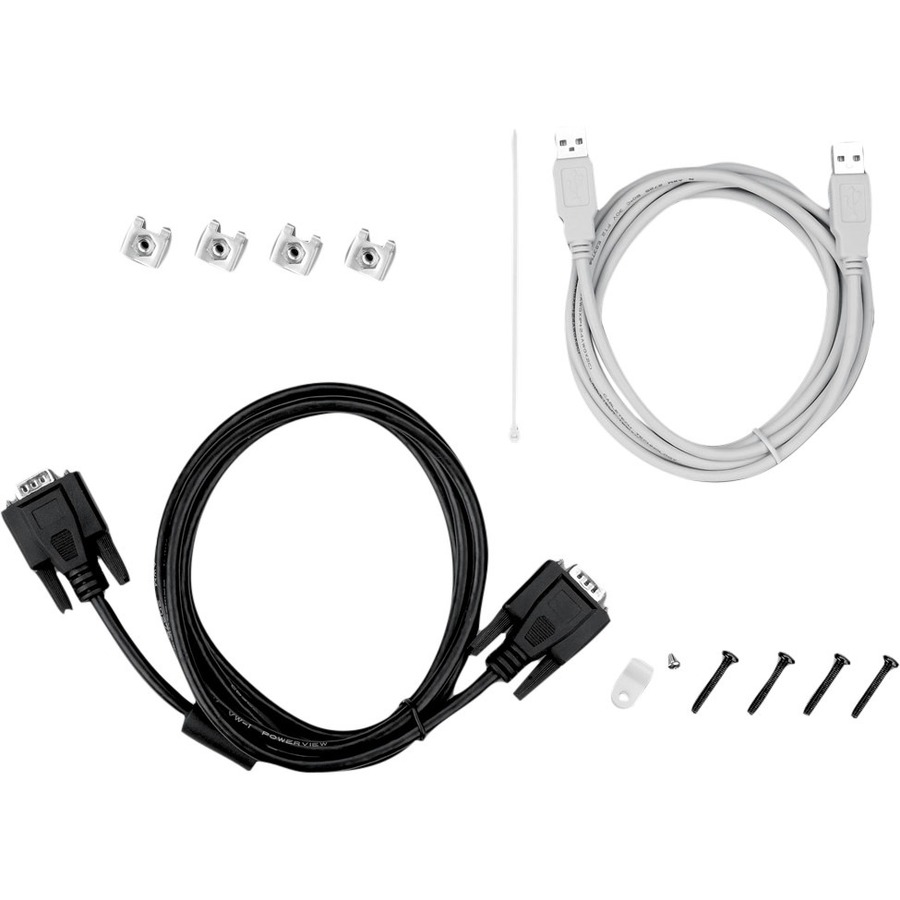

Package Contents
  • IDS-3112 Open Frame LCD Touchscreen Monitor
  • 1 x M Cable USB-A(M)/USB-A(M) 180CM
  • 1 x VGA cable 15P(M) 180 cm
  • 4 x Clamper
  • 4 x Screw of clamper M4_25L
  • 1 x Cable clamp
  • 1 x Screw of cable clamp
  • 1 x Cable tie
Product TypeOpen-frame LCD Touchscreen Monitor
Manufacturer Part NumberIDS-3112N-60XGA1E
Response Time16 ms
Limited Warranty2 Year
Touchscreen Type5-wire Resistive
Weight (Approximate)3.48 lb
Brightness600 Nit
Color Supported16.2 Million Colors
ManufacturerAdvantech Co., Ltd
Product ModelIDS-3112N-60XGA1E
Product NameIDS-3112N-60XGA1E Open Frame LCD Touchscreen Monitor
Mount TypeRear Mount
Product SeriesIDS-3112
Viewable Screen Size12.1"
Maximum Resolution1024 x 768
Brand NameAdvantech
Screen ModeXGA
Country of OriginTaiwan
Height9.9"
Width12.6"
Depth1.2"
Environmentally FriendlyYes
USBYes
Backlight TechnologyLED
VESA Mount CompatibleYes
VESA Mount Standard100 x 100
Operating Power Consumption36 W
Native Contrast Ratio700:1
DVIYes
VGAYes
Number of USB Ports1
Screen Size Class12"
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
