Advantech Ethernet to Multi-mode SC Type Fiber Optic Converter
1 x Network (RJ-45) - 1 x SC Ports - DuplexSC Port - Multi-mode - Fast Ethernet - 100Base-FX, 10/100Base-TX - 2 km - AC Adapter - Rail-mountable, Wall Mountable, Panel-mountable
SKU
Category
Transceivers/Media Converters
MSRP$194.71
$171.63
Save 12%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Transceivers/Media Converters
Overview

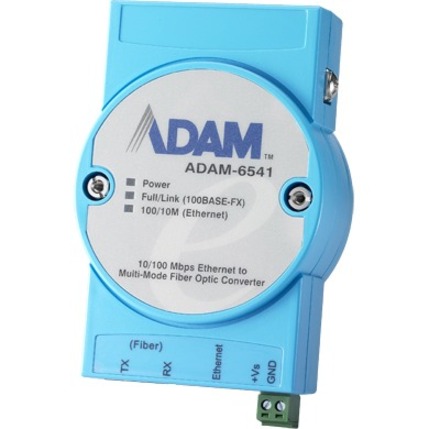

ADAM-6541 is designed to convert Ethernet networks to fiber networks. It does so by transparently converting Ethernet signals to optic signals. The advantages of fiber optics are wide bandwidth, EMI immunity and long-distance transmission capability. Therefore, ADAM-6541 is an ideal solution for "fiber to building" applications at central offices or local sites.
ADAM-6541 supports MDI/MDIX auto detection, so you don't need to use crossover wires. It also includes a switch controller that can sense the transmission speed (10/100 Mbps) automatically.Both the Ethernet port and the fiber port have memory buffers that support store-and-forward mechanisms. This assures data can be transmitted properly.
ADAM-6541 is extremely compact and can be mounted in three different ways: DIN-rail, Wall and Stack. ADAM-6541 can work normally from 0 ~ 60°C and accepts a wide voltage range from 10 ~ 30 VDC. Besides, it also provides 3,000 VDC surge (EFT) protection against over-voltage, so it is suitable for harsh operating environments.
Highlights
With Optical Fiber cable, get the desired data transfer rate up to a required distance
Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
With 100Base-FX technology get up to 100Mbps data transfer rate over twisted pair cable
Fits neatly into a panel and allows you to keep your cables tidy and organized
Specifications
General Information
Manufacturer
Advantech Co., Ltd
Manufacturer Part Number
ADAM-6541-AE
Brand Name
Advantech
Product Model
ADAM-6541
Product Name
Ethernet to Multi-mode SC Type Fiber Optic Converter
