2 x Network (RJ-45) - 2x PoE+ (RJ-45) Ports - Gigabit Ethernet - 10/100/1000Base-T - 1 x Expansion Slots - SFP - 1 x SFP Slots - AC Adapter - Wall Mountable, DIN Rail Mountable, Desktop
SKU
Category
Transceivers/Media Converters
MSRP$207.56
$183.38
Save 12%
Back-ordered
Special order — estimated OEM lead time 3–8 weeks. Order today and we expect to receive stock between Oct 5 and Nov 9, then process your delivery right after.
Genuine Advantech through authorized distribution — NDAA §889 screened before checkout. TAA verified on request.
SKU
Category
Transceivers/Media Converters
Country of origin
Taiwan
Country of origin is manufacturer-reported and can vary by production lot. Where TAA applies to your purchase, we verify the shipping unit's origin on request.
Overview
Introduction

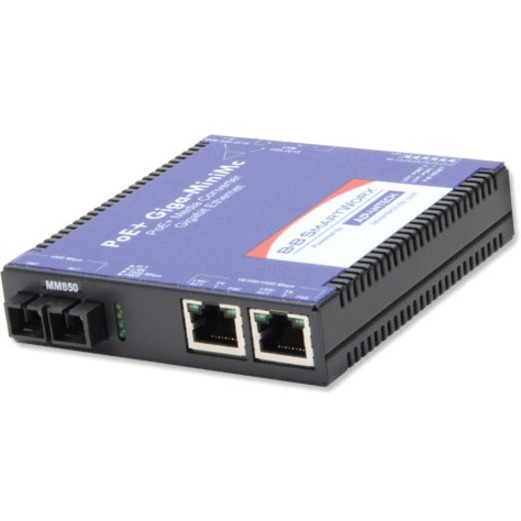

The IMC-380 and IMC-390 series are compact, multi-port media converters that support both IEEE802.3at PoE+ and IEEE802.3af PoE standards. These unmanaged, plug-n-play media converters with PoE capability are thus ideal solutions for Ethernet networks.
Designed with two 10/100/1000Base-T copper UTP ports and SFP or a fixed fiber transceiver, 1x9 uplink port for the network connection, the IMC-380 series can power one PD device through a standard CAT5 (or higher version) cable via one copper port while delivering data over the other port. The IMC-390 series is capable of powering up to two PD devices with a power budget of 60W.
The IMC-380 and IMC-390 series support Link Fault Pass Through (LFPT) functionality. LFPT is a troubleshooting feature that combines TX LinkLoss (Twisted Pair, copper interface) and FX LinkLoss (Fiber, fiber interface) from both local and remote IMC network media converters, when used in pairs. This feature, when enabled, will pass a link fault through the device at each segment. If a link fails on one interface of the media converter, the media converter will force the link down on its link partner and then forward it to the next interface.
Highlights
Supports IEEE802.3at PoE+ (25.5W) and IEEE802.3af PoE (15.4W) standards
Serves as a power sourcing equipment (PSE) device
Supports jumbo frame functionality (up to 10240 bytes)
Supports multiple mounting options (desktop, DIN rail or wall-mount)
