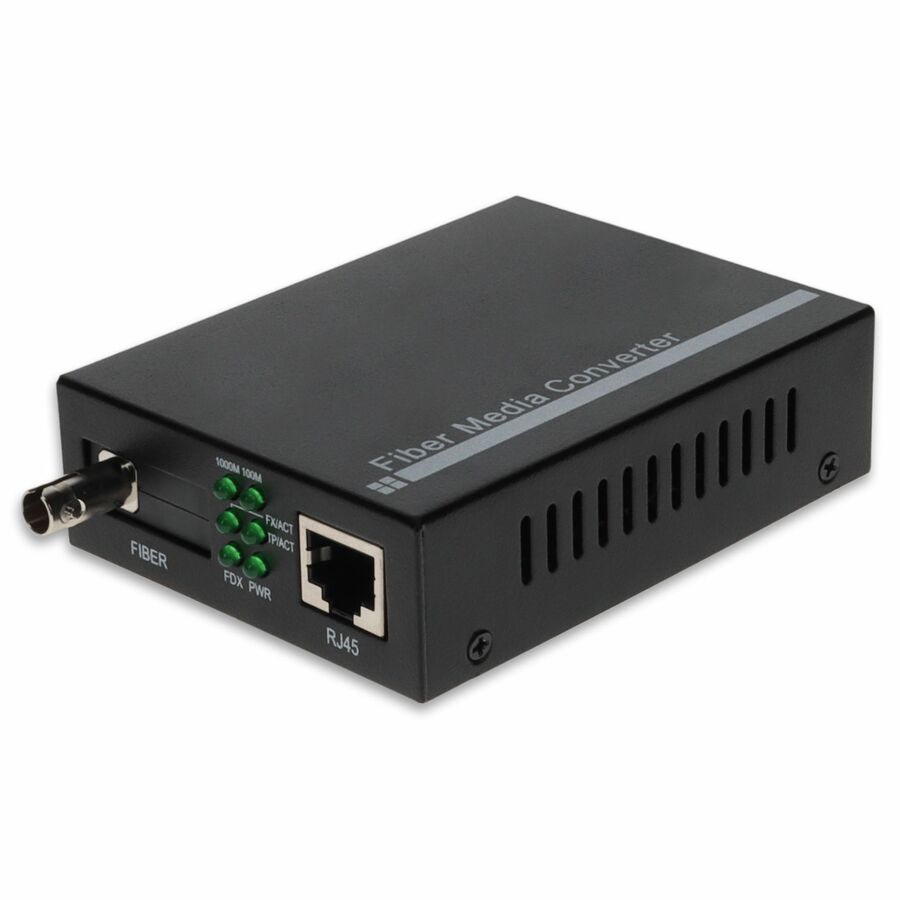

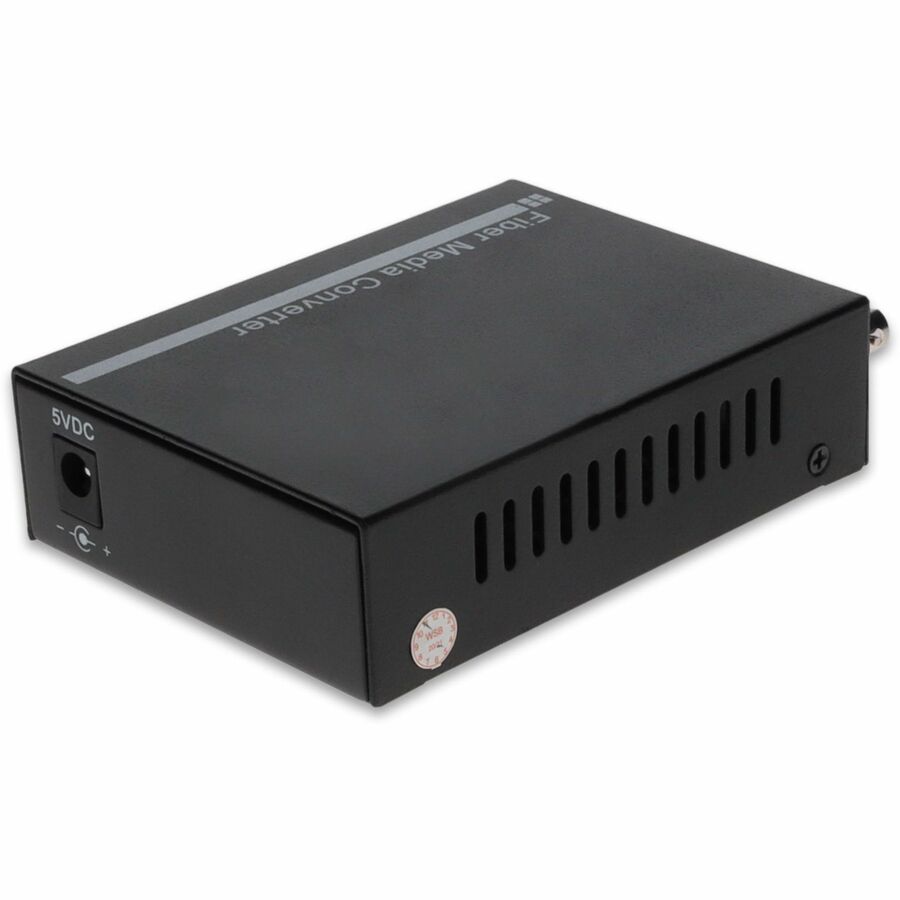

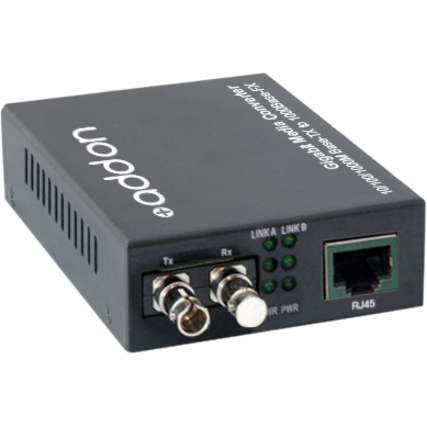

AddOn 10/100/1000Base-TX(RJ-45) to 1000Base-BXU(ST) BiDi SMF 1310nm/1550nm 20km Media Converter
100% compatible and guaranteed to work
- SKU
- ADD-GMC-BX-UST
- Category
- Transceivers/Media Converters
MSRP$310.00
$176.49
Save 43%In stock: 4
Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
- SKU
- ADD-GMC-BX-UST
- Category
- Transceivers/Media Converters
Overview
This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-BXU(ST) via a 1310nm/1550nm bi-directional (BiDi) single-mode fiber (SMF) ST connector, which allows distance reach up to 20km. This provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-BXU fiber, while extending the network reach beyond the 100m reach limitation of copper. Our media converters are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Highlights
- Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
- Expand your network capacity and fulfill requirement with this 2 transceiver/media converter
- With 1000Base-T technology get up to 1000Mbps data transfer rate over twisted pair cable
- Can be placed on Desktop surface for standalone installation
Specifications
| Product Type | Transceiver/Media Converter |
|---|---|
| Manufacturer Part Number | ADD-GMC-BX-UST |
| Maximum Distance Supported | 20 km |
| Packaged Quantity | 1 |
| Power Source | AC/DC |
| Limited Warranty | 3 Year |
| Weight (Approximate) | 8 oz |
| Form Factor | Desktop |
| Manufacturer | AddOn |
| Product Name | Transceiver/Media Converter |
| Network Technology | 1000Base-T, 1000Base-BX-U |
| Brand Name | AddOn |
| Country of Origin | China |
| Height | 3.5" |
| Width | 2.5" |
| Depth | 0.7" |
| Environmentally Friendly | Yes |
| Maximum Data Transfer Rate | 1 Gbit/s |
| Ethernet Technology | Gigabit Ethernet |
| USB | No |
| DVI | No |
| Number of Network (RJ-45) Ports | 1 |
| Network (RJ-45) | Yes |
| Management Port | No |
| Number of ST Ports | 1 |
| Media Type Supported | Twisted Pair, Optical Fiber |
| Fiber Mode Supported | Single-mode |
| Total Number of Ports | 2 |
| TAA Compliant | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Fiber Optic Cable Core/Cladding Specification | 9/125 µm |
| Fiber Optic Cable Wavelength | 1310 nm, 1550 nm |
