Genuine AddOn through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
ADD-GMC-LX-LC-POE
Category
Transceivers/Media Converters
Overview

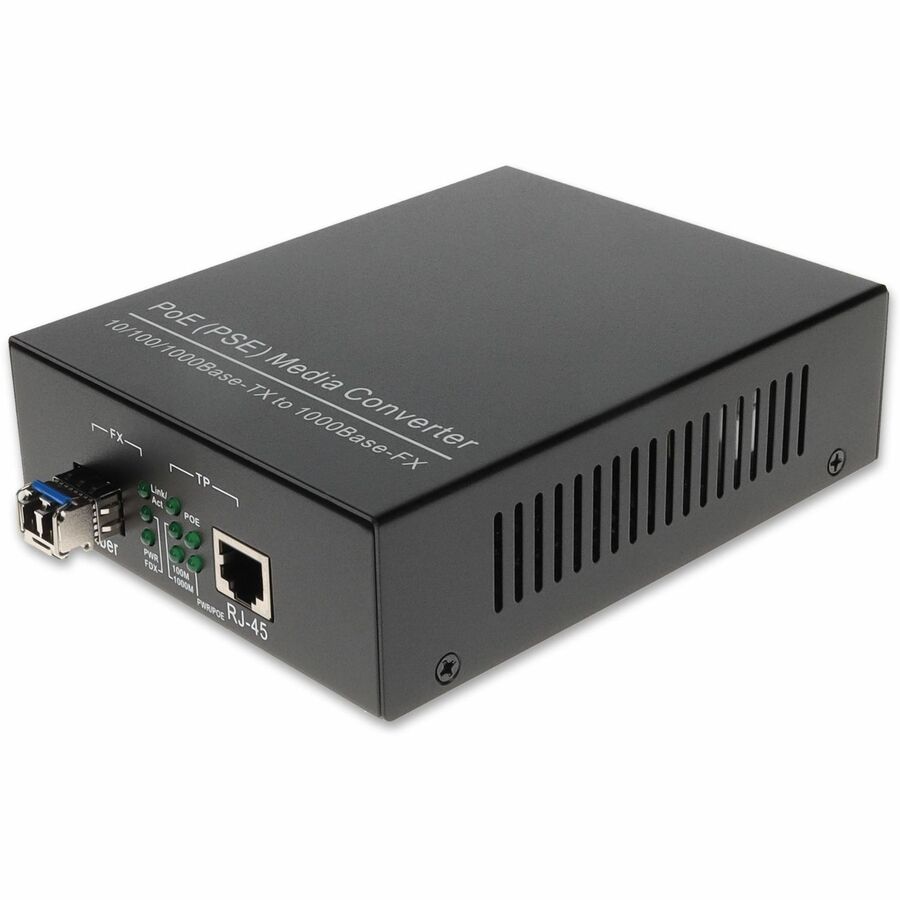

This is a media converter that converts a 10/100/1000Base-TX(RJ-45) to 1000Base-LX via an LC connector. The open SFP port also allows users to customize between the SX, LX, or BX connections. This media converter provides a cost effective conversion from 10/100/1000Base-TX(RJ-45) to 1000Base-X, while extending the network reach beyond the 100m reach limitation of copper. This AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE), which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to IEEE802.3af powered device (PD) over CAT5 and up UTP cable (cable length up to 100 meters / 330 feet). It complies with the IEEE802.3af standard. The converter includes a single port PSE controller, which offers PD signature sensing and power monitoring features. Other features include over-current protection and LFP function. The LFP (Link Fault Pass-through) allows the media converter to monitor both the fiber and copper RX port for loss of signal. In case of a loss of RX signal on one media port, the converter will automatically disable the TX signal to the other media port, thus passing through the link fault. Our media converters and network interface cards are 100% compliant for all of our networking needs. Now you have a cost effective solution to your network upgrade needs.
Highlights
Supports cost-efficient twisted pair cables for high-speed data transfer up to 100 meters
Connect different types of media within a network with this single port
With 10/100/1000Base-TX technology get up to 1000Mbps data transfer rate over twisted pair cable
Specifications
Product Type
Transceiver/Media Converter
Manufacturer Part Number
ADD-GMC-LX-LC-POE
Maximum Distance Supported
10 km
Packaged Quantity
1
Power Source
AC
Limited Warranty
3 Year
Weight (Approximate)
8 oz
Manufacturer
AddOn
Product Name
10/100/1000Base-TX(RJ-45) to 1000Base-LX(LC) SMF 1310nm 10km POE Media Converter
Network Technology
10/100/1000Base-TX, 1000Base-LX, 1000Base-X
Power Consumption
25 W
Brand Name
AddOn
Expansion Slot Type
SFP
Country of Origin
China
Height
5.5"
Width
4.5"
Depth
1.8"
Maximum Data Transfer Rate
1 Gbit/s
Ethernet Technology
Gigabit Ethernet
Number of Network (RJ-45) Ports
1
Network (RJ-45)
Yes
Number of SFP Slots
1
Number of PoE (RJ-45) Ports
1
Media Type Supported
Twisted Pair, Optical Fiber
Fiber Mode Supported
Multi-mode, Single-mode
Total Number of Ports
1
Total Number of Expansion Slots
1
PoE Port Type
PSE
TAA Compliant
No
Environmental Compliance
Restriction of Hazardous Substances (RoHS), Waste Electrical and Electronic Equipment Directive (WEEE)
