Genuine Western Digital through authorized distribution — TAA country-of-origin verified and NDAA §889 screened before checkout.
SKU
1EX0080
Category
Drive Cabinets
Overview

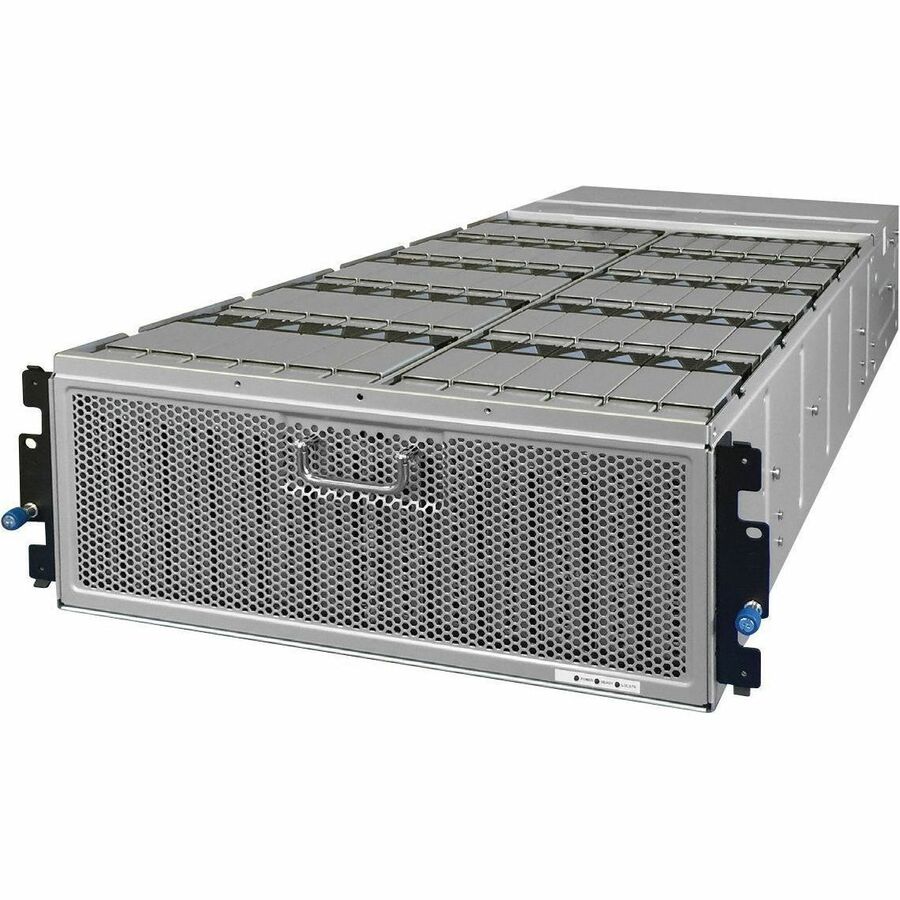

The HGST 4U60 Storage Enclosure is a high-density, scalable, and costeffective design, up to 60 Ultrastar® 3.5-inch drive modules (in multiples of 12) in a 4U enclosure. It offers 2x2x4-lane SAS 12Gb/s performance, high availability (HA), and hot-swappable components. The design is targeted towards data centers that need a dense solution with HA capabilities, while maintaining a low power profile.
Warranty
Limited Warranty: 5 Year
Highlights
Up to 60 integrated Ultrastar® drive modules: Available with 512e or 4Kn sector size (by part number); Available option to configure up to 12 Ultrastar SSDs to create separate performance tiers within the enclosure; Available with SAS drives for HA application or with SATA drives for cost optimized applications
Host connectivity 2 x SAS QSFP+ receptacles per IO Module; optional connectivity cables are available: QSFP+ to HD mini SAS cables for host; QSFP+ to QSFP+ cables for daisy-chaining
Hot Swappable: two power supplies (with integrated fans), drive modules, and IO modules
Fully compliant with SAS 3.0 specification for operation up to 12Gbps
Optional cable management arm eliminates tangled cables during servicing of hot-swappable CRUs
SCSI Enclosure Services (SES-3)
Microsoft Certified for Windows Server 2012, 2012 R2 & 2016
5-year limited warranty
Specifications
Controllers
Non-RAID Mode
JBOD
General Information
Manufacturer
Western Digital Corporation
Manufacturer Part Number
1EX0080
Brand Name
HGST
Product Model
4U60
Product Name
4U60 Storage Enclosure
Product Type
Drive Enclosure
Interfaces/Ports
Drive Interface
12Gb/s SAS
Host Interface
Mini-SAS HD
Physical Characteristics
Cooling Fan
Yes
Form Factor
Rack-mountable
Rack Height
4U
Height
6.9"
Width
16.7"
Depth
38.7"
Software
Operating System Supported
Windows Server 2012, Windows Server 2012 R2, Windows Server 2016
